Magnat Multi Monitor 220 Active Speaker System
500,00 €

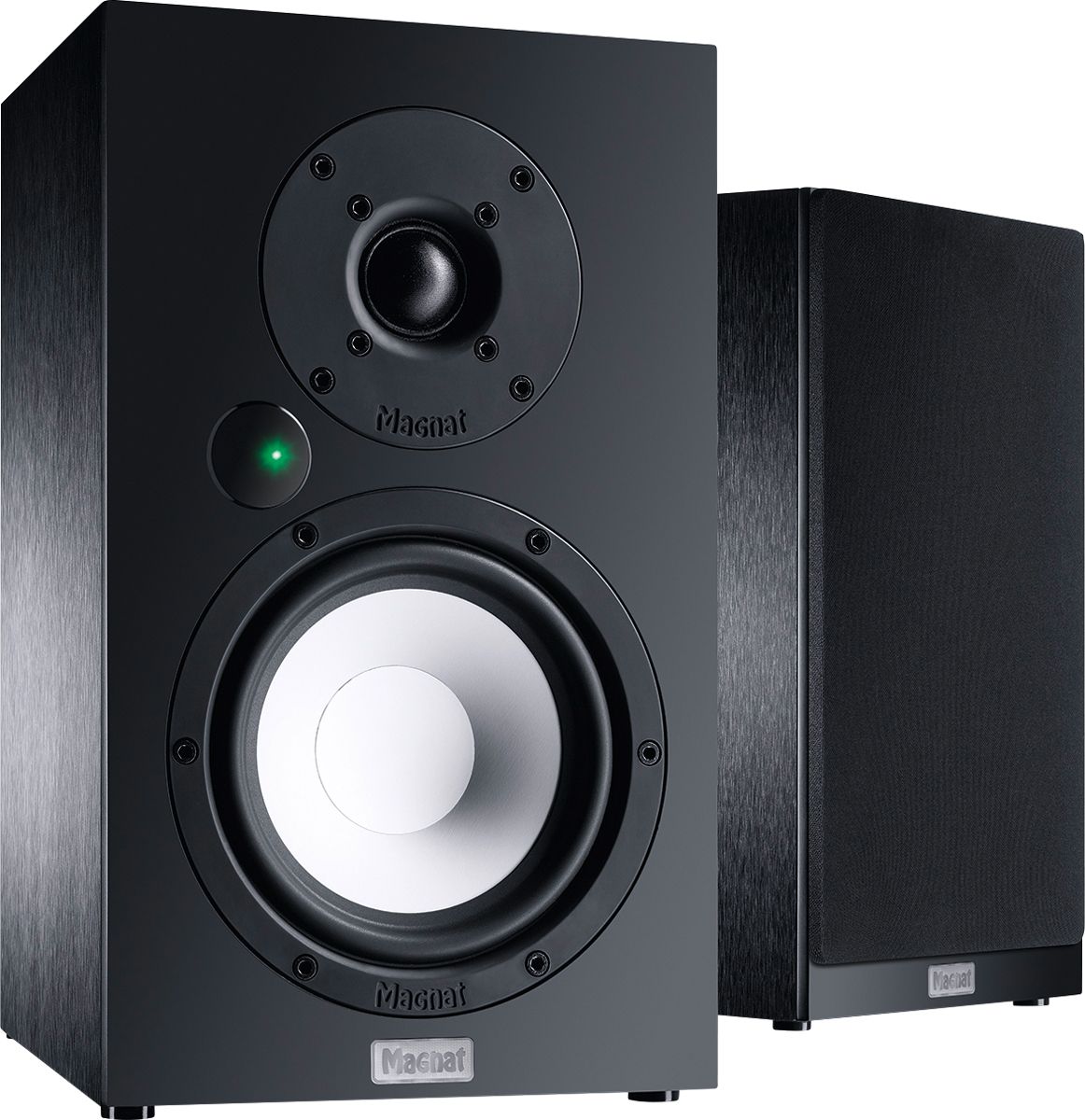

Magnat Multi Monitor 220 is an active stereo bookshelf speaker system designed for listening to music at home. Its one active and one passive speaker configuration removes the need for a separate power amplifier. The system delivers 2 × 40 W RMS. In the two-way bass-reflex design, each speaker has a 5-inch bass and midrange driver and a 1-inch dome tweeter.
Magnat Multi Monitor 220 is an active stereo bookshelf speaker system designed for listening to music at home. The system consists of one active speaker and one passive speaker. Its integrated amplification means that no separate power amplifier is required. Each enclosure measures 178 mm wide, 298 mm high and 235 mm deep.
System Design and Selection

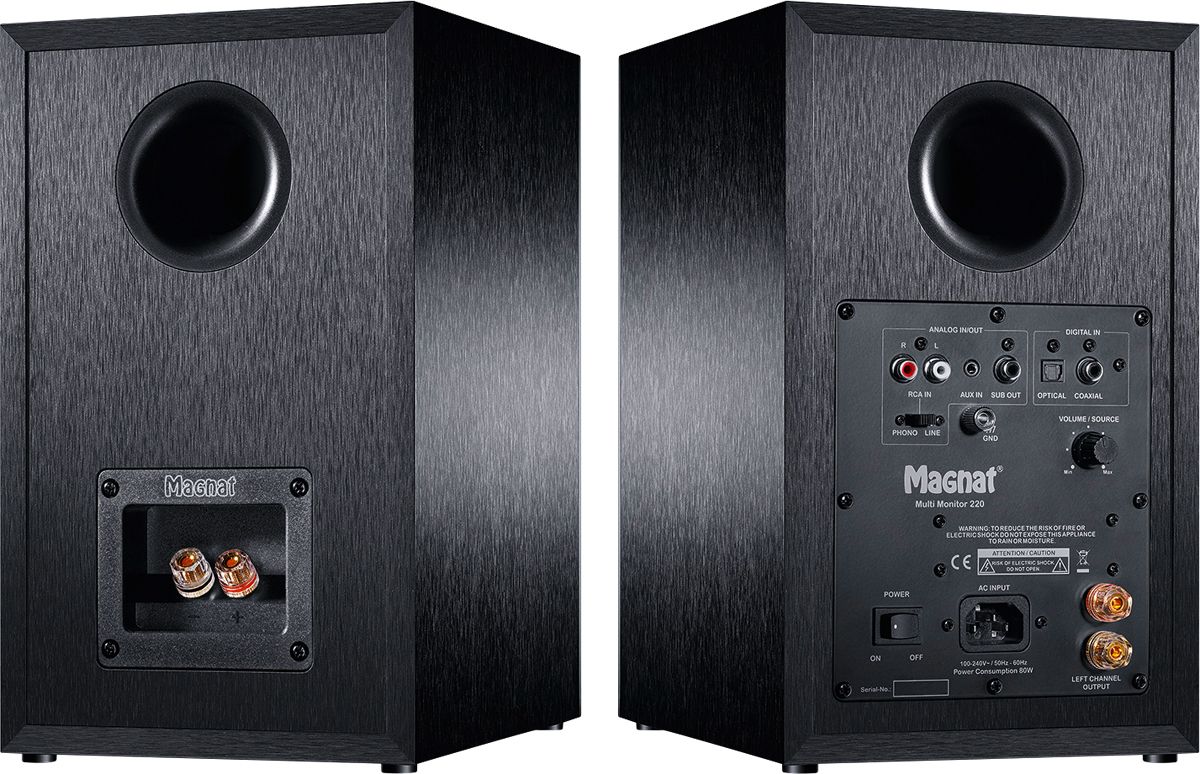

The active speaker operates from a 100-240 V mains supply, while the passive speaker functions as the other half of the stereo pair. You should therefore plan for a power socket near the active speaker. This arrangement reduces the number of separate components required to assemble a home audio system.
Both speakers have the same dimensions and use an identical driver configuration. The active speaker weighs 5.0 kg, while the passive speaker weighs 4.4 kg. This difference is worth considering when choosing a shelf or suitable speaker stands, particularly if the supporting surfaces have different load limits.
Drivers and Frequency Distribution

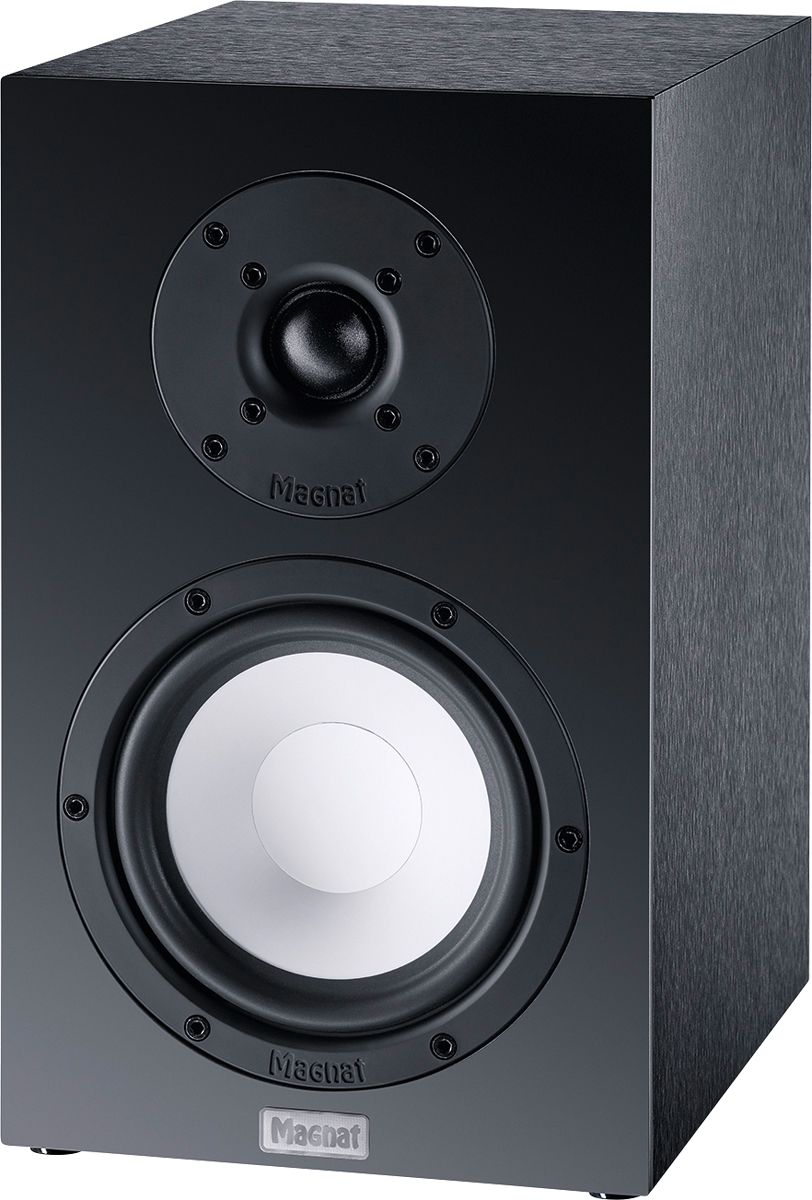

Each speaker contains one 5-inch bass and midrange driver. A single 1-inch dome tweeter reproduces the upper frequency range. Together, these drivers form a two-way speaker system, with each driver assigned to the part of the audible range it is intended to handle.
The 3,200 Hz crossover frequency indicates the point at which the signal is divided between the two drivers. The bass and midrange driver handles the lower and middle frequencies, while the dome tweeter is responsible for the high frequencies. The crossover figure describes this division of work; it is not a separate measure of volume or power.
Power and Frequency Range
2 × 40 W RMS is the rated output-power figure and is the appropriate value to use when comparing this system with other products specified in RMS terms. Maximum output power is 2 × 80 W. RMS and maximum power ratings represent different operating conditions, so the two figures should not be compared directly or treated as interchangeable.
The stated 35-40,000 Hz frequency range describes the limits of the frequencies the system can reproduce. It does not indicate the final listening volume or precisely predict how the speakers will perform in a particular room. Positioning, listening distance and room acoustics all affect the result heard at the listening position.
Positioning in the Room
The bass-reflex design interacts with walls and other nearby surfaces. When first setting up the system, avoid placing the speakers directly against the rear wall. Adjust their distance from the wall in small steps and listen for whether the bass remains clear. Moving them too close to a boundary may make low frequencies sound overly prominent.
Place both speakers at a similar height and keep them equally distant from the main listening position. The tweeters should ideally be positioned at approximately ear level when you are seated. Turning the speakers slightly towards the listener can also help create a more precise and clearly focused stereo image.
The speakers need a stable surface capable of supporting their weight. Leave some free space around the enclosures and avoid squeezing them into a tight, enclosed recess. The black satin cabinet finish is complemented by black decorative detailing, giving both speakers a consistent appearance.
Technical Specifications
| Model | Magnat Multi Monitor 220 |
|---|---|
| Type | Active stereo bookshelf speaker system |
| Design | Two-way bass reflex |
| System configuration | One active speaker and one passive speaker |
| Power supply | 100-240 V |
| Bass and midrange drivers | One 5-inch driver in each speaker |
| Tweeters | One 1-inch dome tweeter in each speaker |
| Output power | 2 × 40 W RMS |
| Maximum output power | 2 × 80 W |
| Frequency range | 35-40,000 Hz |
| Crossover frequency | 3,200 Hz |
| Dimensions per speaker | 178 × 298 × 235 mm |
| Active speaker weight | 5.0 kg |
| Passive speaker weight | 4.4 kg |
| Cabinet finish | Black satin finish with black decorative detailing |
FAQ
Does this system require a separate power amplifier?
No. This is an active speaker system, so it does not need a separate power amplifier to operate. The active speaker contains the powered section required by the system.
Do both speakers need to be connected to mains power?
Mains power is supplied to the active speaker. The passive speaker forms part of the same stereo system and does not have a separate mains power connection.
Can the speakers be placed close to a wall?
Begin with some space between the speakers and the wall. You can then adjust the distance while listening to the bass response. If the speakers are too close to the wall, the low frequencies may become overly prominent.
How should I choose the correct speaker height?
Use the tweeters as your reference. At the listening position, they should be approximately level with your ears. Both speakers should also be placed at the same height.
