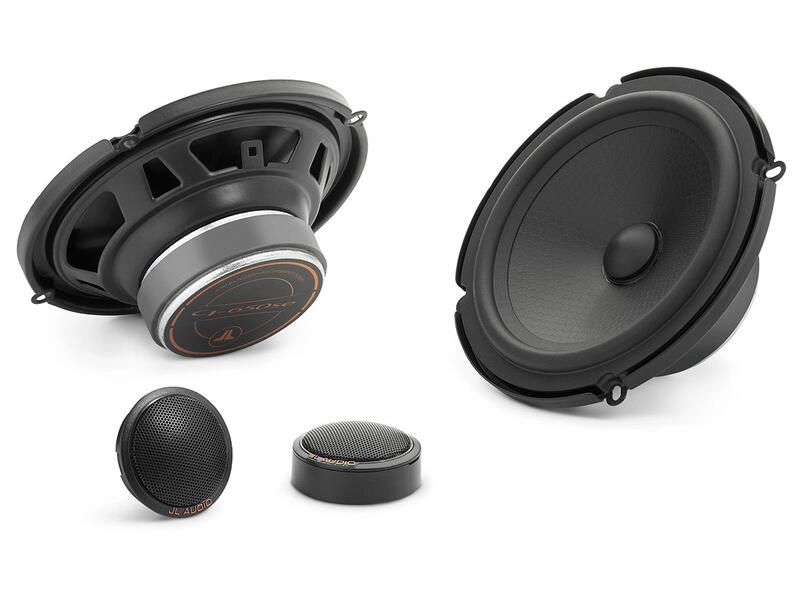

JL Audio C1-650se Component Speaker System
190,00 €
JL Audio C1-650se is a two-way component car speaker system designed for factory speaker locations. Separate 165 mm woofers and 25 mm tweeters provide greater flexibility when choosing installation positions. The third-order filters include a tweeter protection circuit. Adapter rings extend the installation options for enlarged 6.5-inch and 6.75-inch openings.
JL Audio C1-650se is a two-way component speaker system designed for factory speaker locations in a car. It uses separate 165 mm woofers and 25 mm tweeters, allowing the tweeters to be installed in a separate, carefully chosen location.
Speaker construction
The tweeters feature silk domes, silk surrounds and an edge-driven design. Ferrofluid is used in the voice-coil gap, while the magnetic systems use neodymium magnets.
The woofer cones are made from injection-moulded, mineral-filled polypropylene. They are supported by rubber surrounds and flat Conex spiders. The cones are mounted in stamped-steel frames, and the motor systems have been optimised using the DMA method.
The flexible lead wires are routed and secured to the spiders. This arrangement keeps the leads properly positioned within the woofer assembly.
Connections and amplifier selection
The system has a nominal impedance of 4 ohms. Recommended amplifier power is 10-75 W RMS per channel. The separately stated 50 W RMS rating refers to the system’s continuous power handling, not the upper limit of the recommended amplifier range. These figures describe different aspects of the system and should not be treated as interchangeable.
The tweeters connect through the supplied third-order high-pass filters. These external in-line filters include a tweeter protection circuit.
Maintain matching polarity on both sides of the vehicle during installation. Increase amplifier gain only until the signal remains clean. The built-in protection circuit does not replace correct amplifier setup or careful gain adjustment.
Installation options
Surface-mount and flush-mount tweeter hardware is included. Surface mounting is useful when you do not want to enlarge an opening in the vehicle trim. Flush mounting produces a less prominent installation, but it requires sufficient mounting depth and clear space behind the trim panel.
Universal adapter rings are supplied for the woofers. They are intended for enlarged 6.5-inch and 6.75-inch vehicle openings. Without the rings, the speakers fit many nominal 6-inch locations.
The nominal opening diameter alone is not enough to confirm compatibility. Before choosing the system, measure the available mounting depth, check the screw pattern and inspect the free space behind the speaker. You should also confirm that the cone and surround will not touch the door trim when the speaker is operating.
Technical specifications
| Type | Two-way component car speaker system |
|---|---|
| Woofers | 6.5 inches (165 mm) |
| Cones | Injection-moulded, mineral-filled polypropylene |
| Cone surrounds | Rubber |
| Frames | Stamped steel |
| Motor systems | Optimised using the DMA method |
| Spiders | Flat Conex, mounted above the voice coil |
| Flexible lead wires | Routed and secured to the spiders |
| Tweeters | 1 inch (25 mm), with silk domes |
| Tweeter design | Edge-driven, with silk surround |
| Voice-coil gap | Ferrofluid-filled |
| Magnets | Neodymium |
| Filters | External third-order in-line high-pass filters with protection circuit |
| Continuous power handling | 50 W RMS |
| Recommended amplifier power | 10-75 W RMS per channel |
| Efficiency | 91.0 dB at 1 W / 1 m |
| Nominal impedance | 4 ohms |
| Frequency response | 48 Hz-21 kHz, ±3 dB |
| Included items | Woofers, tweeters, in-line filters, surface-mount and flush-mount hardware, and adapter rings |
FAQ
How should I choose a suitable amplifier?
Choose amplifier channels designed to operate with a 4-ohm load and keep within the stated recommended power range. The upper limit of that recommendation is not the same as the system’s continuous power rating.
Do the adapter rings guarantee installation in every vehicle?
No. The rings extend the range of possible installations, but you must still check the mounting depth, screw pattern and clearance provided by the surrounding trim.
Which tweeter mounting method should I choose?
Choose surface mounting if you do not want to enlarge the opening in the trim. Flush mounting protrudes less, but it requires adequate space behind the trim panel.
Why is matching polarity important during installation?
Different polarity on the left and right sides can weaken the combined bass response. Check the connections for both channels before refitting the vehicle trim.
Does the system reproduce the very lowest frequencies?
Its specified frequency response begins at 48 Hz with a tolerance of ±3 dB. A separate subwoofer may be required if deeper low-frequency reproduction is wanted.
