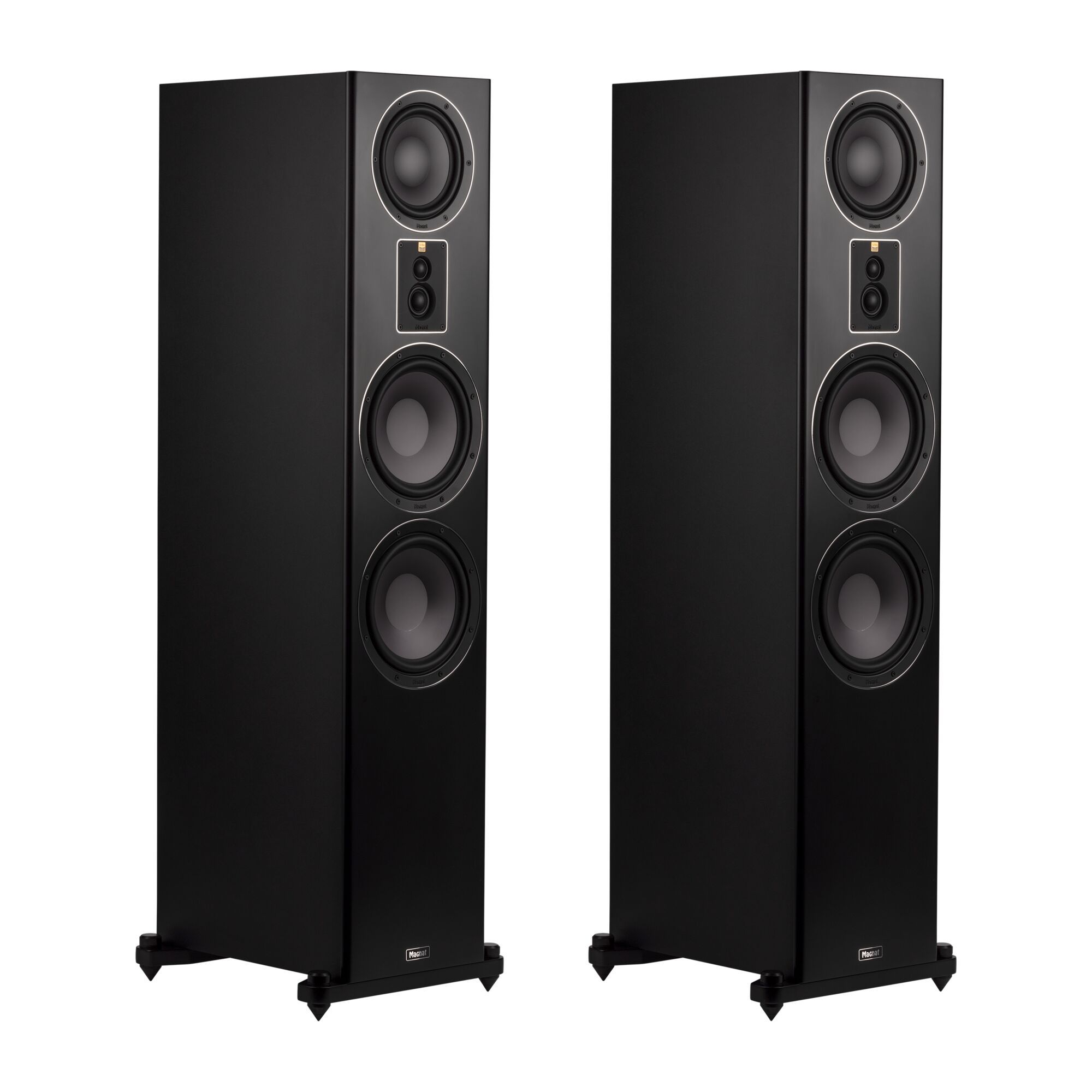

Magnat Signature 809 Floorstanding Speaker
2 600,00 €
Magnat Signature 809 is a four-way floorstanding speaker for a home audio system with a separate amplifier. Its 4-8-ohm impedance means that the amplifier must be suitable for a 4-ohm load. The 92 dB sensitivity is specified at 2.8 V / 1 m, so consistent measurement conditions matter when making comparisons. The stated frequency range is 22-54,000 Hz, but its tolerance is not defined.
Magnat Signature 809 is a four-way floorstanding speaker designed for a home audio system with a separate amplifier. Its 4-8-ohm impedance helps determine which electronics are suitable. The 290 × 1070 × 345 mm cabinet requires a permanent position on the floor.
Design and purpose
The four-way configuration divides the reproduced frequency range between separate sections. This is a floorstanding rather than a bookshelf model, so it does not require a separate stand. The cabinet can be placed directly on the selected spikes.
The bass-reflex design interacts acoustically with walls and room corners. Adjusting the distance from these boundaries can help control the amount of bass without electronic correction.
Choosing and connecting an amplifier
This is a passive speaker, so it requires a separate amplifier. The audio source is connected to the amplifier first. The speaker is then connected to the amplifier’s speaker output using speaker cable.
The amplifier must be suitable for a 4-ohm load. Its recommended output power is more than 30 W. Wattage alone is not enough to establish compatibility, because the amplifier’s ability to operate with the specified impedance is also important.
When connecting each channel, maintain the same polarity at both ends of the cable. Reversed polarity can weaken the central stereo image and bass reproduction.
Understanding the technical figures
The stated 220 / 380 W power ratings are not identified as RMS, continuous or short-term figures. They should therefore not be compared directly with amplifier or speaker ratings defined under different conventions.
The 92 dB sensitivity is measured at 2.8 V and a distance of 1 m. When comparing different speakers, use figures measured under the same conditions.
A 22-54,000 Hz frequency range is specified, but no tolerance is given. These limits do not show how even the frequency response is or indicate the bass level that will be produced in a particular room.
Positioning in the room
Begin with the speakers arranged symmetrically relative to the listening position. Keep both channels at similar distances from the side walls. Adjust their angle toward the listening position in equal, small steps.
If the bass becomes too prominent, gradually move the cabinet farther from the rear wall or corner. If bass is insufficient, reduce the distance in small increments. Assess every adjustment from the main listening position.
Metal or rubber spikes can be used for installation. Metal spikes are practical on carpet when the support needs to reach through it. Rubber spikes are more suitable for direct placement on a hard surface that could be damaged easily.
Technical specifications
| Model | Magnat Signature 809 |
|---|---|
| Type | Floorstanding speaker |
| Configuration | 4-way |
| Enclosure principle | Bass reflex |
| Power ratings | 220 / 380 W |
| Impedance | 4-8 ohms |
| Frequency range | 22-54,000 Hz |
| Recommended amplifier output power | More than 30 W |
| Sensitivity | 92 dB at 2.8 V / 1 m |
| Dimensions | 290 × 1070 × 345 mm |
| Compatible installation accessories | Metal spikes, rubber spikes |
FAQ
What kind of amplifier does this speaker require?
Check the amplifier’s specifications. They must confirm operation with 4-ohm speakers, and the amplifier must have powered speaker outputs.
Can the speaker be connected directly to a television or player?
No, unless the device has a powered speaker output. A conventional source is connected to an amplifier, which then powers the speaker.
Can the power figures be described as RMS and maximum power?
No. The operating conditions represented by the two figures are not defined separately, so those labels cannot be assigned to them.
Does the 22 Hz lower limit mean that a subwoofer will not be needed?
The lower frequency limit alone does not determine this. The result also depends on the room, speaker placement and the desired bass level.
Which spikes should I choose?
Choose metal spikes when placing the speaker on carpet. Use rubber spikes on hard flooring when direct but gentler contact with the surface is important.
