Zidoo Z20 Pro Network Media Player
370,00 €
Zidoo Z20 Pro is a network media player for local 4K film and high-resolution music collections. Its HDMI 2.1 output delivers video at up to 4K 60p and supports HDR10, HDR10+, HLG and Dolby Vision. The internal 3.5-inch SATA bay accepts one drive with a capacity of up to 16 TB. Gigabit Ethernet, Wi-Fi 6 and media-library management help bring together content stored across different sources.
Zidoo Z20 Pro is a 4K UHD network media player designed for local film and music collections. It features an HDMI 2.1 output, an internal 3.5-inch SATA drive bay and Gigabit Ethernet connectivity.
Video and film library
The Realtek RTD1619BPD quad-core 64-bit processor is paired with an ARM Mali-G57 GPU. The player has 4 GB of DDR4 RAM, 32 GB of internal eMMC storage and the Android 11 operating system.
The HDMI output delivers video at up to 4K 60p with 12-bit YCbCr 4:4:4 colour in the BT.2020 colour space. HDR10, HLG, HDR10+ and Dolby Vision are supported. Two Dolby Vision modes are available: player-led LLDV and TV-led Standard mode.
The built-in VS10 video-processing engine handles image conversion. HDR10 processing uses MaxFALL and MaxCLL static metadata. Automatic frame-rate and output-resolution switching reduces the need to adjust output settings manually when moving between different material.
Full BD, BD3D and UHD Blu-ray menus are supported, along with complex MPLS structures and seamless branching for multi-segment titles. MVC 3D can be played from Blu-ray and MKV sources.
Home Theater 4.0 presents films on a poster wall. You can create custom categories, manage the collection, and play trailers and soundtracks. The player supports graphical subtitles, forced Blu-ray and MKV subtitles, and subtitle downloading.
Music playback and audio
Supported music formats include DSD through SACD ISO, DSF and DFF files, as well as WAV, APE and DTS. Personal settings and track-information matching are provided, while DLNA enables music playback over the network.
HDMI supports audio passthrough without changing the original format, including Dolby TrueHD. Internal LPCM decoding is limited to two channels. For multichannel sound, passthrough to a compatible AV receiver or processor is the appropriate option.
Connections and control
Network connectivity includes a Gigabit RJ-45 port, dual-band Wi-Fi 6 with two external antennas and Bluetooth 5.2.
One USB 3.0 port and two USB 2.0 ports are available. Network sources can be accessed using NFS, SMB v1/v2/v3, UPnP and WebDAV, and the player can also operate as an SMB server.
An RCA L/R output is provided for an analogue stereo system, while RCA CVBS can be used with older video equipment. Digital audio is available through a coaxial output. The specification also lists an SPDIF output without identifying its physical connector type. Both are stated to support two-channel and 5.1-channel signals.
Control options include the supplied remote through the integrated IR receiver, the ZIDOO Controller app, RS-232 and TCP/IP. HDMI CEC and Control4 are available for integration, while WOL provides power-on and standby modes.
Storage, installation and supplied accessories
The internal bay accepts one 3.5-inch SATA hard drive with a capacity of up to 16 TB. A hard drive is not included. An external drive can be used to play unencrypted BD and DVD discs, as well as CDs.

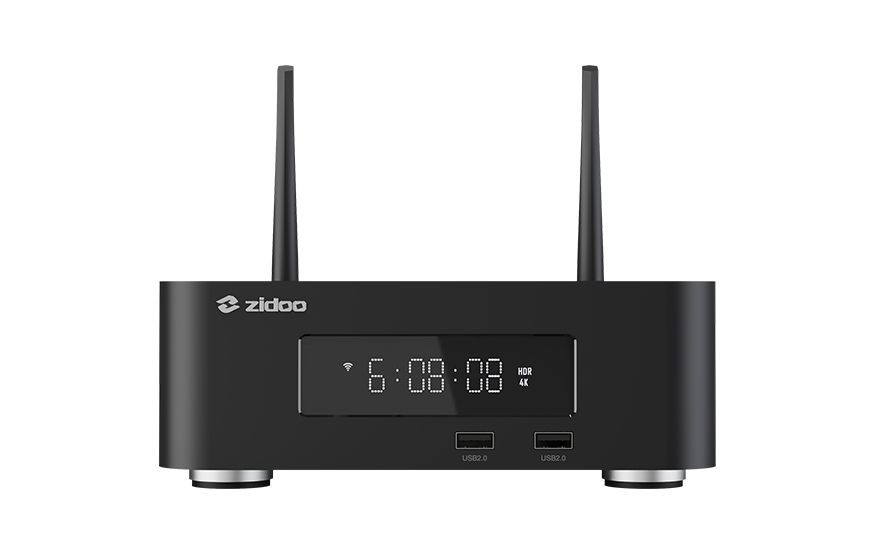

The aluminium-alloy chassis has a large front LED display. Position the player so that neither the display nor the IR receiver is obstructed, and leave sufficient space for the connections and two external antennas.
The package includes a remote control, a 12 V power adapter and a user manual. An HDMI cable is not included.
Technical specifications
| Model | Z20 Pro |
| Type | 4K UHD network media player |
| Processor | Realtek RTD1619BPD, quad-core, 64-bit |
| GPU | ARM Mali-G57 |
| RAM | 4 GB DDR4 |
| Internal storage | 32 GB eMMC |
| Operating system | Android 11 |
| Display | Large LED display |
| Chassis | Aluminium alloy |
| Internal drive bay | 1 × 3.5-inch SATA, up to 16 TB |
| HDMI output | HDMI 2.1, up to 4K 60p, 12-bit, YCbCr 4:4:4, BT.2020 |
| HDR formats | HDR10, HLG, HDR10+, Dolby Vision |
| Dolby Vision modes | Player-led LLDV and TV-led Standard |
| Video processing | VS10, HDR10 MaxFALL and MaxCLL metadata |
| Video decoding | 4K 60p HEVC/H.265, 12-bit, HDR10, HDR10+, Dolby Vision |
| Video switching | Automatic frame-rate and output-resolution switching |
| Disc structures | BD, BD3D and UHD Blu-ray menus, MPLS, seamless branching |
| 3D support | MVC 3D from Blu-ray and MKV |
| Music formats | DSD, SACD ISO, DSF, DFF, WAV, APE, DTS |
| Audio decoding | Two-channel LPCM |
| HDMI audio passthrough | Unaltered audio passthrough, including Dolby TrueHD |
| Wireless network | 2.4 and 5 GHz, 802.11 a/b/g/n/ac/ax, 2T2R, MIMO, OFDM |
| Bluetooth | 5.2 |
| Wired network | 1 × RJ-45, 10/100/1000 Mb/s |
| Network protocols | NFS, SMB v1/v2/v3, UPnP, WebDAV, SMB server |
| USB ports | 1 × USB 3.0, 2 × USB 2.0 |
| Analogue connections | 1 × RCA CVBS, 1 × RCA stereo L/R |
| Digital audio outputs | 1 × coaxial; an SPDIF output with an unspecified physical connector type is also listed, two-channel or 5.1-channel |
| Control connections | 1 × 3.5 mm RS-232, IR receiver |
| External antennas | 2 × high-gain antennas |
| Smart control | ZIDOO Controller, RS-232, TCP/IP, WOL, HDMI CEC, Control4 |
| DRM | Widevine L1 |
| Power | 12 V DC, 2 A |
| Included accessories | Remote control, power adapter, user manual |
FAQ
Is a hard drive included?
No. You can purchase one 3.5-inch SATA drive with a capacity of no more than 16 TB separately.
How should I connect the player to a home cinema system?
Connect the HDMI output to a compatible AV receiver. This allows multichannel audio to pass through without changing its format.
Which connection should I use with a stereo amplifier?
Use the RCA L/R output with an analogue amplifier. A coaxial output is provided for a digital system; the physical connector type of the separately listed SPDIF output is not specified.
Is a wired network better for a film library?
The Gigabit RJ-45 port provides a wired connection. Wi-Fi 6 can be used where a network cable is not available.
Does Widevine L1 guarantee that every streaming service will work?
No. Widevine L1 alone does not confirm compatibility or certification for a particular service, nor does it guarantee the available video resolution.
Can BD and DVD discs be played using an external drive?
Yes, but only unencrypted BD and DVD discs are supported. CDs can also be played.
