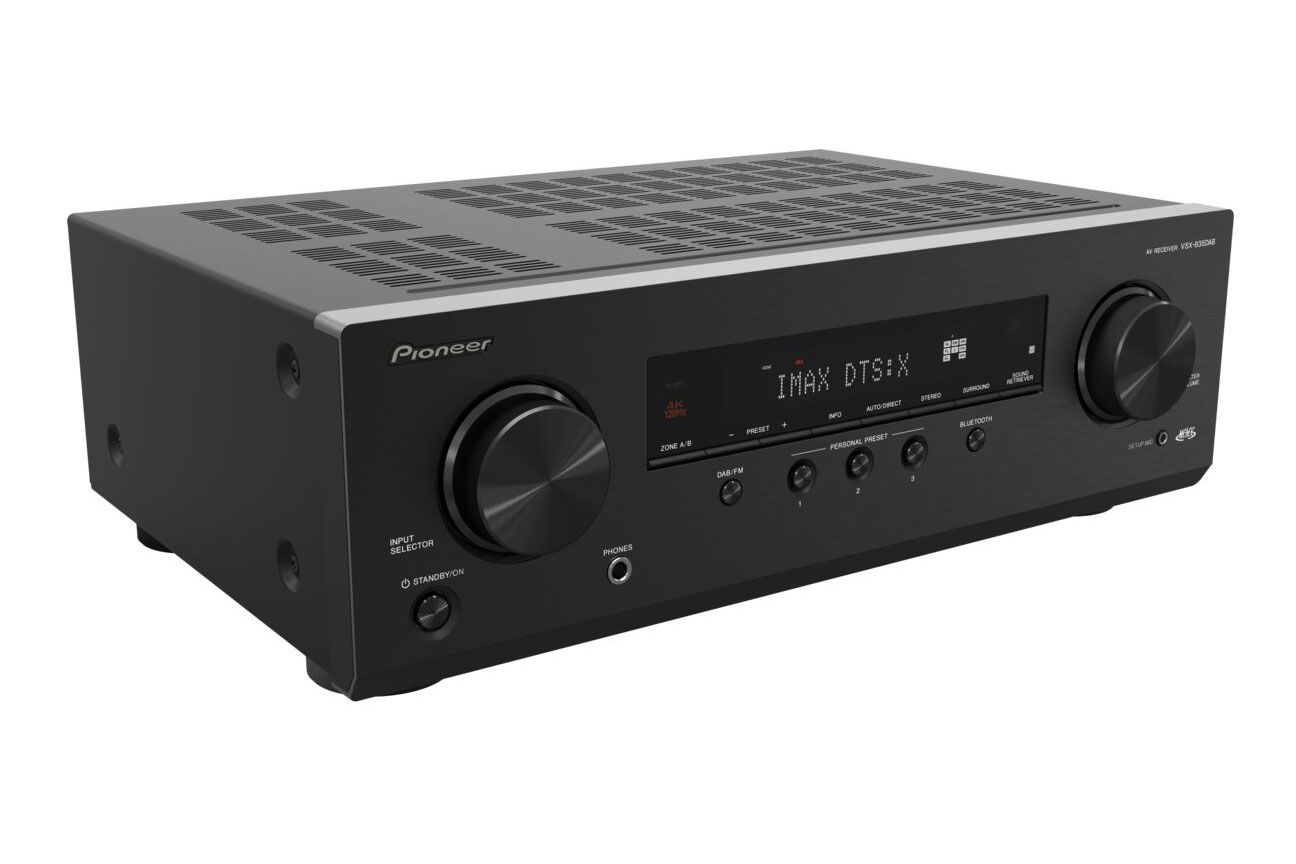

Pioneer VSX-835D Surround Sound Receiver

The Pioneer VSX-835D receiver is a 7.2-channel surround sound receiver designed for a home cinema system. It is suitable for movies, gaming and music playback. The model supports Dolby Atmos, IMAX Enhanced, 8K/4K Ultra HD, Bluetooth and MCACC Auto Room Tuning.

Planning a 7.2-channel system

The 7.2-channel classification describes a multichannel system that includes two subwoofer channels. This designation does not indicate how many speakers are included with the product. When planning your system, first choose a speaker layout that suits the room.

The receiver is suitable for controlling a home cinema system from one central unit. It processes audio from compatible sources and supports several surround sound formats. Choose the specific configuration according to the content you use and the speakers you already have.

Surround sound formats

Supported formats include Dolby TrueHD, DTS-HD and DTS:X. Dolby Atmos and DTS:X are relevant when playing content with a corresponding soundtrack. Support for a format does not, by itself, determine a particular speaker layout.

IMAX Enhanced is intended for content compatible with this technology. It does not automatically convert other recordings into IMAX Enhanced content. The source format should therefore be considered together with your chosen channel configuration.

8K and 4K video signal chain

When used with a compatible source and display, the receiver can form part of an 8K or 4K Ultra HD video signal chain. Every device in the chain must support the selected signal. The receiver alone does not automatically turn lower-resolution content into an 8K picture.

This capability is useful when planning a system with a high-resolution television, projector or gaming source. Select the video format according to the capabilities of every device in the signal chain.

Wireless music playback

Bluetooth enables wireless audio streaming from a compatible device. It is a convenient way to play music without an audio cable. Bluetooth carries audio, so it does not replace the wired connection chain required for high-resolution video.

Room calibration

MCACC Auto Room Tuning is intended for acoustic room calibration. Perform the calibration after placing the speakers in their final positions and selecting the main listening position. The room should remain quiet while measurements are being taken.

It is worth repeating the calibration if you move the speakers or change the main listening position. Automatic tuning is not a substitute for suitable speaker placement. Position the speakers first, then adjust the receiver settings to match the completed layout.

Placement and model selection

Place the receiver on a firm, level surface and leave sufficient space around the enclosure for ventilation. Do not cover the ventilation openings or keep the unit inside an enclosed space without air circulation.

When choosing this product, check the complete VSX-835D model designation. The letter D is part of the model identification. Specifications belonging to another variant should not automatically be attributed to this receiver.

Technical specifications

FAQ

What is this receiver designed for?

It is designed for a multichannel home cinema system used for movies, gaming and music. When buying, make sure you select the exact variant identified by the letter D.

What does the 7.2-channel designation mean for the buyer?

It identifies the receiver’s channel class and its two subwoofer channels. It does not confirm the number of speakers included in the package.

Can Bluetooth replace the video source connection?

No. Bluetooth is intended for wireless audio. An 8K or 4K video signal requires a wired chain of devices that support the relevant signal.

When should MCACC calibration be repeated?

Repeat it after moving the speakers, furniture or main listening position. This allows the settings to be adjusted to the new room layout.

Are speakers included?

The stated 7.2-channel classification does not confirm the package contents. Before buying, check separately whether speakers are included in the offered package.

Does 8K support automatically improve every picture?

No. The final resolution depends on the signals supported by the content, source, receiver and display. The entire video signal chain must be compatible.
