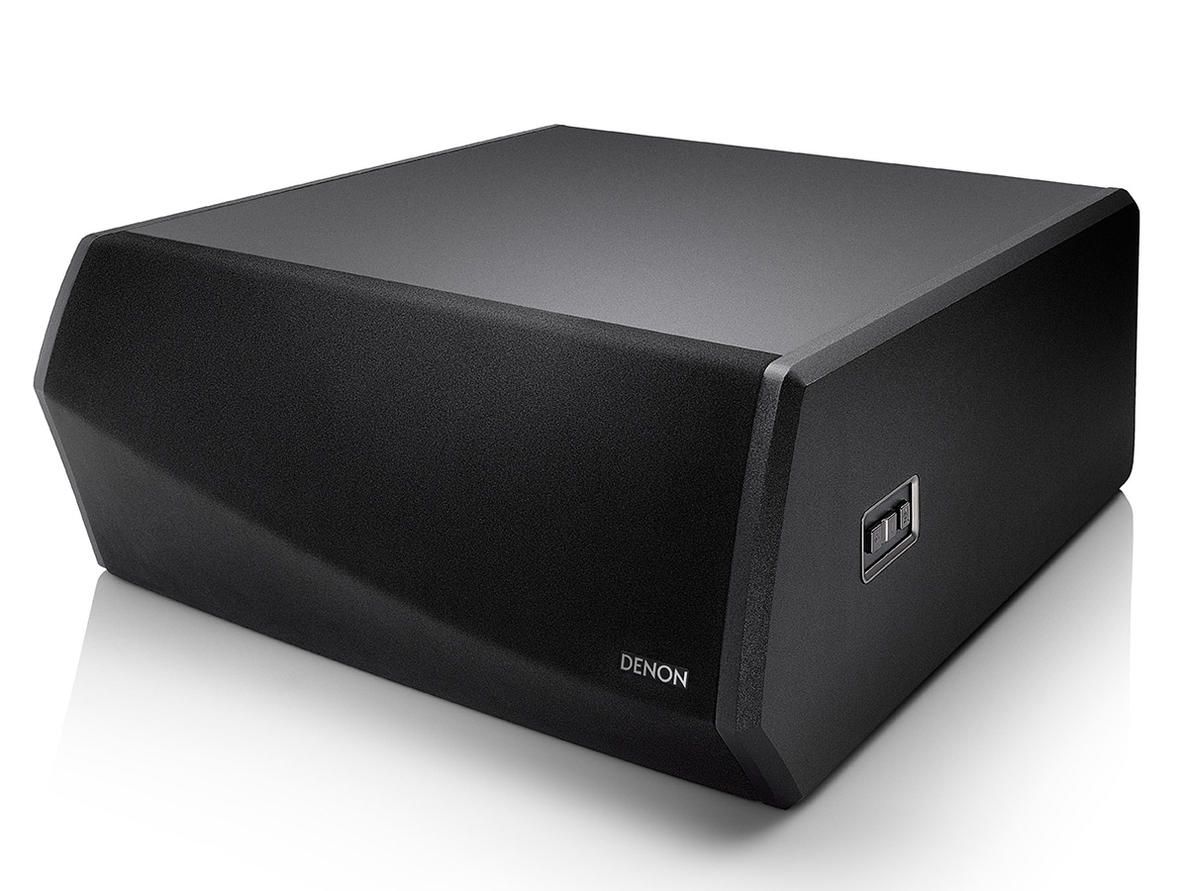

Denon DSW-1H Subwoofer

The Denon DSW-1H subwoofer is a wireless active model designed for a compatible Denon or HEOS system. It cannot operate on its own and must be paired with a compatible HEOS device connected to the same home network. It adds deep, tangible bass to music, films, and games.

Purpose and compatibility

Using Wi-Fi, the subwoofer can be paired with the DHT-S716H, Denon Home Sound Bar 550, or a Denon Home speaker.

The DSW-1H is part of the HEOS wireless multi-room system. Its audio signal is carried over the home network, so an audio cable is not required between the compatible main device and the subwoofer.

Dual drivers and active amplification

The enclosure contains two custom 5.25-inch bass drivers developed for this model. They are driven by high-power Class D amplification.

The two-driver arrangement and active amplification create a fuller low-frequency foundation. This gives film effects more weight and brings greater depth to the rhythm of music.

DSP algorithms optimize bass reproduction across the full dynamic range. This digital processing coordinates the operation of the drivers and amplifier as the intensity of the reproduced sound changes.

Network connections and initial setup

The simplest connection method is Wi-Fi. Connect the supplied power cord, then pair the subwoofer with a compatible HEOS device.

For a stable physical network connection, you can use the rear NETWORK Ethernet connector. Even when the subwoofer is connected by Ethernet cable, the router must still provide Wi-Fi connectivity for control through the HEOS app.

The app is used for initial setup and adjustment of the sound settings. The subwoofer must be positioned within range of the home wireless network.

Wireless networking replaces the audio cable, but it does not eliminate the power cable. A wall outlet must therefore be accessible from the chosen installation position.

Sound control through the app

The level control sets the amount of bass within the system. Increase it until the low frequencies sound clear and substantial without drawing attention away from the main speakers.

The low-pass filter helps create a smooth transition between the main system and the DSW-1H. Begin with a setting that leaves neither an audible gap in the frequency range nor excessive booming.

Phase adjustment helps align the subwoofer’s low-frequency waves with the main speakers. Compare the available settings from the primary listening position and select the one that produces smoother, fuller bass.

You can also change the brightness of the status light. A lower setting is less distracting when watching films in a dimly lit room.

Vertical or horizontal placement

The enclosure can be positioned vertically or horizontally. This provides more flexibility when finding space beside a television cabinet or another part of the system.

For horizontal placement, attach the included feet to the four corners of the appropriate side of the enclosure. They provide the intended support and prevent the cabinet from resting directly on the surface below it.

A position near the front of the system is a practical starting point. Compare several locations, however, because walls and room corners can reinforce particular low frequencies.

Choose the final position while listening from your normal seat. At the same time, consider the strength of the network signal and the distance to the nearest wall outlet.

Expanding the system

According to the retailer, adding the DSW-1H to the DHT-S716H creates a 3.1-channel system. Low-frequency effects are then reproduced by a separate subwoofer while the main system handles the other channels.

The retailer also states that the setup can later be expanded with two compatible HEOS speakers to form a 5.1-channel system. The DSW-1H supplies the bass in this arrangement, but it does not reproduce the rear surround channels itself.

When used with a Denon Home speaker, the subwoofer extends low-frequency reproduction through the same HEOS network. This is useful when the existing speaker lacks weight at the lowest end of the frequency range.

Technical specifications

What is included

The package includes a power cord and feet for horizontal placement. An Ethernet cable is not listed as part of the supplied accessories.

FAQ

Can this subwoofer operate by itself?

No. It must be paired with a compatible HEOS device that sends the audio signal over the home network.

Can it be connected directly to a stereo amplifier or AV receiver?

Not in the same way as a conventional analogue subwoofer. It receives its audio signal over the network from a compatible Denon or HEOS device.

When should I use the Ethernet connection?

Ethernet is useful when it is practical to run a network cable to the subwoofer’s location. The router must still provide Wi-Fi connectivity for control through the HEOS app.

How do I choose the correct phase setting?

Play a familiar recording and compare the available settings from your listening position. Select the setting that produces smoother, more even bass.

Can the subwoofer be placed on its side?

Yes. First attach the included feet to the four corners of the selected side.

Where is the best place to position it?

Choose a location within reach of the home network and the power cord. Try several positions because room boundaries can change the bass you hear.

Is a power cord required for wireless use?

Yes. The audio signal is transmitted wirelessly, but the built-in amplifier still requires power from a wall outlet.

How does this model fit into a home cinema system?

According to the retailer, pairing it with the DHT-S716H creates a 3.1-channel system. Adding two compatible HEOS speakers expands that arrangement to a 5.1-channel system.
