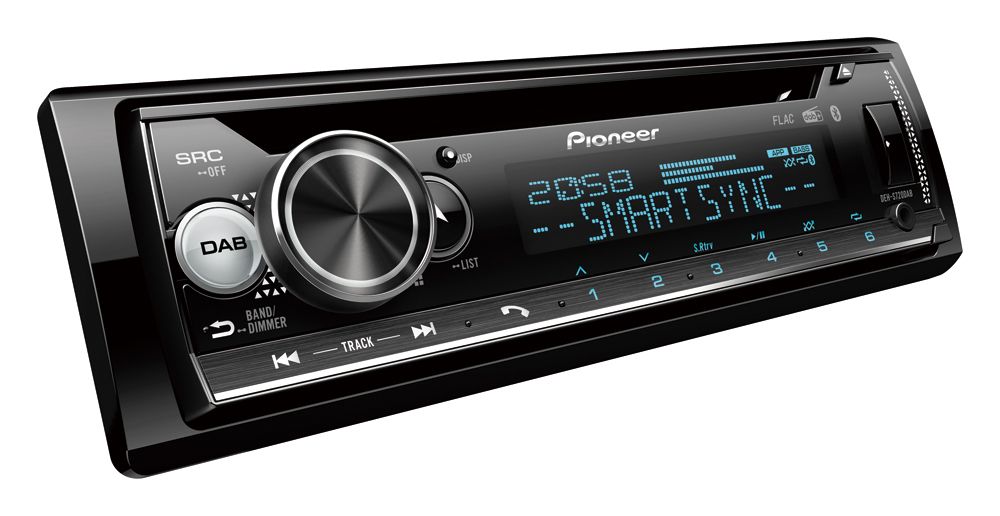

Pioneer DEH-S720DAB Car Stereo
205,00 €
The Pioneer DEH-S720DAB is a 1-DIN car stereo for drivers who use CDs, digital radio and a phone. DAB/DAB+, FM RDS, Bluetooth, USB and AUX provide a choice of music sources. Three pairs of RCA pre-outs make it easier to expand the system with external amplifiers, while the 13-band equalizer and Time Alignment help tailor the sound to the vehicle interior.
The Pioneer DEH-S720DAB car stereo is a 1-DIN CD receiver designed to bring several audio sources together in one unit. It receives DAB/DAB+ digital radio and FM RDS, plays CDs and FLAC files, and supports music playback through Bluetooth, USB or the analogue AUX input.
Integrated Bluetooth enables wireless music streaming and hands-free calling. Two phones can be connected simultaneously, which is particularly useful for drivers who carry separate personal and work phones.
Music sources and smartphone features
The DAB/DAB+ tuner provides access to digital radio stations. Its DAB time-shift function lets you pause, rewind and resume a live broadcast. Reception quality depends on local coverage, the antenna used and how that antenna is installed.
An FM RDS tuner remains available for conventional analogue stations. The CD mechanism is useful if you already own a disc collection, while the single USB input accommodates digital audio sources. The AUX input can accept a device with an analogue audio output.
This model was introduced with compatibility for Apple and Android devices and support for the Pioneer Smart Sync app. Control of Spotify Free and Premium through a compatible phone was also provided. Current operation depends on the phone, operating system, app and service versions.
Outputs and system expansion
Three pairs of RCA pre-outs carry separate front, rear and subwoofer signals, making it easier to build a system with external amplifiers. The subwoofer signal can be adjusted separately.
The RCA outputs cannot power passive speakers directly. Passive speakers must use the stereo’s amplified outputs or a separate power amplifier. The integrated MOSFET amplifier is rated at a maximum of 4 × 50 W. This is a maximum rating, not continuous RMS power.
Sound-adjustment features
The 13-band graphic equalizer allows different frequency ranges to be adjusted. A sensible approach is to begin with a neutral setting and then correct specific shortcomings in small steps. Large boosts across several adjacent bands may reduce clarity.
Time Alignment adjusts the signal delay for individual speakers. After entering the distances to the listening position, the soundstage can be focused more accurately around the driver. Listening-position processing provides further adjustment options.
High-pass and low-pass filters help divide the reproduced frequency range between the system’s components. Subwoofer control allows its level to be balanced with the front and rear speakers. The three-way network mode is intended for more advanced frequency distribution in an active system.
Advanced Sound Retriever processes compressed digital audio files and Bluetooth audio streams. FLAC files are reproduced losslessly at up to CD-quality output.
Installation in the vehicle
The single-DIN chassis fits a vehicle with a suitable 1-DIN installation slot. Depending on the vehicle, a separate fascia, wiring connector or antenna adapter may be required. Retaining steering-wheel controls may also require a separate control interface.
DAB radio requires a suitable DAB antenna and adequate local coverage. The detachable front panel helps deter theft when the vehicle is parked. Multicolour display illumination can be matched to the vehicle’s instrument lighting.
Technical specifications
| Type | 1-DIN in-car CD receiver |
|---|---|
| Radio | DAB/DAB+ and FM RDS |
| DAB approval | Digital Radio Tick Mark approval based on independent testing |
| DAB function | Pause, rewind and resume live broadcasts |
| Bluetooth | Wireless music playback, hands-free calling and simultaneous connection of two phones |
| Phone platforms | Introduced with compatibility for Apple and Android devices |
| Apps and services | Pioneer Smart Sync and control of Spotify Free and Premium through a compatible phone |
| USB | 1 USB input |
| Analogue input | AUX |
| File playback | Lossless FLAC playback at up to CD-quality output |
| Maximum amplifier power | MOSFET, maximum 4 × 50 W |
| RCA outputs | 3 pairs: front, rear and subwoofer |
| Equalizer | 13-band graphic equalizer |
| Sound adjustment | Time Alignment, listening-position processing, frequency filters and subwoofer control |
| System mode | Three-way network mode |
| Compressed-audio processing | Advanced Sound Retriever for digital files and Bluetooth streams |
| Display illumination | Multicolour |
| Front panel | Detachable |
| Firmware | Version 8.14, released 17 January 2022 |
FAQ
Will this car stereo fit my vehicle?
Your vehicle must have a suitable 1-DIN installation space. Depending on the vehicle, you may also need a separate fascia, wiring adapter or antenna adapter.
Can passive speakers be connected directly to the RCA outputs?
No. The RCA connections carry a line-level signal for an external amplifier or suitable active equipment. They do not replace a power amplifier.
What do I need to receive DAB/DAB+ radio?
You need a suitable DAB antenna and digital-radio coverage in your area. The way the antenna is installed also affects reception.
How should I begin adjusting the sound system?
Start with a neutral equalizer setting and enter the speaker distances. You can then adjust the filters, subwoofer level and individual frequency bands.
Will the current version of Pioneer Smart Sync or Spotify work?
Compatibility depends on your phone and the current software versions. Before buying, compare your phone’s operating system with the requirements of the relevant apps.
