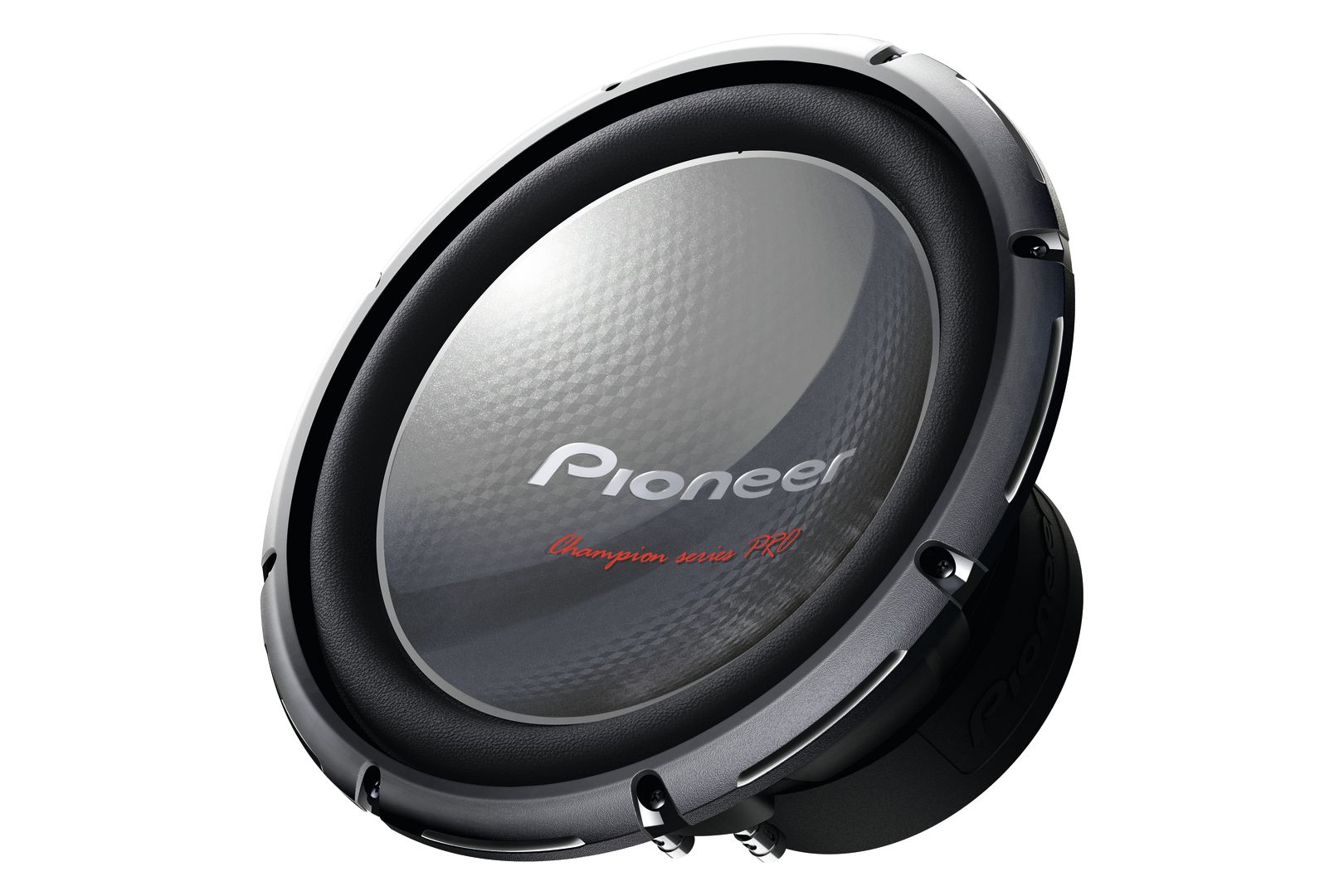

Pioneer TS-W3003D4 Car Subwoofer

Pioneer TS-W3003D4 is a 30 cm car subwoofer designed for a custom-built in-car audio system. It is a separate driver, so it requires a suitable enclosure, an external amplifier and the necessary mounting hardware. Its 600 W RMS power rating is the main figure to use when matching the amplifier. Two 4 Ω voice coils provide a choice of nominal loads to suit the amplifier.

Who this subwoofer is for

This model is intended for buyers building the bass section of a car audio system from separate components. It is not a complete subwoofer enclosure and does not include an integrated amplifier. An external power amplifier must supply the audio signal and the power needed to drive it.

The stated 20-80 Hz frequency range covers the low-frequency region that matters in a car audio system. The 35 Hz free-air resonance is useful when designing the enclosure, but it should not be interpreted as a guaranteed lower playback limit for the finished system. The final result also depends on the enclosure design, installation and system setup.

Cone, surround and excursion

The subwoofer uses a dual-layer fibre cone. It is supported by a surround made from fibre-reinforced elastic polymer. Together, these parts form the main moving section of the driver and must operate within its mechanical limits.

Maximum one-way linear excursion is approximately 13.8 mm. This figure is relevant when assessing the mechanical limits of the driver and planning an appropriate enclosure. The 7.65 kg weight must also be considered: the enclosure needs a rigid front baffle, and the driver must be secured with suitably strong mounting hardware.

Connecting the dual voice coils

Each voice coil has a nominal impedance of 4 Ω, and both coils must be connected. Wiring the positive terminals together and the negative terminals together places the coils in parallel, producing a nominal 2 Ω load for the amplifier.

For a series connection, the two coils are linked one after the other. This presents the amplifier with a nominal 8 Ω load. A single TS-W3003D4 cannot provide a nominal total load of 4 Ω when both of its voice coils are connected.

Choose the wiring arrangement according to the loads supported by the amplifier. If the coils are wired for 2 Ω, the amplifier must be stable when operating into that impedance. With an 8 Ω load, an amplifier will usually deliver less output power. Always base the connection on the amplifier’s supported nominal load rather than on the connector layout alone.

Amplifier and filter setup

Match amplifier power to the subwoofer’s 600 W RMS rating, not to its maximum figure. The recommended choice is an amplifier whose continuous RMS output does not exceed the driver’s nominal input-power rating. The stated 2000 W value represents maximum input power only; it is not a continuous operating rating and should not be used as the primary amplifier-matching figure.

The driver itself has no built-in amplification, phase adjustment or frequency-filter controls. These functions must be provided by the external amplifier or an audio processor. Begin with the low-pass filter set no higher than 80 Hz, then adjust it to suit the operating range and integration of the front speakers.

If the amplifier includes phase control, compare the available settings while listening from the driver’s seat. Keep the setting that produces the smoother result through the transition between the subwoofer and the front speakers.

Enclosure and installation planning

Free-air installation is not recommended. Without a suitable enclosure, mechanical damping, playback accuracy and allowable power are reduced. Do not select enclosure volume solely from the driver’s 30 cm size. Proper calculation requires the complete set of parameters relevant to the chosen enclosure type.

The required baffle cut-out diameter is 283 mm, while the mounting depth is approximately 176.2 mm. The overall diameter of 326.6 mm must be considered when planning space on the front baffle. The overall depth of 193.7 mm helps determine the total space occupied by the complete driver structure.

Before building the enclosure, verify the cut-out, the available depth and the free area around the subwoofer. Mounting hardware must be selected separately. The shape of the vehicle interior and the direction in which the enclosure faces can also alter the perceived balance of the bass.

Technical specifications

FAQ

Is this a ready-to-use subwoofer enclosure?

No. It is a separate car subwoofer driver. A complete working system requires a properly calculated enclosure, a power amplifier, wiring and suitable mounting hardware.

What kind of amplifier should I choose?

Choose an amplifier that operates reliably with the load produced by the selected voice-coil wiring arrangement. Its continuous RMS output should be lower than the subwoofer’s nominal input-power rating.

Can this subwoofer be connected to a 4 Ω amplifier?

With both voice coils connected, one TS-W3003D4 presents either a 2 Ω or an 8 Ω nominal load. The amplifier must support one of these two configurations.

Can I connect only one voice coil?

No. Both voice coils must be connected when using this model. Select the parallel or series wiring arrangement according to the nominal impedance supported by the amplifier.

Can it be installed without an enclosure?

This is not recommended. Design the enclosure using the original Pioneer TS-W3003D4 parameters and the requirements of the chosen enclosure type, rather than relying only on the driver’s 30 cm diameter.

Is the overall depth the same as the mounting depth?

No. Mounting depth describes the clearance required behind the front baffle. Overall depth includes the full structure of the subwoofer.

Can it be connected directly to a car stereo?

No. It requires an external power amplifier suitable for the selected 2 Ω or 8 Ω load, together with a low-pass filter.
