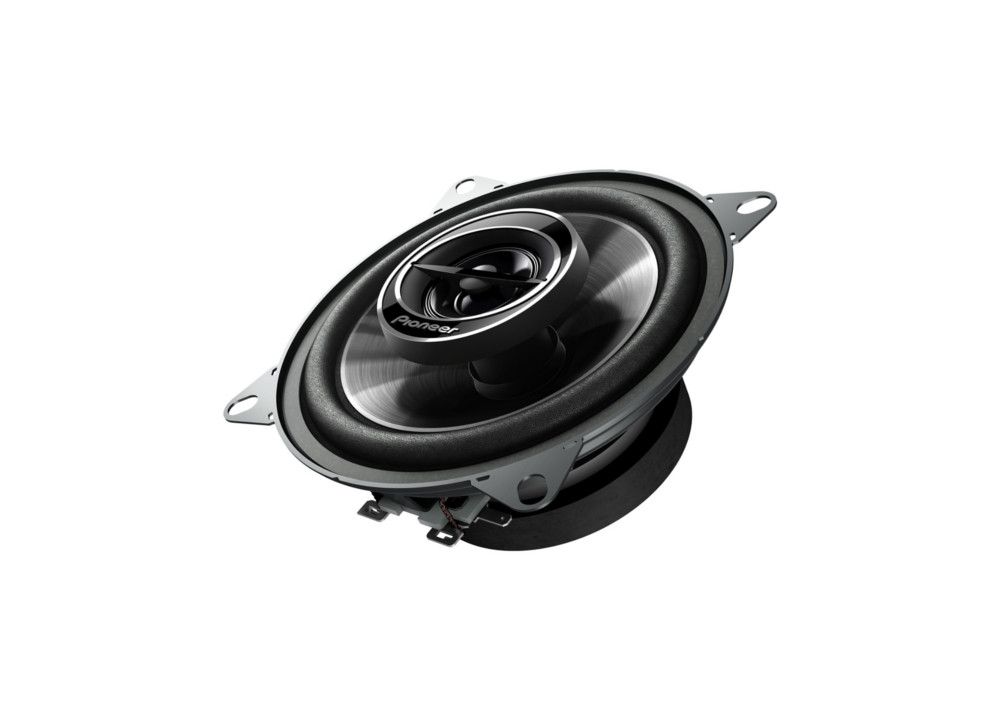

Pioneer TS-G1032i Coaxial Car Speaker
29,00 €
The Pioneer TS-G1032i is a coaxial car speaker intended for flush installation in a vehicle audio system. Its 10 cm, two-way design combines a woofer and midrange driver in one mounting location. The 4 Ω impedance determines amplifier compatibility, while the 106 mm cut-out and 43 mm mounting depth help you assess the installation space accurately. The IMPP composite cone is complemented by a 30 mm PET driver.
The Pioneer TS-G1032i speaker is a 10 cm, two-way coaxial model designed for car audio systems. The main factors to consider when choosing it are the installation dimensions, 4 Ω impedance, and amplifier power settings.
This model is suitable for replacing a speaker of the corresponding format or assembling a new car audio system. Before installation, check the available opening, clearance behind the mounting surface, and the load supported by the connected amplifier channel.
Coaxial design
The coaxial design places both drivers in a single mounting position. The woofer and midrange driver operate on the same axis. This arrangement allows the speaker to reproduce a wider frequency range without requiring a separately installed midrange unit.
The woofer uses an IMPP composite cone. The 30 mm midrange driver is made from PET. Its copper voice coil is wound on a polyimide former, while the magnetic system uses a ferrite magnet.
Electrical matching and connection
The 4 Ω impedance is the primary specification for electrical matching. The channel of the car stereo or separate amplifier must support this load. An unsuitable load can alter the amplifier’s operating conditions and limit the volume that can be used safely.
Connect the speaker to an amplifier output intended for loudspeakers. Maintain the same polarity across all channels. Reversed polarity on one channel can weaken bass reproduction and make the centre of the sound image less focused.
Choosing and adjusting amplifier power
The specified nominal power rating is 30 W, while the maximum input power is 200 W. The maximum figure does not describe continuous operation. Select the amplifier and adjust its gain with reference to the nominal rating and the intended listening volume.
Begin with a lower gain setting. Increase the volume gradually and stop if audible distortion appears. Careful adjustment is more important than relying on the maximum power figure alone.
Preparing the installation location
The nominal speaker format and the required opening are not the same measurement. This model requires a 106 mm cut-out and 43 mm of mounting depth. Compare both dimensions with the selected installation location before cutting any trim or panel material.
There must also be enough room behind the speaker for the magnet, terminals, and the bend of the connected cables. Moving vehicle mechanisms must not touch the speaker. Its 0.4 kg weight should also be taken into account when choosing a firm and secure mounting surface.
Frequency reproduction
The specified frequency range is 38-29,000 Hz, and the lowest resonant frequency is 118 Hz. Actual bass reproduction is affected by the rigidity and sealing of the mounting location as well as the acoustics of the vehicle interior.
The 84 dB sensitivity helps indicate how much volume can be expected from the selected amplifier. Sensitivity should be considered together with the nominal power rating rather than compared only with the maximum power marking.
If the stereo or amplifier includes a high-pass filter for limiting low frequencies, adjust it by listening to the system. Cone movement should not become uncontrolled. If distortion occurs, raise the lower frequency limit.
Technical specifications
| Model | Pioneer TS-G1032i |
|---|---|
| Type | Coaxial car speaker |
| Size | 10 cm |
| Configuration | 2-way |
| Impedance | 4 Ω |
| Frequency range | 38-29,000 Hz |
| Sensitivity | 84 dB |
| Lowest resonant frequency | 118 Hz |
| Maximum input power | 200 W |
| Nominal power | 30 W |
| Woofer material | IMPP composite cone |
| Midrange driver size | 30 mm |
| Midrange driver material | PET |
| Voice coil material | Copper |
| Voice coil former material | Polyimide |
| Magnet material | Ferrite |
| Weight | 0.4 kg |
| Mounting cut-out diameter | 106 mm |
| Mounting depth | 43 mm |
FAQ
Is this model suitable for replacing a factory-installed speaker?
Yes, provided that the mounting opening, available depth, and electrical load of the audio system are compatible. The nominal speaker format alone is not enough to confirm a proper fit.
How should I choose a suitable amplifier?
Check that the amplifier channel supports a 4 Ω load, and match the power according to the 30 W nominal rating rather than the 200 W maximum input power.
Is a high-pass filter required?
The filter is not part of the speaker, but it can make system adjustment easier. If the stereo provides this control, adjust the cut-off point according to cone movement and audible distortion.
Can this speaker replace a subwoofer?
No. This is a 10 cm, two-way coaxial car speaker, not a dedicated subwoofer. The lowest stated value in the frequency range does not, by itself, guarantee strong low-frequency sound pressure.
What is the practical benefit of the coaxial design?
Both drivers use a single mounting location. This is useful in a vehicle that does not have a separate position for an additional driver covering another part of the frequency range.
Can this model be used in a home stereo or cinema system?
It is intended for a car audio system. For a home installation, choose speakers designed for that purpose, even if the home amplifier supports the same electrical load.
Can several of these speakers be connected to one channel?
Connecting multiple speakers changes the total load presented to the channel. Connect them in parallel only when the amplifier supports the resulting lower impedance.
