Pioneer MVH-S420BT Receiver

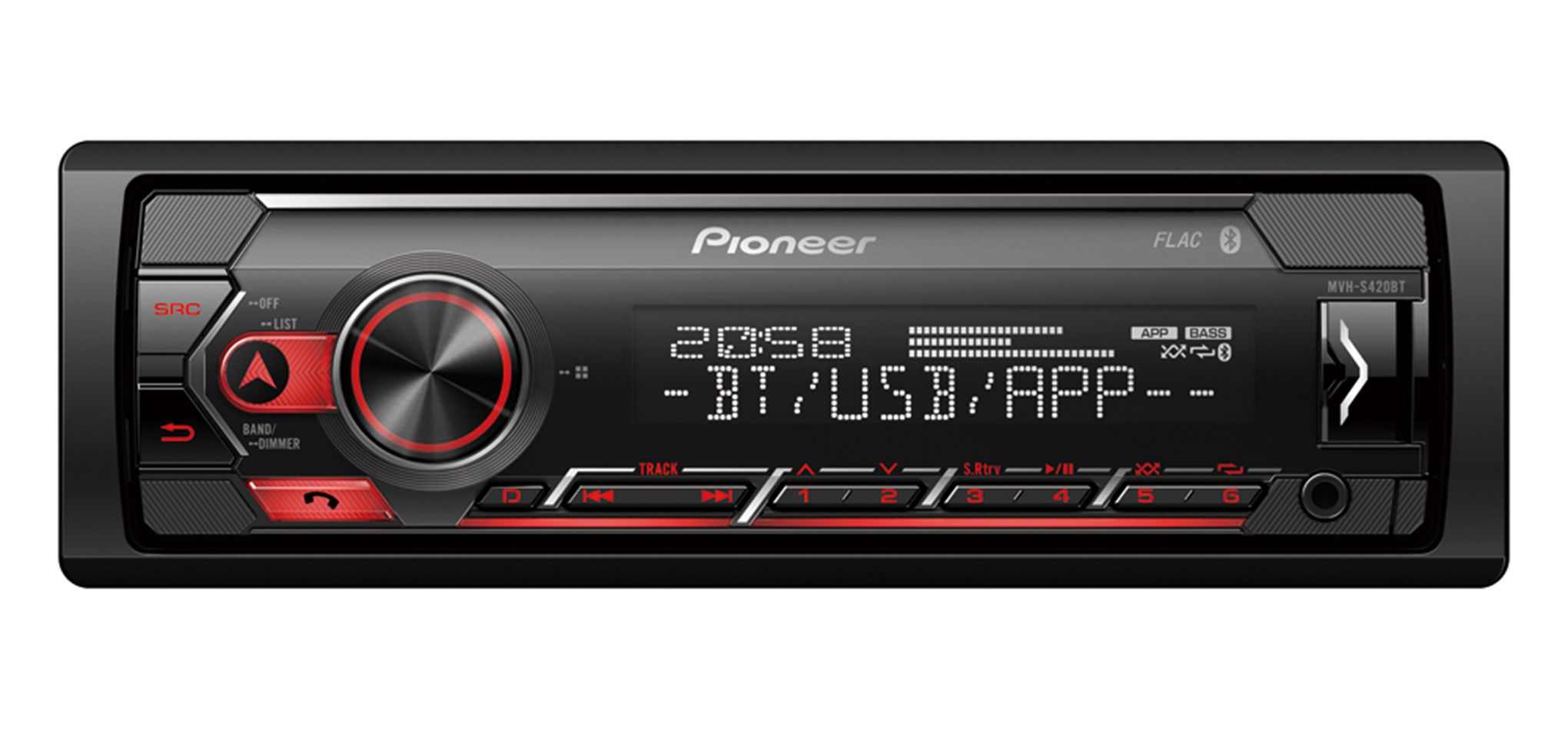

The Pioneer MVH-S420BT receiver is a 1-DIN digital media receiver designed for in-car audio systems. It supports Bluetooth calling, wireless music streaming and FLAC file playback. Its built-in display and large rotary control provide clear, quick access to the main functions.

Who is this receiver for?

This model is suitable for drivers who usually play music from a smartphone or listen to FLAC files. The wireless connection reduces the need to connect a phone with an audio cable. Its built-in amplifier also makes it possible to begin with a relatively simple car audio system.

The system can be expanded later without replacing the main receiver.

Phone connectivity

Bluetooth connectivity supports hands-free calls and wireless audio streaming from a smartphone. Two phones can be connected at the same time, which is useful when separate personal and work phones are used in the same vehicle.

The store’s original description listed compatibility with selected iPhone and Android phones, Spotify Free and Premium, and Pioneer Smart Sync. Current compatibility must be checked according to the phone’s operating system, app version and region.

Sound settings and controls

The 13-band graphic equaliser lets you adjust separate areas of the audio frequency range. For initial tuning, it is best to start with neutral equaliser settings. Adjust one band at a time, then assess the result from your normal listening position.

Advanced Sound Retriever is a built-in audio processing technology. Compare its effect in the on and off positions while playing recordings you listen to regularly. This will help you choose the more suitable setting for a particular source.

The display presents the information needed for operation, while the large rotary control makes frequently used functions easier to select. For safety, adjust detailed sound settings while the vehicle is stationary.

Built-in and external amplification

The built-in MOSFET amplifier is rated at 50 W × 4. This figure is not identified as continuous, short-term or maximum power. It should therefore not be compared directly with an RMS power rating.

Two RCA line outputs send a signal to external amplifiers. They are useful if you plan to amplify the vehicle’s speakers or another part of the audio system separately.

Installation space

The 1-DIN format is intended for a correspondingly sized opening in the vehicle dashboard. This designation does not, by itself, define the wiring harness, antenna connection or trim fascia required for a specific vehicle.

There must be enough room behind the receiver for its connections and wiring so that the unit can be installed without crushing or sharply bending the cables. The front panel should be positioned so that the display remains visible and the rotary control is easy to reach.

Technical specifications

FAQ

Can two phones be connected at the same time?

Yes. The receiver supports the simultaneous connection of two Bluetooth phones. This is useful when you use both a work phone and a personal phone in the same vehicle.

Can I connect an external amplifier?

Yes. Two RCA line outputs are provided for an external amplifier. They carry the signal before the power stage of the built-in amplifier.

How should I begin setting the graphic equaliser?

Begin by selecting neutral settings for all 13 bands. Then adjust one frequency range at a time while listening to a recording you know well.

Will Spotify and Pioneer Smart Sync work now?

The store’s original description listed compatibility with Spotify and Pioneer Smart Sync. Current compatibility must be checked based on the phone’s operating system, app version and region.

What does the 50 W × 4 power rating mean?

It is the stated power figure for the four channels of the built-in amplifier. Because the measurement conditions are not defined, it cannot be treated as a confirmed continuous RMS rating.

Can the receiver be installed in a 2-DIN console?

This is a 1-DIN unit. When it is installed in a larger console, the required arrangement depends on a trim fascia designed for the specific vehicle.
