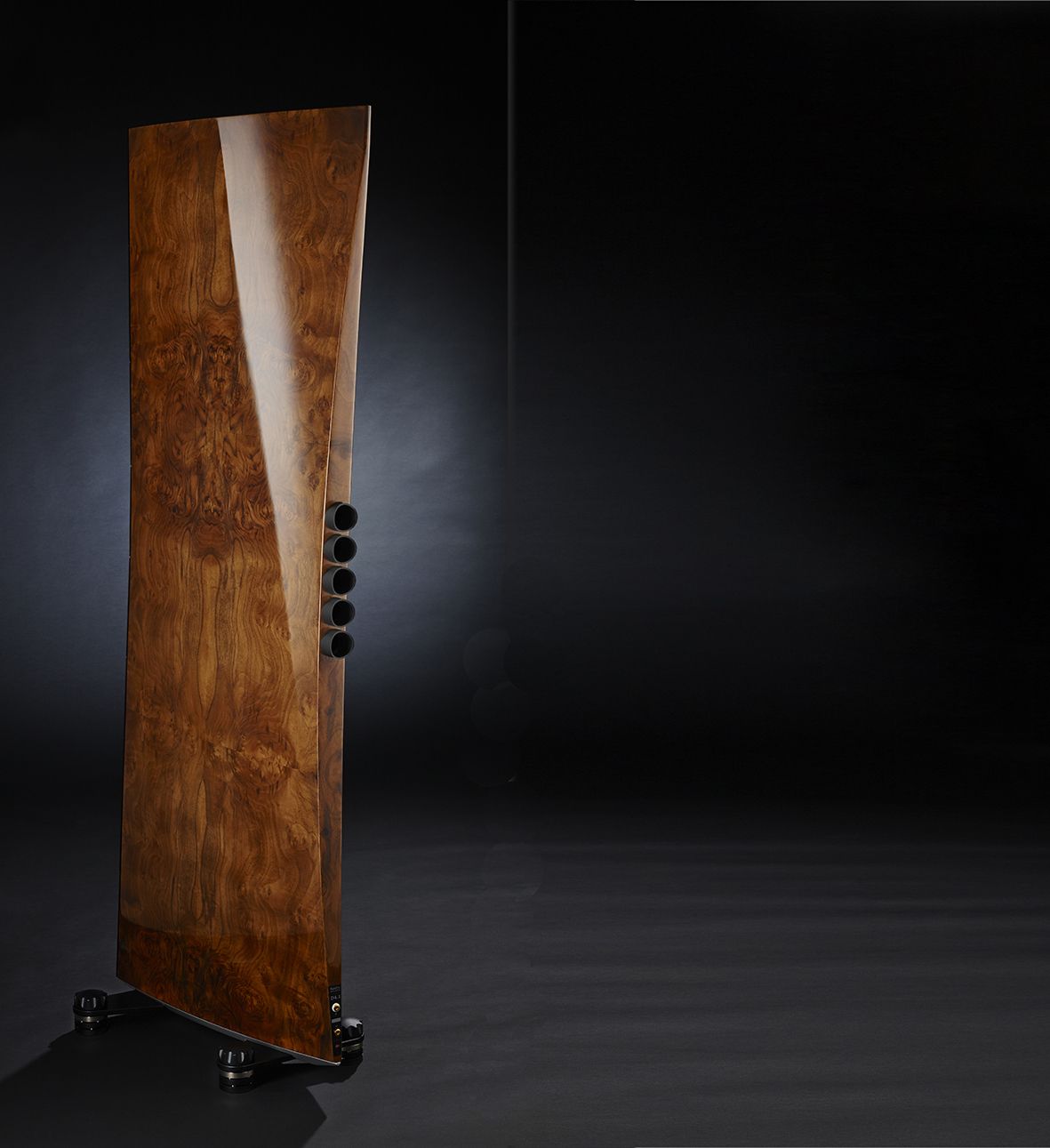

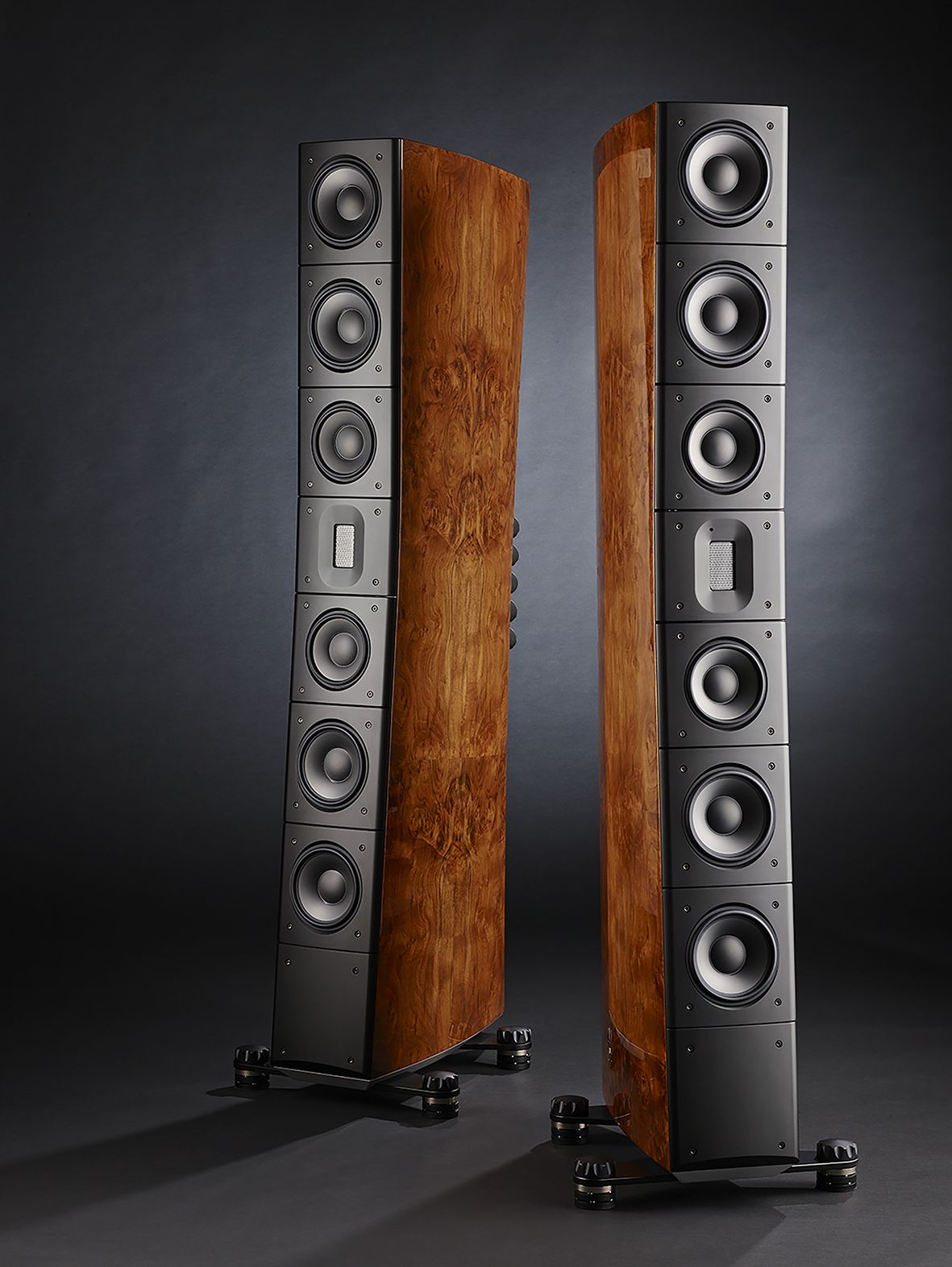

This symmetrically build extends all the way to the bass. TD drive units makes the speaker ingulf you in a holographic landscape of sound.
With multiple bass driver it may produce the same volume and go as deep as much bigger woofers, just with much better impulse response resulting in a very dynamic and articulate sound. This also makes it possible to keep the front plate slim, thereby reducing diffraction. This adds to a wide and precise sound stage.
The sound is authentic and live, and TD4.2 will deliver musical experiences from the smallest, intimate performances and to the biggest bands, with impact, dynamics, and musical scale in the most convincing of ways.
Raidho Series TD
Drive Unit
This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.
The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.
The Legendary Raidho Ribbon Tweeter
Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
Bass Loading – Bass reflex Port in rear, Impulse optimized – Conform
Drivers
1 x Raidho TD Ribbon Tweeter
2 x 5” Raidho Tantalum Diamond midrange
2 x 6.5” Raidho Tantalum Diamond bass
Crossover Point – 400Hz and 2.4 kHz stepped slope
Frequency Range – 25Hz – 50 kHz +/-3 dB
Sensitivity – 88dB 2,83 V/m
Nominal Impedance – 6 Ohm
Power Requirement – 50 -300 Watts
Dimensions WxHxD, mm – 440x1585x600 including feet
Enclosure WxD, mm – 200 x 600
