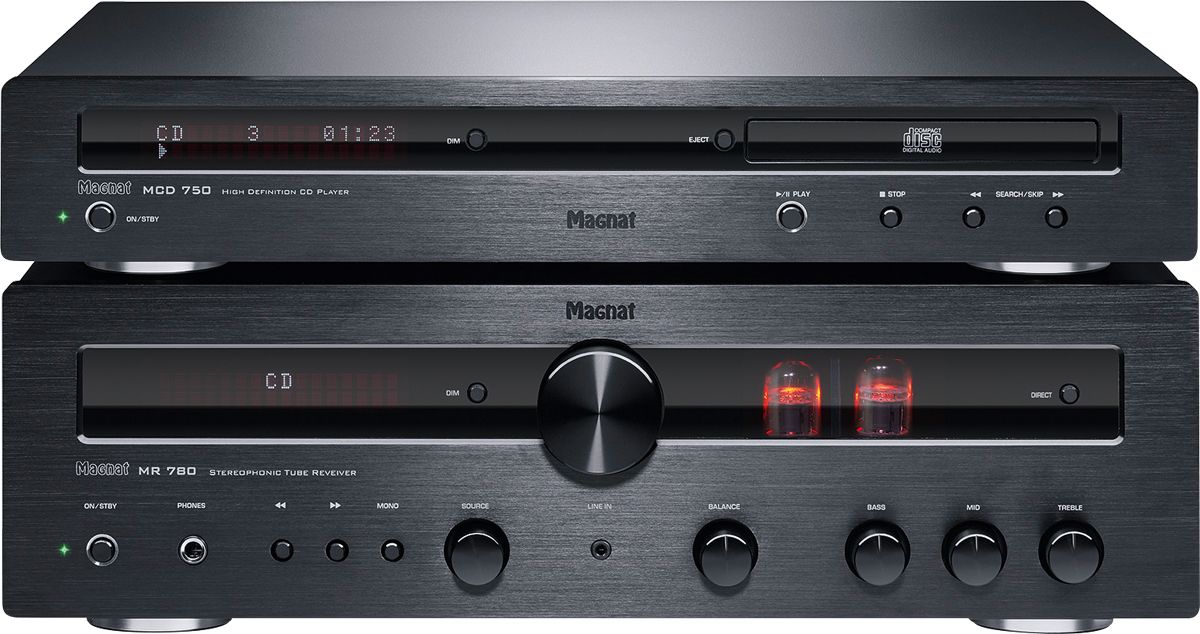

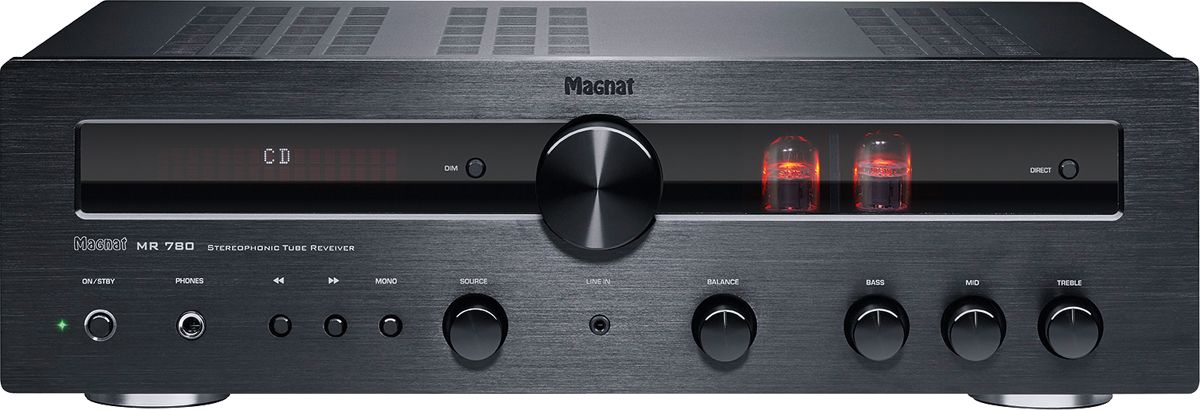

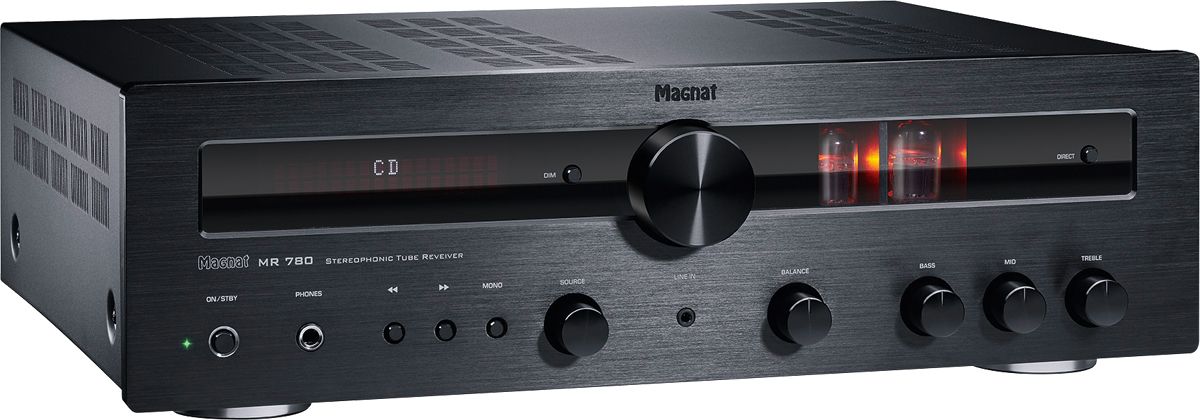

Magnat MR-780

FREQUENCY RESPONSE

• CD/Tuner/Aux/Line/Tape: 6 Hz – 90 kHz (-3,0 dB)
• 20 Hz – 20 kHz (+/-0,3 dB)
• Subsonic Filter : 16 Hz, 18 dB/Oct.

PEAK

• 1 kHz, 4 Ohm 2 x 180 W

OUTPUT POWER / NOMINAL

• 20 Hz – 20 kHz, THD < 1.0%, 4 Ohm, 2 x 100 W
• 20 Hz – 20 kHz, THD < 1.0%, 8 Ohm, 2 x 75 W

POWER CONSUMPTION

• Standby < 0,5 W

INPUT SENSIVITY

• CD/Tuner/Aux/Line/Tape: 470 mV/100 kΩ

DIGITAL INPUTS

• USB 2.0, type B connector
• Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz
• Supported bit depth: 16/24bits
• 1. optical (Toslink™)
• 2. coaxial (cinch)

S/N RATIO

• CD/Tuner/Aux/Line/Tape: 104 dB (A)

DIMENSIONS (WXHXD)

• 433 x 132 x 317 mm (360 mm incl. controls and connectors)
• Remote control: 45 x 175 x 20 mm

COLOR

• Black

WEIGHT

• 8.9 kg
