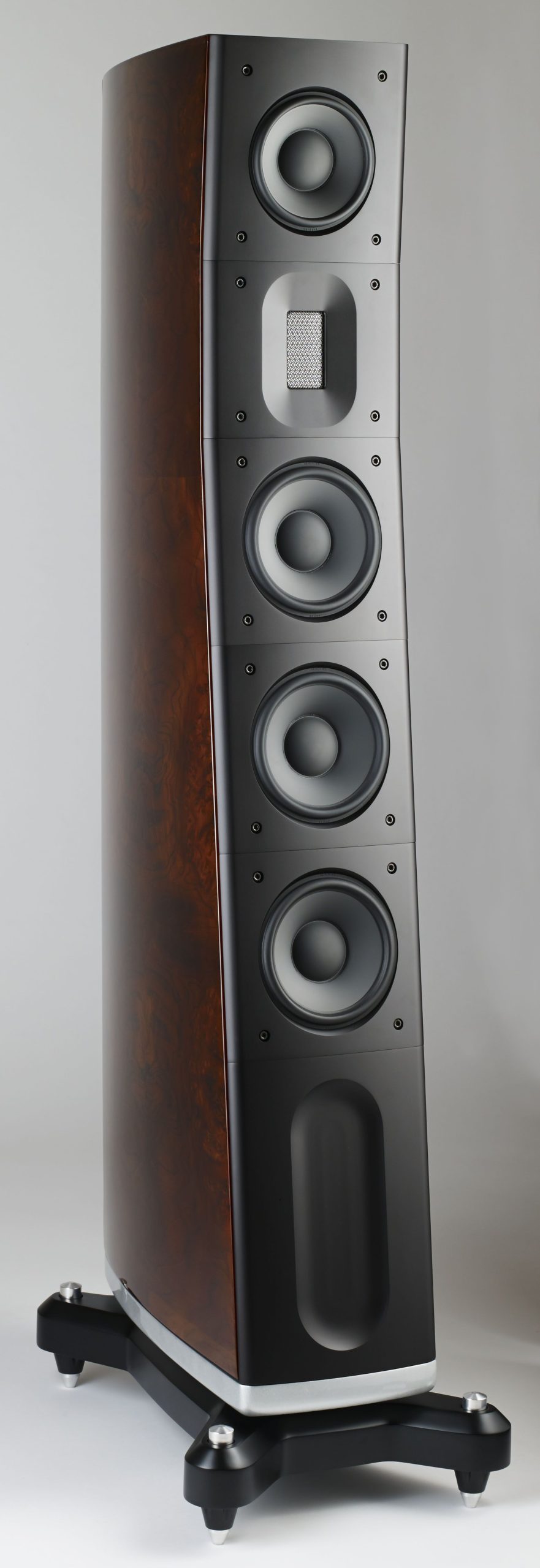

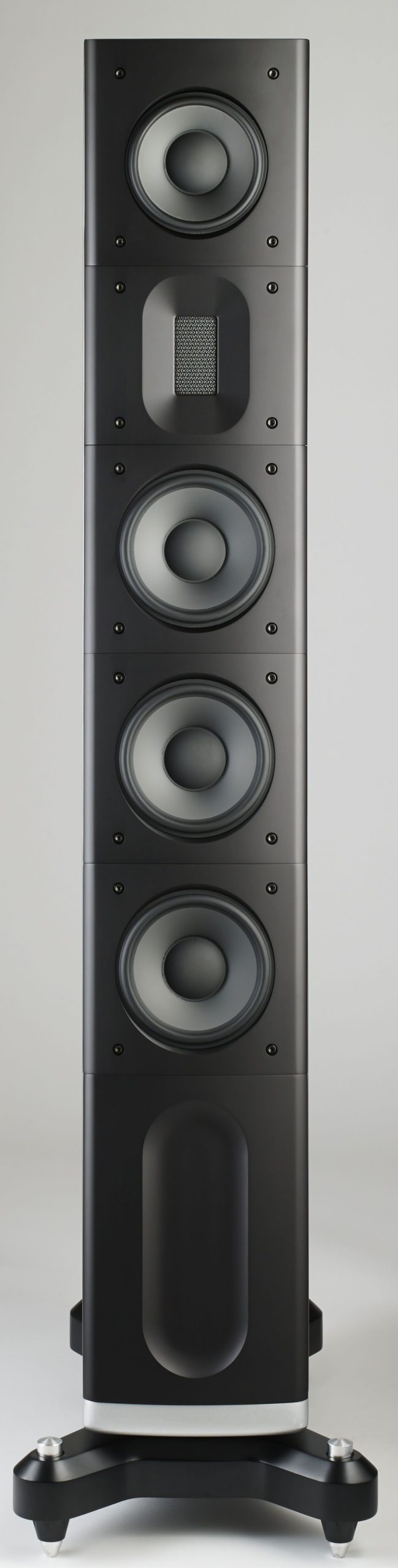

The TD3.2 is capable of delivering a huge soundstage with authentic and organic sound that really captures the listener. A true 3-way design built upon our new drivers including the 5” midrange used in the TD3.8, and the updated TD-ribbon tweeter.
Decoupling of the speakers is integrated into the feet. So, there is no need for spikes to achieve the best result, because this is actually done with ceramic balls, on which the speakers rest on.
The TD3.2 has its own dedicated 5,25” midrange drive unit which sits in its own enclosure. The result is much more transparency and detail in the very critical midrange band.
Raidho Series TD
Drive Unit
This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.
The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.
The Legendary Raidho Ribbon Tweeter
Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
Bass Loading – Bass reflex Port in rear, Impulse optimized
Drivers
1 x Raidho TD Ribbon Tweeter
1 x 5” Raidho
Tantalum Diamond midrange
3 x 6.5” Raidho Tantalum Diamond bass
Crossover Point – 400Hz and 2.4 kHz stepped slope
Frequency Range – 28Hz – 50 kHz +/-3 dB
Sensitivity – 90dB 2,83 V/m
Nominal Impedance – 4 ohm
Power Requirement – 50 -300 Watts
Dimensions WxHxD, mm – 315x1235x505 including feet
Enclosure WxD, mm – 200 x 505
