Onkyo TX-NR5100M2

Overview

The Onkyo TX-NR5100 is an affordable and versatile 7.2-channel 8K AV receiver. This smart AV receiver combines the latest HDMI 2.1 and 8K technology. High definition audio and immersive sound via connected media players, game consoles and audio from TV apps via eARC.

Klipsch optimization mode makes it easy to seamlessly integrate your Klipsch Reference and Reference Premiere speakers with the Onkyo TX-NR5100 receiver. Klipsch and Onkyo are collaborating to implement precise crossover values for certain new Reference loudspeakers. Now you can simply select the speaker model you want to use for each individual channel and the optimized crossover setting will be applied automatically.

The Onkyo TX-NR5100 easily integrates with your existing smart home ecosystem, including Apple Airplay, Alexa, Google Apps and more. You get an extremely powerful and compatible network device that can fit seamlessly into your multi-room ecosystem.

HDMI 2.1 is the latest update to the HDMI specification, supporting eARC, a range of higher video resolutions and frame rates including 8K@60 and 4K@120, and dynamic HDR formats. 8K offers an immersive viewing experience with twice the horizontal and vertical resolution of 4K and four times the number of pixels. In combination with a refresh rate of 60 Hz, smooth and sharp playback of fast-paced content is guaranteed. HDMI 2.1 with 8K and eARC ensure your system is ready for the clearest picture on the market. 4K@120 ensures clear and crisp UHD images with ultra-fast movements. Sports, action movies, and high-performance gaming all benefit greatly.

Specifications

Channels: 5.2.2

Power Output per Channel:
1-Channel Driven: 165 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD

Dynamic Power per Channel:
160 W at 3 Ohms (Front)
125 W at 4 Ohms (Front)
85 W at 8 Ohms (Front)

Frequency Response: 10 Hz to 100 kHz +1 dB (Direct, Pure Mode)

THD+N: 0.08% (20 Hz to 20 kHz)

Speaker Impedance: 4 to 16 Ohms

Tone Control:
Bass (20 Hz): ±10.0 dB
Treble (20 kHz): ±10.0 dB

DTS Compatibility: DTS Virtual:X, DTS-HD Master Audio, DTS:X

Dolby Compatibility: Dolby Atmos, Dolby TrueHD

Auro 3D Support: No

Upmixing Technology: DTS Virtual:X, Dolby Atmos Height Virtualization Technology

HDR Compatibility: HDR10+

Pass-Through Support: 4K120p

Upscaling: None

GUI: Yes

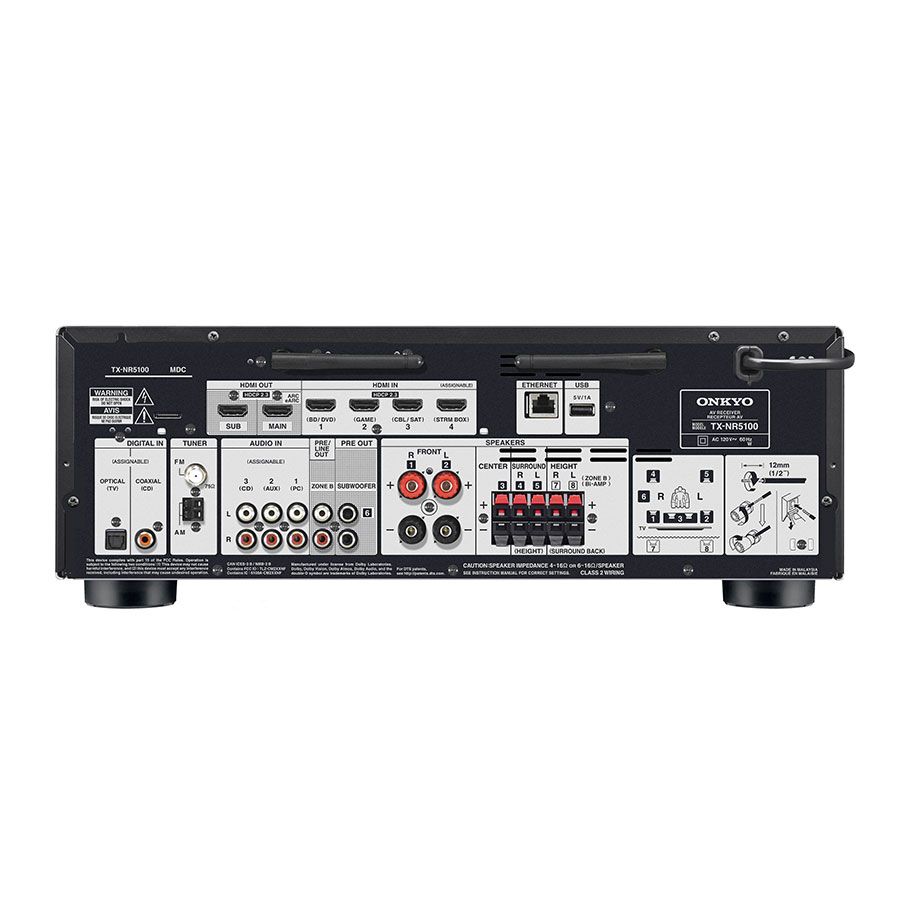

Rear A/V Inputs:
4 x HDMI 2.1
3 x RCA
1 x Digital Coaxial
1 x Optical TOSLINK

Rear A/V Outputs:
2 x HDMI
2 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone B Pre-/Line-Out

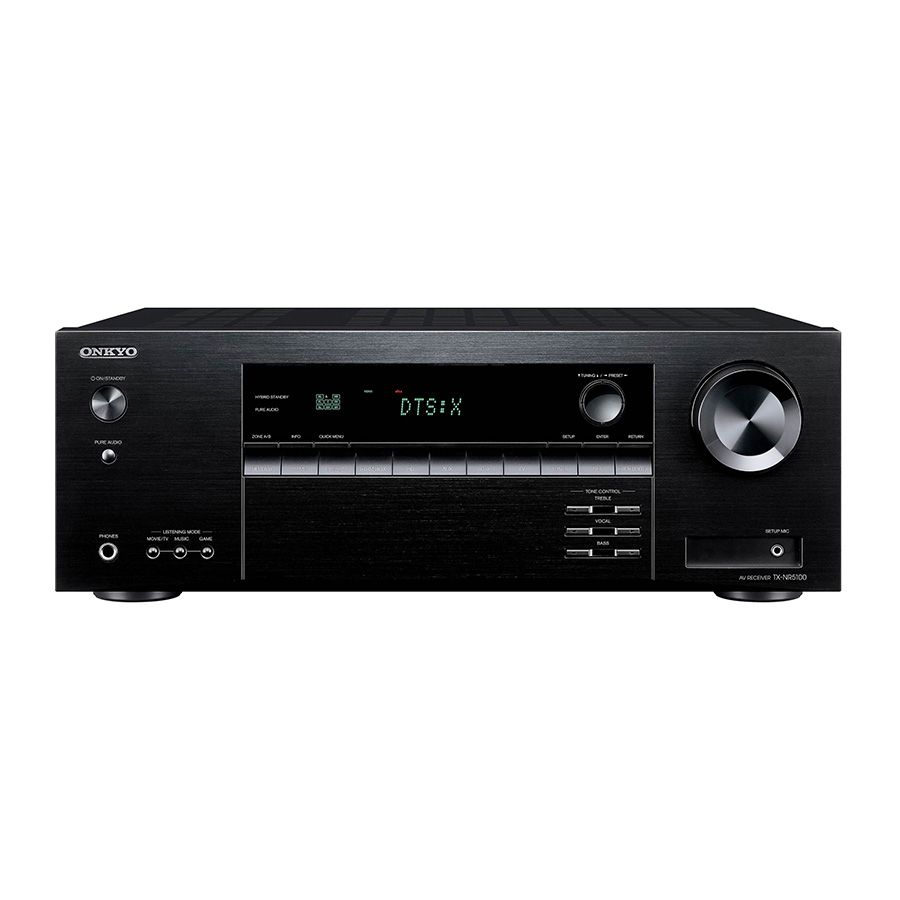

Front I/O:
1 x 1/4″ / 6.35 mm Headphone Output
1 x 1/8″ / 3.5 mm Setup Mic Input

Other Rear I/O:
1 x RJ45 (Ethernet) Input/Output
1 x USB Type-A (Power) Output
1 x FM Coaxial F-Type Input
1 x AM Block Input

Speaker Connectors:
5 x Spring Clip Pairs (Center, Height, Rear Surround)
2 x Binding Post Pairs (Front)

HDCP Support: Version 2.3

HDMI Compression Modes: 4K120AB / 8K60B

Audio Return Channel (ARC): ARC, eARC

HDMI CEC: Yes

Media Card Slot: None

Bi-Amp Capability: Yes

Input Impedance:
Line: 32 Kilohms

Input Sensitivity:
Line: 200 mVrms

Rated Output / Impedance:
Zone B Line-Out: 1 Vrms / 2.2 Kilohms
Zone B Line-Out: 200 mVrms / 2.2 Kilohms

Signal to Noise Ratio: Line: 106 dB (IHF-A)

Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

Supported Audio Codecs: AAC, SBC, aptX, aptX HD

Wireless Audio Protocols: AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Ready

External Control Support: Android/iOS Control App

Virtual Assistant: Works with Alexa, Works with Google Assistant

Tuner Type: AM, FM

Number of Tuner Presets: 40 Stations

Radio Frequencies:
AM: 530 to 1710 kHz
FM: 87.5 to 107.9 MHz

AC Input Power: 120 VAC, 60 Hz

Power Consumption:
Active: 490 W
No Sound: 45 W
Standby: 0.1 W

Dimensions (W x H x D): 435.0 x 160.0 x 328.0 mm

Weight: 8.4 kg
