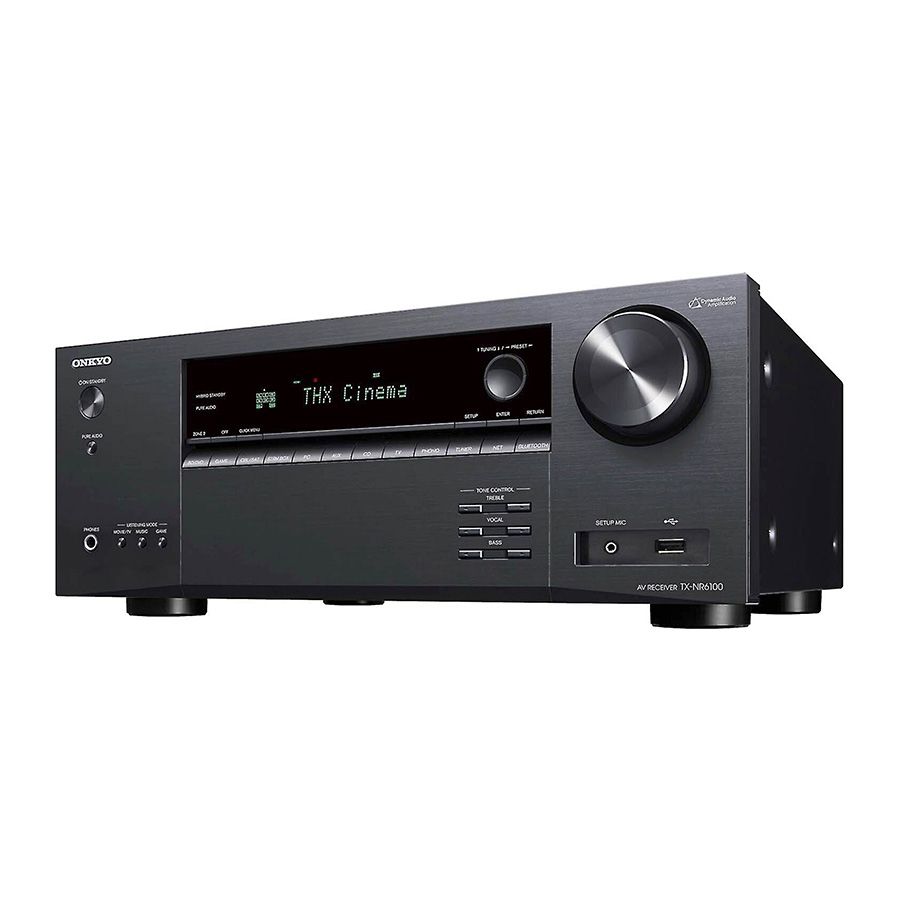

Onkyo TX-NR6100M2

Overview

Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.

With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.

Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI® 2.1, you can enjoy Dolby Atmos® and DTS: X® soundtracks through your height-enabled surround system or use up-mixing and virtualization solutions from DTS® and Dolby® to create a 3D sound-field from any layout.

Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your living room.

Specifications

Channels: 5.2.2

Power Output per Channel:
1-Channel Driven: 210 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven: 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD

Dynamic Power per Channel:
240 W at 3 Ohms (Front)
210 W at 4 Ohms (Front)
120 W at 8 Ohms (Front)

Frequency Response: 10 Hz to 100 kHz +1 dB (Direct, Pure Mode)

THD+N: 0.08% (20 Hz to 20 kHz, Half Power)

Speaker Impedance: 4 to 16 Ohms

Tone Control:
Bass (20 Hz): ±10.0 dB
Treble (20 kHz): ±10.0 dB


DTS Compatibility: DTS:X

Dolby Compatibility: Dolby Atmos

Auro 3D Support: No

Pass-Through Support: 4K120p

Upscaling: None

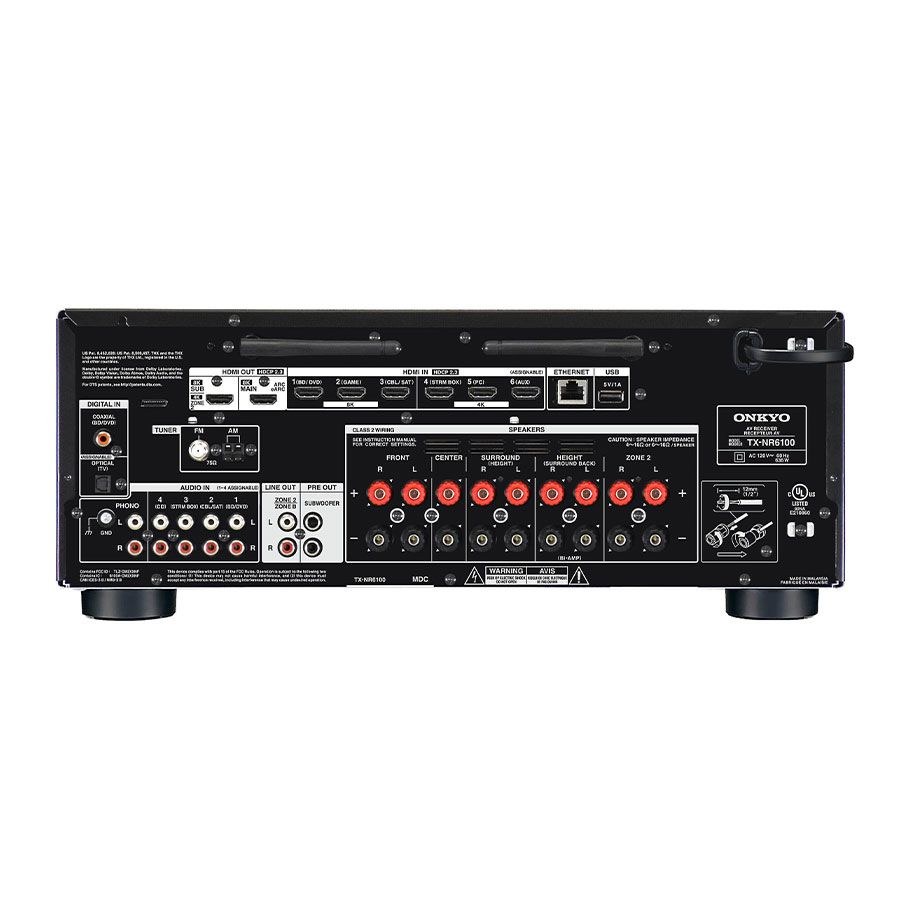

Rear A/V Inputs:
3 x HDMI 2.1
3 x HDMI 2.0
4 x RCA
1 x Stereo RCA (Phono) with Ground Screw
1 x Optical TOSLINK
1 x Digital Coaxial

Rear A/V Outputs:
1 x HDMI
1 x HDMI Zone 2
1 x RCA Zone 2 / Zone B Line-Out
2 x RCA Subwoofer Pre-Ou
t

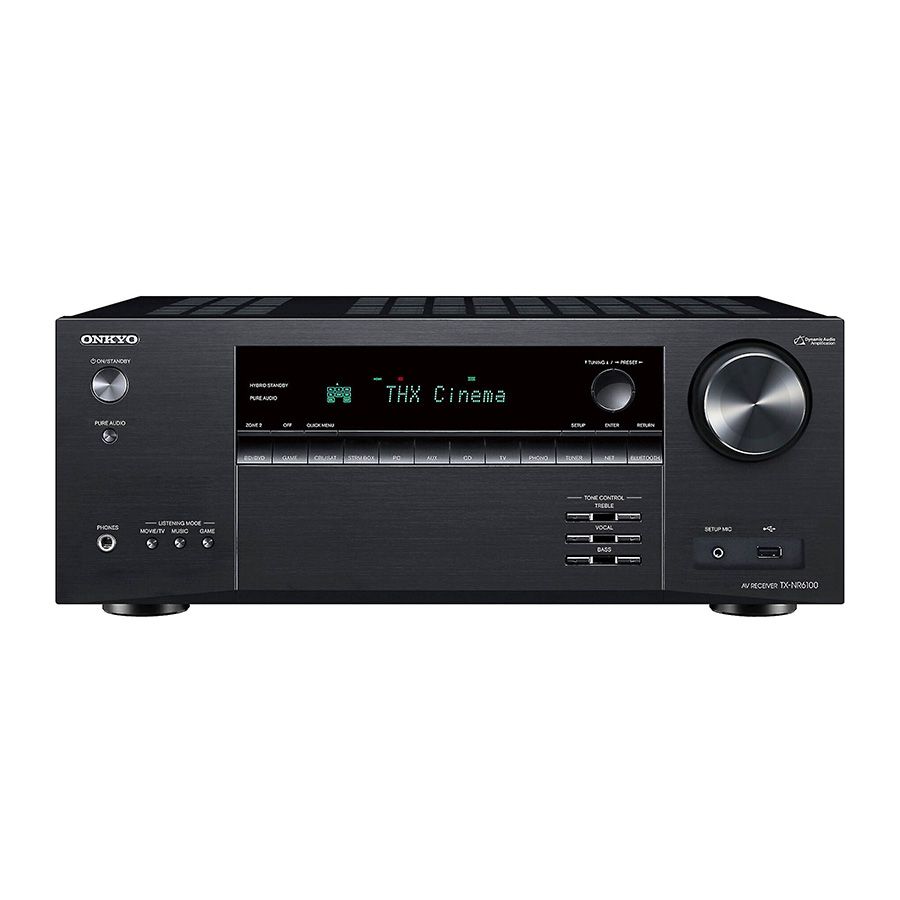

Front I/O:
1 x 1/4″ / 6.35 mm Headphone Output
1 x 1/8″ / 3.5 mm Microphone Input
1 x USB Type-A Input

Other Rear I/O:
1 x FM Coaxial F-Type Input
1 x AM Block Input
1 x RJ45 (Ethernet) Input/Output
1 x USB Type-A (Power) Output

Speaker Connectors: 7 x Binding Post Pairs

HDCP Support: Version 2.3

HDMI Compression Modes: 4K120AB / 8K60AB

Audio Return Channel (ARC):  ARC, eARC

HDMI CEC: Yes

Media Card Slot: None

Bi-Amp Capability: Yes
Input Impedance:
Line: 47 Kilohms
Phono (MM): 47 Kilohms

Input Sensitivity:
Line: 200 mVrms
Phono (MM): 3.5 mVrms

Rated Output / Impedance:
Subwoofer Pre-Out: 1 Vrms / 470 Ohms
Zone B / 2 Line-Out: 200 mVrms / 470 Ohms

Signal to Noise Ratio:
Line: 106 dB (IHF-A)
Phono: 80 dB (IHF-A)

Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

Supported Audio Codecs: AAC, SBC, aptX, aptX HD

Wireless Audio Protocols: AirPlay 2, Chromecast built-in, DTS Play-Fi

Virtual Assistant: Works with Alexa, Works with Google Assistant

Tuner Type: AM, FM

Number of Tuner Presets: 40 Stations

Radio Frequencies:
AM: 530 to 1710 kHz
FM: 87.5 to 107.9 MHz

AC Input Power: 120 VAC, 60 Hz

Power Consumption:
Active: 635 W
No Sound: 65 W
Standby: 0.1 W

Dimensions (W x H x D): 435.0 x 173.5 x 379.5 mm

Weight: 9.8 kg
