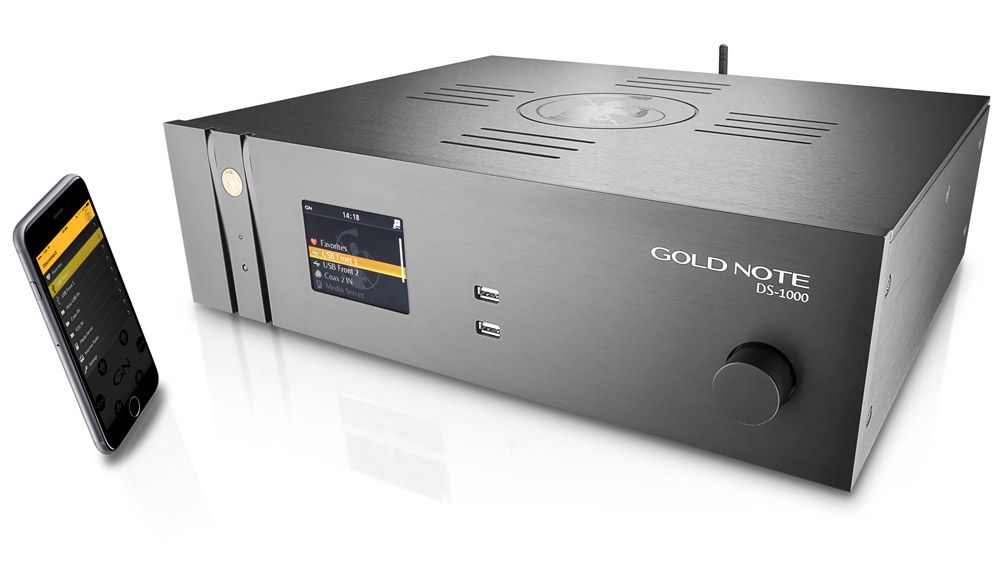

Gold Note DS-1000 Deluxe MKII
5 800,00 €
Gold Note DS-1000 Deluxe MKII D/A keitiklis ir grotuvas
MAIN FEATURES
D/A Converter native PCM up to 24bit/192kHz & DSD 64/128/256 native and via DoP
Network Player and Streamer PCM and DSD64
Frequency response: 5Hz-200kHz +/-0.3dB
THD – Total Harmonic Distortion: 0.001% max
Signal to Noise ratio: -125dB
Dynamic response: 129dB
Output impedance: 50ohm
Digital filter: Gold Note Zero-Clock™ circuit enabling three different Master Clock
Digital Volume Control: enabled/disabled by remote
Dimensions: 430mm W | 135mm H | 375mm D
Weight: 15kg
POWER
Mains supply: 100V to 245V, 50/60Hz
Dual-Mono power supply
Power consumption: 30W
UPGRADES
TUBE-1012: external inductive powered 12 tubes Class-A Output Stage Unit
TUBE-1006: external 6 tubes Class-A Output Stage
PSU-1000: Inductive external multi transfomer super power supply
Analogue Preamp stage included
Analogue Input:
Stereo balanced XLR
CONNECTIVITY
LAN/WLAN WiFi: 802.11b/g via RJ45 10/100Mbps socket and Antenna playing native and DoP DSD64/128/256 and PCM up to 24bit/192kHz
Infrared remote: RC5 proprietary code
Supported audio formats:
- AIFF (.aif, .aiff, .aifc)
- ALAC
- WAV (.wav) packed/unpacked
- FLAC
- WmA Windows media Audio 9
- WAX Windows media audio metafiles
- ASX Advanced Stream Redirector (.asx)
- MP3
Supported media servers:
- Minim
- Bubble UPnP
- all UPnP certified media servers

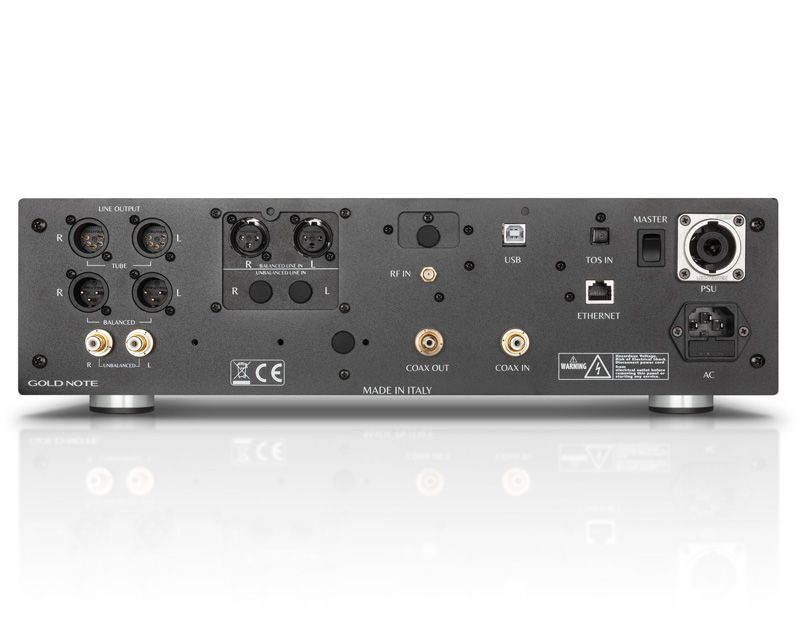

AUDIO INPUTS
Digital input: one RCA S/PDIF coaxial and one TOS-optical asynchronous 24bit/192kHz
USB: asynchronous native and DoP DSD64/128/256 and PCM up to 24bit/192kHz
USB: two USB-A front ports to feed USB flash memories and HDD only FAT32 formatted playing native and DoP DSD64/128/256 and PCM up to 24bit/192kHz.
Analogue input (optional): Stereo balanced XLR
AUDIO OUTPUTS
Line output level (fixed): stereo RCA @ 2Volt and balanced XLR @ 4Volt
Digital output: S/PDIF, 75ohm RCA 24bit
