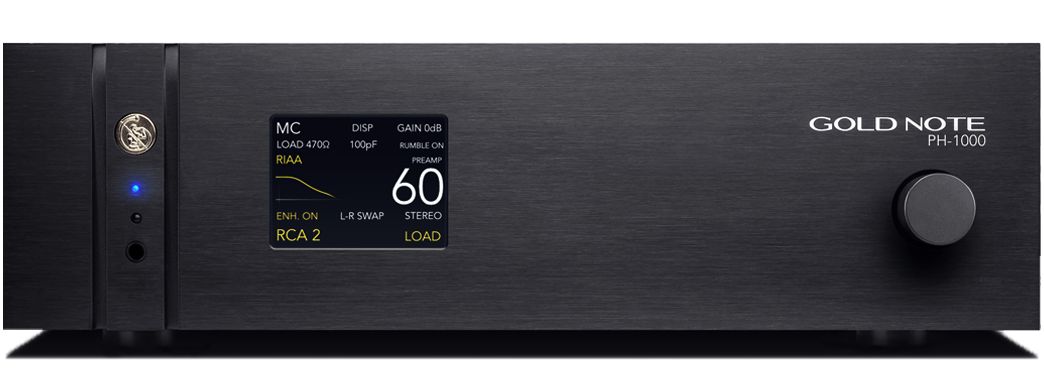

Gold Note PH-1000
10 900,00 €
Gold Note PH-1000 fono korektorius
ADVANCED FEATURES
3 SEPARATE INPUTS
With two separate RCA inputs and one XLR input you can connect three different tonearms and adjust settings independently for each single cartridge.
6 GAIN OPTIONS
PH-1000 offers 6 different selectable GAIN levels (-6dB, -3dB, 0dB, +3dB, +6dB, +9dB) to precisely match any kind of output level for MM and MC cartridges.
12 LOAD OPTIONS
Perfect matching is easy and quick to achieve with 12 different load options (100KΩ, 75KΩ, 47KΩ, 33KΩ, 22KΩ, 1KΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω) which can be finely adjusted manually as well.
6 CAPACITANCE OPTIONS
Even MM cartridges can be finely matched in the best way with 6 different capacitance options (100pF, 150pF, 220pF, 330pF, 470pF, 1000pF).
SUBSONIC FILTER
An On/Off switchable Subsonic Filter out of the audio bandwidth avoids turbulences at low frequency, damping distortion and thus preventing uncontrolled movements of the speakers’ bass drivers.
24 EQ CURVES
10 selectable EQ curves STEREO (RIAA, Capitol, Columbia, Decca, Epic, EMI, London Decca, Mercury, RCA Victor, Deutsch)
2 selectable EQ curves MONO 78 RPM (Columbia/English, Brunswick/Parlophone)
Doubled by the Enhanced option that allows matching any vinyl record accordingly to label producers the best.
DISPLAY & FRONT KNOB CONTROL
SKC is a unique technology that combined with a TFT display allows quick control of the functions through the single knob joggle, allow adjutments while playing music without any interruption.
ELEGANT & FUNCTIONAL
Made of solid machined aluminium, the high mass aluminium/steel body guarantees low frequency resonance, feedback vibrational control and low magnetic inertial field.
MODULAR DESIGN
PH-1000 modular design allows matching the special external Power Supply PSU-1250/1000 and Tube Output stages TUBE-1012/1006 enhancing the fullest potential and reaching the highest level of musical realism, dynamic level, power details and greater sound stage headroom.
TECHNICAL SPECIFICATIONS
6 Output stages design Phono Stage made with discrete components
3 independent stereo 2 RCA and 1 XLR Inputs
Frequency response: 20Hz – 20KHz
24 EQ Curves set-up [+ Enhanced Gold Note proprietary EQ curves] @ +/- 0.3dB max.
THD (Total Harmonic Distortion): <0.01% MAX
Signal to noise ratio: -93dB
Dynamic range: 110dB
Output impedance: 50Ω
Gain in MM 40dB adjustable 34 to 49dB (50 to 280 times) in 6 steps
Gain in MC 65dB adjustable 59 to 74dB (890 to 5000 times) in 6 steps
On/Off switchable subsonic filter: 10Hz/36dB oct.
Adjustable Mono/Stereo, Channel Swapping R/L, L/R
IR receiver for remote control
WIFI (optional)
Weight: 11Kg
Dimensions: 430mm W | 135mm H | 375mm D
POWER
Dual Mono linear power supply 100-240V with automatic selection
Power consumption: 30W
PSU Input for special external power supply PSU-1000 & PSU-1250
AUDIO INPUTS
2 Stereo RCA (unbalanced), 1 Stereo XLR (balanced)
Input capacity selectable MM: 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
Input sensitivity: 0.1mV MC up to 8.0mV MM
Input impedance: 12 selectable options [100KΩ, 75KΩ, 47KΩ, 33KΩ, 22KΩ, 1KΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
Gain: 65dB MC – 40dB MM with 6 options (-6dB, -3dB, 0dB, +3dB, +6dB, +9dB]
AUDIO OUTPUTS
1 Output Stereo RCA (unbalanced) @ 1Volt
1 Output Stereo XLR (balanced) @ 4Volt
1 Output Stereo for Tube (balanced GN) for optional TUBE-1006

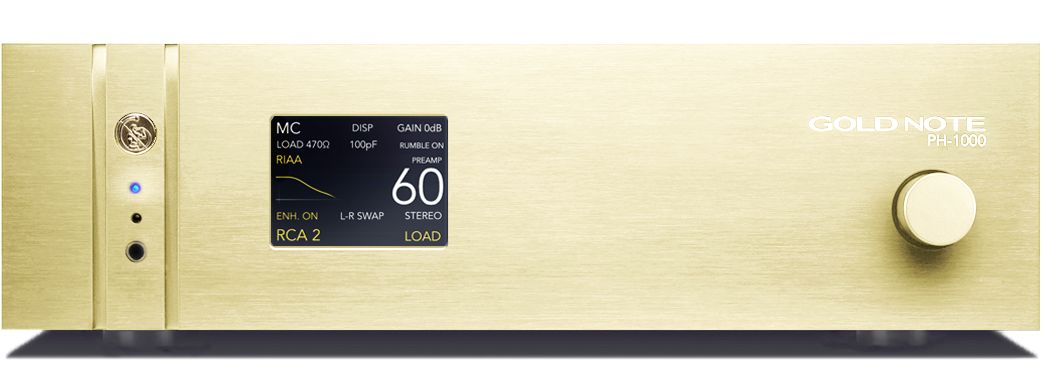

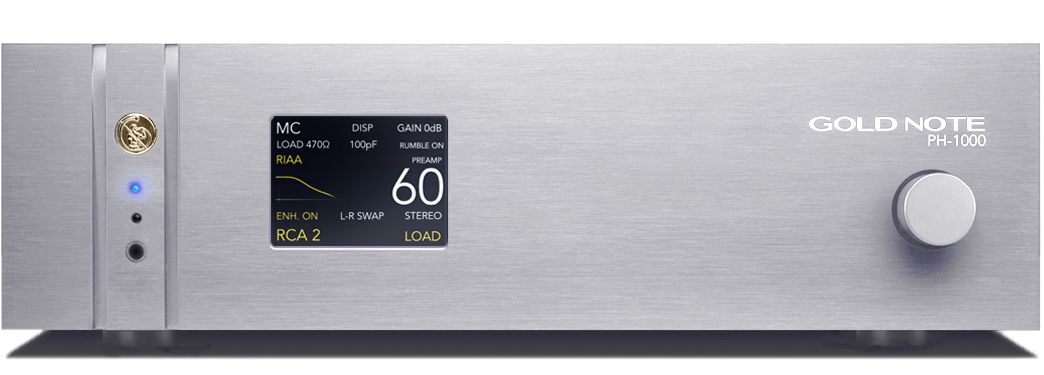

FINISHES
CASE
Gold, black or silver
INSERTS
Aluminium | Black, Silver or Gold
Hardwood | Walnut
& TUBE-1012
