Bricasti Design M30
32 000,00 €
Bricasti Design M30 galios stiprintuvas (pora)
Powerful. Compact

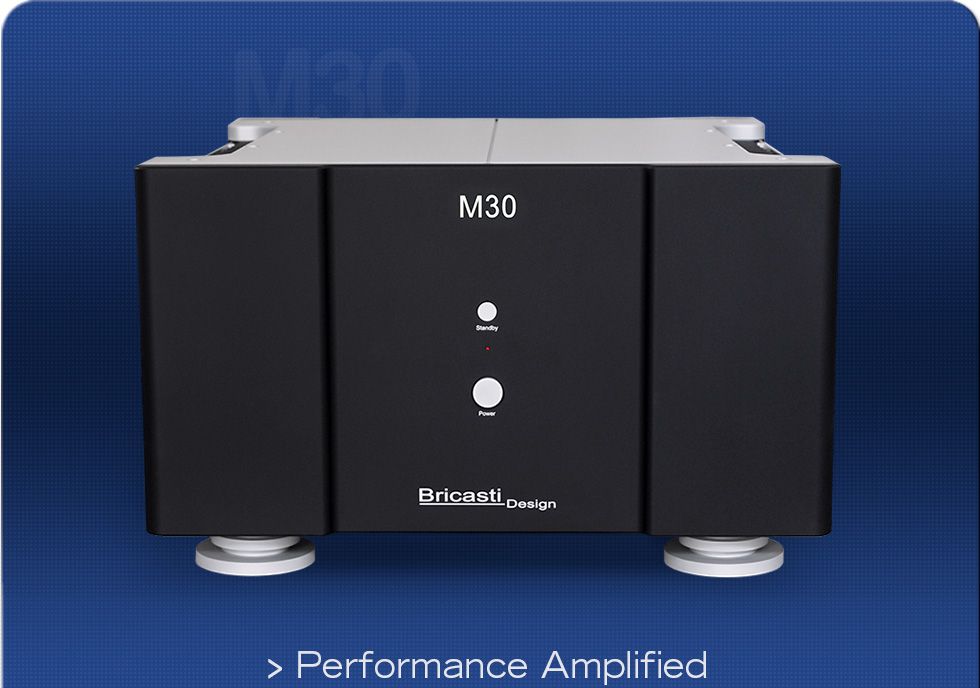

The Bricasti Design
Model 30 Monoblock Amplifier
The M30 monoblock amplifier is the latest iteration of the powerful M28 monoblock amplifier in a more rack-friendly form factor. For those who desire the benefits of monoblocks amps in a more compact size, the M30 boasts the exceptional performance of the M28’s with a chassis height of only 10.5 inches and a width of 17 inches.
Performance
The M30 integrates the same superb current delivery as the taller M28’s in a smaller, wider footprint for those desiring additional power in smaller spaces or rack-friendly set-ups. A single, powerful transformer and custom built capacitor banks render a beautiful sense of depth and dimension that needs to be experienced to truly be appreciated.
Fully differential
Not all devices are balanced end-to-end. The M30’s fully differential design delivers a fast, low distortion, open and harmonically accurate musical experience. Paired with any of the Bricasti line of fully differential digital to analog converters, a truly balanced system can be enjoyed from source to speaker.
Optimal design
The M30 chassis is design to keep critical components in an optimal temperature range with the generous use of aluminum, crafted from solid blocks and a clever design that directs airflow through the top. Stillpoints isolation devices have been carefully designed directly into the feet for maximum isolation from vibration.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
Specifications:
Total Harmonic Distortion THD+N less than 0.005% 20hz-20kHz at full rated power into 8, 4 and 2 ohms.
Power 200W into 8 ohms, 400W into 4 ohms, 800W into 2 ohms.
Frequency response 10hz-150kHz, within 0.5db.
Signal to Noise greater than 95db at full rated.
Power Topology Fully Differential, bi polar.
Balanced Input XLR connector 200k ohm impedance.
Unbalanced Input RCA connector 100k ohm impedance.
Weight 105 lbs.
Shipping Weight 123 lbs.
Finish Anodized Aluminum.
Mains Voltage set at factory 100, 120, 220, 230, 240 VAC, 50 Hz – 60 Hz.
Trigger In TRS connector for 5V external trigger.
Input Trim 0db, -6db, -12db,-18db of attenuation.
Power consumption 60W standby, 2W idle.
