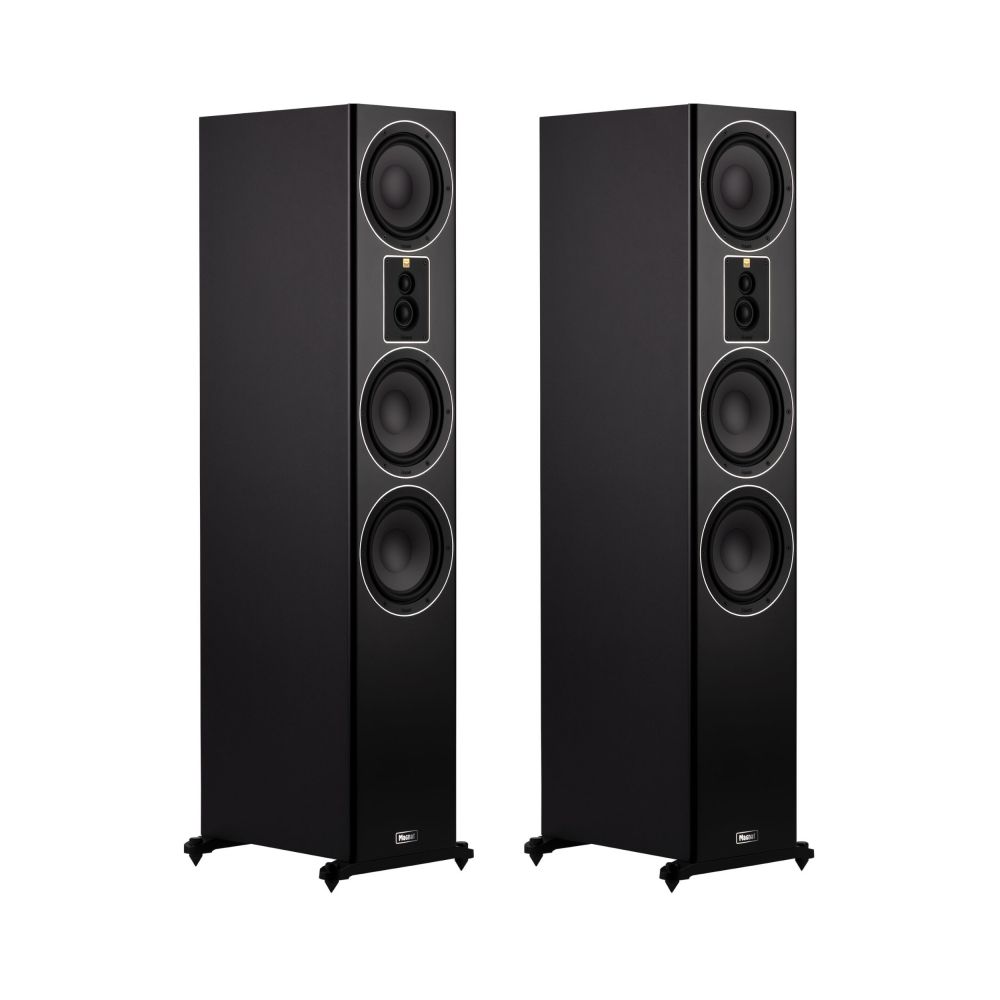

Magnat Signature 607 Floorstanding Speaker
1 700,00 €
The Magnat Signature 607 floorstanding speaker is designed for a home audio system where the speakers have a permanent position on the floor. Its four-way bass-reflex design covers the stated 25-52,000 Hz frequency range. The 4-8 ohm impedance and recommendation for an amplifier rated above 30 W help with electronics selection. Allow for its 286 × 1,070 × 332 mm dimensions when planning placement.
The Magnat Signature 607 speaker is a four-way bass-reflex floorstanding speaker designed for a home audio system. Its 4-8 ohm impedance and recommended amplifier power are the main considerations when matching it with electronics. The stated 92 dB sensitivity is measured at 2.8 V from a distance of one metre.
Who This Model Is For
The floorstanding cabinet suits a system where the speakers can have a permanent position on the floor. A four-way configuration means that the reproduced frequency range is divided into four bands. This classification does not specify the exact number of drivers installed in the cabinet.
The bass-reflex design uses a tuned cabinet port. Do not obstruct this port with furniture or other objects. Speaker position affects the balance of low frequencies in the room, so choose the final placement by listening.
Amplifier Selection and Connection
The recommended amplifier output power is greater than 30 W. When choosing an amplifier, first confirm that it can operate reliably with 4-ohm speakers. A higher power figure alone does not guarantee a suitable match; the load supported by the amplifier also matters.
Switch off the amplifier before making connections and maintain the same polarity for both channels. Connect the amplifier’s positive terminal to the speaker’s positive terminal, and follow the same principle for the negative terminals. Reversed polarity on one speaker can weaken the central stereo image and bass reproduction.
The 92 dB figure can only be compared directly with measurements taken under the same conditions. It does not replace consideration of impedance and amplifier power. Increase the volume gradually during initial use and listen for clean sound.
Understanding the Power and Frequency Figures
The power rating is given as 200 / 350 W. These values are not identified as RMS, continuous or short-term power. They should therefore not be assigned to particular measurement methods or used as the sole criterion when selecting an amplifier.
The stated 25-52,000 Hz frequency range describes the reproduction limits without an additional tolerance. Actual bass balance is influenced by the room, distance from the walls and listening position. The upper limit should likewise not be considered separately from the complete system and the recording.
Positioning in the Room
The speaker measures 286 × 1,070 × 332 mm. When planning its position, allow for the cabinet’s 286 mm width and 332 mm depth. Leave additional room for the cable and bass-reflex port. Place the 1,070 mm-high cabinet on a level, stable surface.
Begin with the speakers positioned symmetrically in relation to the listening seat. Avoid placing them tightly in room corners as your starting arrangement. If the bass becomes too prominent, move the speakers away from the walls in small steps. Listen to the same recording after each adjustment.
Initial System Setup
After connection, set the amplifier to a low volume and play a familiar recording. Check that both channels reproduce sound at the same level. Vocals should be clearly located between the speakers. Only then should you adjust the speakers’ angle towards the listening position and their distance from the walls.
Technical Specifications
| Type | Floorstanding speaker |
|---|---|
| Configuration | Four-way, bass reflex |
| Power rating | 200 / 350 W |
| Impedance | 4-8 Ω |
| Frequency range | 25-52,000 Hz |
| Recommended amplifier output power | Greater than 30 W |
| Sensitivity | 92 dB at 2.8 V / 1 m |
| Dimensions (W × H × D) | 286 × 1,070 × 332 mm |
FAQ
How should I choose a suitable amplifier?
Look for an amplifier that can operate with a 4-ohm load. Its recommended output power should exceed 30 W. Always increase the final listening volume gradually.
What does the 200 / 350 W power rating mean?
These are two stated power values without separate measurement-mode labels. They cannot automatically be described as RMS and maximum power.
How can I avoid a phase mismatch when connecting the speakers?
Use the same positive and negative terminal arrangement on both speakers. Switch off the amplifier before making any connections.
Where should I begin when positioning the speakers?
Start with a symmetrical arrangement and leave space between the speakers and the walls. You can then adjust their distance and angle according to the sound at the listening position.
Is the 92 dB figure enough to choose an amplifier?
No. This figure applies under the stated measurement conditions of 2.8 V at one metre. The 4-8 ohm impedance and the amplifier’s capabilities must also be considered.
