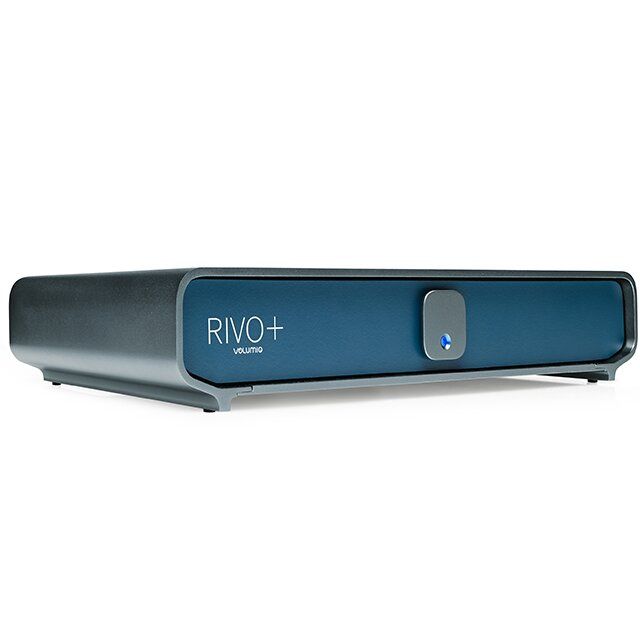

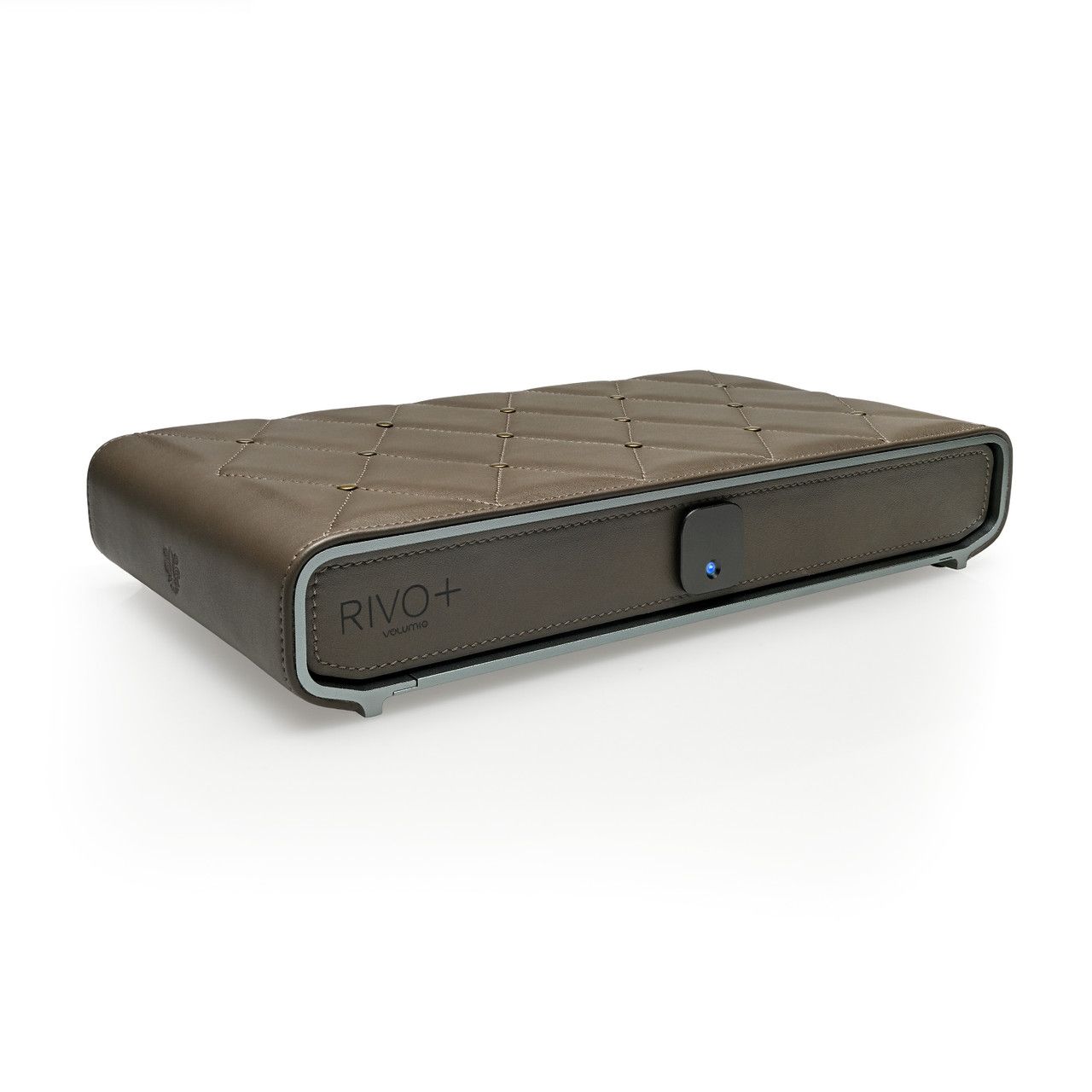

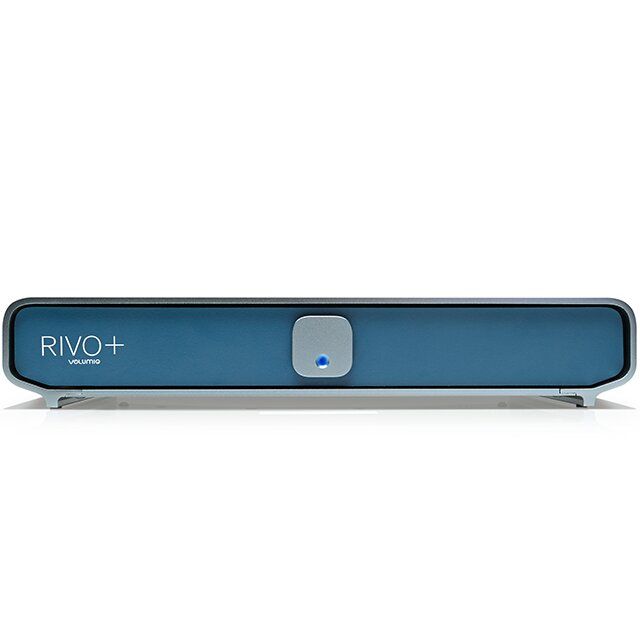

Volumio Rivo Plus

The Rivo Plus builds on the acclaimed Rivo model, now featuring a dedicated ASIC for enhanced S/PDIF and AES-EBU outputs and upgraded MEMS clocks in the USB HUB IC. This delivers pure digital sound and seamless connectivity for audiophiles.

The Rivo+ is the enhanced version of our award-winning Rivo digital transport. Engineered based on user feedback, Rivo+ elevates the already excellent qualities of the original. Key upgrades include a dedicated ASIC for cleaner S/PDIF and AES-EBU outputs, improved MEMS clocks for lower jitter, I2S over HDMI connectivity for compatible high-end DACs, and a 12V trigger to power on/off other components.

The Rivo+ features a dedicated ASIC to generate the S/PDIF and AES-EBU output signals, offloading this crucial task from the CPU. Powering this dedicated ASIC is a high-quality MEMS clock, which provides an exceptionally stable and low-jitter timing reference. Coupled with low-noise voltage regulators, this enhancement ensures the output signals maintain the utmost purity and refinement.

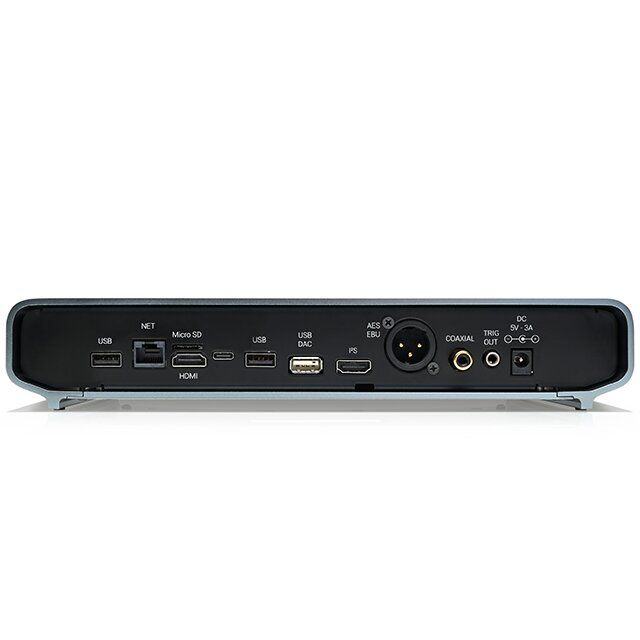

Connectivity:

• Digital Coaxial S/PDIF – up to PCM 192kHz/24bit and DSD64 via DoP
• Digital AES/EBU – up to PCM 192kHz/24bit and DSD64 via DoP
• Digital I2S over HDMI – up to PCM 768kHz/32bit and DSD256
• USB Output – up to PCM 768kHz/32bit and DSD256 (via USB DAC)
• 1x USB 3.0, 1x USB 2.0
• Gigabit LAN 10/100/1000M
• Wi-Fi 802.11a/b/g/n/ac, 2X2 MIMO
• Bluetooth 5.0

Streaming: Spotify Connect, TIDAL Connect, Qobuz, AirPlay via Shairport Sync, Roon Ready, UPnP/DLNA

Specifications:

• CPU: Amlogic S905D3, Quad Core 1.9 GHz
• RAM: 2 GB DDR4
• Internal Storage: 16 GB EMMC
• Power Supply: 5V, 3A
• Dimensions: 27 x 15 x 5 cm
• Weight: 2.25 kg
• Made in Florence, Italy
