SOFTWARE DEFINED ARCHITECTURE
We always thought that high-end audio should be everything about innovation. Playing around with off-the-shelf available chips is fun and certainly a good and economic way to produce good sound. But once you want to design a cutting-edge product, the off-the-shelf approach doesn’t apply. Naturally, a custom solution, freed from the limitation of the available chipsets, come into place, allowing us to design and build from the scratch an entire digital audio system.

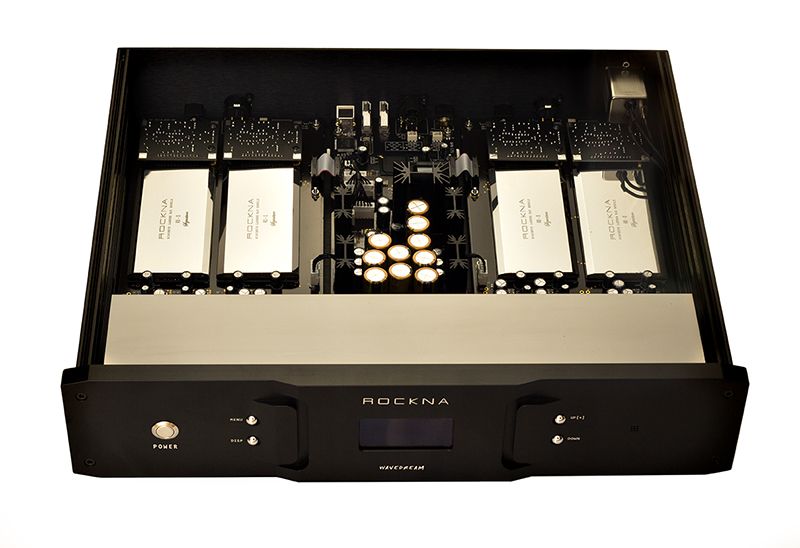

All building blocks of the Wavedream DAC concernig digital processing are built entirely on a single piece of programmable silicon – a FPGA . With a FPGA, it’s internal hardware architecture could be described by a piece of software (actually, a very complex one). When upgrading the Wavedream with new firmware, you actually change it’s hardware. This system allows great flexibility, obsolescence protection and let us improve the sound of your dac by changing it’s internal architecture, or add new cool features, or improve the existing ones.

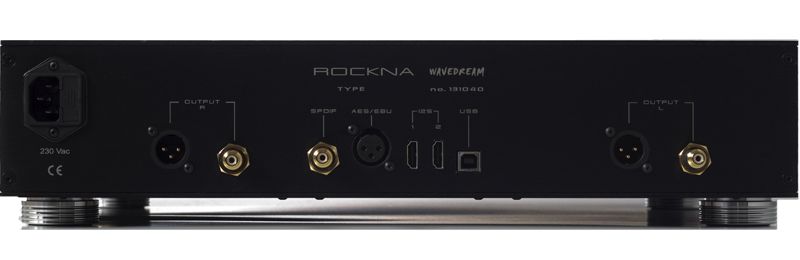

| S/PDIF |
24-bit 44.1–192 kHz PCM; DoP DSD64 |
| AES/EBU |
24-bit 44.1–192 kHz PCM; DoP DSD64 |
| USB |
32-bit 44.1–384 kHz PCM; DSD64–512 |
| HD-Link 1 (LVDS) |
32-bit 44.1–384 kHz PCM; DSD64–512 |
| HD-Link 2 (LVDS) |
32-bit 44.1–384 kHz PCM; DSD64–512 |
| OUTPUTS — Wavedream Edition |
|
| THD+N (@ –6 dB) |
0.003% (–90 dB) |
| Max Voltage |
6.6 Vpp (SE); 13.2 Vpp (XLR) |
| OUTPUTS — Wavedream Signature |
|
| THD+N (@ –6 dB) |
0.0008% (–102 dB) |
| Max Voltage |
10 Vpp (SE); 20 Vpp (XLR) |
| HF Asynchronous Capture |
560 MHz sampling |
| Memory-Based PLL |
300 fS jitter (digital domain only) |
| Custom Filters |
Linear, minimum, hybrid phase; 16× |
| Filter Type |
Parks-McClellan, 4820 taps |
| Stopband Attenuation |
–145 dB |
| Passband Ripple |
0.0001 dB |
| Volume Control |
256-step, 0.5 dB per step |

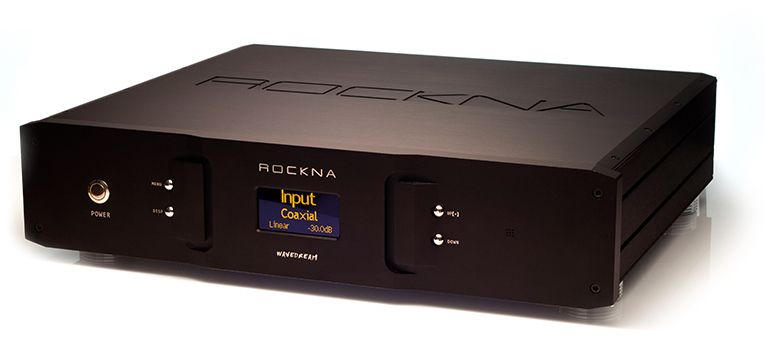

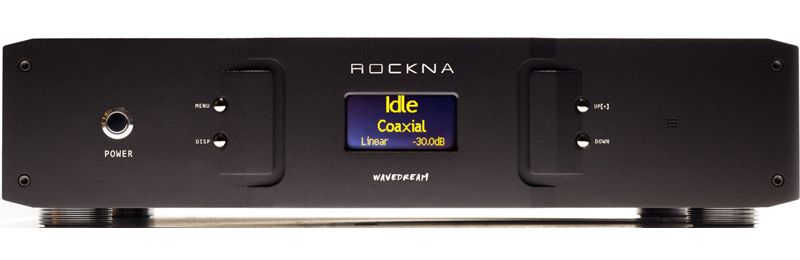

| Display |
128×64 yellow OLED, 8-step dimming |
| Controls |
4 switches + IR remote |
| Dimensions |
440 × 360 × 90 mm |
