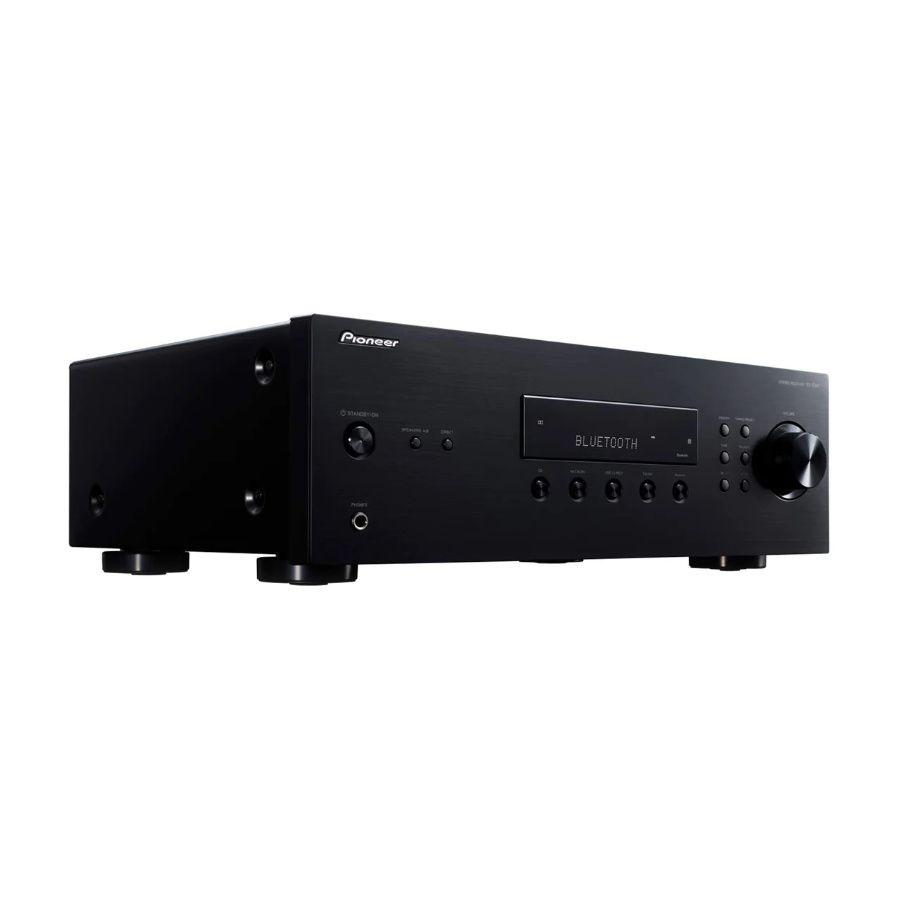

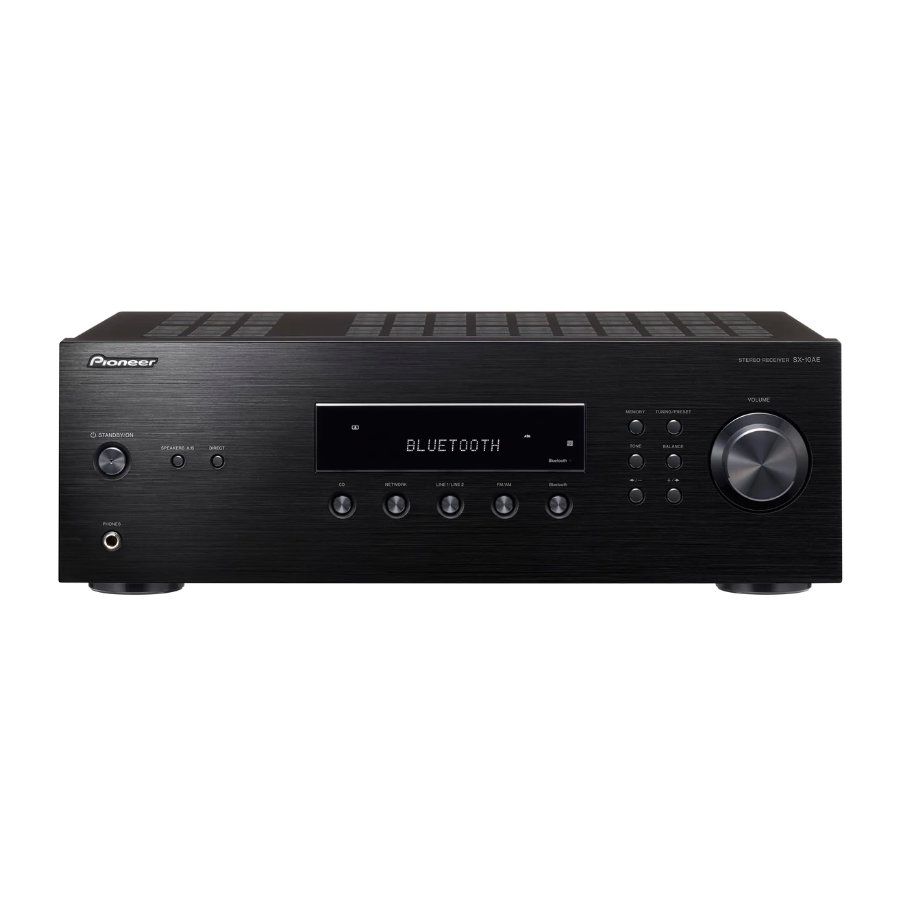

Pioneer SX-10AE

Direct Energy Design

Every inch of the chassis has been devised to create quality sound, such as shorter transmission path, clean grounding, and rigid structure with improved damping. The discrete amplifier inherits the Direct Energy Design of Pioneer’s high-end AV receivers for faithful reproduction of the audio content.

Bluetooth Wireless Technology

With the built-in Bluetooth® Wireless Technology (ver. 4.2), you can easily stream songs from compatible devices such as smartphones and tablets. The SX-10AE features A2DP and AVRCP profiles, with support for SBC and AAC codecs.

AM/FM (RDS) Tuner with Presets

The automatic tuning feature lets you easily find stations in your area. Manual tuning is also available. You can save up to 40 stations on the receiver’s preset for quick access. Radio Data System (RDS) is a system used by FM radio stations that provide users with various kinds of information such as station name or the program type. You can search program types such as news, sports, weather, rock, classics, and jazz using the remote control.

Auto Standby

The SX-10AE will automatically turn off after being left uncontrolled for a certain time set by the user.

Auto Standby

Channels: 2.0

Power Output per Channel: 2-Channel Driven: 45 W at 8 Ohms / 20 Hz to 20 kHz / 0.1% THD, 100 W at 6 Ohms / 1 kHz / 0.1% THD

Frequency Response: 10 Hz to 100 kHz +1/-3 dB

Speaker Impedance: 4 to 16 Ohms

Tone Control: Bass (100 Hz): ±10.0 dB, Treble (10 kHz): ±10.0 dB

Auro 3D Support: No

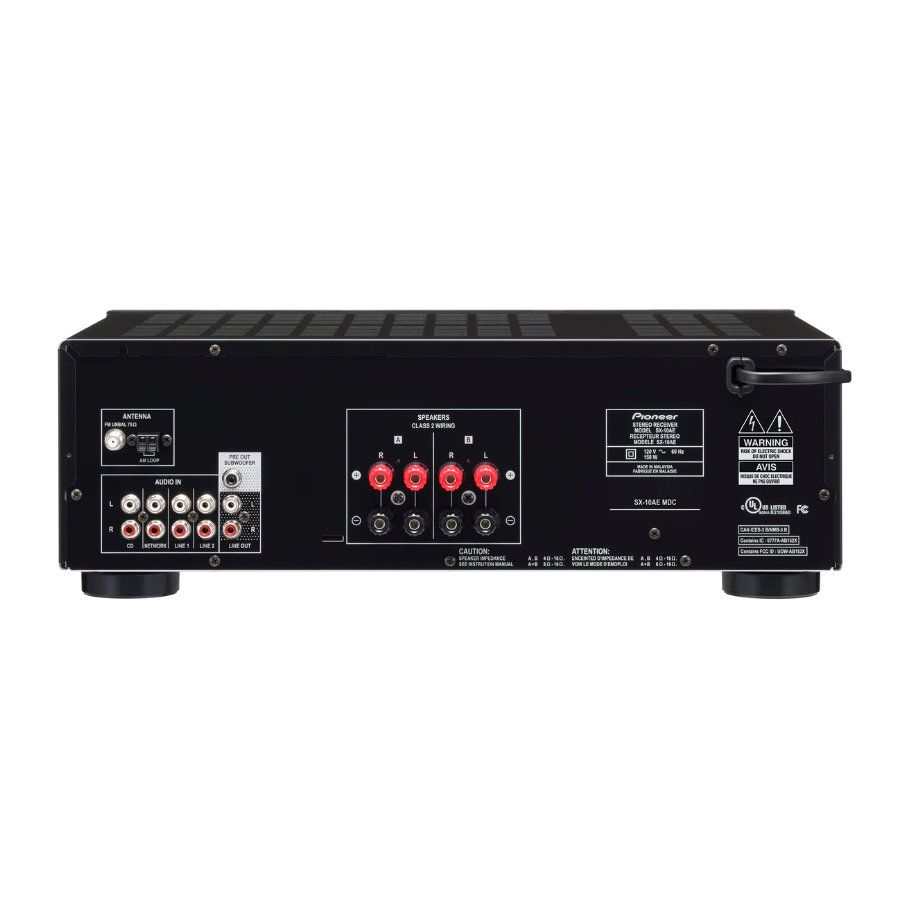

Rear A/V Inputs: 4 x Stereo RCA

Rear A/V Outputs: 1 x RCA Subwoofer Pre-Out, 1 x Stereo RCA

Front I/O: 1 x 1/4″ / 6.35 mm Headphone Output

Other Rear I/O: 1 x FM Antenna Terminal Input, 1 x AM Antenna Terminal Input

Speaker I/O: 4 x Binding Post Pairs

Signal to Noise Ratio: Line: 100 dB

Total Harmonic Distortion (THD): 0.0008%

Bluetooth: 4.2

Supported Audio Codecs: AAC, SBC

Tuner Type: AM, FM

Number of Tuner Presets: 40 Stations

AC Input Power: 120 VAC, 60 Hz

Power Consumption: Active: 150 W, Standby: 0.4 W

Dimensions (W x H x D): 43.5 x 14.7 x 32.1 cm

Weight: 6.7 kg
