Name: Onkyo TX-RZ50M2
Brand: Onkyo
SKU: AC-3189
Price: 1600.00 EUR
Availability: InStock

Modern day home theater gear has opened the door to all sorts of wonderful AV experiences. A powerful receiver like Onkyo’s TX-RZ50M2 is an excellent example of why. It’s equally skilled at delivering memorable movie nights, laid-back listening sessions, and high-octane gaming — all while offering intuitive, app-based control.

Overview

With up to 11.2 channels of processing, DIRAC Live® Room Correction, and the coveted THX Certification, the Onkyo TX-RZ50 AV Receiver is a best-in-class home theater powerhouse. The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.

Groundbreaking DIRAC Live® Room Correction technology offers improved musical staging, clarity, dialog, and deeper bass right out of the box, ensuring that your immersive surround experience is delivered with the highest fidelity.

Featuring three HDMI-out options, the TX-RZ50 AV receiver delivers uncompressed HDMI 8K/4K transfer at 40 Gbps, increasing the bandwidth over its predecessors and taking full advantage of the capabilities of Next-Gen gaming consoles. Put through thousands of tests to obtain the coveted THX Certification, this SMART AV Receiver™ delivers a mind-blowing movie, music, and gaming experience to your home.

Specifications

Amplifier: Channels 9.2

Power Output per Channel:
1-Channel Driven: 250 W at 6 Ohms / 1 kHz / 10% THD (RMS)
2-Channel Driven: 120 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD (RMS)

Dynamic Power per Channel:
250 W at 3 Ohms (Front)
220 W at 4 Ohms (Front)
130 W at 8 Ohms (Front)

Frequency Response: 5 Hz to 100 kHz +1/-3 dB (Direct Mode)

THD+N: 0.08% (20 Hz to 20 kHz, Half Power)

Speaker Impedance: 4 to 16 Ohms

Tone Control: Bass (20 Hz): ±10.0 dB

Treble (20 kHz): ±10.0 dB

DTS Compatibility: DTS:X, IMAX Enhanced

Dolby Compatibility: Dolby Atmos

Auro 3D Support: No

HDR Compatibility: HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma

Upscaling: None

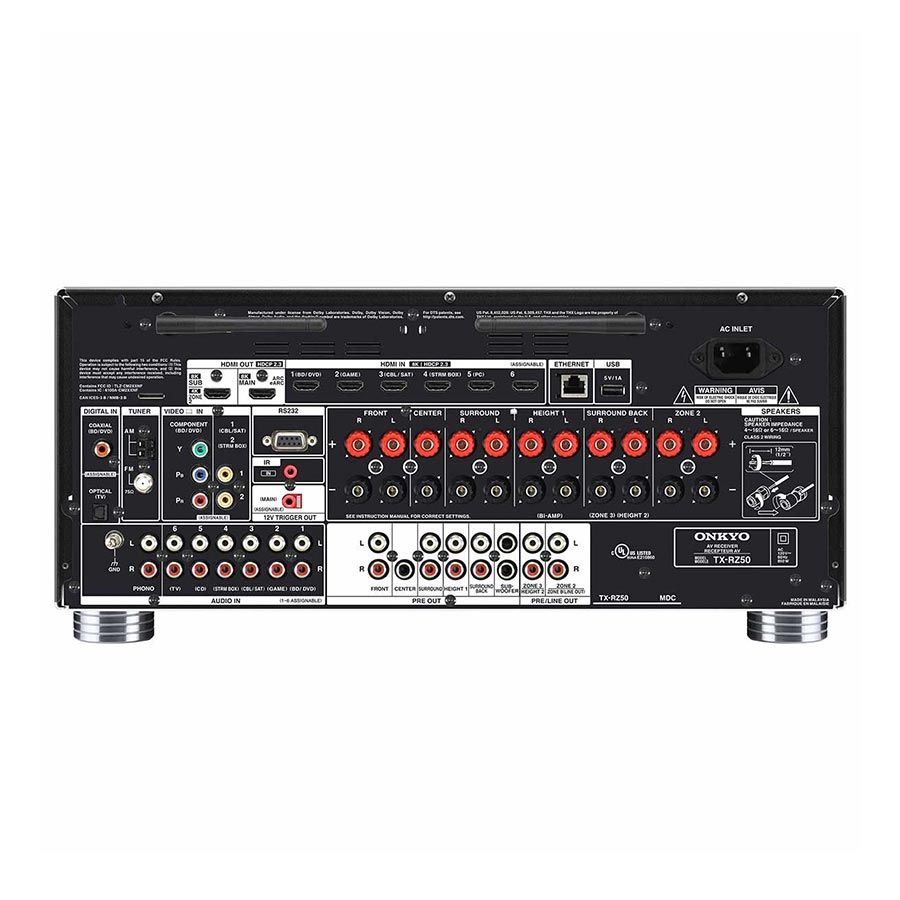

Rear A/V Inputs:
6 x HDMI
2 x RCA Composite
1 x RCA Component
1 x Digital Coaxial
1 x Optical TOSLINK
6 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw

Rear A/V Outputs:
1 x HDMI
1 x HDMI Zone 2
1 x 11-Channel RCA Pre-Out
1 x Stereo RCA Zone 2 / Zone B Line-Out
2 x RCA Subwoofer Pre-Out

Front I/O:
1 x 1/4″ / 6.35 mm Headphone Output
1 x HDMI Aux Input
1 x 1/8″ / 3.5 mm Setup Mic Input

Other Rear I/O:
1 x USB Type-A Output
1 x RJ45 (Ethernet) Input/Output
1 x DE-9 (RS-232C) Input
1 x 1/8″ / 3.5 mm (IR) Input
1 x 1/8″ / 3.5 mm (12 V Trigger) Output
1 x FM Coaxial F-Type Input
1 x AM Block Input

Speaker Connectors: 1 x Binding Post Pairs (Front, Center, Height, Height 2, Rear Surround)

HDCP Support: Version 2.3

HDMI Compression Modes: 4K120AB / 8K60B / 8K60AB

Audio Return Channel (ARC): ARC, eARC

HDMI CEC: Yes

Bi-Amp Capability: Yes

Input Impedance:
Line: 47 Kilohms
Phono (MM): 47 Kilohms

Input Sensitivity:
Line: 200 mVrms
Phono (MM): 3.5 mVrms

Rated Output / Impedance: Subwoofer Pre-Out: 1 Vrms / 470 Ohms

Zone B / 2 Line-Out: 200 mVrms / 470 Ohms

Signal to Noise Ratio: Line: 106 dB

Phono: 80 dB
