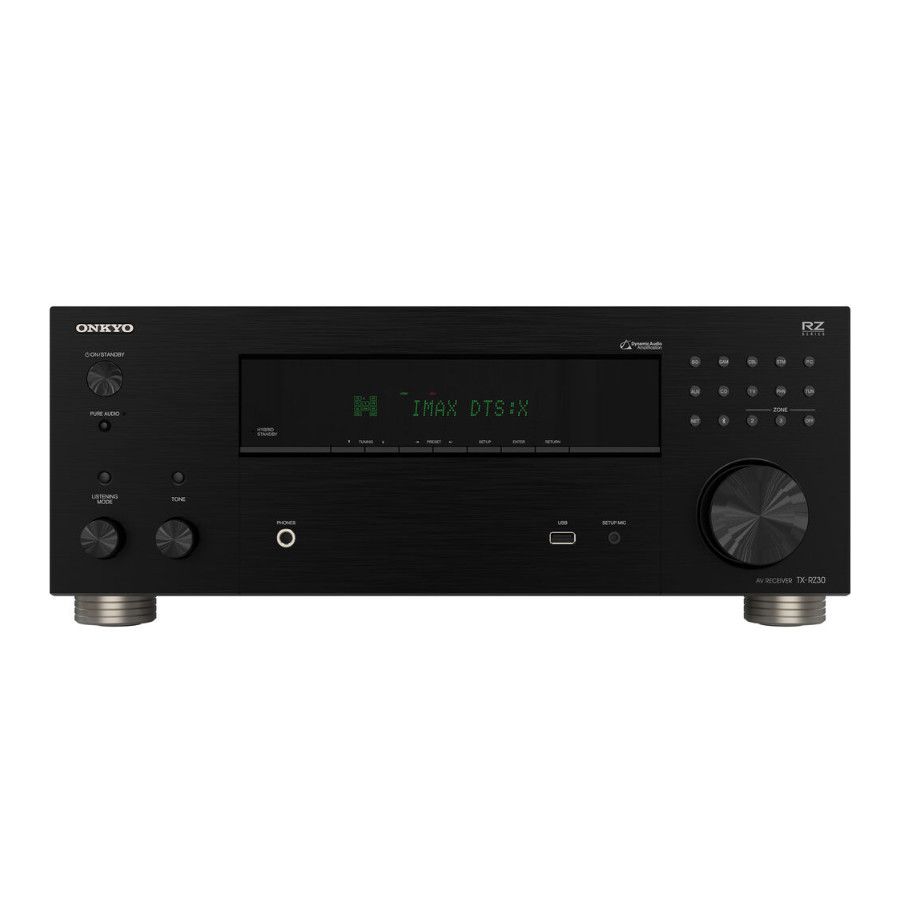

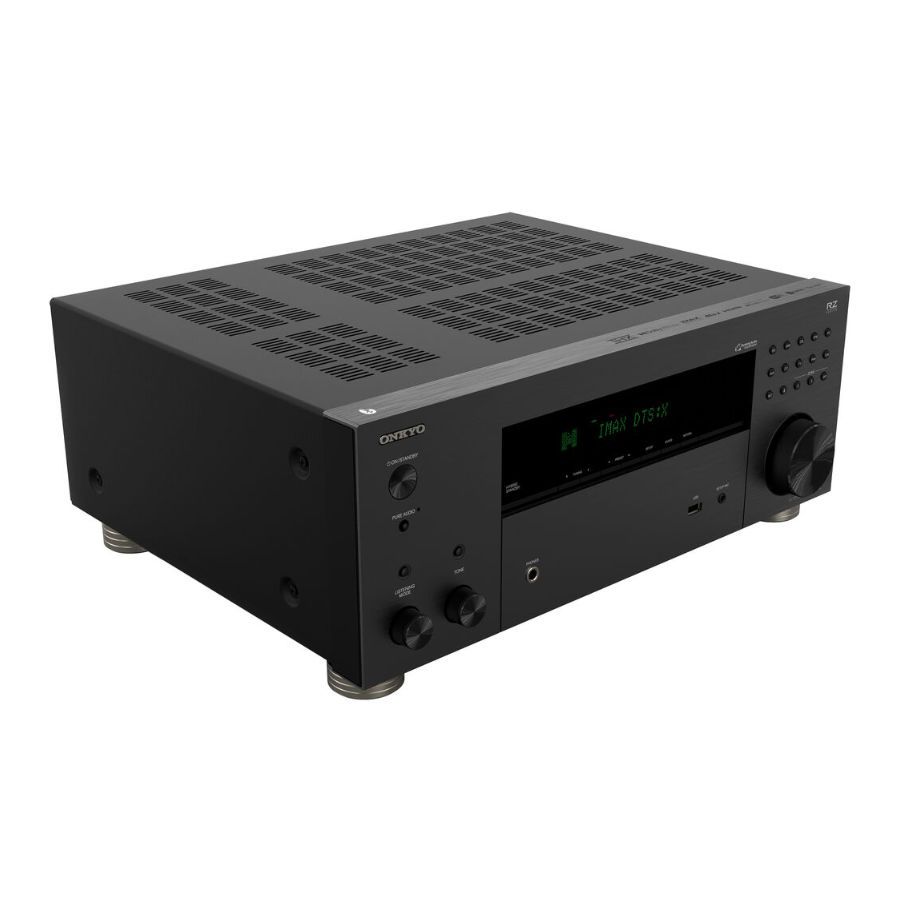

Onkyo TX-RZ30

For nearly 80 years, Onkyo has been providing audiophiles with sounds that no other company can match. Thanks to unique analogue circuitry and high-end amplifier technology, the 9.2-channel TX-RZ30 delivers your favorite content with out-of-this-world sound – with soaring highs and deeper bass. Fan favorite features like Dirac Live, Dolby Atmos, and IMAX Enhanced come standard with the Onkyo RZ Series AVR’s to make it the heartbeat of your entertainment system.

Specifications

Channels: 9.2

Amplifier Class: Class-AB

Power Output per Channel:
2-Channel Driven: 200 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD

Frequency Response: 5 Hz to 100 kHz

DTS Compatibility: DTS Neural:X, DTS:X, IMAX Enhanced

Dolby Compatibility: Dolby Atmos, Dolby Surround

Upmixing Technology: Dolby Surround, DTS Neural:X

HDR Support: Yes, HDR10+/Dolby Vision

Pass-Through Support: 8K

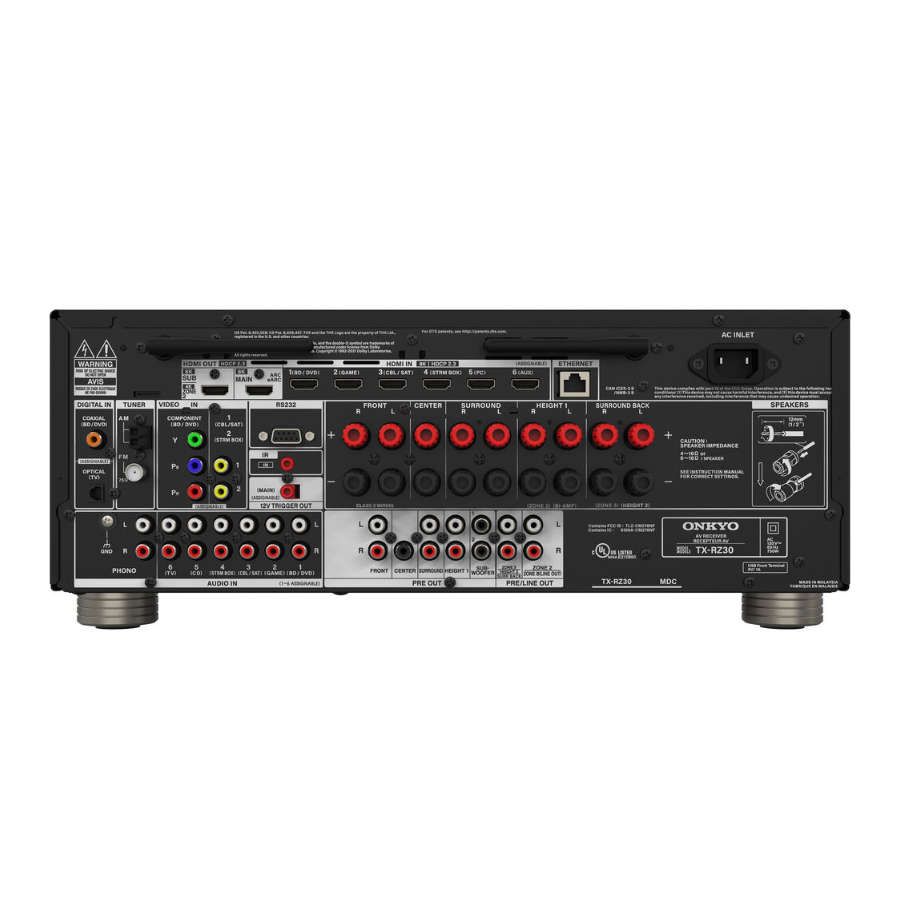

Rear A/V Inputs:
6x HDMI 2.1, 1x Optical TOSLINK, 1x Digital Coaxial, 1x RCA Component, 2x RCA, 1x Stereo RCA (Phono) with Ground Screw, 6x Stereo RCA

Rear A/V Outputs:
1x HDMI 2.1, 1x HDMI 2.1 Subwoofer / Zone 2, 3x Stereo RCA Pre-Out, 1x RCA Pre-Out, 2x RCA Subwoofer Pre-Out, 2x Stereo RCA Zone 2 / Zone 3 / Height 2 Pre-/Line-Out

Front I/O: 1x 1/4″ / 6.35 mm Headphone Output, 1x USB-A Input/Output, 1x 1/8″ / 3.5 mm Setup Mic Input

Other Rear I/O:
1x RJ45 (Ethernet) Input/Output, 1x FM Coaxial F-Type Input, 1x AM Block Input, 1x DE-9 (RS-232C) Input, 1x 1/8″ / 3.5 mm (IR) Input, 1x 1/8″ / 3.5 mm (12 V Trigger) Output

Speaker I/O: 9x Binding Post Pairs (Front, Center, Height, Rear, Rear Surround)

HDCP Support: Yes, Version 2.3

Audio Return Channel (ARC): ARC, eARC

HDMI CEC: Yes

Wireless Audio Protocols: AirPlay 2, Roon Ready

Virtual Assistant: Works with Google Assistant, Siri

Mobile App Compatible: No

Tuner Type: AM, FM

Power Consumption:
Active: 750 W, Standby: 2 W

Dimensions (W x H x D): 435.0 x 177.5 x 382.5 mm

Weight: 11.5 kg
