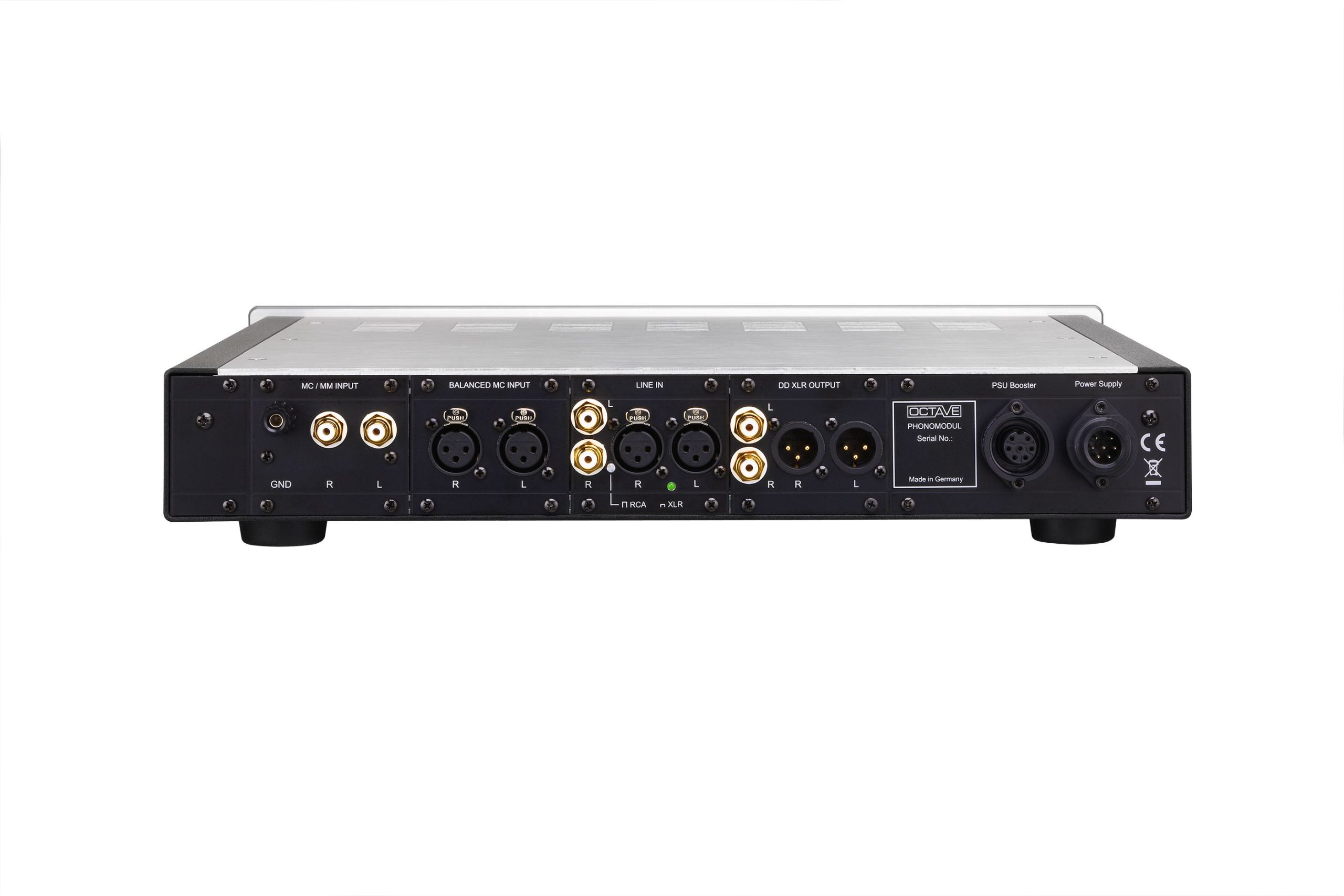

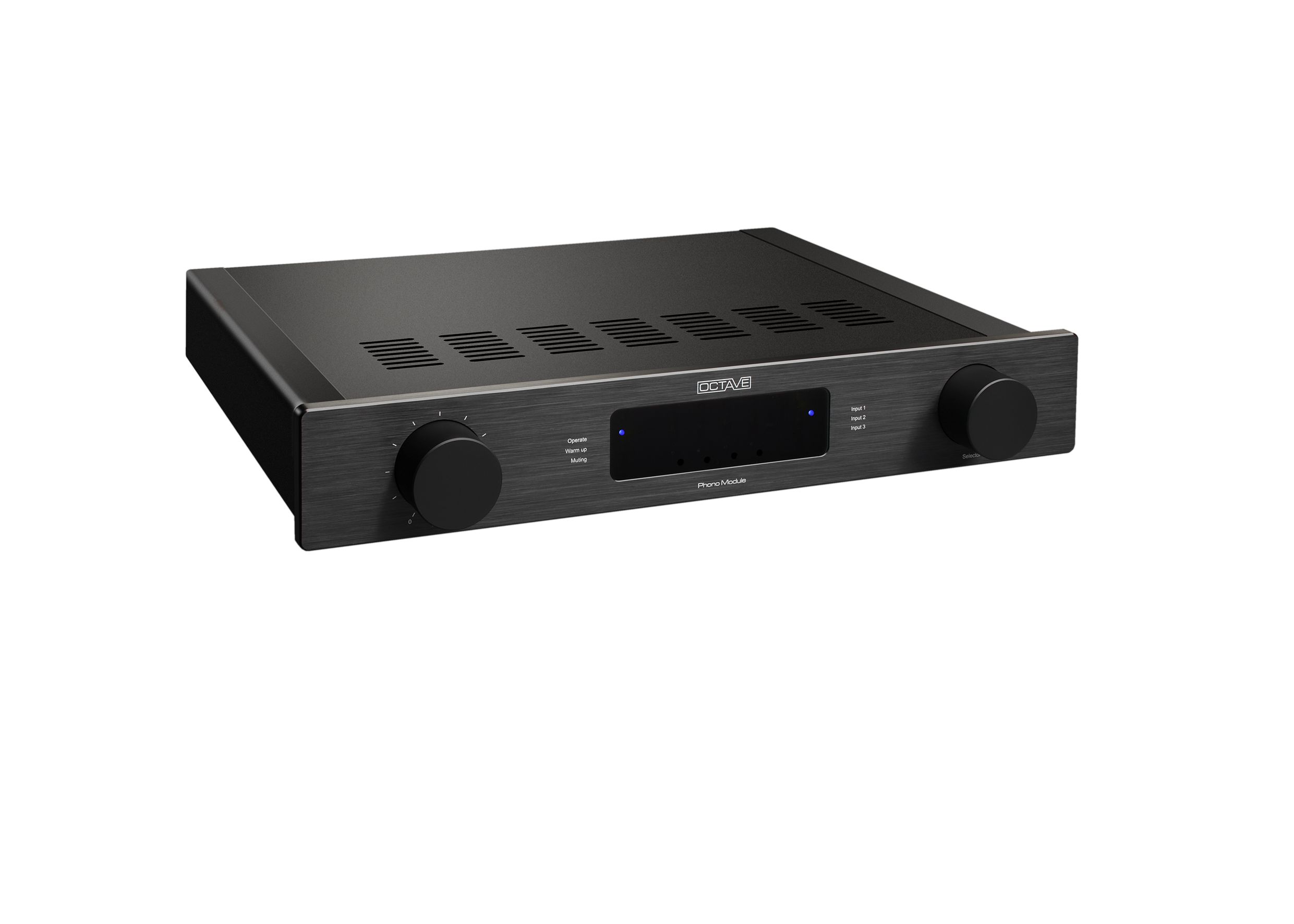

Octave Phono Module
3 900,00 €
Octave fono korektorius
Phono Input Modules
IN 1:MM RCA-395€
IN 2:MC RCA-540€
IN 3:MC XLR-540€
IN 6:MC RCA Step-Up-Transformer-2150€
IN 7:MC XLR Step-Up-Transformer-2150€
Line Input Modules:
IN 4:RCA and XLR switchable-540€
IN 8:XLR with Transformer-1200€
IN 9:RCA with Transformer-1200€
Output Modules
OUT 1:RCA Standard-380€
OUT 2:RCA Direct Drive-695€
OUT 3:XLR Direct Drive-750€
Remote Control Volume-290€
|
Basic Model |
|
Phono Module |
|

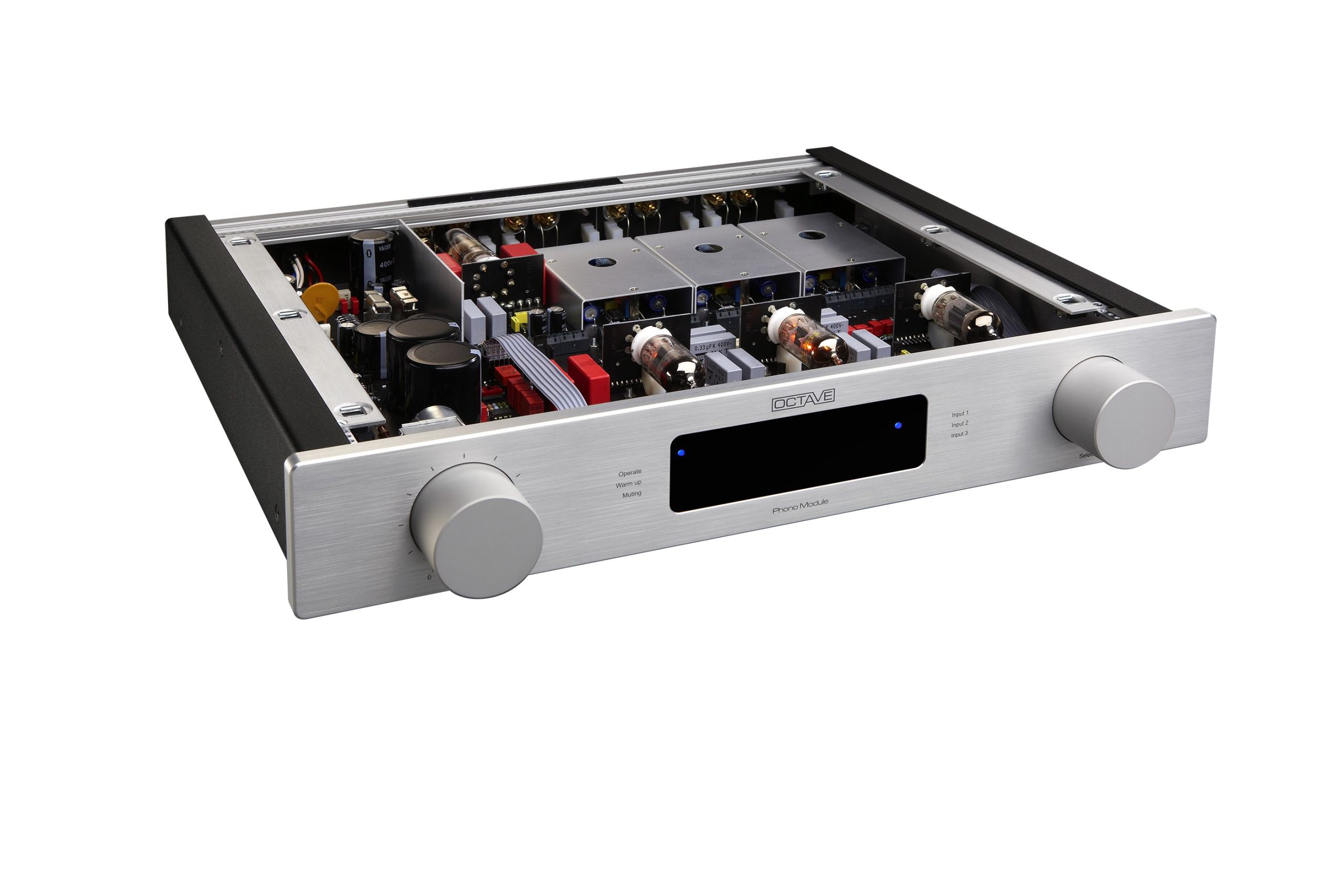

Tube Complement |
|
1 x ECC83, 1 x ECC81 |
|
Options |
|
Active Regulated Outputs, XLR Output, |
|
Design |
|

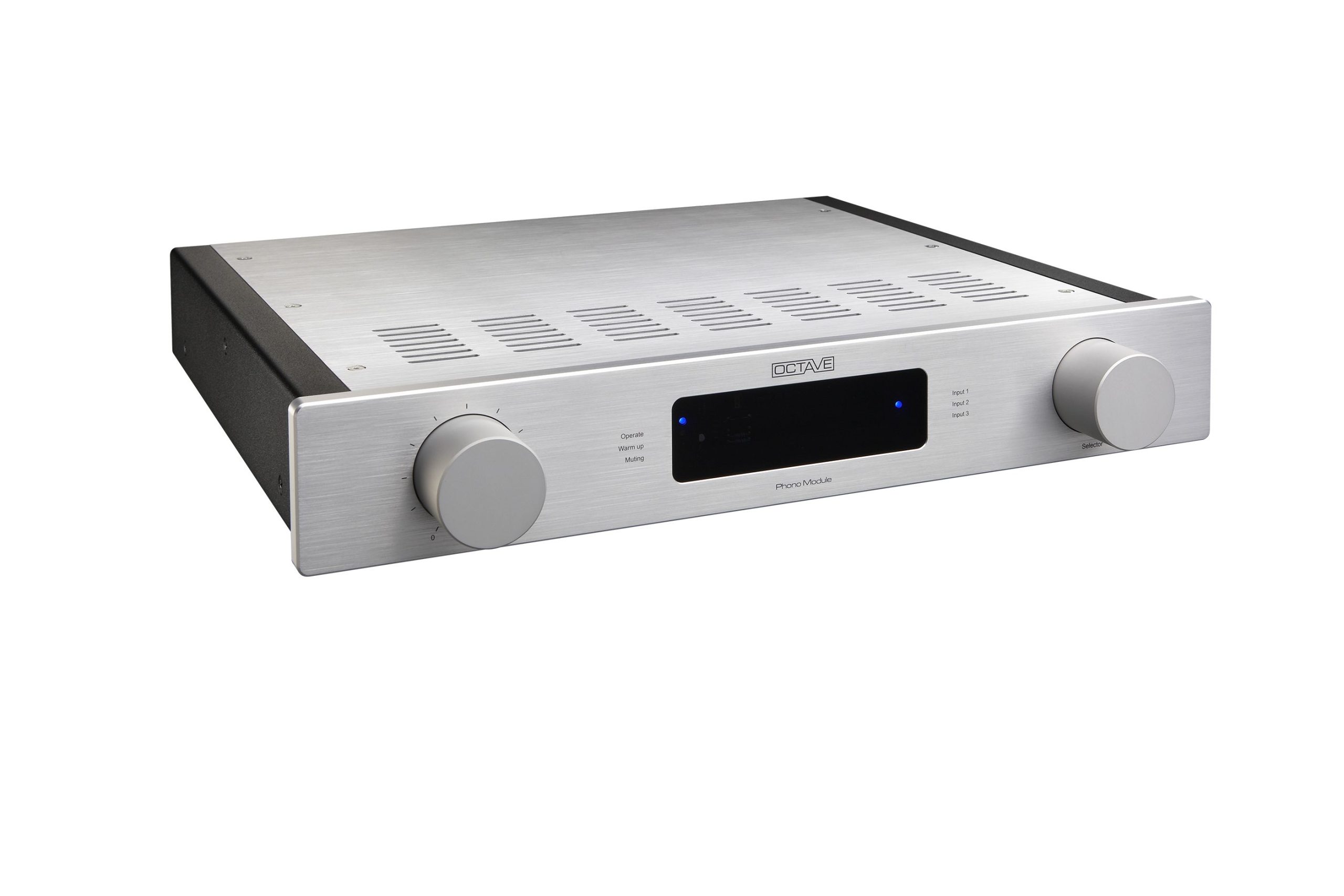

Aluminium silver or Aluminium black |
|
Specifications |
|
|
|
|
Regulated Standard Outputs |
|
|
|
|
Signal-to-Noise Ratio |
|
– 100 dB |
|
|
Output Impedance |
|
240 Ohm (Cinch) |
|
|
Max. Output Level |
|
7 V RMS |
|
|
Distortion |
|
less than 0.01% |
|
|
Gain |
|
0dB |
|
|
Regulated Active Outputs |
|
|
|
|
Signal-to-Noise Ratio |
|
– 100 dB |
|
|
Output Impedance |
|
240 Ohm (Cinch/ XLR) |
|
|
Max. Output Level |
|
7 V RMS |
|
|
Distortion |
|
less than 0.01% |
|
|
Gain Low / High |
|
0dB / 15dB |
|
|
Phono-Section |
|
|
|
|
Gain MM – Fixed Output |
|
38 dB |
|
|
Gain MC – Fixed Output Low / High |
|
58 dB / 65 dB |
|
|
Phono MC |
|
|
|
|
Input Impedance |
|
50 – 1k Ohm |
|
|
Signal-to-Noise Ratio RCA |
|
-69 dB / – 75 dB |
|
|
Signal-to-Noise Ratio XLR |
|
-72 dB / – 78 dB |
|
|
Corner Frequency Subsonic-Filter |
|
20 Hz / – 3 dB |
|
|
Phono-MM |
|
|
|
|
Input Impedance |
|
1k + 47kOhm |
|
|
Signal-to-Noise Ratio RCA |
|
– 77 dB |
|
|
Corner Frequency Subsonic-Filter |
|
20 Hz / – 3 dB |
|
|
General Facts |
|
|
|
|
Power Consumption |
|
25 – 35 W |
|
|
Weight Preamp |
|
9 – 12,5 kg |
|
|
Weight Power Supply |
|
4 kg |
|
|
Dimensions |
|
437 x 80 x 390 mm (W x H x D) |
|
|
Dimensions Power Supply |
|
100 x 77 x 230 mm (W x H x D) |
|
|
Standard Accessories |
|
Power cord |
|
