Name: Lumin X2
Brand: LUMIN
SKU: AC-1808
Price: 15800.00 EUR
Availability: InStock

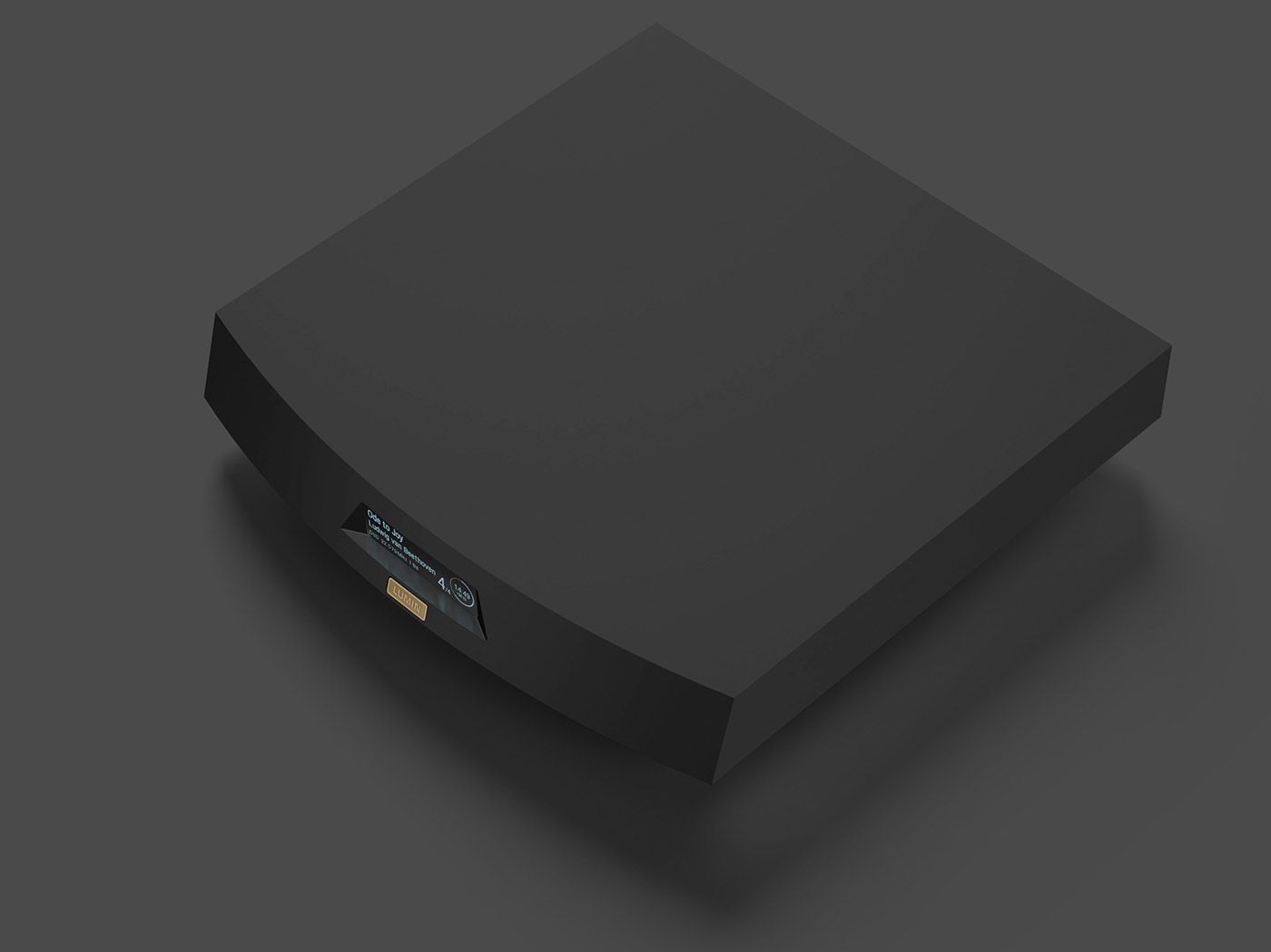

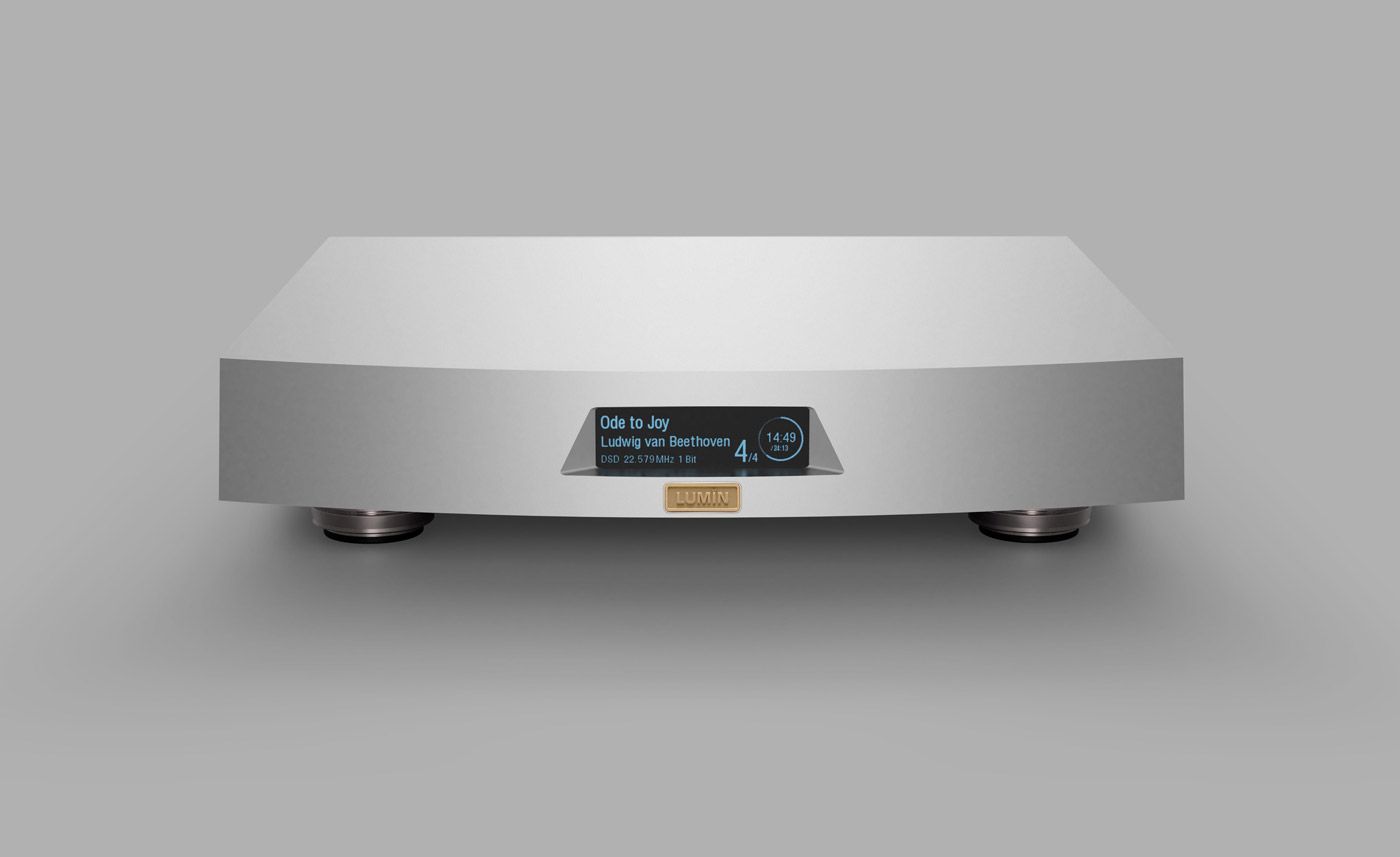

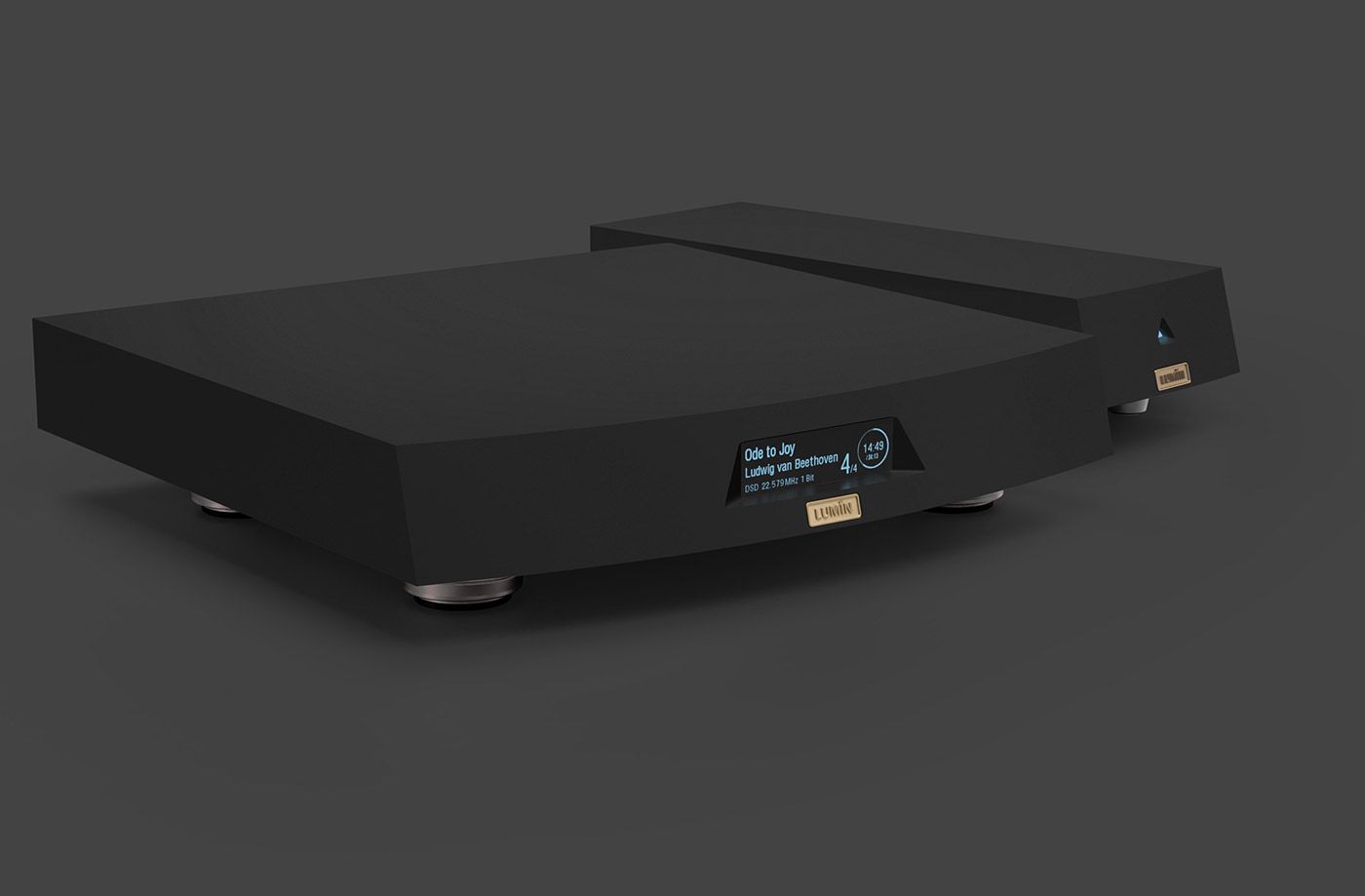

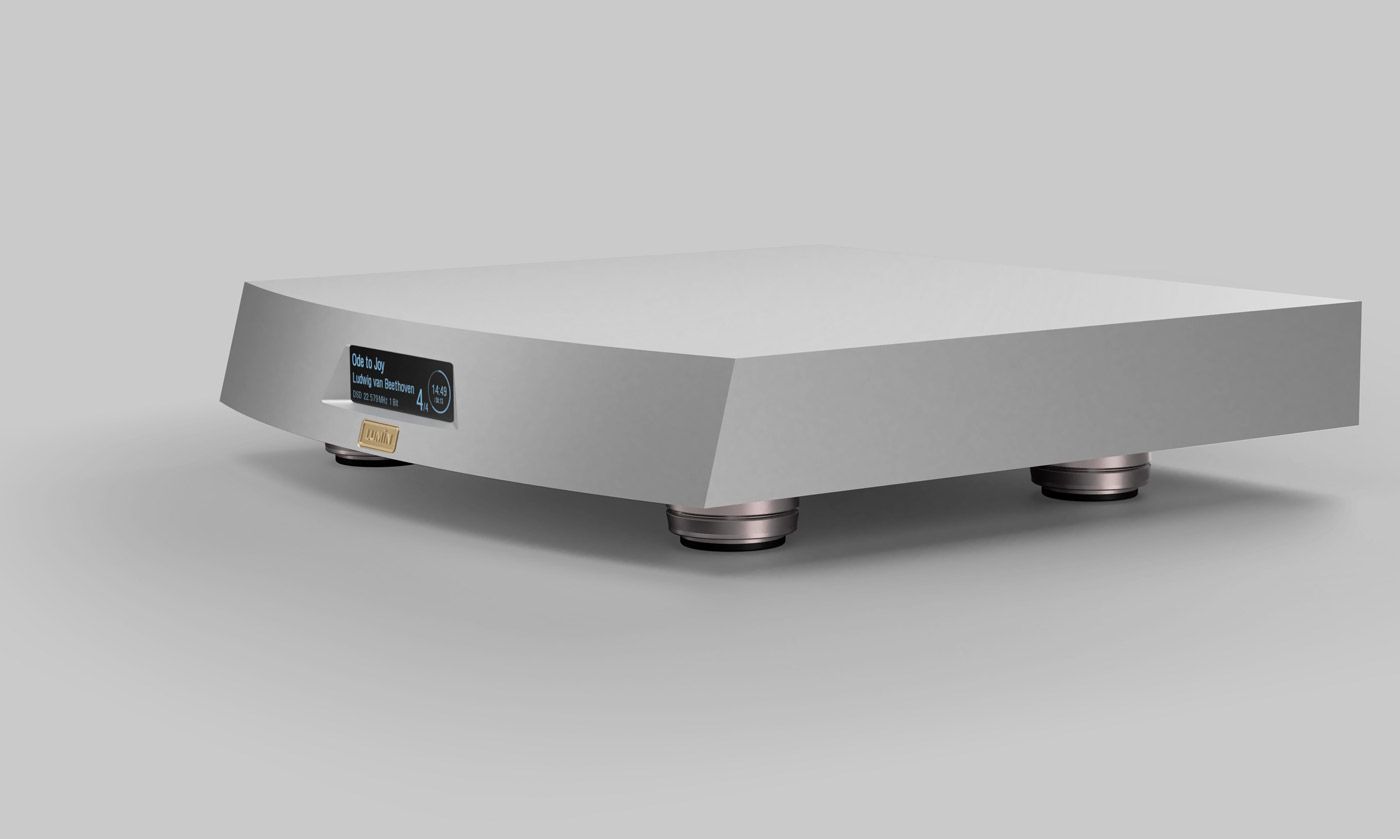

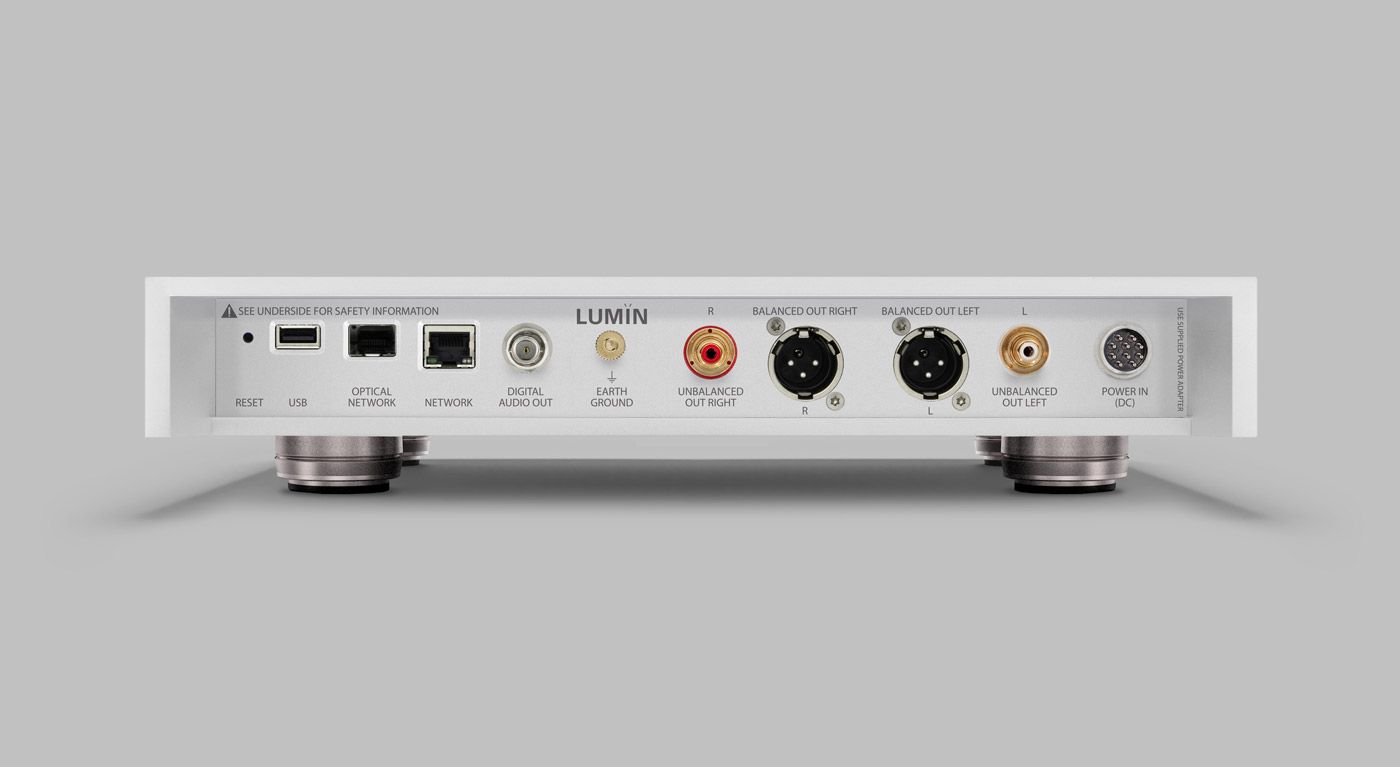

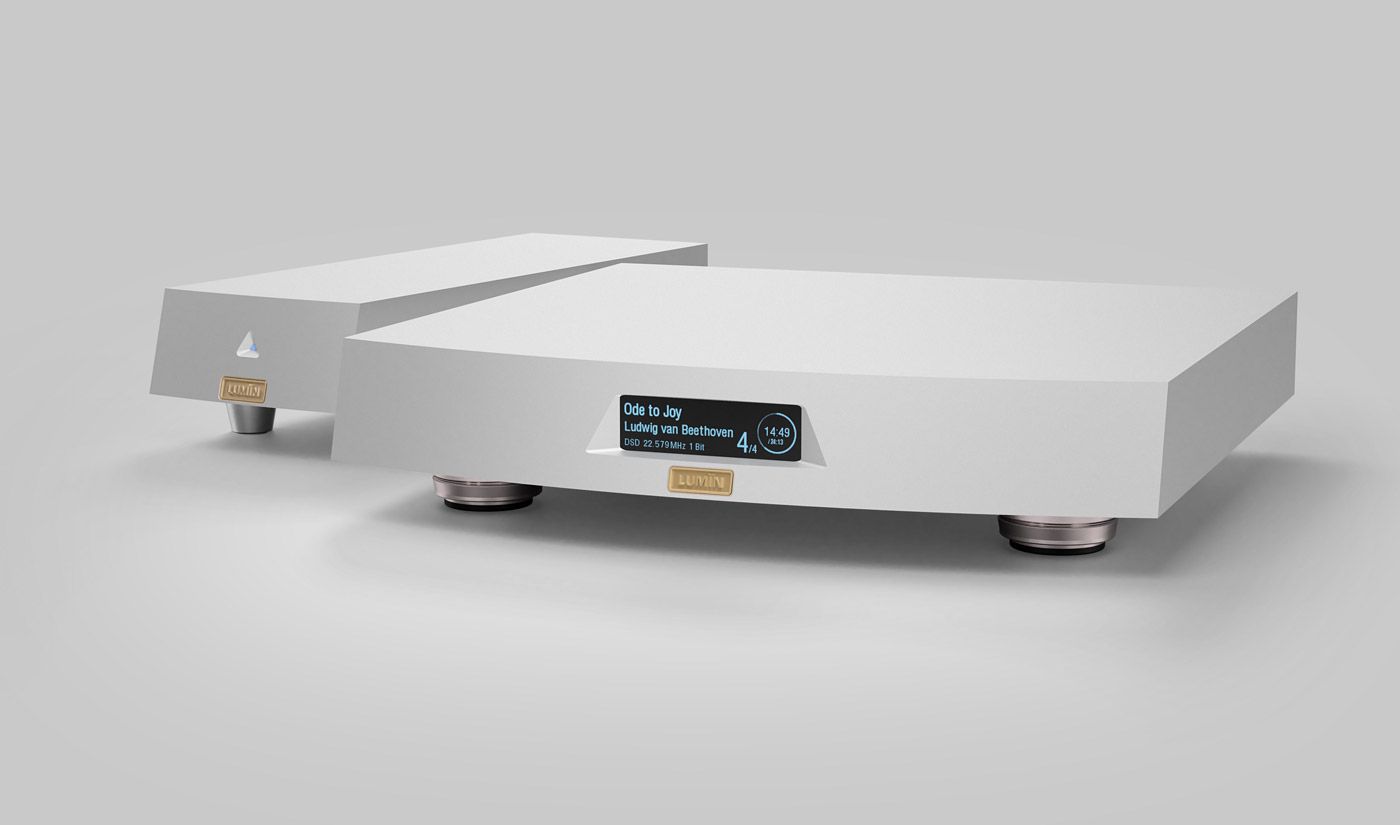

Lumin X2

15 800,00 €

Tinklinis grotuvas Lumin X2

Sidabrinis/Juodas

X2 Specification


DSD Support:
Up to DSD512 22.6MHz, 1-bit


PCM Support:
Up to 768kHz, 16–32-bit, Stereo


Analog Output Stage:
LUMIN Discrete DAC
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution


Upsampling rates & bit depths:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files


Digital Output Stage:

USB:
Native DSD512 support
PCM 44.1–768kHz, 16–32-bit, Stereo


BNC SPDIF:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit



Optical Network:
Industry-standard Gigabit SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)


Power Supply:
External solid billet cnc dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
9-pin Output Connector


Physical:

Finish:
Black anodised aluminium (with matching PSU)
Raw anodised aluminium (with matching PSU)

Feet
IsoAcoustics isolating feet on main chassis

Lumin (solid aluminium chassis):
350mm (W), 345mm (D), 77mm (H), 8kg


PSU (solid aluminium chassis):
106mm (W), 334mm (D), 77mm (H), 4kg

Specification for all LUMIN music streamers

Streaming Protocol:
- UPnP AV protocol with audio streaming extension (OpenHome)
- Roon Ready
- Qobuz Connect
- TIDAL Connect
- Spotify Connect
- Plāys with Audirvāna
- AirPlay-compatible
- QPlay-compatible for QQMusic
- Gapless Playback
- On-Device Playlist
App Features:
- Native support for TIDAL, MQA, Qobuz, Amazon Music Unlimited, KKBox and TuneIn Radio.
- Tidal MAX and MQA icons to identify high-res music
- Qobuz high-res icons to identify high-res music
- Volume control
- High-resolution artwork
- Artwork caching
- Search
- Multiple tag handling
- Composer tag support
- Album-grouping in playlist
- Automatic internet links to artists/album/songs
- Saving and restoring of playlists (including TIDAL and Qobuz)
Supported Audio File Formats:
- DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
- Compressed (lossy) Audio: MP3
- MQA

Input:
- Ethernet RJ45 network 1000Base-T
- USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
Analogue Audio Outputs:
- XLR balanced, 6Vrms, pin 2 Hot
- RCA unbalanced, 3Vrms
Supported Control Devices:
- Apple devices. iOS 11.0 or later (List of supported devices)
- Android devices. Android 6.0 (Marshmallow) or later required
- Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
- Chromebook. Google Play Store required.
Other:
- Leedh Processing lossless digital volume control
- MQA QRONO d2a filters available for all PCM music (excluding via AirPlay)
- Compatible with LUMIN Infrared Control Package
- Programme of Continuous Development – Firmware-upgradable for further features and enhancements
