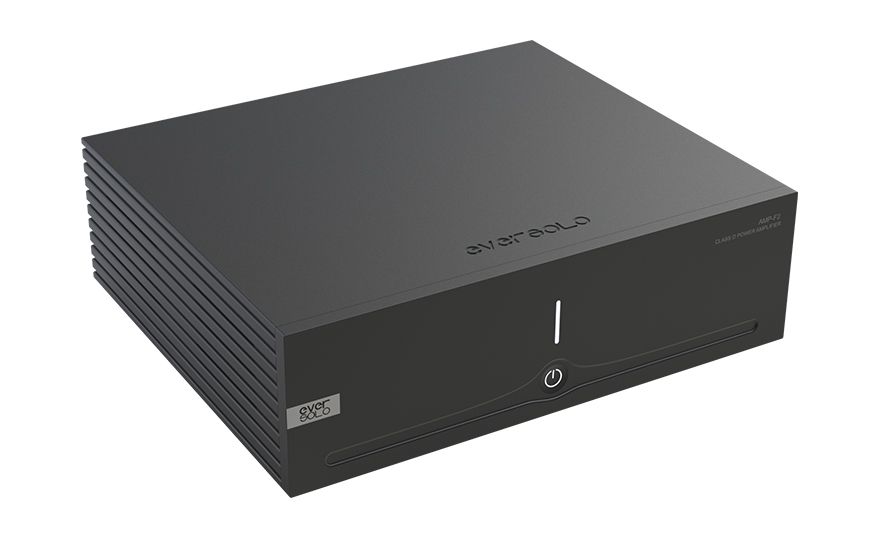

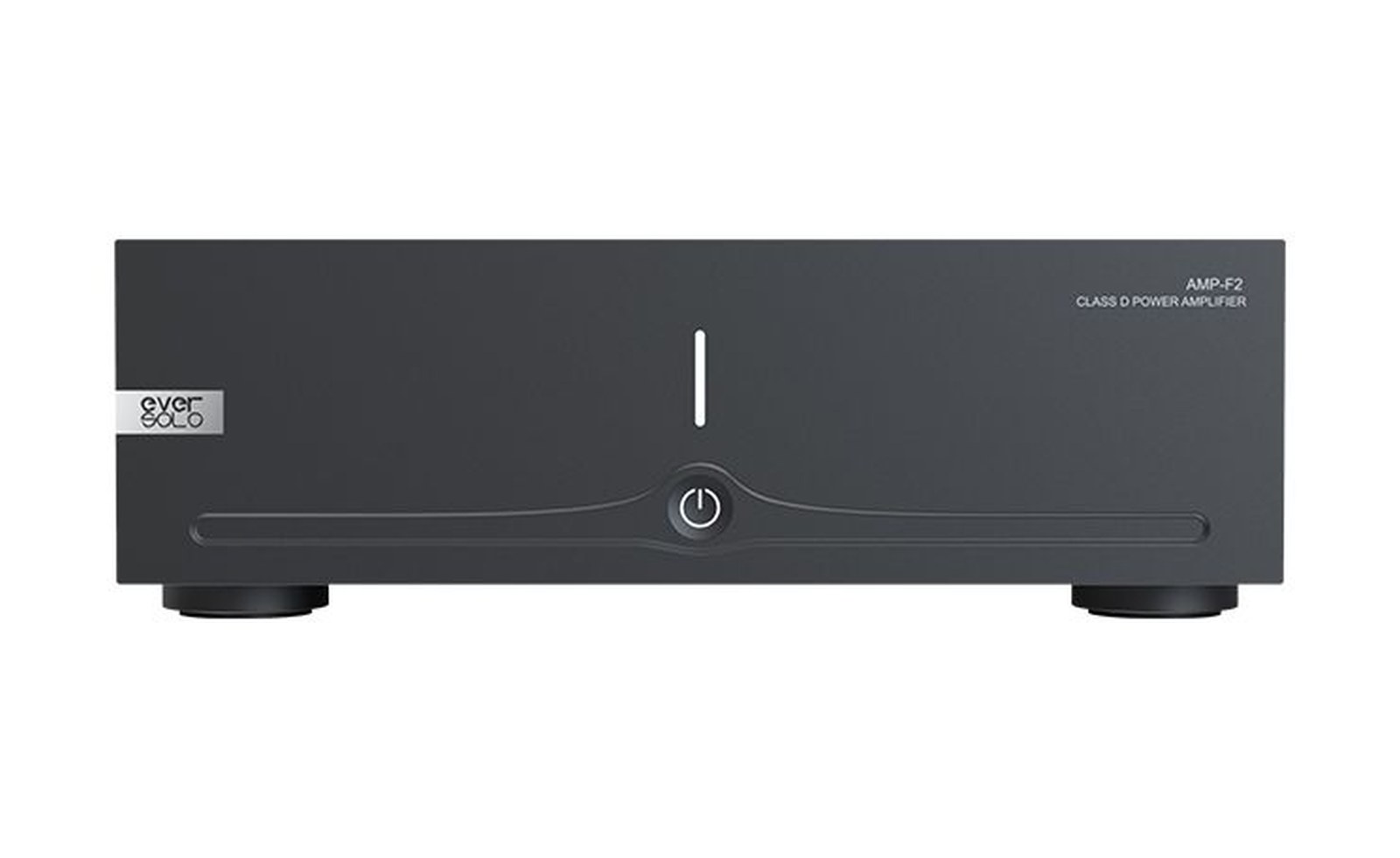

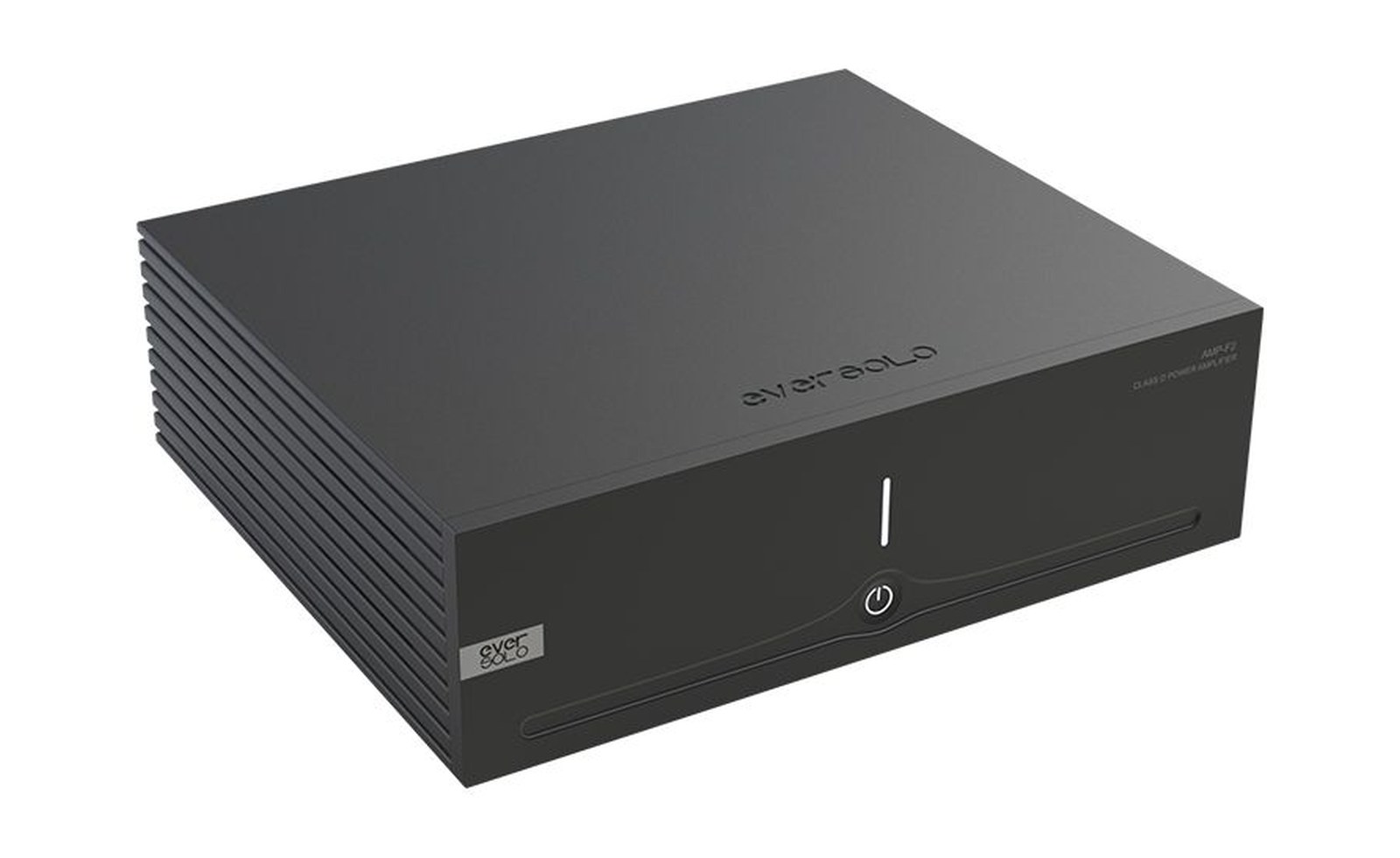

Eversolo AMP-F2

The AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative NS600 module created by the Starke Sound team. It boasts a high sampling rate of up to 600KHz. Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, cou- pled with optimized circuits to maximize audio quality. The AMP-F2 is bridgeable, allowing flexible configura- tion for 2-channel or mono-channel setups when needed.

Output Power – 250W RMS at 4Ω（1%THD，per channel）145W RMS at 8Ω（1%THD，per channel）

Bridge Mode Output Power – 450W RMS at 2Ω（Bridge Mode）

Channel quantity – 2 Channels

Amplifier type – Class D

Frequency Response – 10Hz-20kHz -1.2dB

Maximum output current – 16.5A（per channel）/ 33A（Bridge）

Signal-To-Noise Ratio（SNR） – >110dB,”A” weighted 4Ω 260W

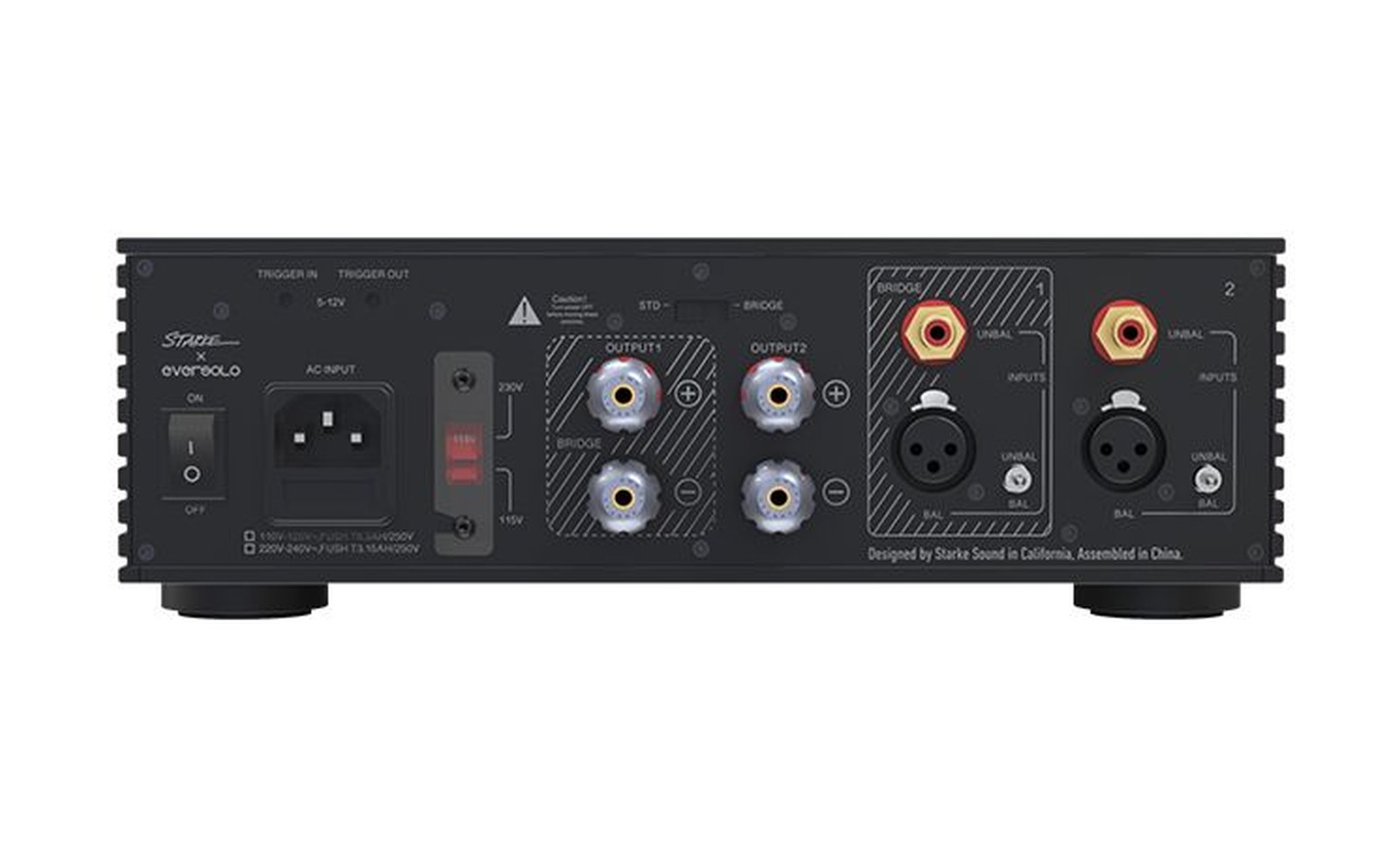

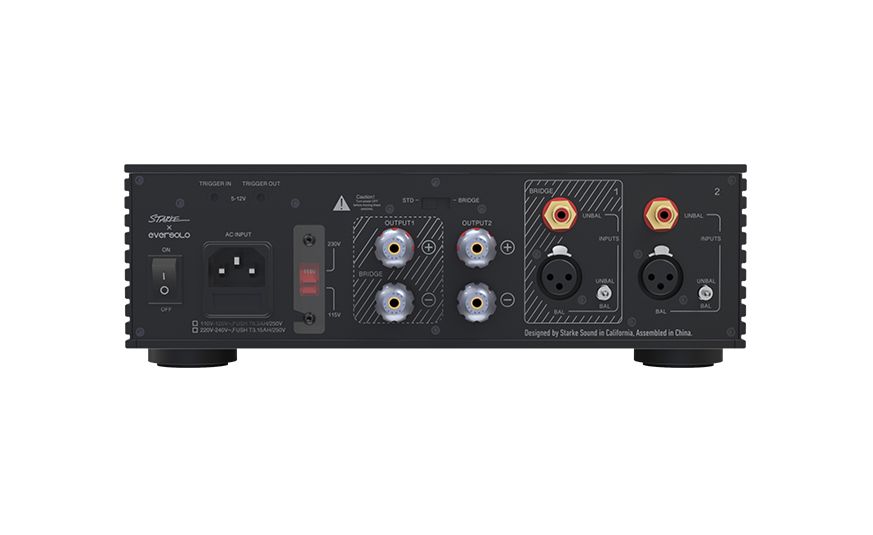

Input terminals – 2-Channel RCA Input ；2-ChannelXLR Input

Input Impedance – RCA 10.5K ohm /XLR 21.7K ohm

Output terminals – 2 pairs beryllium copper binding post，custom made by Starke Sound

Output Impedance – 0.09 ohm 1kHz

Damping coefficient – 100

Full size – W 270 mm x D 228 mm x H 90 mm (w/ foot))

Weight – 3.65Kg
