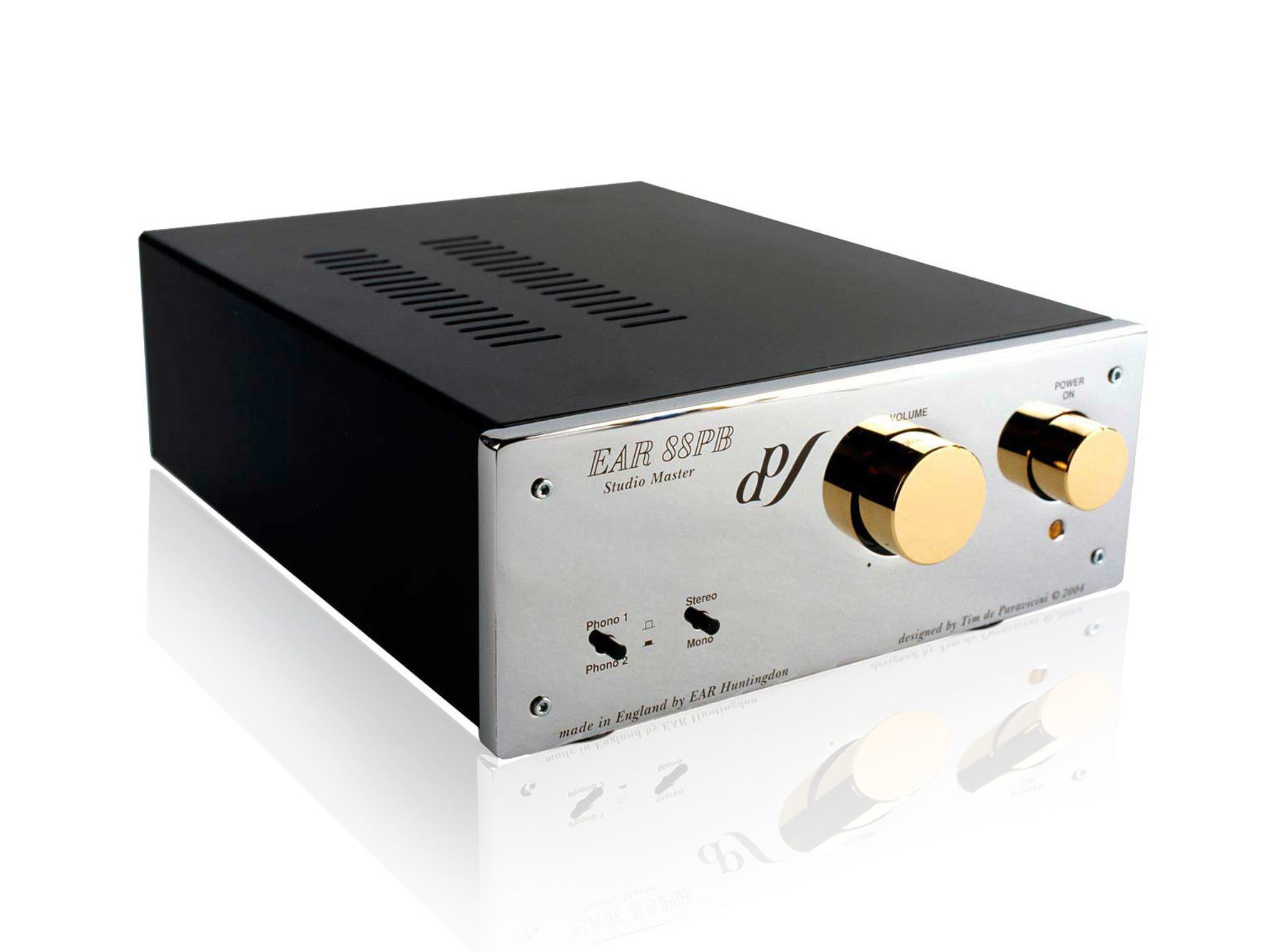

EAR 834P was one of the very first standalone phono stages and has become one of our best-selling products. Now the continuing popularity of vinyl has encouraged EAR to develop an upmarket phono preamp, the 88PB. Drawing on designer Tim de Paravicini’s vast knowledge of audio electronics, and employing several of the innovations he incorporated in the class-leading Paravicini 312 Control Centre, a fully-featured preamp and 324 phono stage (both solid state), the 88PB is a definitive statement in valve electronics.

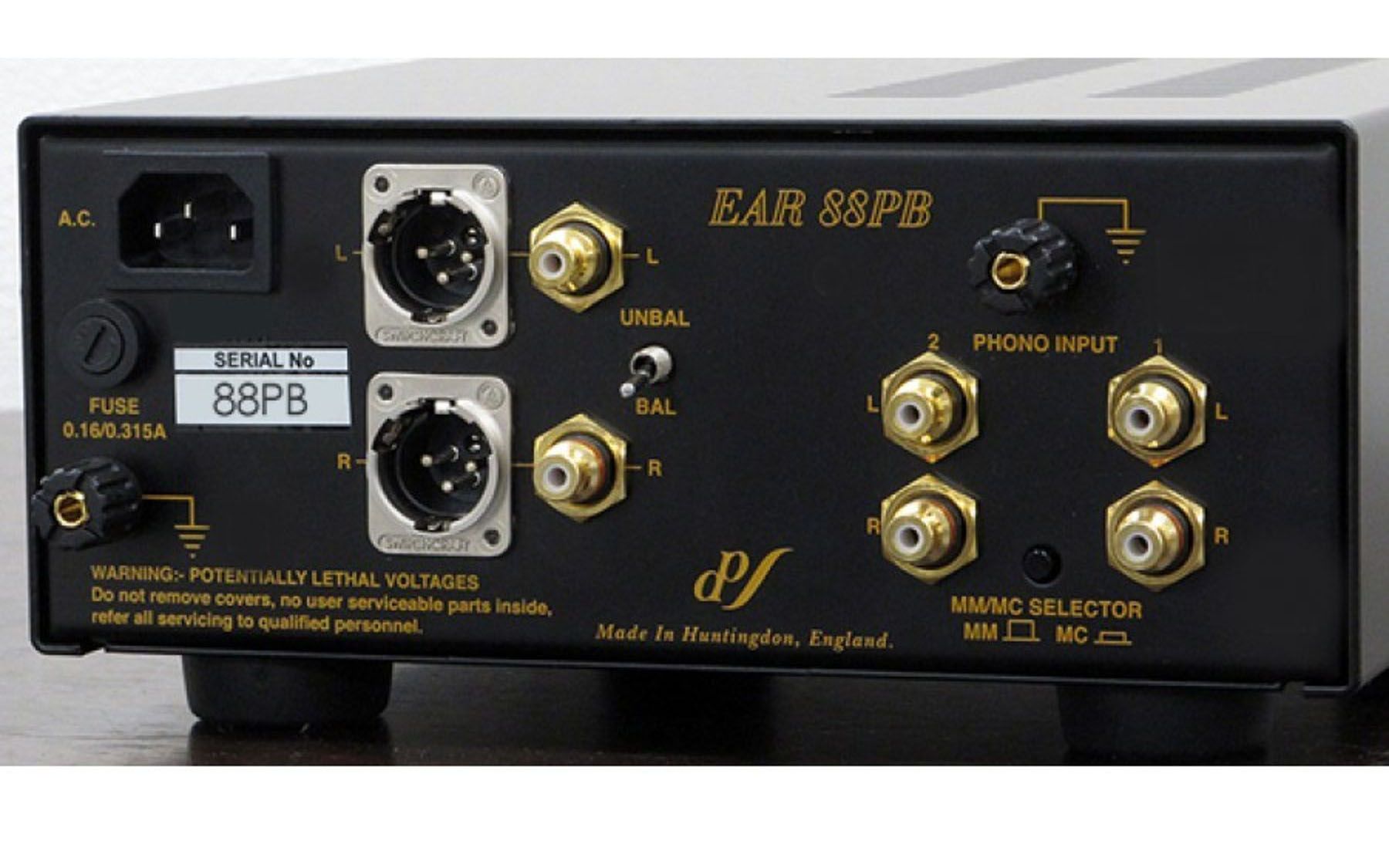

Its specification is a perfect match of essential flexibility with cost-conscious simplicity. Two inputs cater for the growing number of vinyl-lovers with more than one turntable or arm. Both inputs accept moving magnet cartridge inputs, while one is also switchable for moving coil types – naturally using de Paravicini’s famed input transformers for lowest noise and highest fidelity. MC input impedance is adjustable internally.

Tech spec

Maximum Gain:

52db MM, 72db MC (Volume control adjustable)

Tube compliment:

4 x 6922 tubes (or 6DJ8 or 7DJ8)

Output Impedance:

60 ohm

Sensitivity:

MM 2.5 mv, MC down to .15MV

S/N ratio:

68db (ref 2.5mv)

Distortion:

.2% at 2V

Dimensions:

9.25″W, 11.5″D, 4″H

Weight:

15 LBs
