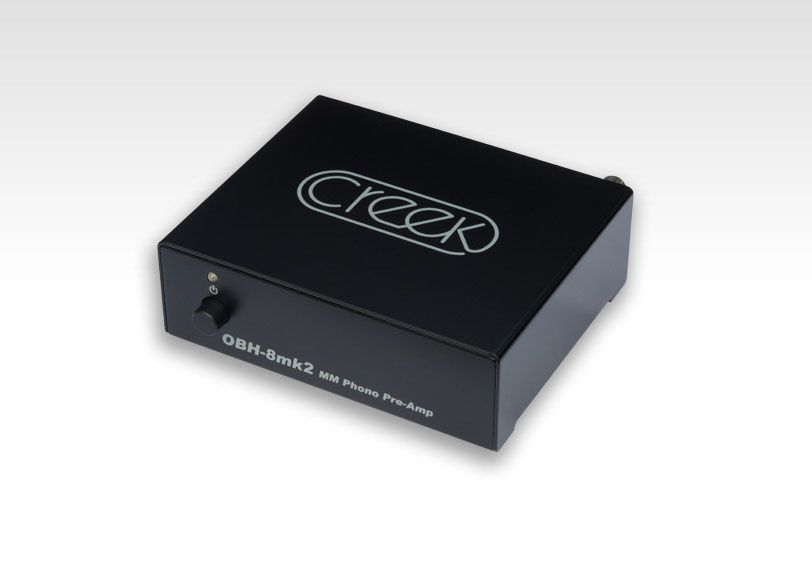

Creek OBH-8 MK2
Original price was: 130,00 €.90,00 €Current price is: 90,00 €.
Creek OBH-8MK2 fono korektorius
With modern amplifiers expected to cater for so many new source devices, the Phono capability, once very common, is one of those built-in features that has disappeared in recent times. The engineering team at Creek Audio has always loved the benefits of vinyl records and continues to work on technical and sonic improvements to its range of Phono amp options, be it the stand-alone OBH or plug-in Sequel types. Tasked with designing a replacement for the original OBH-8 MM Phonno Pre-amp, the team came up with some valuable improvements and additional features. For the mk2 version a new type of low profile metal case has been developed to reduce the cost, without reducing quality.
| THD+NOISE AT 2VRMS OUTPUT: | (40dB gain) @ 1kHz to 10kHz = <0.003% |
|---|---|
| CHANNEL SEPARATION | >70dB |
| FREQUENCY RESPONSE | 10Hz – 100kHz (+/-0.5dB) |
| SNR | >76dB |
| OVERLOAD MARGIN | >-21dB |
| OUTPUT LEVEL | 6.1V RMS Maximum |
| OUTPUT IMPEDANCE | <100 Ohms |
| GAIN | 40dB fixed |
| MATCHING | Resistance = 47k Ohms. Capacitance = 220pF |
| SIZE | 100x48x80mm WxHxD |
| WEIGHT | 0.4 kgs inc OBH-Uni power adapter |
| POWER CONSUMPTION | 3 Watts |
| MAINS VOLTAGES | 100V to 250V AC 50/60Hz |
| MAINS CONNECTION | A clip-on plug is supplied for UK, North America and Europe |
| FINISH COLOURS | Black Only |
