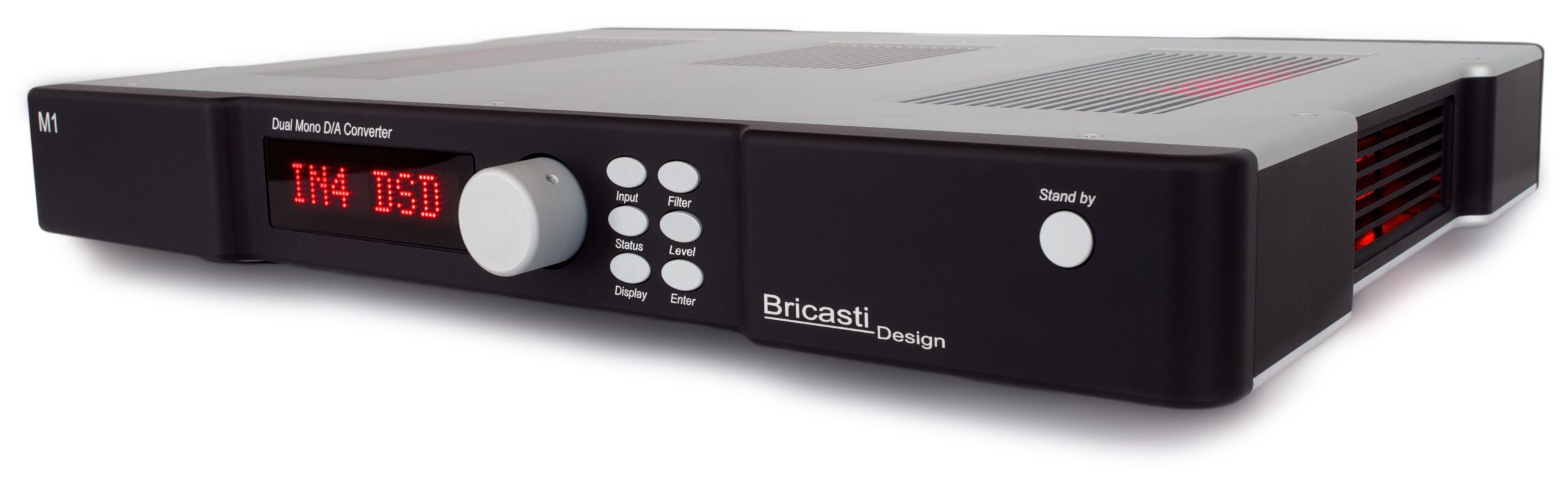

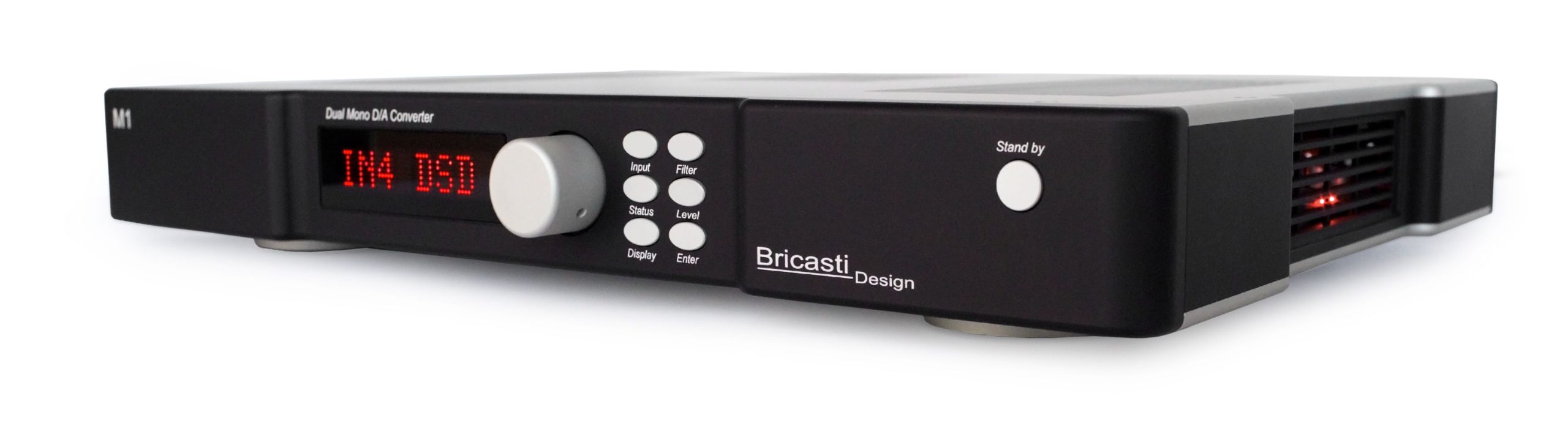

Model 1 USB Digital to Analog Converter

Name: Bricasti Design M1
Brand: Bricasti Design
SKU: AC-2666
Price: 9950.00 EUR
Availability: InStock

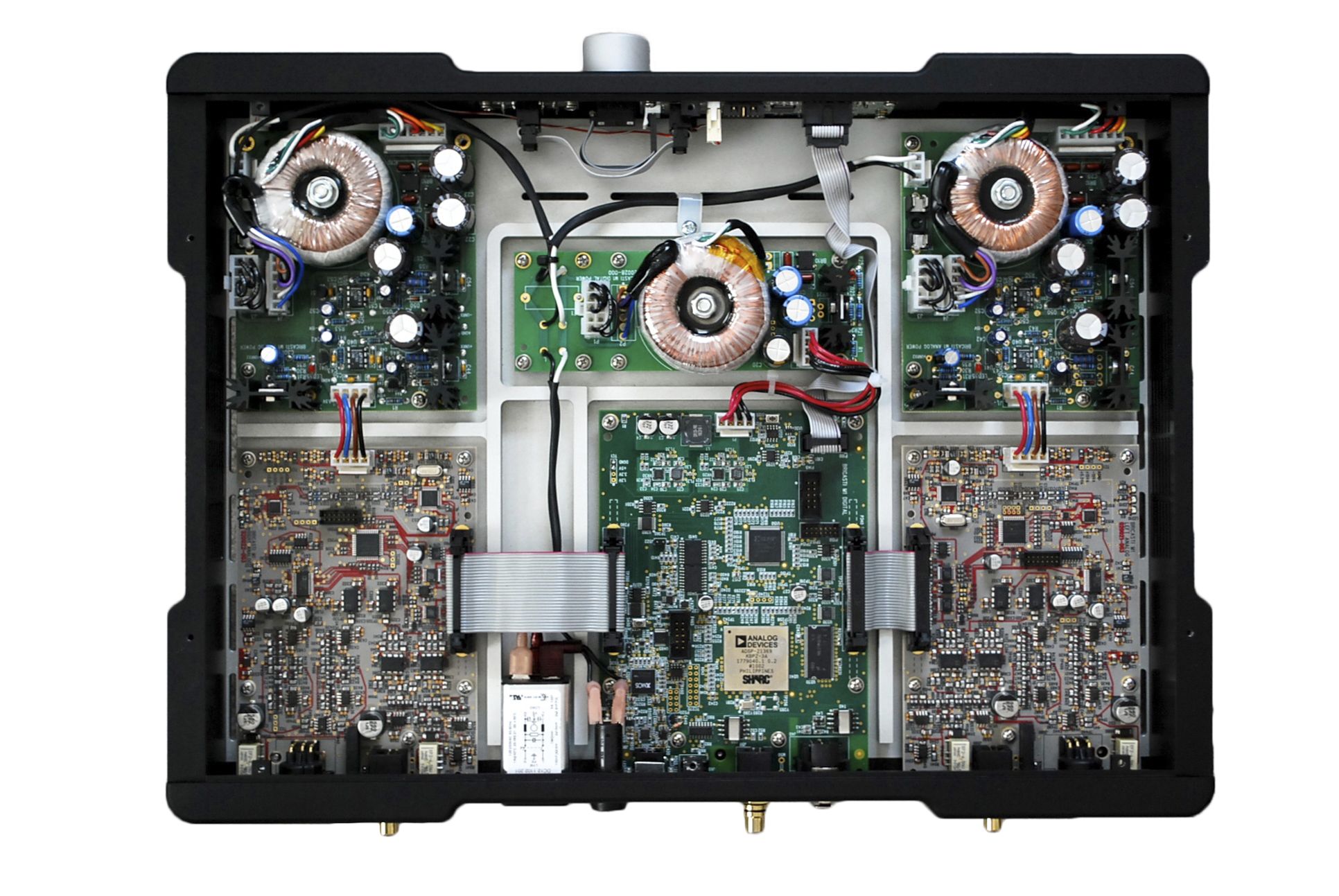

The M1 digital to analog converter is a dual mono design; there are two completely isolated channels, each with its own dedicated linear power supply, D/A converter, DDS clocking, and analog circuitry. This design ensures that analog crosstalk is virtually nonexistent, that the necessary power requirements for each channel are well met and isolated from each other and the digital processing is isolated, having its own power supply. With our twin DAC design, the dynamic range for each channel is optimized by using the stereo ADI 1955 D/A converter in a mono configuration. The M1 also includes Bricasti’s own proprietary filter technology, further opening new territory with what is achievable in a modern D/A reference.

Network Player Option

First incorporated for the M12 Dual Mono Source Controller, The Bricasti network interface and media renderer option allows any M1 to be seen as a DNLA device on an audio network and server as an audio device to play or stream to through a wired connection on your network. Now you can run wired data longer distances without loss in quality so your network server can go anywhere you choose.

Product Highlights

DSD64, DSD128 and DSD 256 playback.
High-performance MDx processor.
Dedicated dual mono design.
Highly acclaimed, proprietary filter technology.
Extremely low jitter @ 6 picoseconds.
Supports sample rates of up to 352.8kHz and 24 bits.
Minimum and linear phase filters.

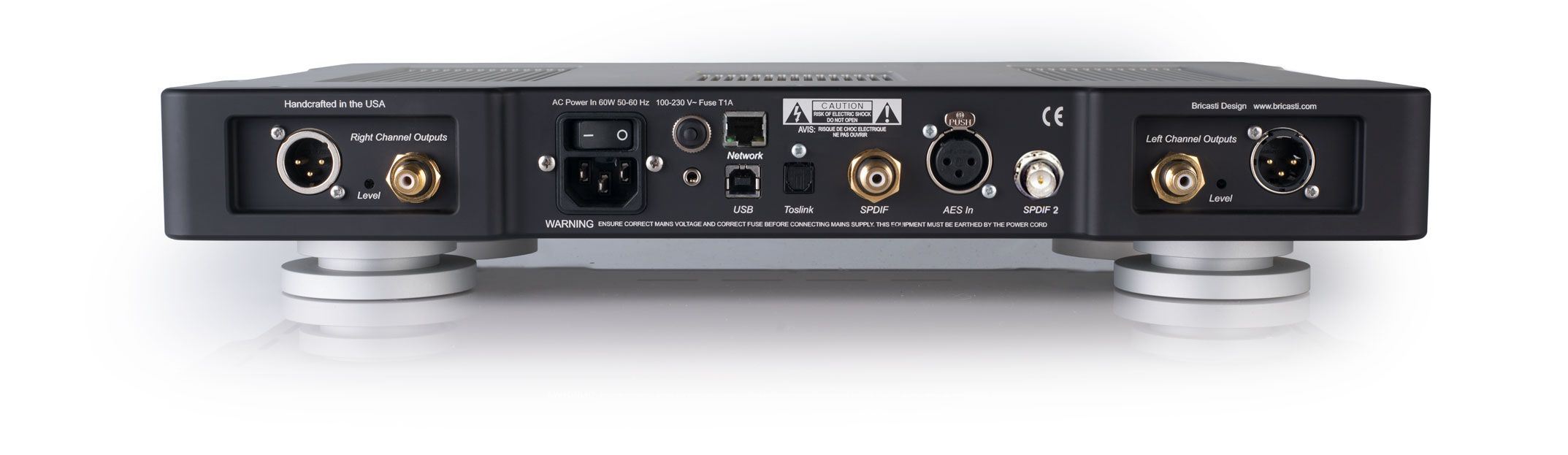

Digital Inputs

Connectors:
USB: USB-2
XLR: AES/EBU 24 bit Single Wire
RCA: SPDIF
Toslink: Fiber Optic
Ethernet (optional)
Sample Rates:
USB: 44.1 kHz – 384 kHz, DSD 64x 128x DSD 256x Native and DoP
AES, SPDIF: 44.1 kHz – 192kHz
Ethernet: 44.1 kHz to 384kHz, DSD 128 Native
Toslink: 44.1 kHz – 96 kHz
Frequency Response Dig I/O:
DC to 24 kHz @ 48 kHz
DC to 96 kHz @ 192 kHz

Balanced Analog Output

Connectors: XLR balanced (pin 2 hot)
Impedance: 40 ohm
Max output level:+22 dbm
Min output level:+8 dbm
D/A Conversion:24 bit delta sigma 8x oversampling
Frequency Response @44.1k:10 hz- 20 kHz +0dB, -.2 dB
Dynamic Range:>120dB A-Weighted
THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs

Unbalanced Analog Output

Connectors:RCA
Impedance:40 ohm
Output level: +8 dbm (2V RMS)
D/A Conversion: 24 bit delta sigma 8x oversampling
Frequency Response @ 44.1k: 10 hz- 20 kHz -.2 dB
Dynamic Range: >120dB A-Weighted
THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs
