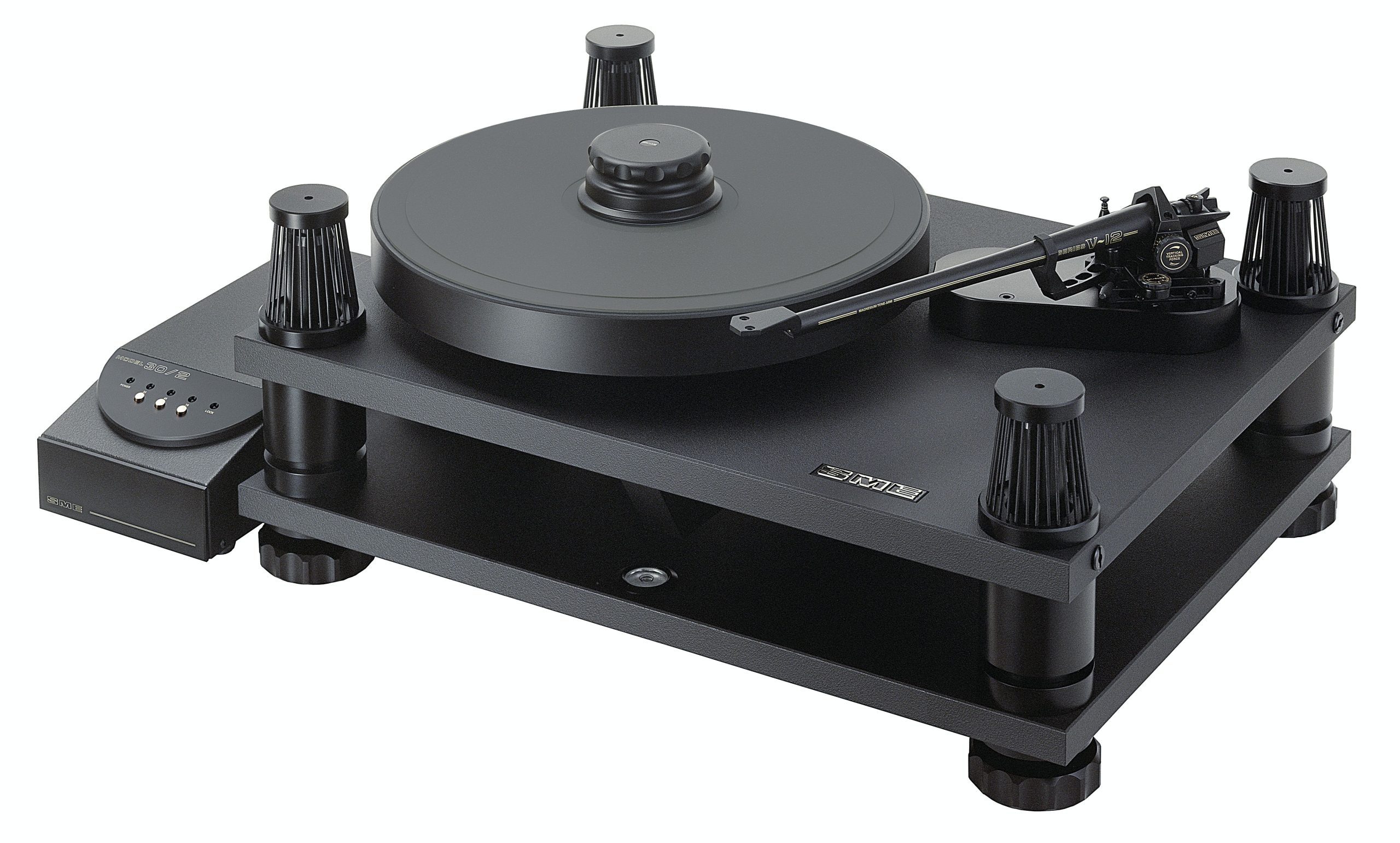

SME Audio Model 30/12 Turntable
33 500,00 €
SME Audio Model 30/12 is a suspended, belt-driven precision turntable for systems using a 9, 10 or 12-inch tonearm. Its suspension of 60 O-rings and four adjustable fluid dampers controls subchassis movement according to the installation conditions. The three-speed controller permits fine adjustment of the selected speed in 0.01% increments. A reflex record clamp is included.
SME Audio Model 30/12 is a precision suspended turntable with belt drive. It is designed for analogue systems using a 9, 10 or 12-inch tonearm. Its larger structure accommodates longer tonearms and is particularly suited to the SME Series V-12. The selected tonearm and phono cartridge determine the final signal connection to the phono stage.
Tonearm selection and replacement
The Model 30/12 was developed as a larger version of the Model 30/2. Its reversible tonearm mounting board also enables the installation of a 9-inch tonearm. If several tonearms are used, the board can be exchanged. Location pins help return it to a repeatable position.
The interface between the subchassis and tonearm mounting board is damped under tension. This is important when changing the board and preserving the intended mechanical coupling. Special chrome or gold finishes are not included as standard and must be arranged separately.
Choosing the signal chain
The turntable provides a platform for the tonearm and phono cartridge of your choice. The signal cable and phono stage should therefore be selected according to the connections and electrical requirements of those components. The Series V-12 is the tonearm most closely associated with this model. A reflex record clamp is included.
Suspension and adjustable damping
The subchassis is supported by 60 specially moulded O-rings, forming 120 rubber strands. The O-ring mounting system allows the rings to be removed and replaced. A thicker subchassis and main chassis provide the rigidity required by the larger structure.
Four fluid-damped elements control subchassis movement, with one separate damper installed in each support column. Adjusters allow the recommended values to be set using a gauge. Damping can also be tailored to the conditions at the final installation location.
Platter and record clamping
The heavy platter has a fine spiral texture machined into its surface. The reflex clamp is designed to increase contact between the record and platter.
Motor and speed adjustment
The three-phase brushless outrunner motor uses eight-pole neodymium magnets and three integrated Hall-effect sensors. The motor is isolated by adjustable urethane mounts. Their position permits precise alignment of the drive belt.
The electronic speed controller uses a microprocessor optimised for motor control. A proportional-integral algorithm operates within the closed-loop control system. Three record-playing speeds can be selected, while fine adjustment is available in either direction in increments of 0.01 percent.
Positioning and initial setup
With a net weight of 53.5 kg, the turntable requires a rigid, level support. The support must be capable of carrying the turntable together with every additional system component placed on it. Allow enough space to operate the tonearm and exchange the mounting board.
The voltage version appropriate for the local mains supply must be selected before ordering. Three voltage ranges are available, each operating at 50 or 60 Hz. An incorrect voltage version cannot be compensated for through the speed-controller settings.
Technical specifications
| Type | Suspended precision turntable with belt drive |
|---|---|
| Design basis | Larger version of the Model 30/2, developed as a partner for the Series V-12 tonearm |
| Tonearm sizes | 9, 10 and 12 inches |
| Tonearm board | Reversible for a 9-inch tonearm and interchangeable when using multiple tonearms |
| Board positioning | Location pins for repeatable positioning |
| Board-interface damping | Subchassis and tonearm mounting-board interface damped under tension |
| Subchassis thickness | Approximately 16% greater than the Model 30/2 |
| Main chassis thickness | Approximately 19% greater than the Model 30/2 |
| Suspension | 60 specially moulded O-rings and 120 rubber strands |
| O-ring mounting | Mounting system allowing removal and replacement |
| Damping | Four fluid dampers, one in each support column |
| Damping adjustment | Adjusters for gauge-set recommended or individually tailored values |
| Platter diameter | 330 mm (13 inches) |
| Platter weight | 7.5 kg (17 lb) |
| Platter surface | Fine, mechanically machined spiral texture |
| Motor | Three-phase brushless outrunner motor |
| Magnets | Eight-pole neodymium magnets |
| Sensors | Three integrated Hall-effect sensors |
| Motor weight | 2.5 kg (5.5 lb) |
| Motor isolation | Adjustable urethane mounts for precise belt alignment |
| Speed controller | Microprocessor optimised for motor control |
| Closed-loop control | Proportional-integral algorithm |
| Speeds | 33⅓, 45 and 78 rpm |
| Fine speed adjustment | ±0.01% increments around the selected speed |
| Power versions | 90-110 V, 105-125 V or 220-240 V; 50/60 Hz |
| Dimensions | 530 × 400 × 232 mm |
| Net weight | 53.5 kg (118 lb) |
| Packed weight | 79.5 kg (175 lb) |
| Optional finish | Special chrome or gold finish, arranged separately |
| Included accessory | Reflex record clamp |
FAQ
How is the tonearm mounting board adapted?
The board is reversed for a 9-inch tonearm and can be exchanged when several tonearms are used. Location pins help restore its repeatable position.
How do I connect the turntable to an amplifier?
The connection method depends on the selected tonearm, phono cartridge and their cable. Connect the signal to a phono stage suitable for the specific cartridge.
Which suspension setting should I start with?
Begin with the recommended damping values set using a gauge. Once the turntable is in its final position, use the adjusters to tailor these values to the installation conditions.
Can the turntable play 78 rpm records?
Yes. The controller includes a 78 rpm mode. You should also select a cartridge and stylus appropriate for the specific type of record.
What type of support does this turntable require?
Choose a rigid, level support with a permitted load greater than the weight of the complete system. Also account for the space required to operate the tonearm.
Which power version should I choose?
Choose the version that matches your local mains voltage. The version intended for the mains supply used in Lithuania is rated at 220-240 V, 50/60 Hz.
