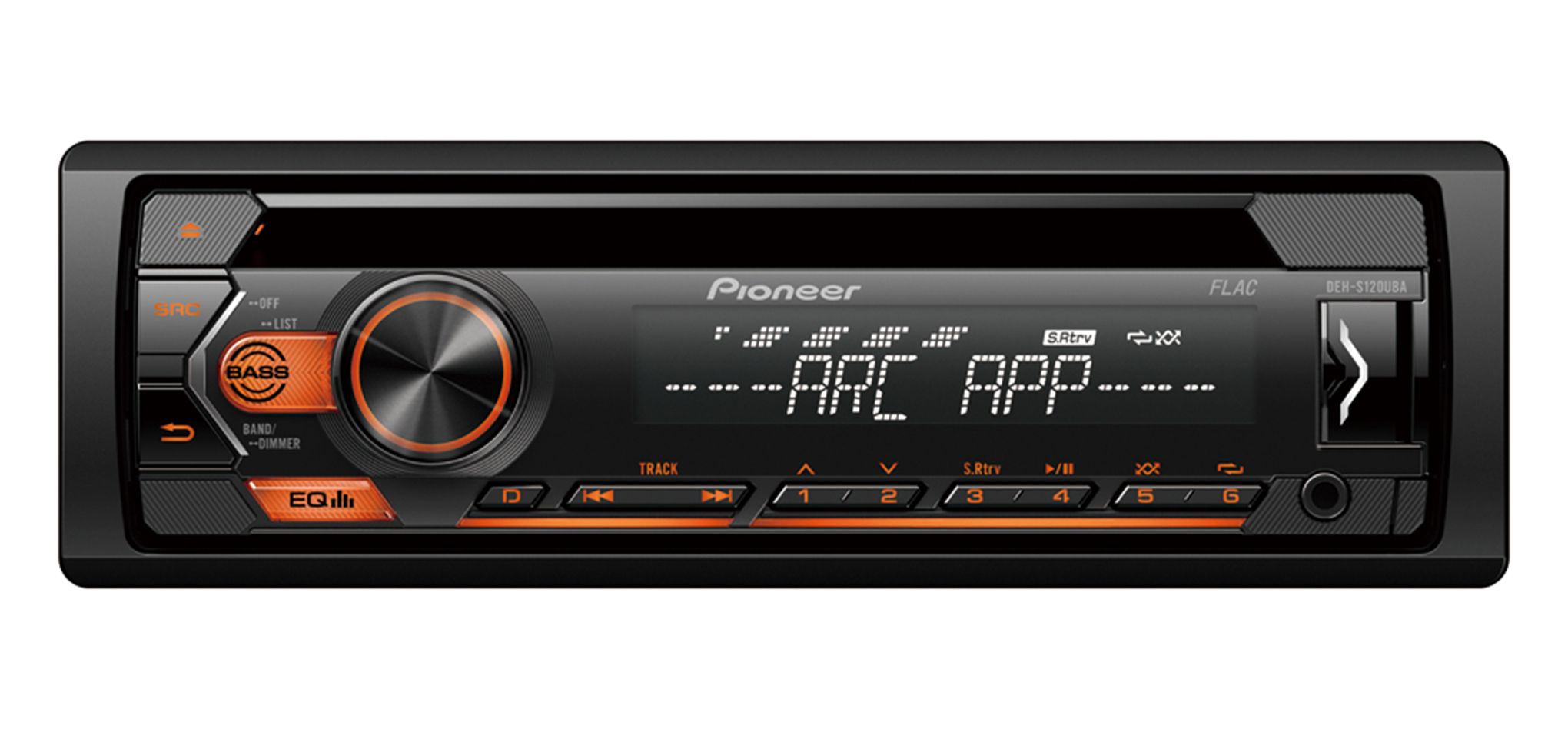

Pioneer DEH-S120UBA Car CD Receiver
99,00 €
Pioneer DEH-S120UBA is a single-DIN car CD receiver for drivers who want several music sources. It receives FM radio, plays compact discs and supports music playback from USB devices. The AUX input accepts an analogue audio source. A compatible Android phone must run Android 5.0-7.1.2 and support AOA 2.0. The RCA line-level output can send a signal to additional car audio equipment.
Pioneer DEH-S120UBA is a single-DIN car CD receiver designed for listening to music in the vehicle. It receives FM radio and plays compact discs, while USB and AUX connections provide options for wired audio sources.
This model suits drivers who want several playback choices in one dashboard-mounted unit. Its built-in amplifier allows the receiver to serve as the main component of a car audio system.
Who is this receiver for?
This model is particularly suitable for drivers who still want to listen to CDs in the car while retaining the flexibility to choose between several wired music sources when required.
Choice of music sources
The CD player provides playback from compact discs. This is useful if you want to continue enjoying an existing physical music collection in your vehicle rather than relying entirely on external devices.
The USB port allows music to be played from USB devices. It is a practical choice when you prefer to keep your music files on a separate storage device that can be connected to the receiver.
The AUX input accepts an analogue signal from a source with a suitable audio output. It is useful for connecting equipment that does not need to be controlled through USB.
FM radio complements the physical and wired music options. You can therefore change between different ways of listening during everyday journeys without replacing the main car audio unit.
Connecting an Android phone
Music can be played from a compatible Android phone. The phone must run Android 5.0-7.1.2 and support Android Open Accessory 2.0.
These requirements should be checked before choosing the receiver specifically for phone playback. Newer Android releases fall outside the stated version range, so operation with them cannot be promised.
Amplifier and system expansion
The built-in MOSFET amplifier has a stated output of 4 × 50 W. No measurement conditions are supplied, so this figure should not be treated as directly equivalent to an RMS power rating.
The RCA line-level output, also known as an RCA pre-out, carries an audio signal to additional sound-system equipment. This gives you the option to expand the system later with equipment that has a suitable line-level input.
The RCA output is not a powered connection for passive speakers. Passive speakers must not be connected directly to this line-level output.
Installation and initial setup
The receiver is designed for a single-DIN position in a vehicle dashboard. Before purchasing, check that the available installation opening matches this format. If the dashboard opening is a different size, a vehicle-specific installation solution may be required.
When adding other audio equipment, use the RCA line-level output only with a suitable line-level input. This connection transfers the signal; it does not provide speaker power.
Technical specifications
| Model | Pioneer DEH-S120UBA |
|---|---|
| Device type | Car CD receiver |
| Installation format | 1 DIN |
| Radio | FM |
| Disc playback | CD |
| USB | Music playback from USB devices |
| AUX | AUX input for an external analogue audio source |
| Android playback | Phone running Android 5.0-7.1.2 with AOA 2.0 support |
| Built-in amplifier | MOSFET |
| Stated amplifier output | 4 × 50 W; measurement conditions not provided |
| Audio output | RCA line-level output for additional audio equipment |
FAQ
Who is this car receiver best suited to?
It is intended for a vehicle with a single-DIN installation position and for users who want several music sources. FM radio, CDs and wired devices can all form part of the same setup.
Are phones with newer Android versions supported?
The listed compatibility covers only Android 5.0-7.1.2 with AOA 2.0 support. Operation with phones using newer Android versions has not been confirmed.
When should I use USB, and when should I use the AUX input?
Choose USB for music stored on a USB device. Use AUX for a source with an analogue audio output when USB playback is not being used.
Can speakers be connected directly to the RCA output?
No. It is a line-level signal output for additional audio equipment, not a powered connection for passive speakers.
What does the stated 4 × 50 W output mean?
It is the stated output figure for the built-in amplifier, but the measurement conditions are not provided. It must not automatically be interpreted as four-channel RMS power.
Will the receiver fit a double-DIN installation position?
The unit itself uses the single-DIN format. A dashboard opening of another size may require an installation solution designed for the particular vehicle.
