Pioneer AVH-X490DAB Car Stereo
526,00 €

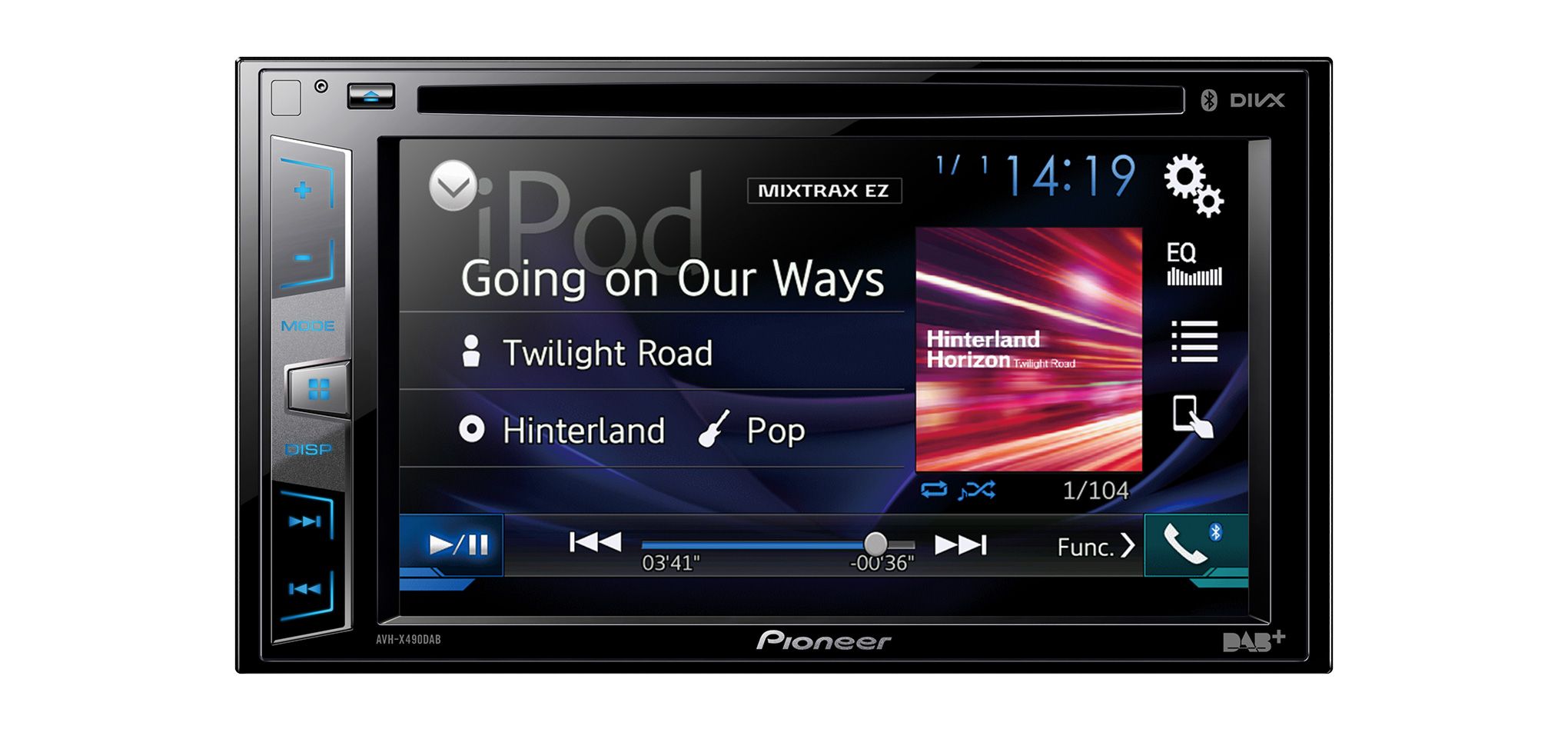

The Pioneer AVH-X490DAB is a 2 DIN in-car multimedia receiver for controlling music, video and hands-free calls. Its 6.2-inch touchscreen provides access to DAB+, FM/AM, DVD, CD, USB and Bluetooth sources. Three pairs of 4 V RCA pre-outs allow separate amplifiers to be connected for the front channels, rear channels and subwoofer. The DAB antenna, camera and navigation module are sold separately.
The Pioneer AVH-X490DAB car stereo is a 2 DIN multimedia receiver for controlling audio, video and phone calls. Its 6.2-inch WVGA touchscreen provides access to radio, disc, USB and Bluetooth sources. The built-in DAB+ tuner complements conventional RDS FM and AM radio reception.
Music and video sources
The rear USB connection accepts storage media and supported phones. It can play MP3, WMA, WAV, AAC and FLAC audio, DivX, Xvid, H.264 and MPEG-4 video, and JPEG images.
The disc drive plays Region 2 DVDs and audio CDs, with support for MP3, WMA, AAC, DivX, Xvid, MPEG-1, MPEG-2 and MPEG-4 files.
AppRadio Mode, App Mode and Spotify control were designed for phones and applications from this model’s era. App Mode was intended for iPhone, iPod and compatible Android devices. Present-day operation depends on the connected phone, operating system and application version.
Bluetooth and radio
Bluetooth can be used for wireless music streaming and hands-free calls. The HFP, A2DP and SPP profiles support hands-free calling, audio streaming and compatible data functions. Two phones can remain connected simultaneously, while automatic pairing is available through USB.
The built-in DAB+ tuner includes a time-shift function that lets you pause the received programme. The unit carries digital radio Tick Mark approval. A DAB antenna is not included; the CA-AN-DAB.001 is listed as an optional accessory.
Connecting an audio system
Three pairs of 4 V RCA pre-outs serve the front channels, rear channels and subwoofer, allowing separate amplifiers to be connected. The 2-way network mode provides an additional option for distributing audio between channels.
Video equipment can be connected through two inputs, a rear video output and a reversing-camera input with camera-view switching. The ND-BC8 camera is sold separately. Rear AUX and RGB inputs are also provided.
Audio adjustment
The 13-band graphic equaliser allows individual frequency ranges to be adjusted.
A high-pass filter helps divide the work between the main speakers and subwoofer. Time alignment compensates for different speaker distances from the listening position. The Auto EQ function requires the separately available CZX-5497A microphone.
Advanced Sound Retriever is intended to process compressed Bluetooth audio. Loudness and source-level adjustment functions help manage listening volume across sources. MIXTRAX EZ is also included.
Display and installation
The 16:9 display offers selectable widescreen modes. Display and button illumination colours can be coordinated with the vehicle interior. The RGB button illumination provides a stated choice of 210,000 colours.
The receiver requires a 2 DIN dashboard opening. Its USB, AUX, video and camera connections are located at the rear, so the necessary cables should be routed during installation. An external Bluetooth microphone is included.
Navigation requires the separately available AVIC-F260 module. Before planning a navigation installation, consider the availability of this older module and the condition of its map updates. The optional CA-IU.52C cable was intended for Lightning-equipped devices.
Technical specifications
| Type | 2 DIN in-car multimedia receiver |
|---|---|
| Display | 6.2-inch Clear Type WVGA touchscreen |
| Display format | 16:9 with selectable widescreen modes |
| Illumination | Multicolour display and buttons; 210,000 colours for the RGB buttons |
| Radio | RDS FM/AM and built-in DAB+ tuner |
| DAB+ features | Time shift and digital radio Tick Mark approval |
| Discs | Region 2 DVD and audio CD |
| CD and DVD audio formats | MP3, WMA, AAC |
| CD and DVD video formats | DivX, Xvid, MPEG-1, MPEG-2, MPEG-4 |
| USB audio formats | MP3, WMA, WAV, AAC, FLAC |
| USB video formats | DivX, Xvid, H.264, MPEG-4 |
| USB image format | JPEG |
| USB connection | Rear, 1 A |
| App features | AppRadio Mode via USB and compatible smartphone applications |
| Apple features | Direct iPod and iPhone control; App Mode; Designed for iPod |
| Android features | App Mode compatibility |
| Spotify | Control through a connected smartphone |
| Bluetooth features | Audio streaming, hands-free calls, dual-phone connection and automatic pairing via USB |
| Bluetooth profiles and processing | HFP, A2DP, SPP, Advanced Sound Retriever |
| Audio adjustment | 13-band graphic equaliser, loudness, source-level adjustment and Auto EQ |
| Audio processing | High-pass filter, time alignment, MIXTRAX EZ and 2-way network mode |
| RCA pre-outs | 3 pairs: front, rear and subwoofer |
| RCA pre-out voltage | 4 V |
| Video inputs | 2: RCA and mini-jack AV |
| Video output | Rear video output |
| Video systems | PAL, NTSC, SECAM |
| Camera connection | Reversing-camera input and camera-view switching |
| Other inputs | Rear AUX input and one RGB input |
| Control connections | Wired remote-control input and multifunction vehicle-display support |
| Vehicle connection | ISO connector |
| Navigation | Via the optional AVIC-F260 module |
| Included items | One USB extension cable and one external Bluetooth microphone |
| Optional accessories | CA-AN-DAB.001 antenna, CA-IU.52C cable, CZX-5497A microphone, ND-BC8 camera, CD-R33 remote control and AVIC-F260 module |
FAQ
Does DAB+ radio require a separate antenna?
Yes. A DAB antenna must be purchased and installed separately when planning the installation. The CA-AN-DAB.001 is listed only as an optional accessory.
When should I connect my phone by USB rather than Bluetooth?
Choose Bluetooth for cable-free music and calls. USB is used for storage media, direct device control and supported app functions.
Can I connect a reversing camera?
Yes. The unit has a dedicated camera input and camera-view switching function. The camera itself is not included.
Does the unit have built-in navigation?
No. Navigation requires the optional AVIC-F260 module. Its availability and the condition of its maps should be assessed separately.
Can the included microphone be used for Auto EQ?
No. The supplied microphone is intended for Bluetooth calls. Auto EQ requires the optional CZX-5497A microphone.
What should I plan before installing the unit?
You will need a 2 DIN installation space and should route the rear cables in advance. Plan separately for the DAB antenna, reversing camera and any external amplifiers.
