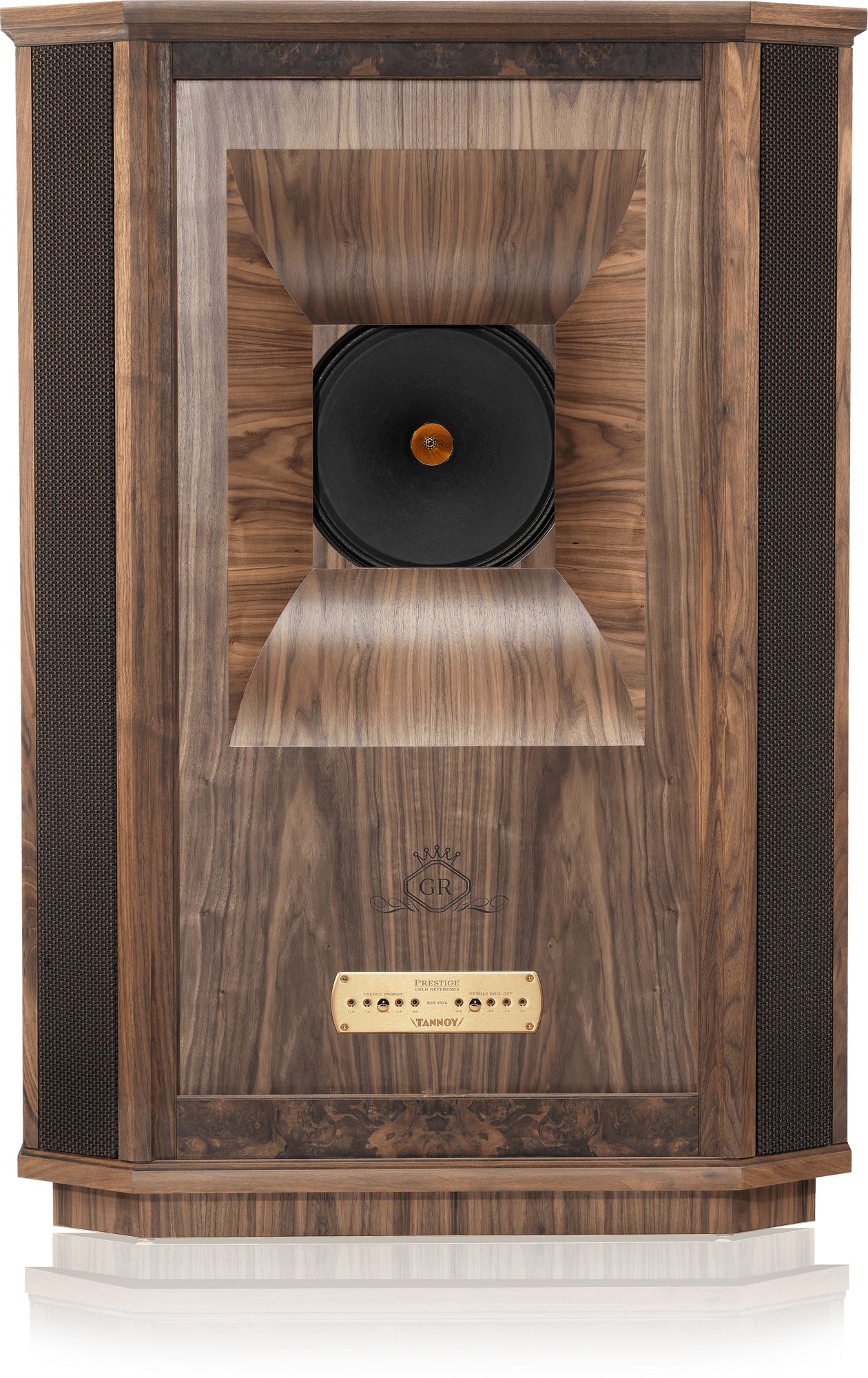

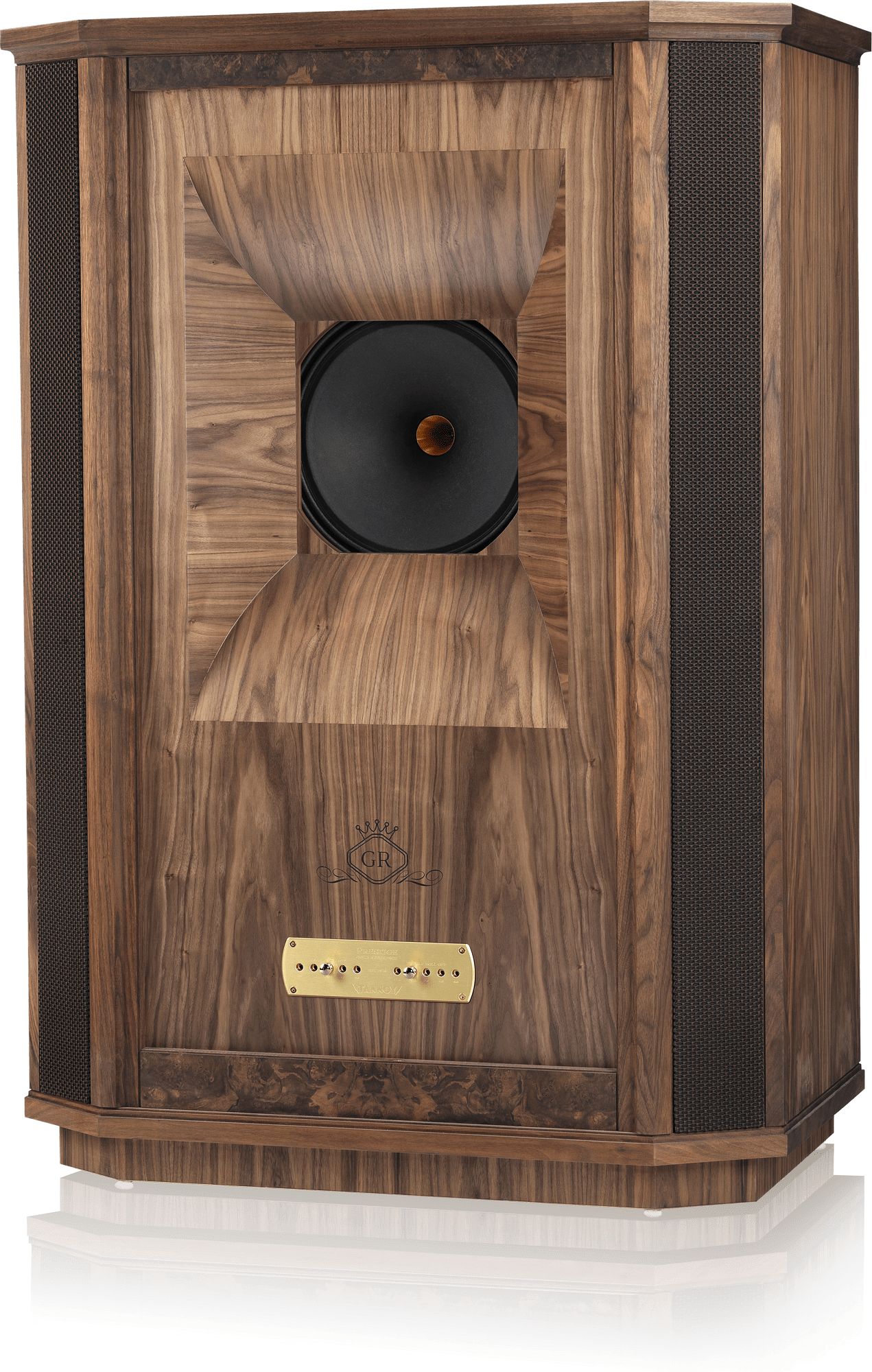

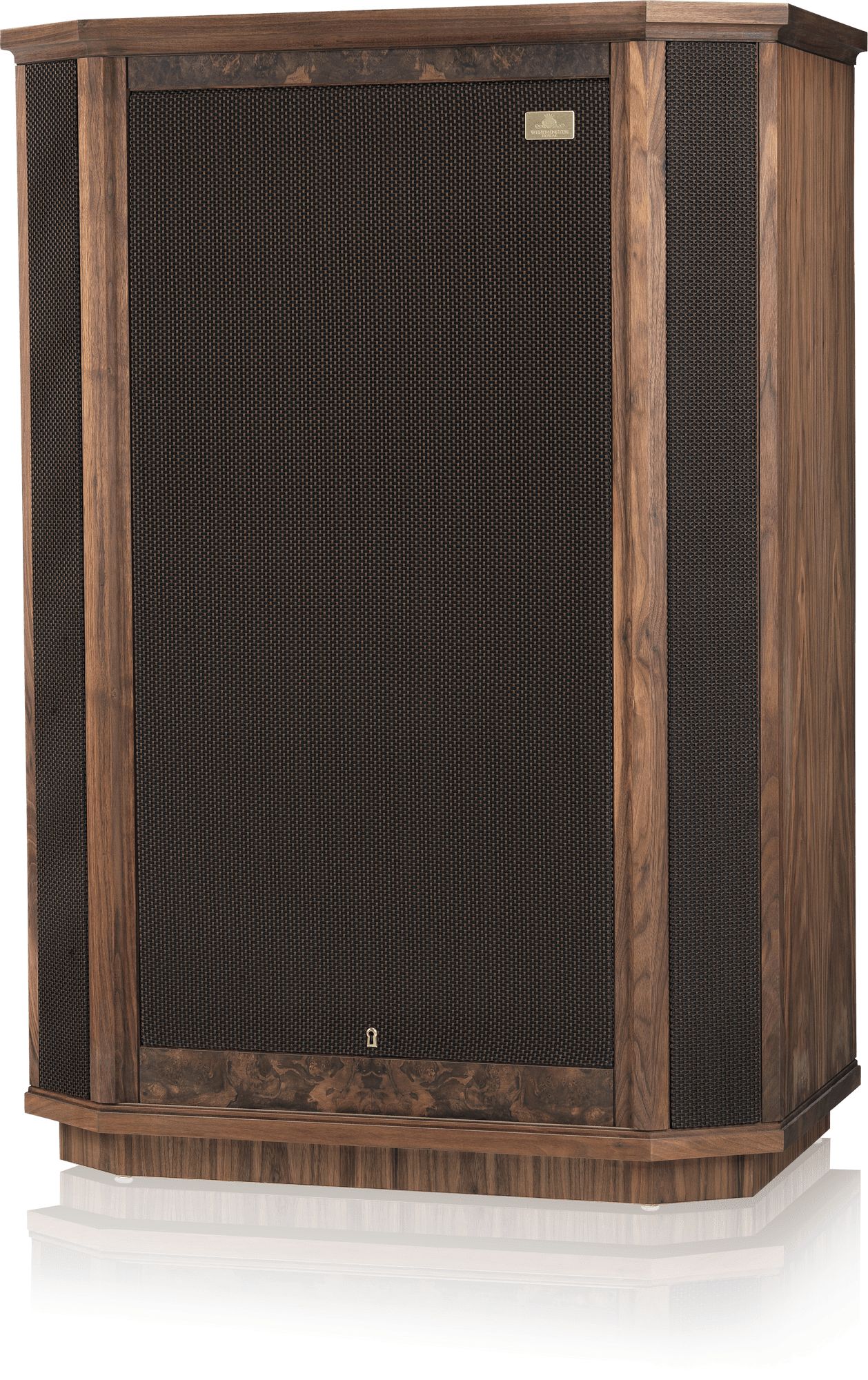

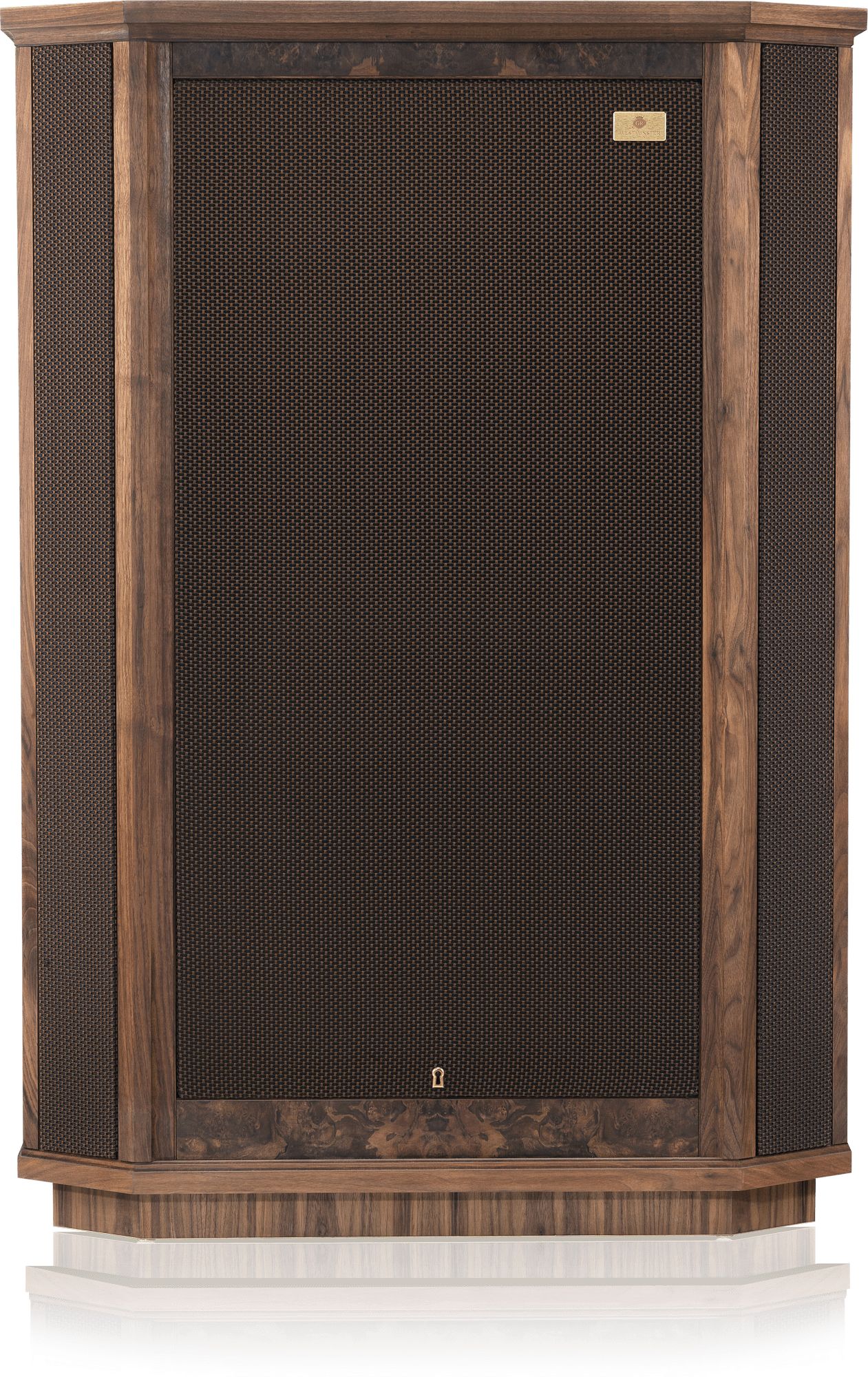

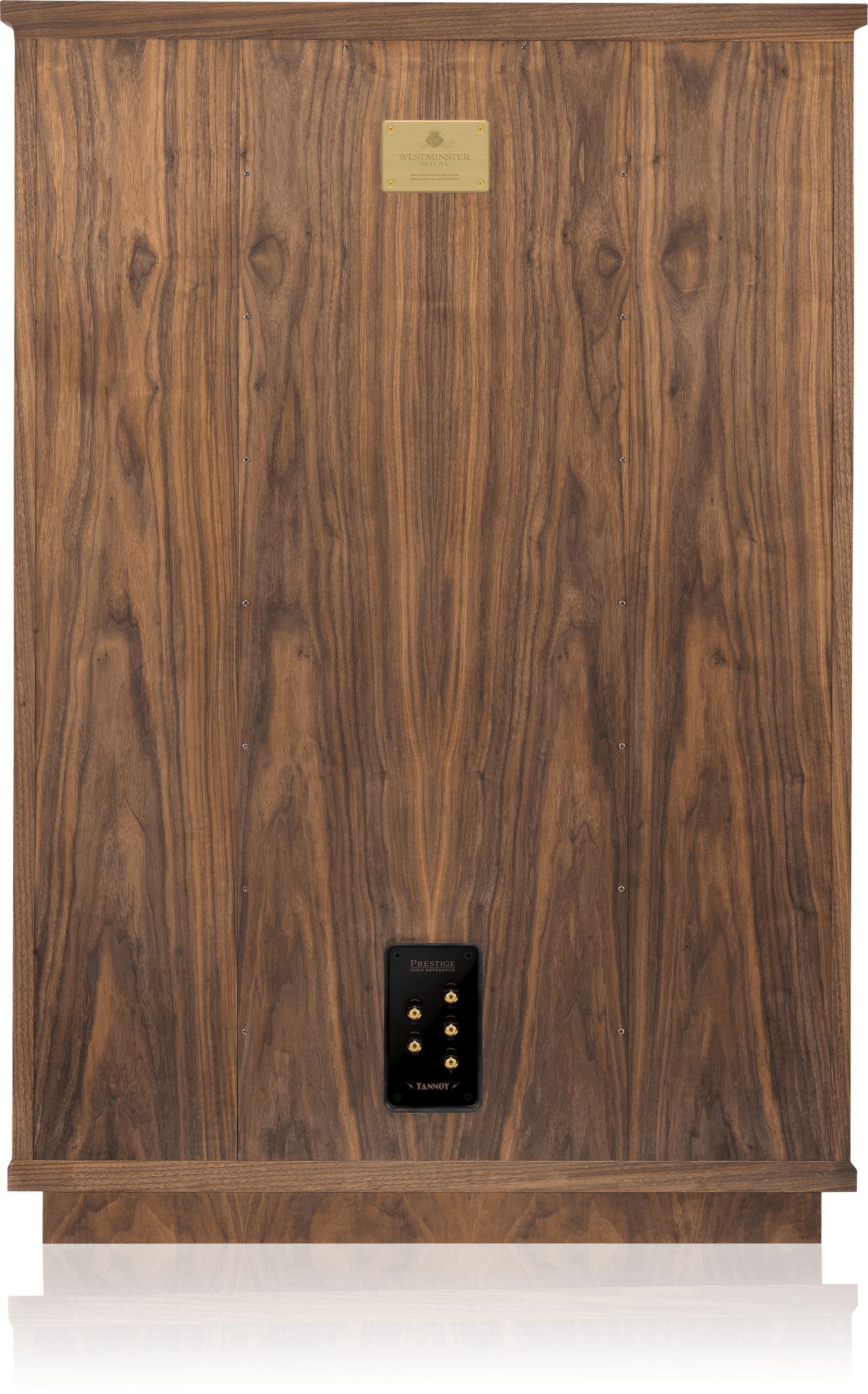

Tannoy Westminster Royal GR-OW

• 2 way horn loaded floorstanding loudspeaker for large sized rooms

• Dual Concentric driver technology provides class-leading coherence and point-source imaging

• 15″ highly efficient driver with 99 dB/Watt sensitivity and 700 Watt peak power handling deliver breath-taking dynamics and realism

• PepperPot WaveGuide powered by Tannoy Alnico magnet system enhances point source symmetrical dispersion properties

• Aluminium-magnesium alloy diaphragm and Mylar surround compression driver delivers exceptional clarity and articulation throughout high frequency range

• Handcrafted oiled walnut veneered cabinet with hand-selected burr walnut inlays provides a unique and timeless piece of furniture

• capacitors, low loss laminated core inductors and thick film resistors delivering a more natural and cohesive sound

• bi-wireable binding posts to improve signal transmission and integrity

• Fifth binding post provides grounding to reduce radio frequency interference and improve midrange clarity

• High density birch ply cabinet provides extreme rigidity to control low frequency performance

• Front midrange horn and rear loaded compound low frequency horn provide exceptionally high sensitivity and dynamics

• Extensive bracing incorporating DMT (Differential Materials Technology) to couple drivers to cabinets

• Precision machined gold anodised aluminium metal trims complement the aesthetic of the real wood cabinet

• Specially formulated Prestige wood wax provided to keep cabinet in pristine condition

• Tannoy – around 100 years of British sound heritage and innovation

Specifications

Finish: High density birch ply, walnut veneered, with solid walnut trim and edging

Drivers: Dual Concentric™ high frequency (52 mm (2”) aluminum/magnesium alloy dome with round wire voice coil). Dual Concentric™ low frequency (380 mm (15”) with paper pulp cone and twin roll impregnated fabric surround. 52 mm (2”) round wire voice coil.

Sensitivity: 99 dB (2.83 V @ 1 m)

Nominal impedance: 8 ohm

Minimum Impedance: 5 ohm

Frequency Response (-6 dB): 18 Hz – 27 kHz

Dispersion: 90 degrees conical

Crossover Frequency: B200 Hz acoustical, 1.0 kHz electrical

Crossover Type: Bi-wired, hard wired passive, low loss. Time compensated. 2nd order low pass. 2nd order high pass Adjustment: +/-3 dB over 1.0 kHz to 27 kHz shelving, + 2 dB to -6 dB per octave over 5 kHz to 27kHz slope

Enclosure type: Compound horn

Volume: 530 L

Dimensions: 1395 x 980 x 560 mm

Weight: 276 kg
