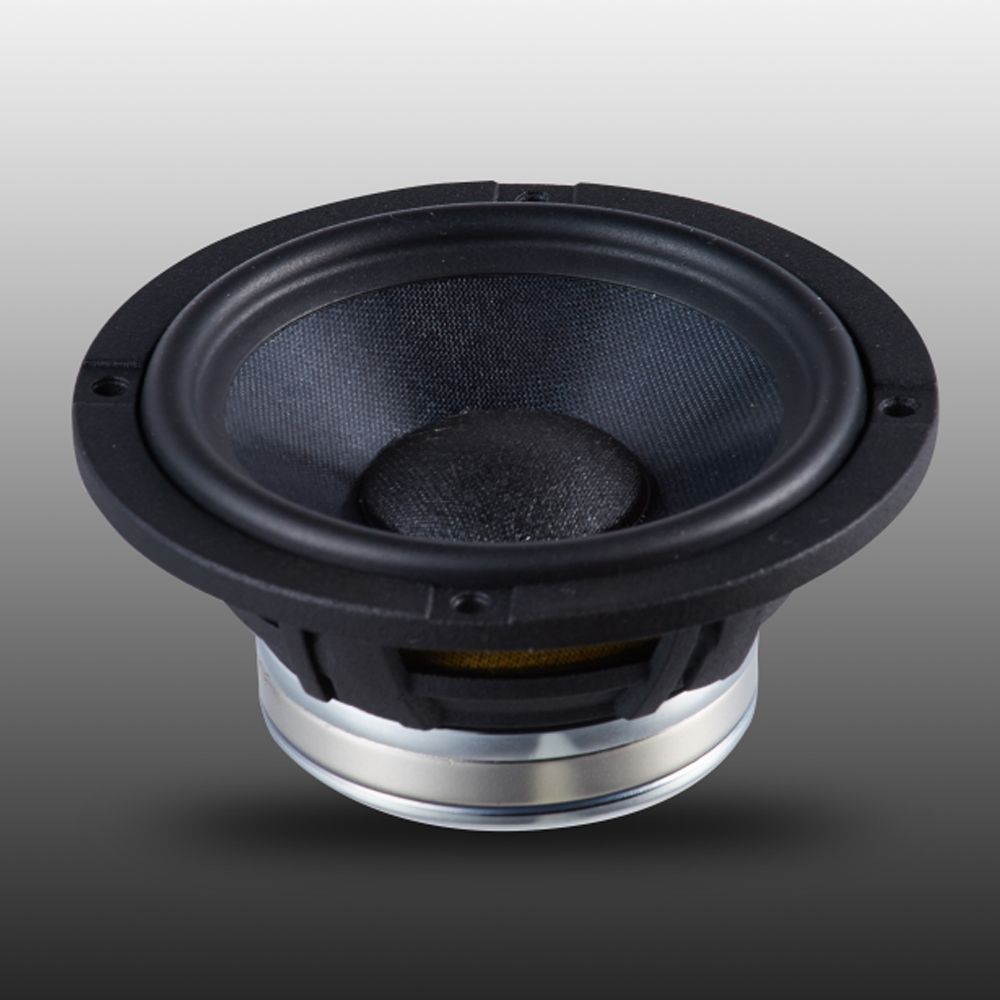

Steg SQ 30

SQ30 Midrange core is a powerful neodymium magnetic group. Efficiency and linearity make it an irreplaceable component to achieve a fine and dynamic sound, while its compact size allows versatile and high performance installations.

Glass fiber / foam sandwich membrane
Ventilated cast aluminum basket
Neodymium magnet with pole core bore
TSP: fs = 98Hz, Qms = 7.05, Qes = 0.445, Qts = 0.418, VAS = 1.12L
Impedance 4 Ohm, 30 W RMS
External diameter 85.2 mm, mounting diameter 70 mm
Installation depth 35 mm, mounting hole circle 4 x 3.3 mm to 78 mm

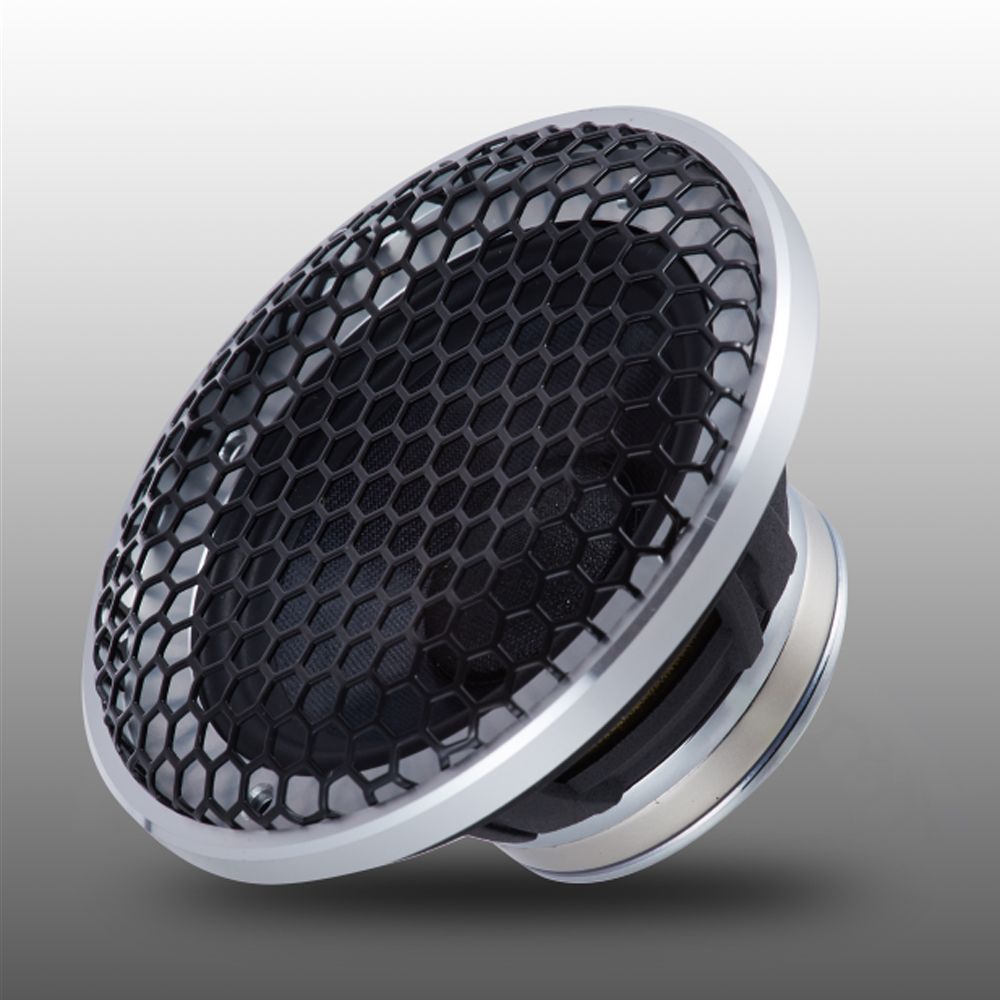

Aluminum ring and hexagonal lattice included
