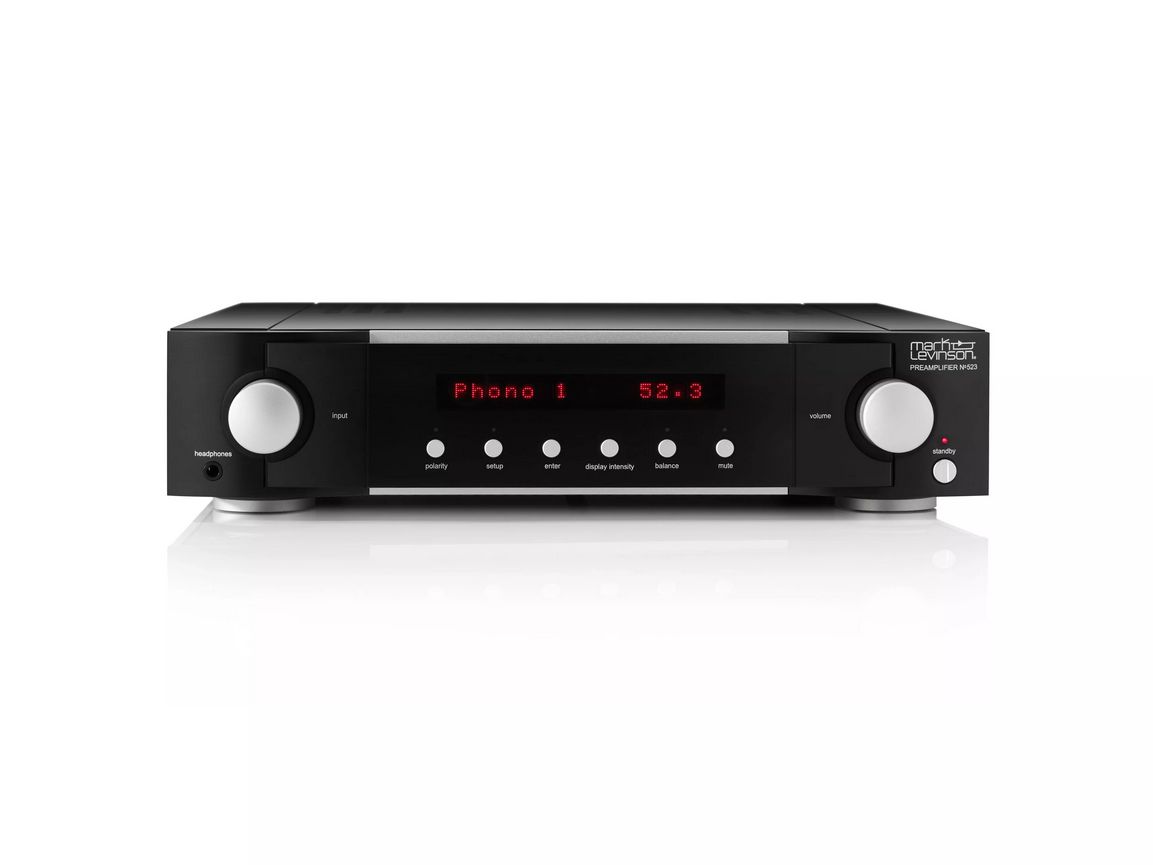

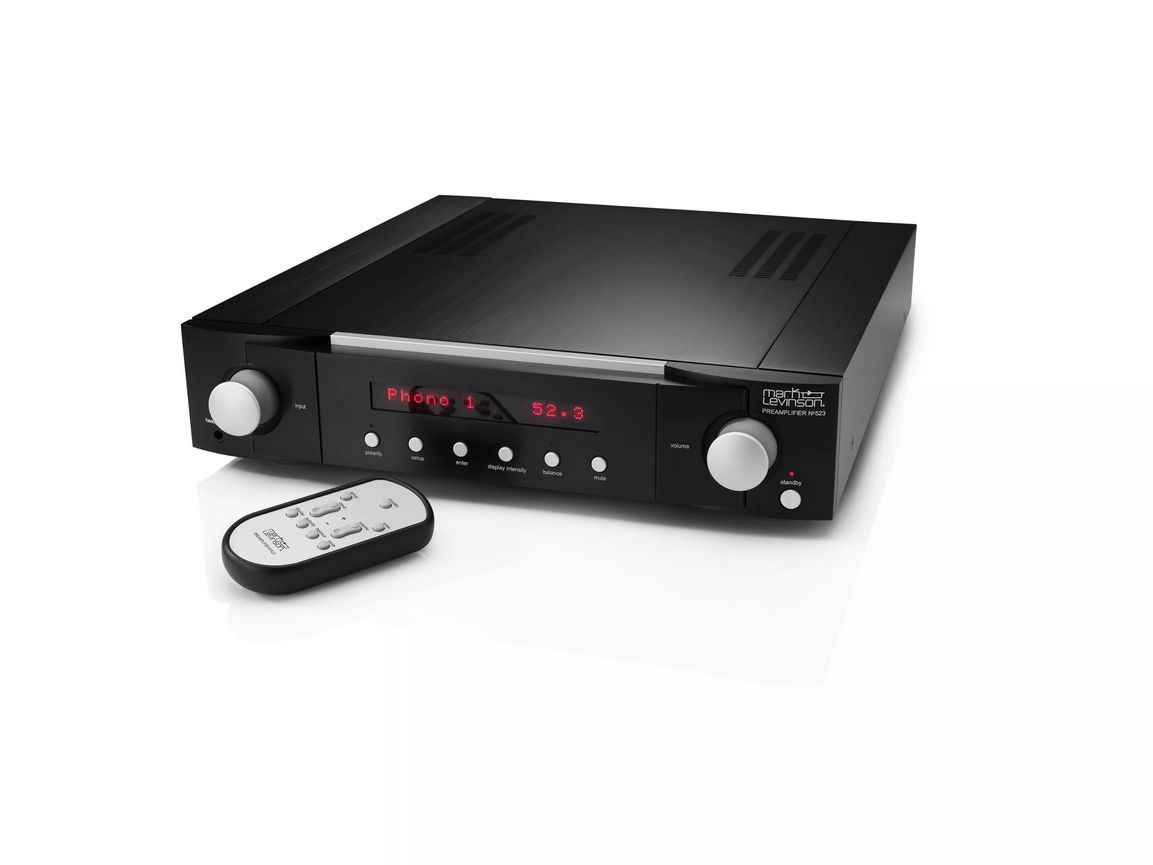

Mark Levinson No523
19 000,00 €
Mark Levinson No523 pradinis stiprintuvas
Detailed Analog Audio
The № 523 includes a high-performance Pure Phono module that’s housed in its own steel enclosure to reduce noise and deliver outstanding performance. Your favorite vinyl albums will never sound better.
Pure Path Circuit Design
Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the № 523 delivers unmatched sound quality that captures the nuances of every note.
High-Performance Headphone Output
Unleash all the performance your headphones can deliver. The № 523’s Main Drive headphone output has enough current capability to drive headphones directly, without a separate amp. Enjoy an incredibly detailed personal listening experience — and lose yourself completely in the music.
Highlights
| Pure Path discrete, direct coupled, fully balanced, dual-monaural signal path |
|---|
| Discrete, balanced R-2R ladder volume control for precision and performance |
| Class-A Pure Phono stage with custom configuration for MC and MM cartridge compatibility |
| Integrated Main Drive fully balanced class-A headphone preamplifier circuitry |
| Selectable fourth-order, 80 Hz high-pass filter allows seamless integration of subwoofers |
| Designed and handcrafted in the USA |

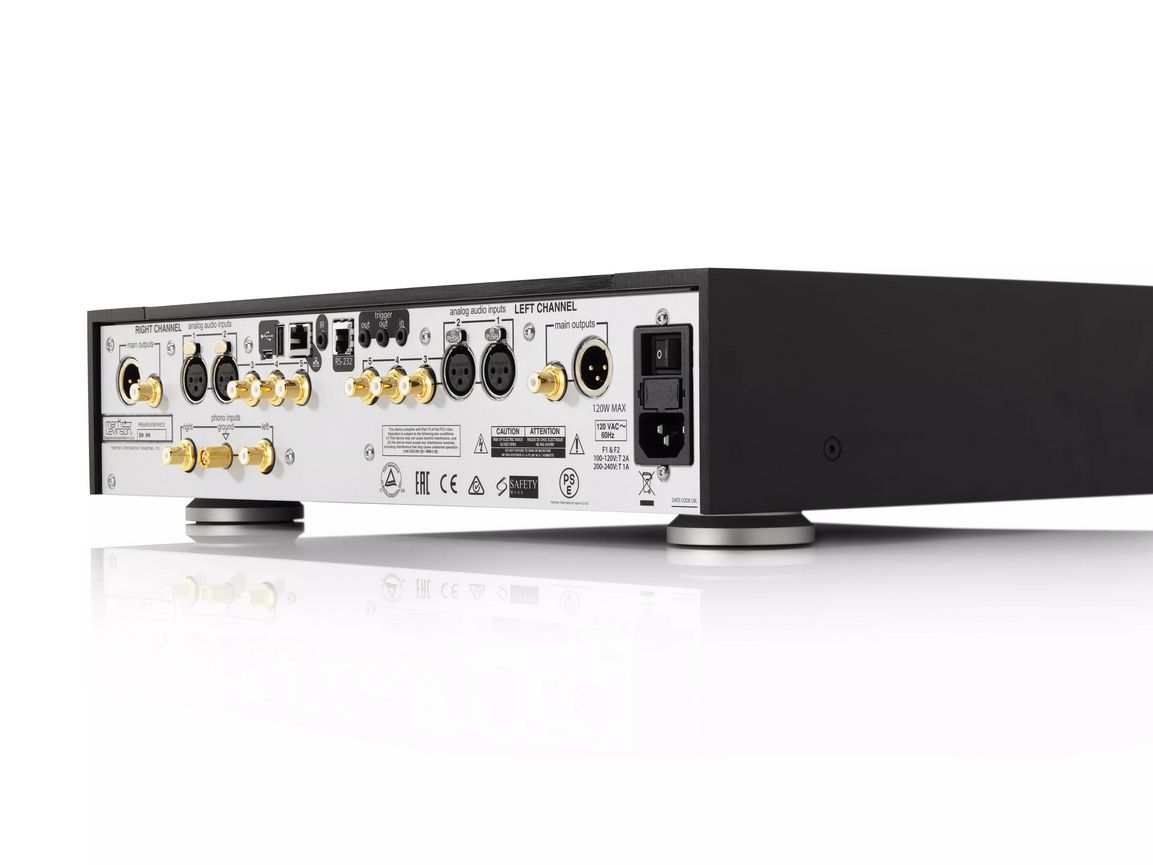

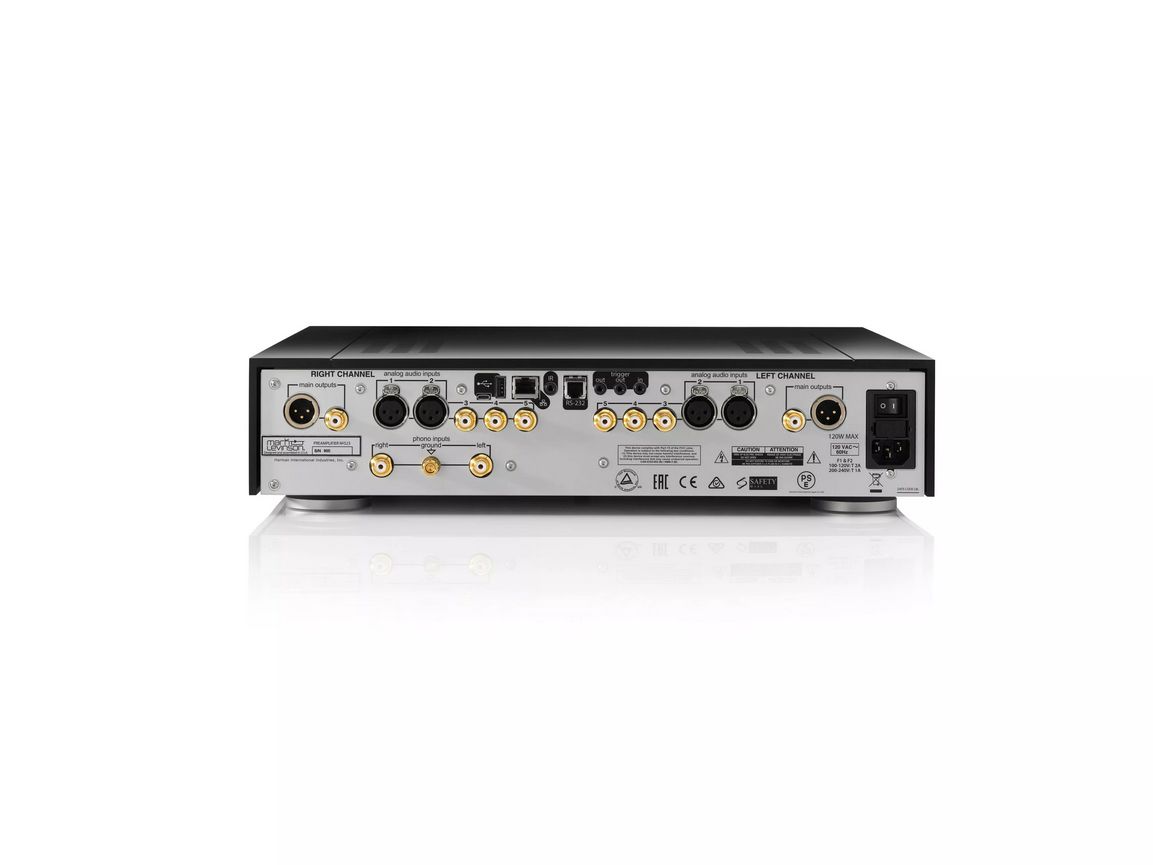

Inputs
| Six analog line-level and phono inputs |
|---|
Outputs
| Balanced, single-ended and headphone outputs |
|---|
Control
Brushed aluminum remote control
Dual-monaural Preamplifier with Pure Phono
• Analog Inputs: 2 balanced (XLR), 3 single-ended (RCA) line, 1 single-ended (RCA)
phono w/ ground
• Analog Outputs: 1 balanced (XLR); 1 pair single-ended (RCA), 1 headphone (¼”,
6.3mm TS)
• Output Impedance: <80Ω single ended, <160Ω balanced
• Dimensions (H x W x D): Height (with feet): 3.75”/ Height (without feet): 3.25” x 17.25”
x 18” (10.2cm/8.9cm x 43.8cm x 45.7cm)
• Weight: 39 lbs (17.7kg)
• Packaged dimensions (H x W x D): 26.7’’ x 16’’ x 26.7’’ (679 x 406 x 679mm)
• Packaged weight: 64 lb (28.8 kg)
