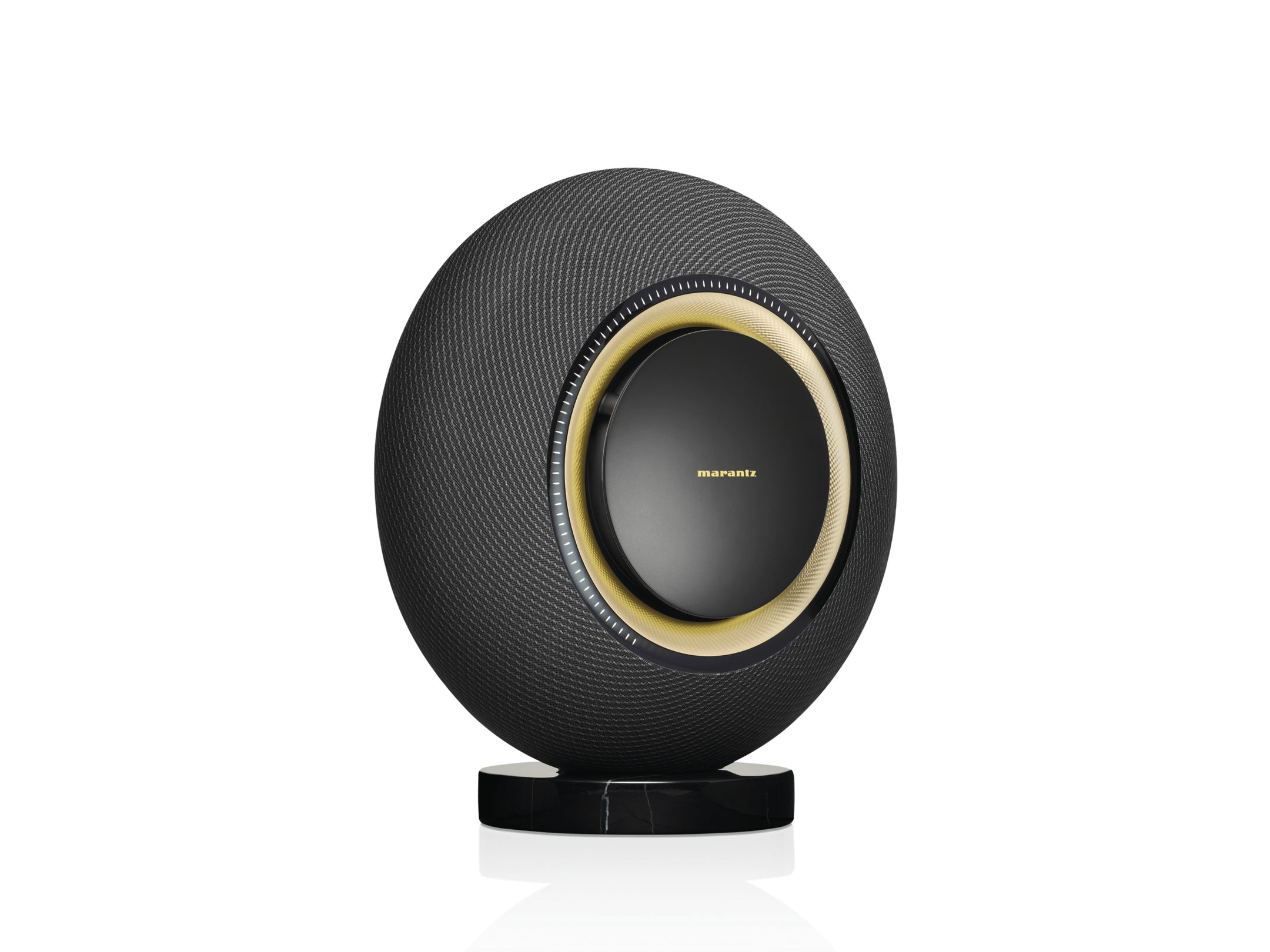

Implementing innovative proprietary amplification and paired with powerful driver technology, Marantz Grand Horizon delivers a superior listening experience via an intuitive user interface.
- Marantz Rise™ Amplifier
- Marantz Radiance™ 360° Seamless Fabric
- Marantz AuraControl™
- Marantz Mirage™ DSP
- HEOS® Built-in
- Elegant, intuitive user interface
Specifications
Amplifier
- Total Amplifier Power (FTC) 370W (FTC Power Output Rating)
- Total Amplifier Power (Peak) 860W (This rating was not tested under the FTC standard)
- Total Amplifier Power (Peak, Raw Amplifier Power) 1400 W (This rating was not tested under the FTC standard)
- Amplifier Toplogy Marantz Rise GaN FET
Loudspeaker Array
- Bass 1×8″ Marantz Gravity
- Wideband 4×3″
- High Frequency 3×1″
Performance
- Frequency Response 28Hz to 20kHz (+/-3dB), 18Hz (-10dB)
- Maximum SPL 111dB (1M)
- Peak SPL 122dB (1M)
Audio Connectivity
- Analog 1 pr. RCA L/R
- Digital 1 ea. TOSLINK Optical
- USB 1 ea. USB-C (Mass Storage)
- HDMI 1 ea. eARC / ARC
Audio Format Support
- Decoding Dolby Atmos, Dolby TrueHD, DSD Dolby Digital+, Dolby Digital, LPCM
- Max PCM Sample Rate / Bit Depth Stereo: 192kHz / 24 bit
Multi-Channel: 192kHz / 24 bit (7.1 Channel)
- Max DSD Data Rate 5.6 MHz (DSD ×2)
- Stereo File Formats (HEOS network share or USB) WMA: up to and including 192 kbps
AAC & MP3: up to and including 320 kbps
WAV, ALAC, FLAC: up to and including 24-bit/192kHz
DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
- Bluetooth BT 5.4
- AirPlay AirPlay 2
- Spotify Spotify Connect
Music Services and Sources
- Music Services Supported (HEOS, subject to change and local availability) Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, TIDAL, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, Play, SoundCloud.
- Music stored on mobile device Yes (iOS, Android, or Kindle Fire)
- NAS (Network Attached Storage Network share, UPnP
- USB Storage Device Playback Yes (FAT32, NTFS formatted drives)
Networking & Control
- Wired Connectivity Ethernet
- Wireless Connectivity Dual band, 802.11 a/b/g/n/ac/ax
- Control System Compatibility via TCP/IP Crestron, Control4, AMX
- HEOS App iOS, Android, Kindle Fire
General

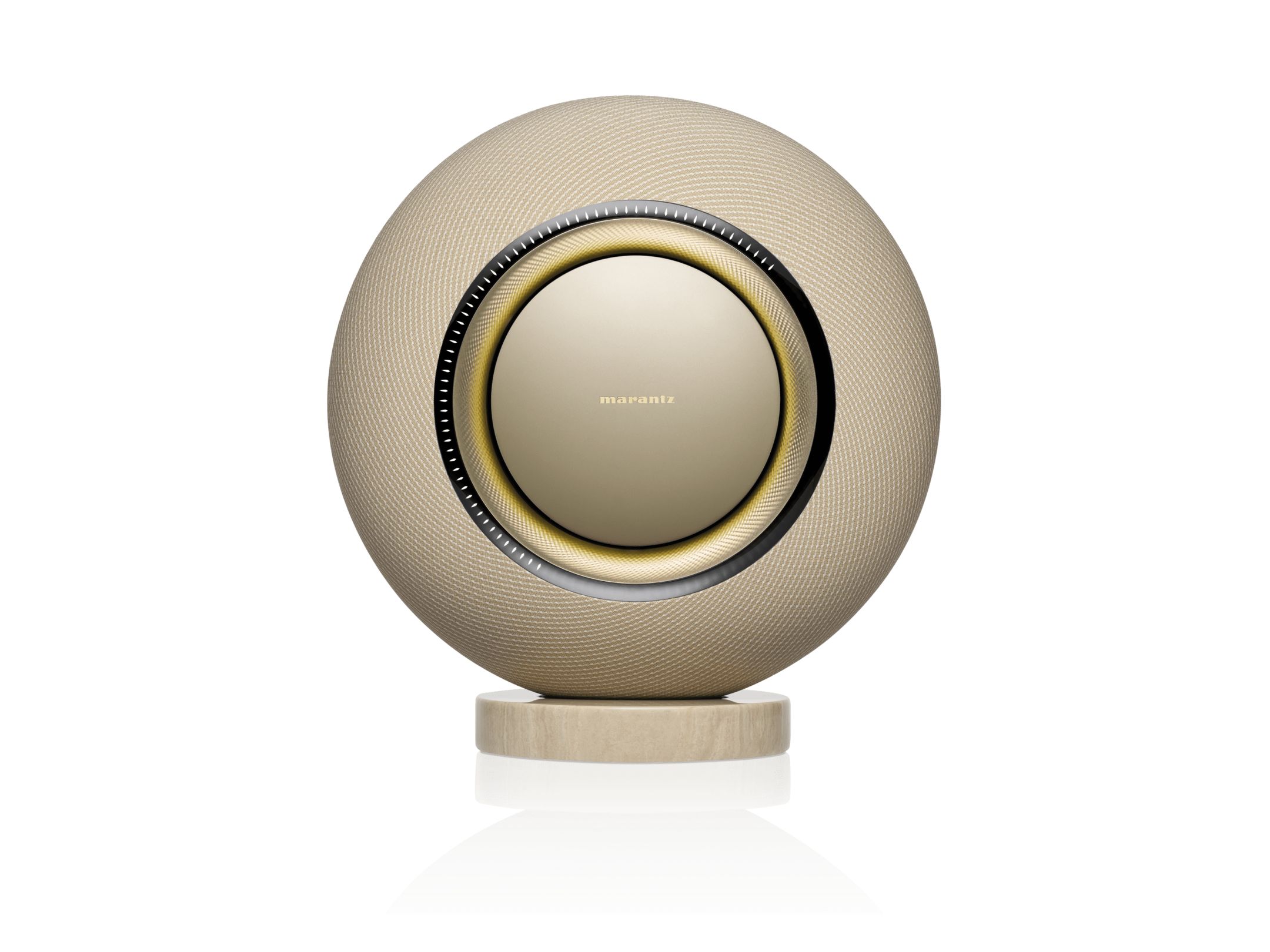

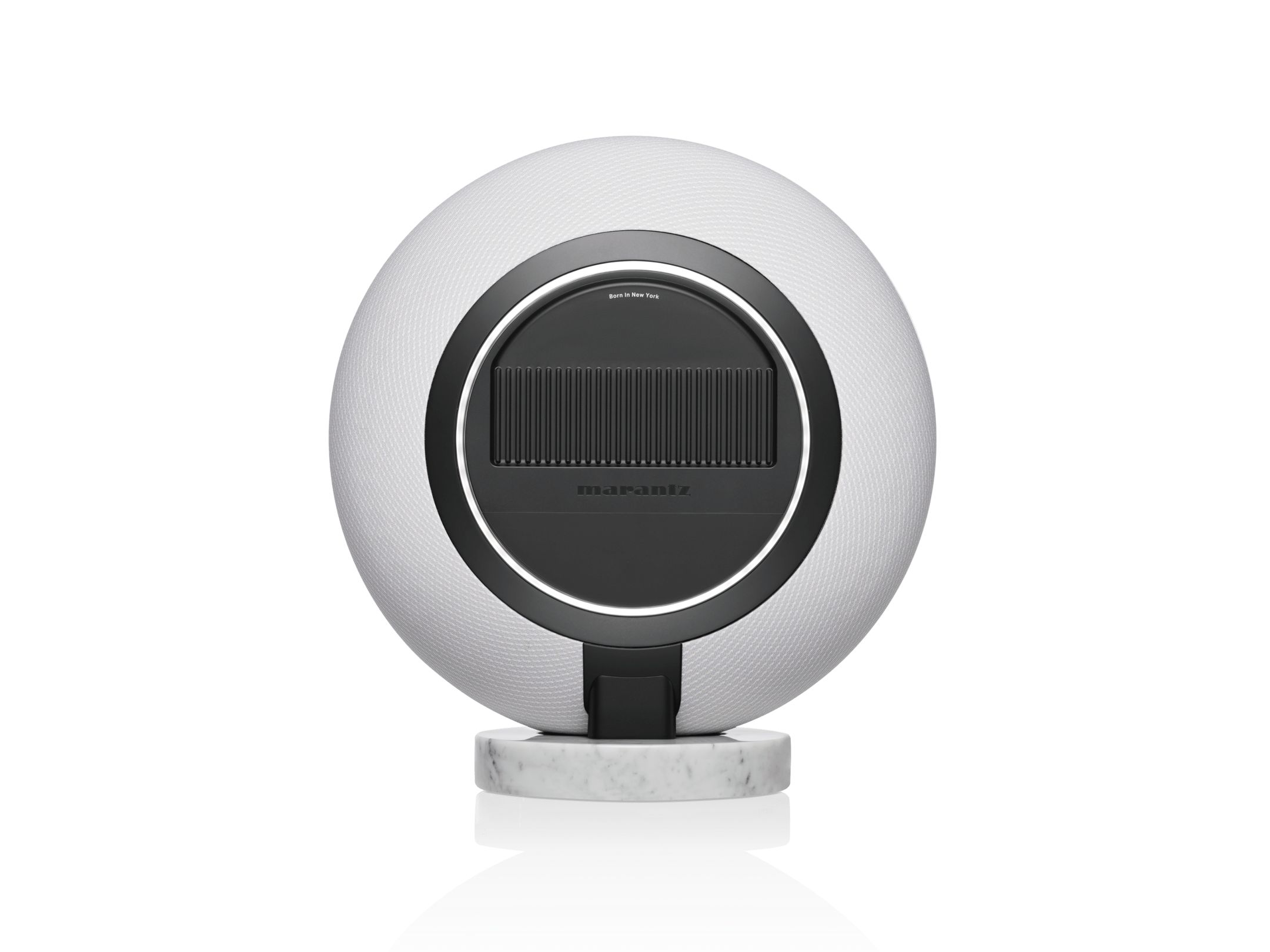

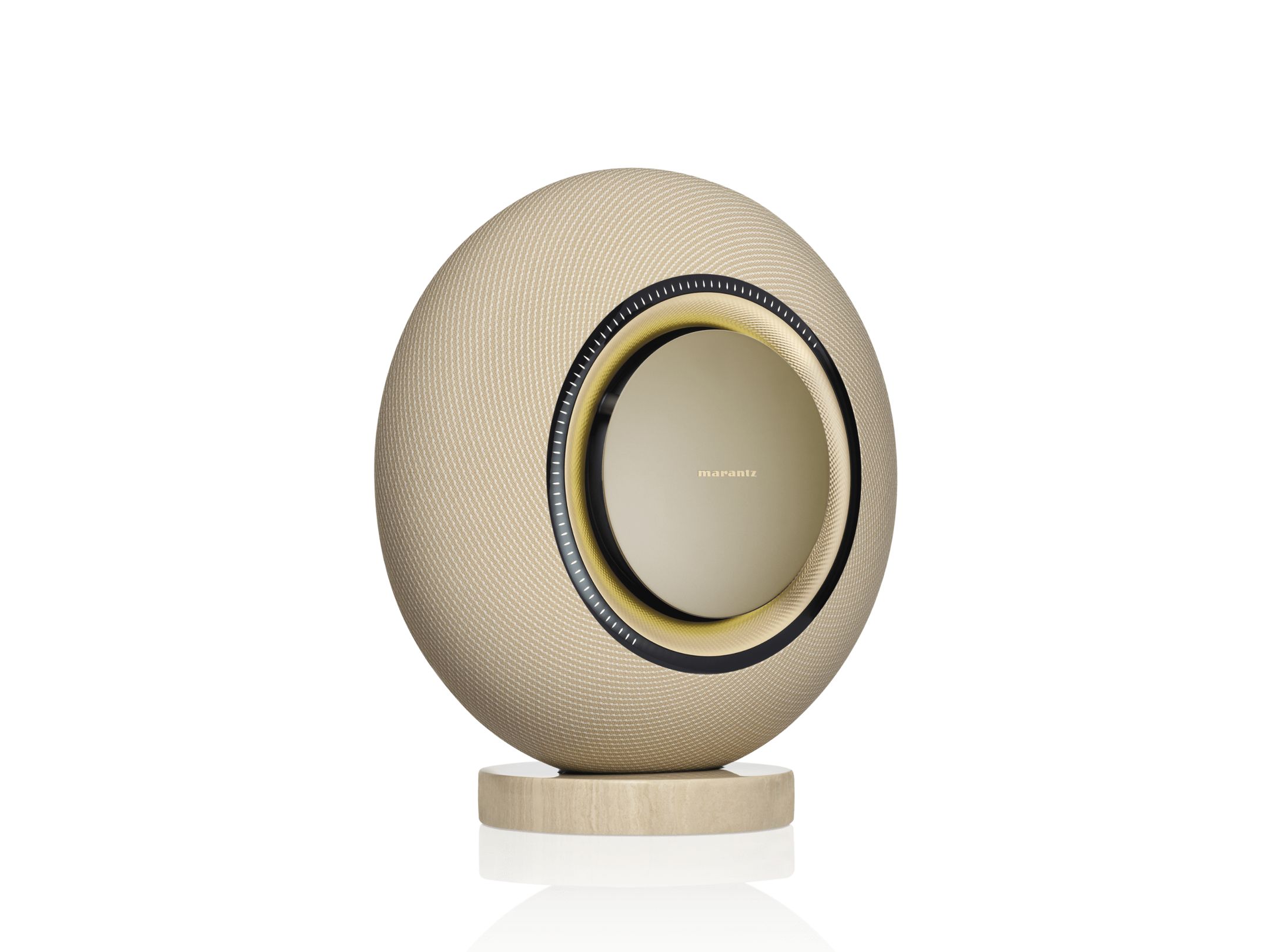

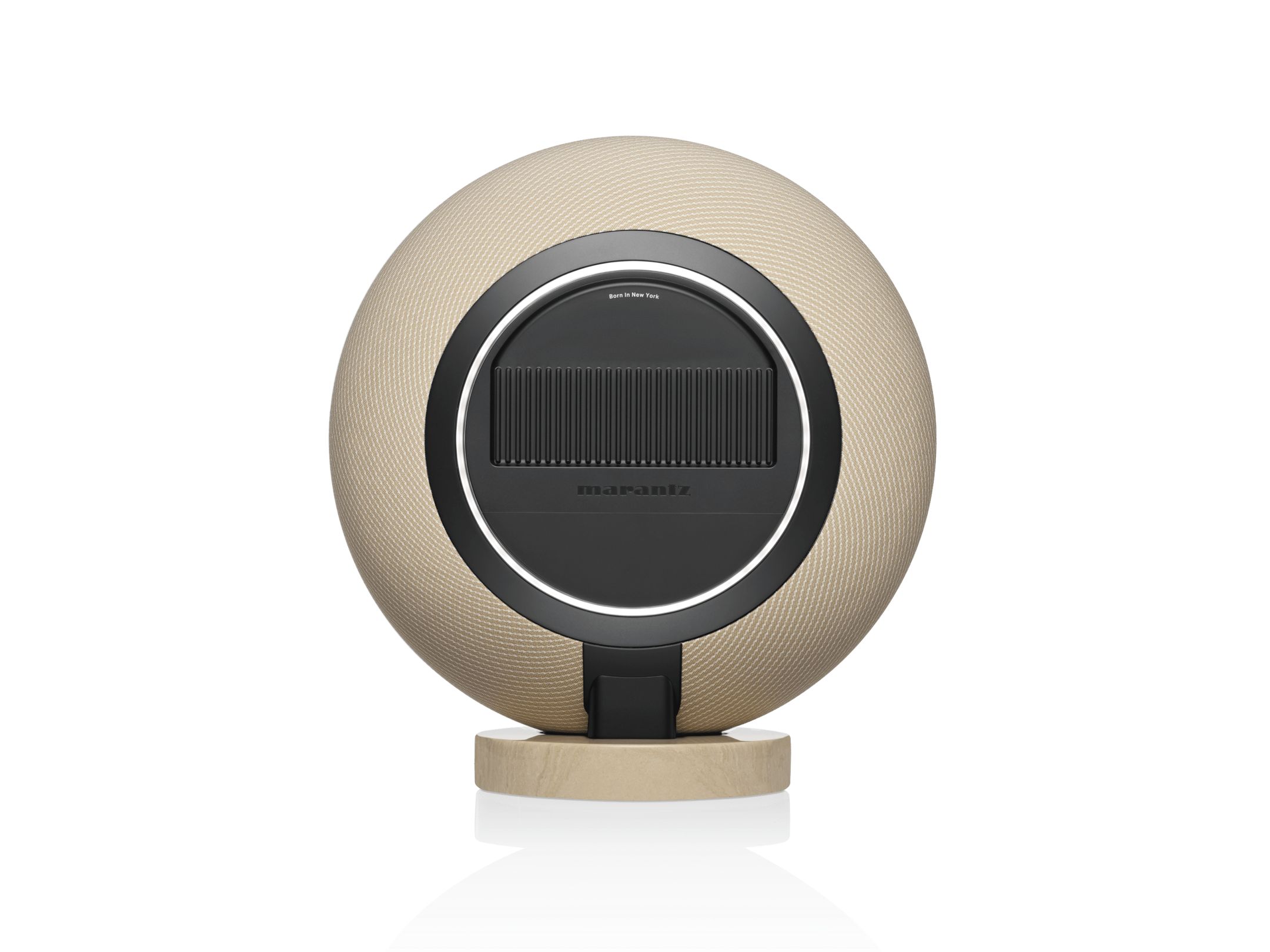

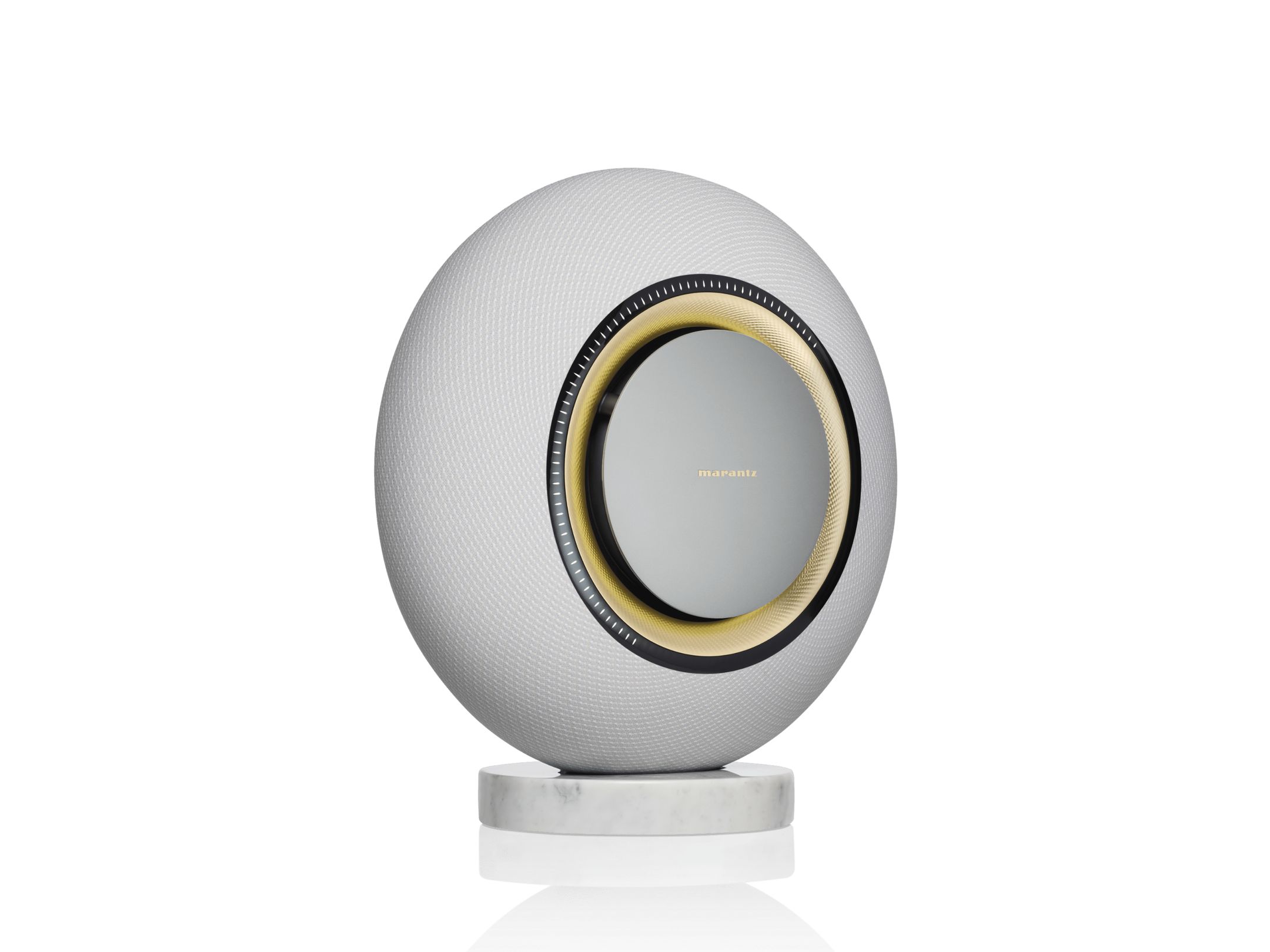

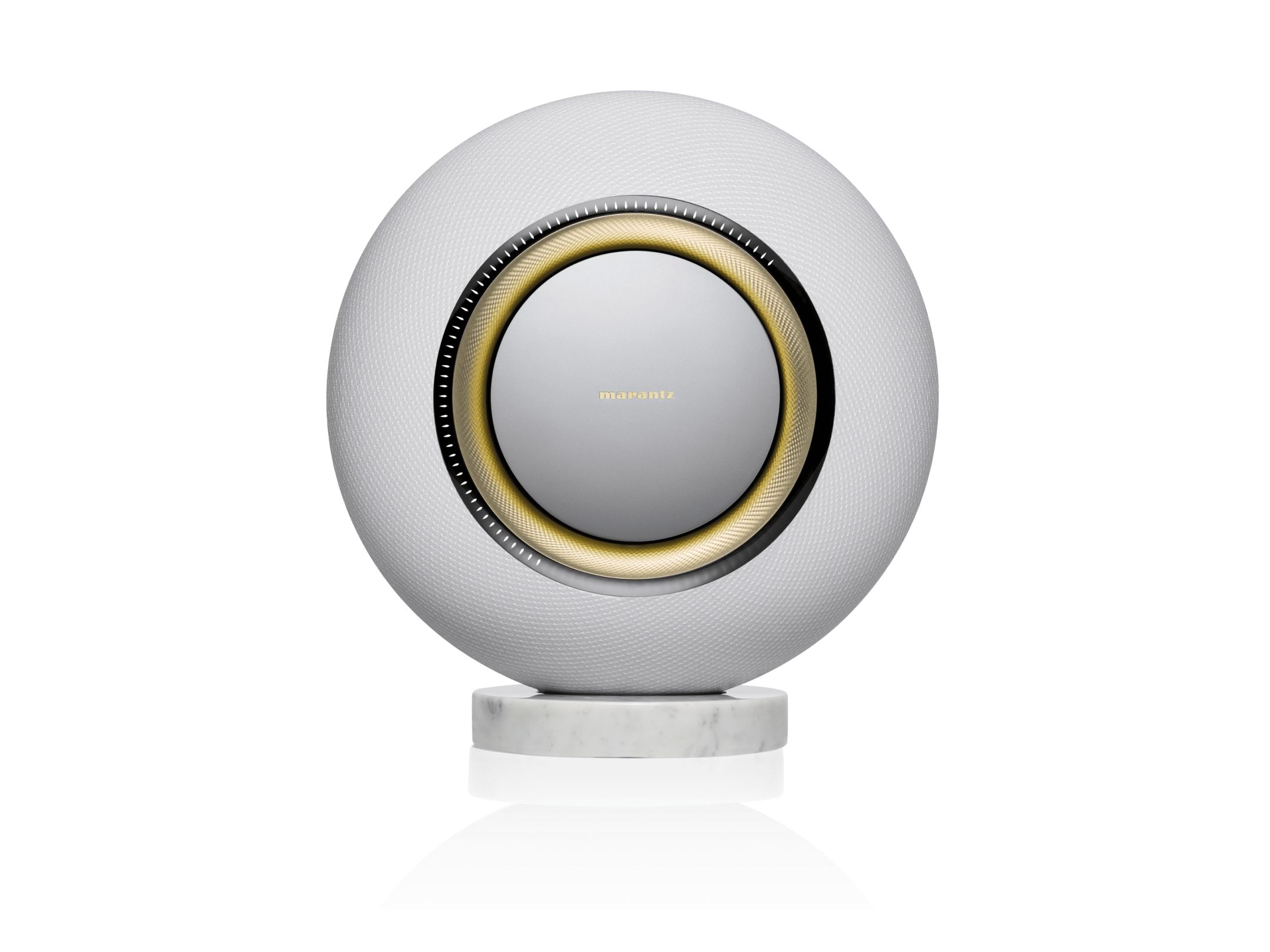

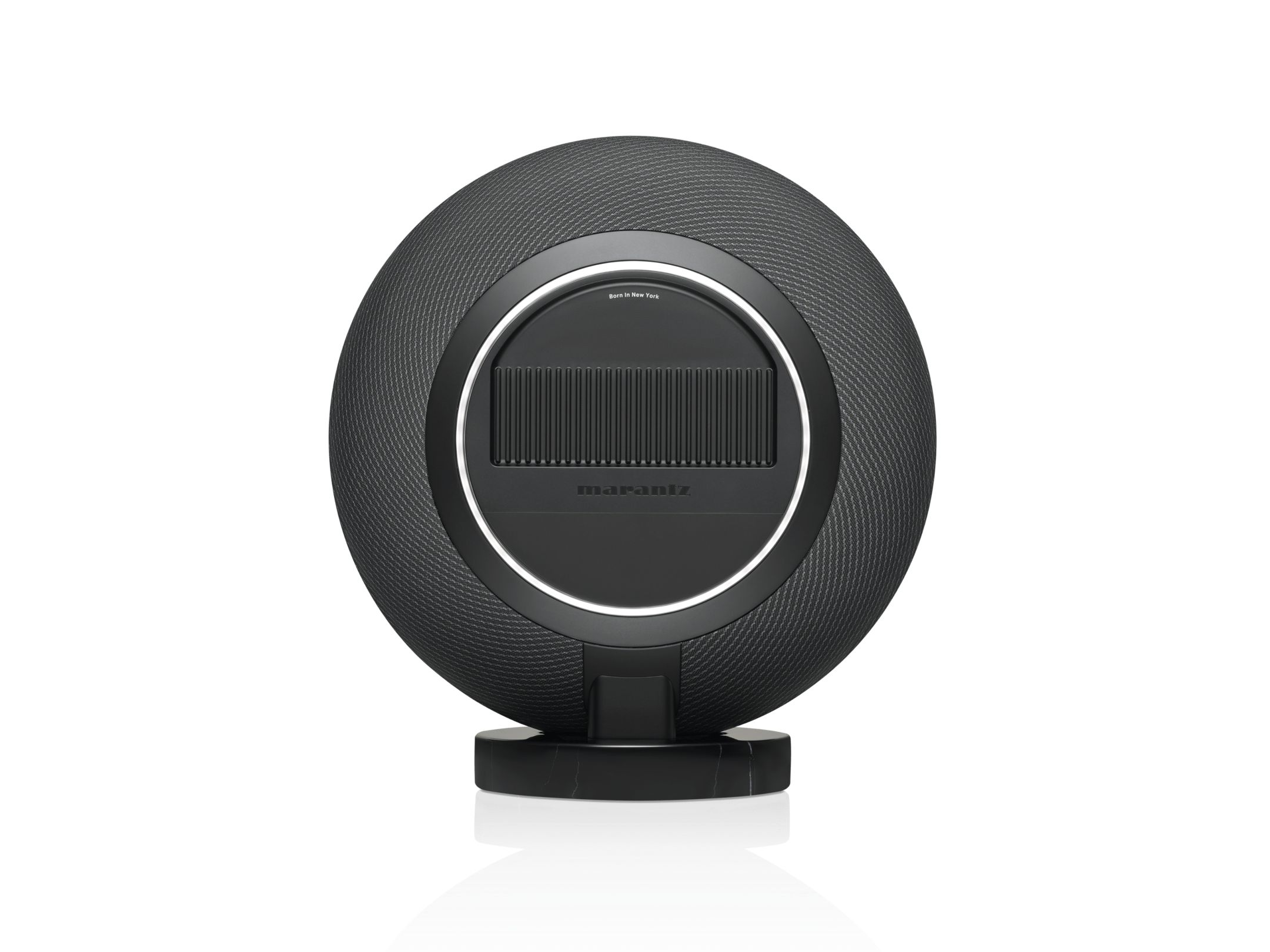

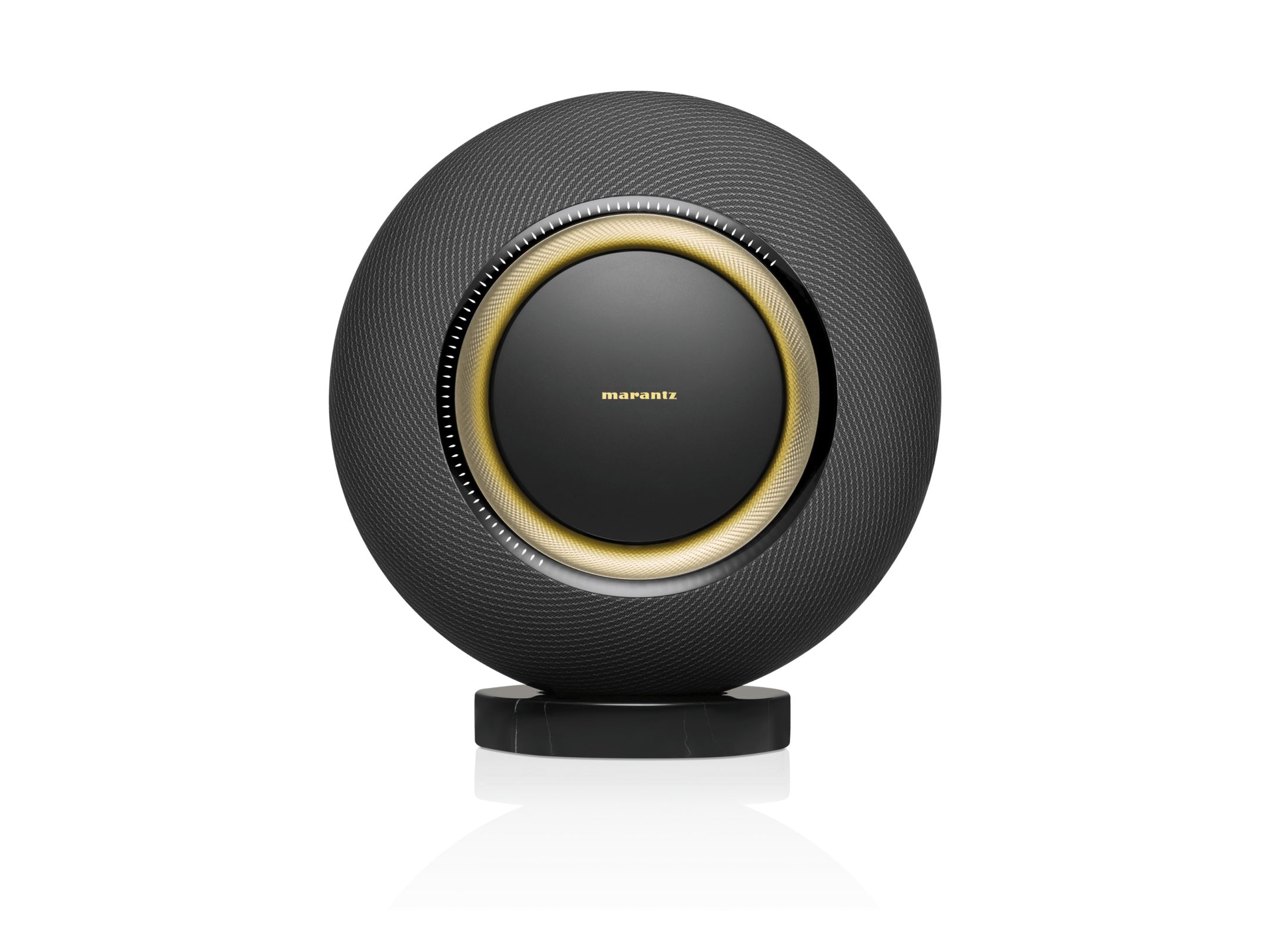

- Product Color Moon Ray, Midnight Sky, Marantz Champagne
- Included Certificate of Authenticity, QSG, Power Cable, HDMI Cable
- User Interface Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
- Dimensions (H × W × D) Inches 19.41 × 10.04 × 20.83
- Dimensions (H × W × D) mm 493 × 255 × 529.2
- Weight (lbs) 46.9
- Weight (kg) 21.3
