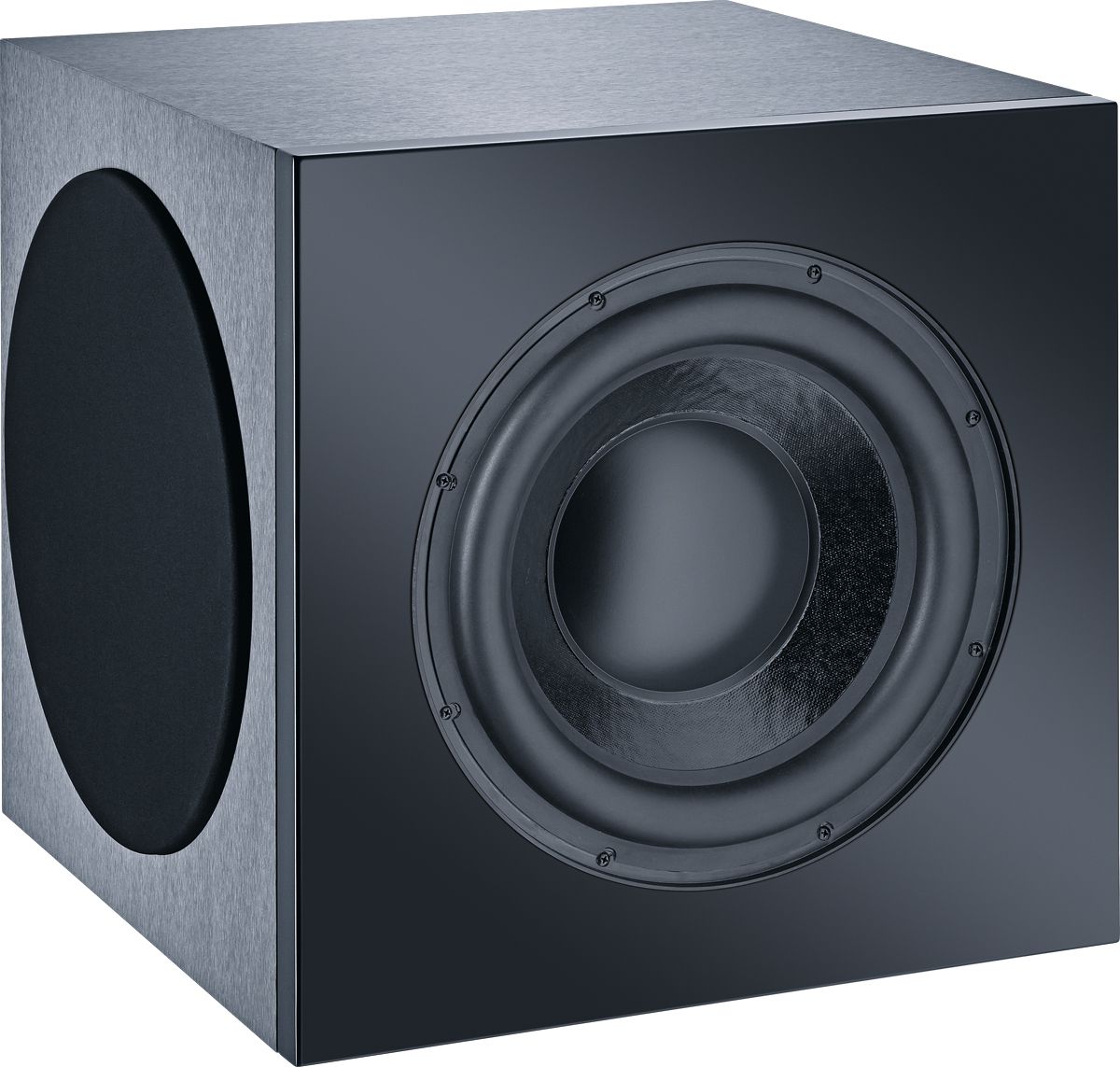

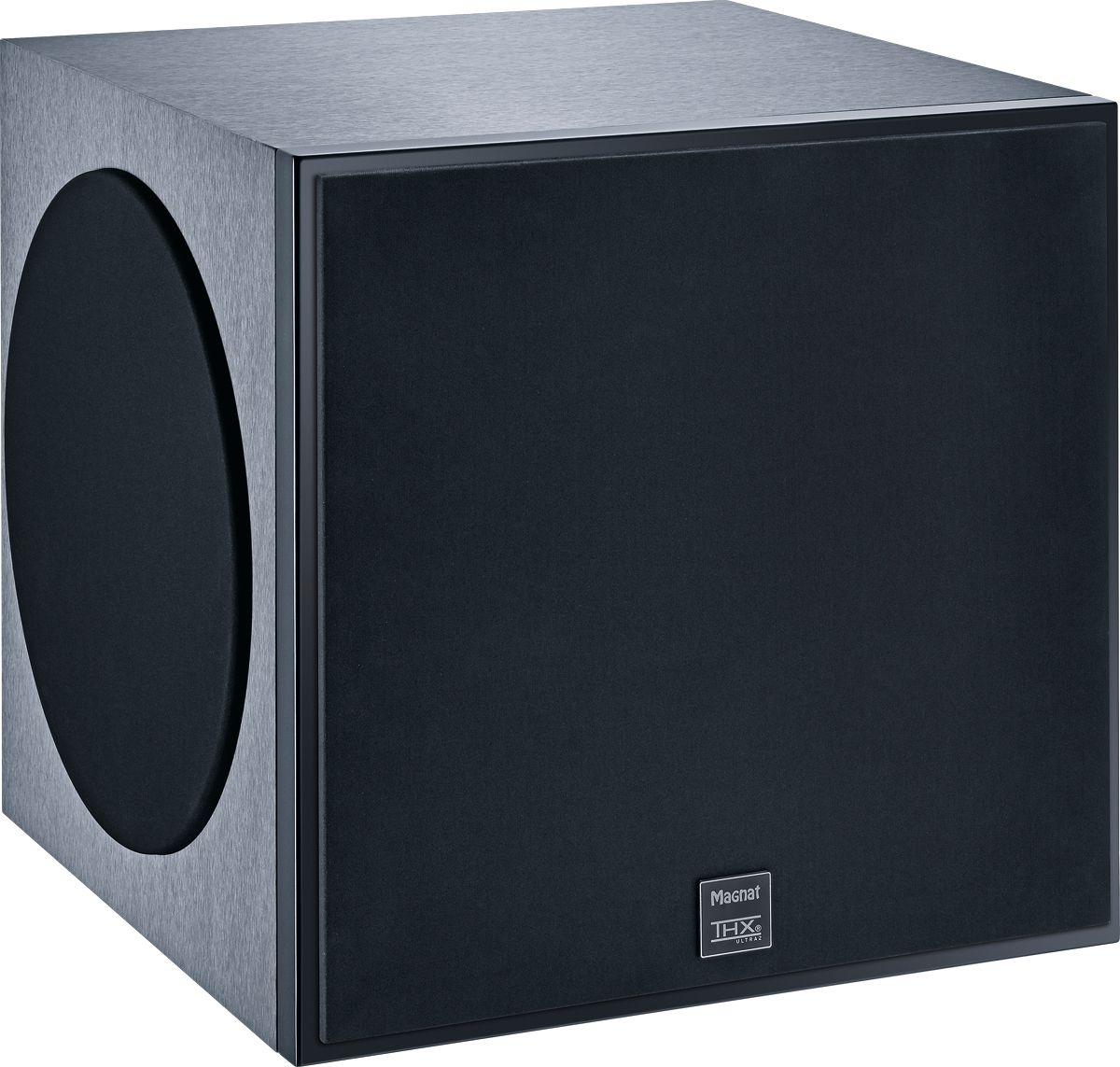

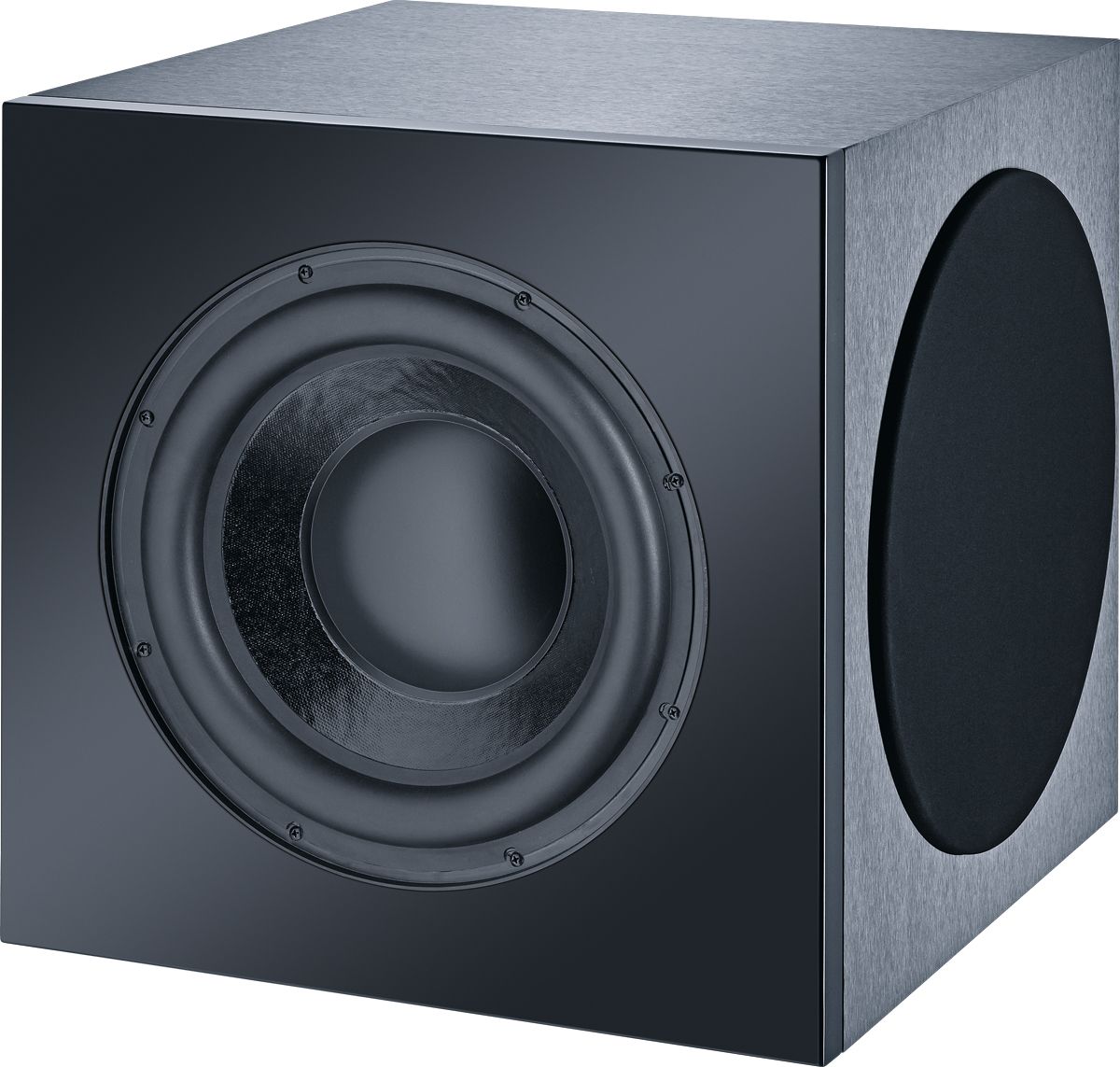

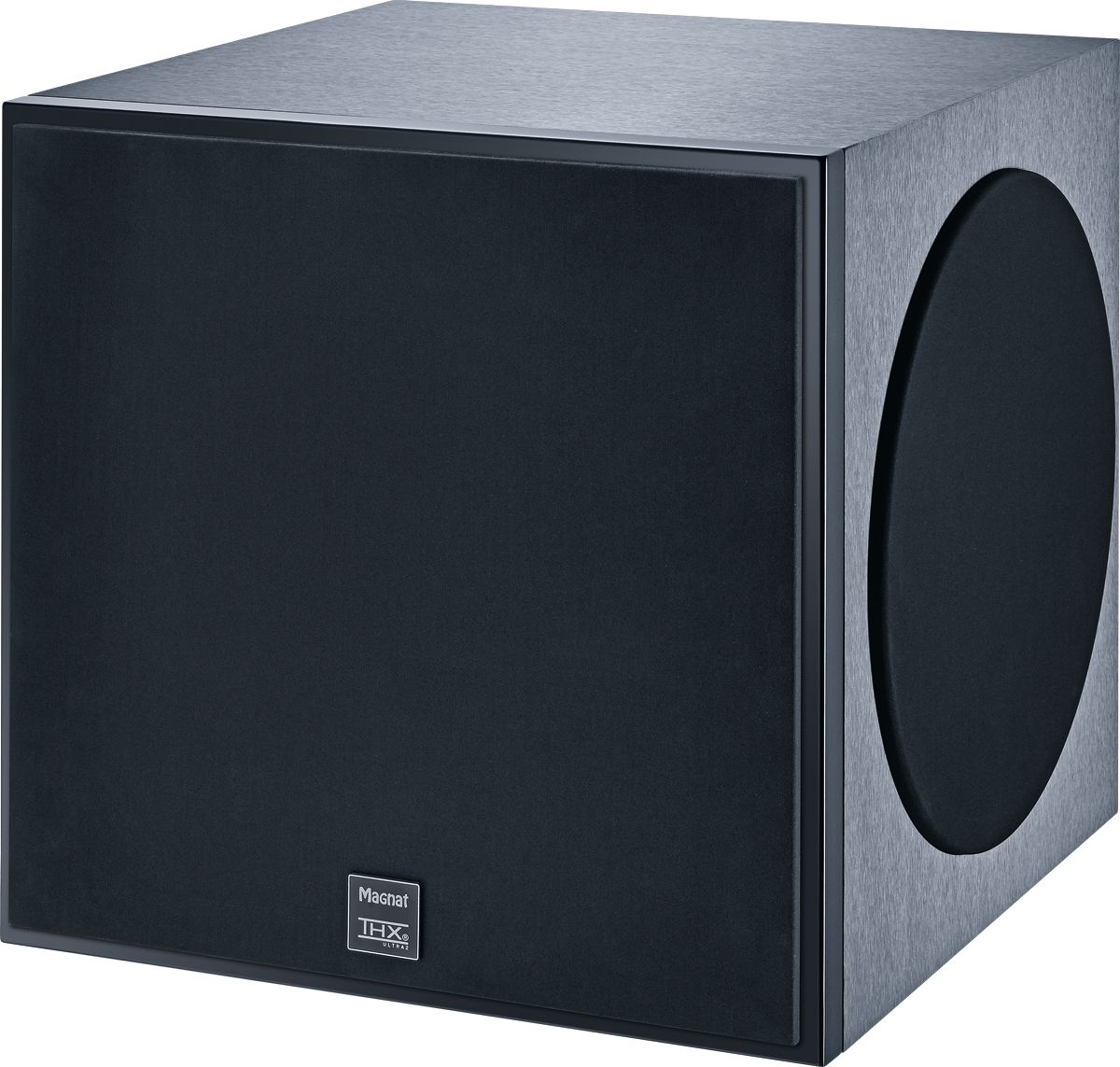

Magnat Cinema Ultra SUB

18 hertz and no end of acoustic pressure Certified by THX®

• Integrated Class D amplifier with 550 watts RMS and 1,100 watts of maximum power output
• Extremely sturdy MDF cabinet with solid 45 mm baffle
• Solid, dynamic bass for home cinemas up to 18 Hz
• Smallest THX Ultra 2-certified single subwoofer in the world
• 32 cm high-performance woofer supported by two 32 cm passive membranes

Technical specifications

Principle

• THX Ultra2-certified active high-performance subwoofer
• Dual passive radiator

Drivers

• 320 mm Woofer
• 2 x 320 mm passive radiator

Output power (RMS/Max.)

• 550 / 1100 watts

Frequency Response

• 18 – 200Hz

Crossover Frequencies

• THX: without filtering Line-Modus: 40-180 Hz

Phase

• 0° to 180° continuously variable

Dimensions (WxHxD)

• 468 x 461 x 460 mm
• 468 x 461 x 478 mm (incl. amplifier)

Weight

• 32,5 kg
