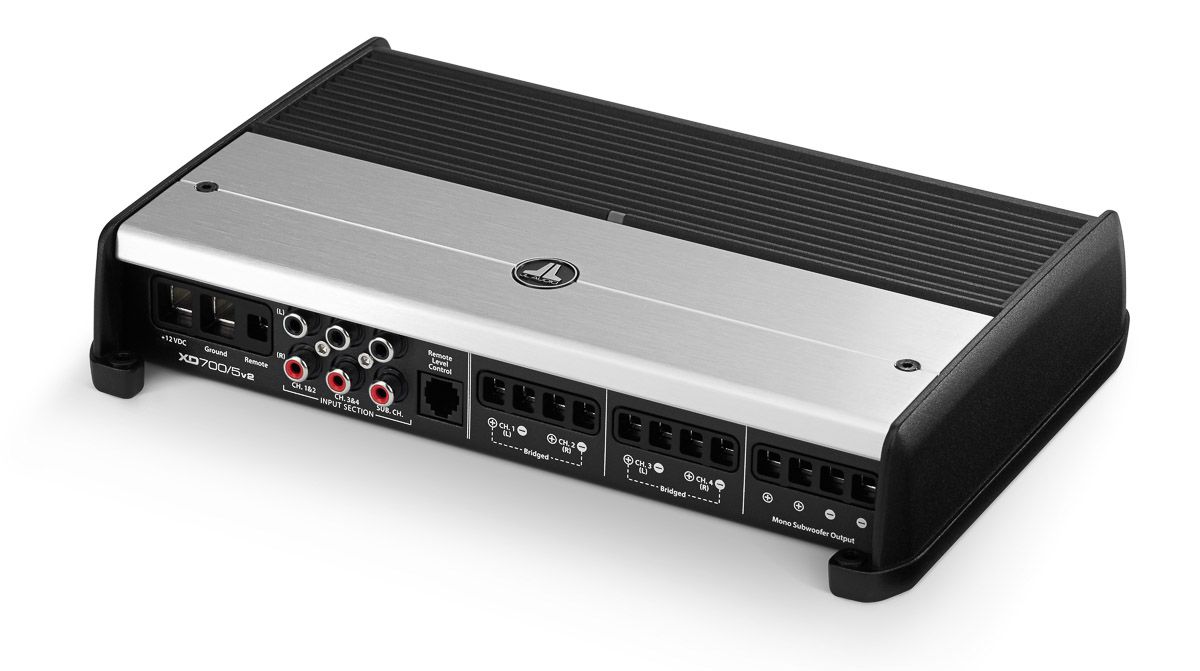

JL Audio XD700/5V2
800,00 €
JL Audio XD700/5V2 stiprintuvas
Aprašymas
Rated Continuous (RMS) Power @ 14.4 V
| Main Channels @ 4 Ω | 75 W RMS x 4 |
| Main Channels @ 2 Ω | 100 W RMS x 4 |
| Main Channels – Bridged @ 4Ω | 200 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| Main Channels @ 4 Ω | 60 W RMS x 4 |
| Main Channels @ 2 Ω | 90 W RMS x 4 |
| Main Channels – Bridged @ 4Ω | 180 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
General Specifications
| Frequency Response (Main Channels) | 12 Hz – 22 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 10 Hz – 1 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz – 5 kHz |
| Filter Mode(s): Channels 3 & 4 (rear) | High-Pass or Bandpass |
| Filter Slope(s): Channels 3 & 4 (rear) | 12 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz – 500 Hz |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12/24 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter: Subwoofer Channel | none |
| Remote Level Control | Optional (HD-RLC) |
| Remote Level Modes | Sub Ch. or All Channels |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 10.23 in / 260 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 6.15 lb / 2.79 kg |
Papildoma informacija
| Kanalų skaičius | 5 kanalų |
|---|
