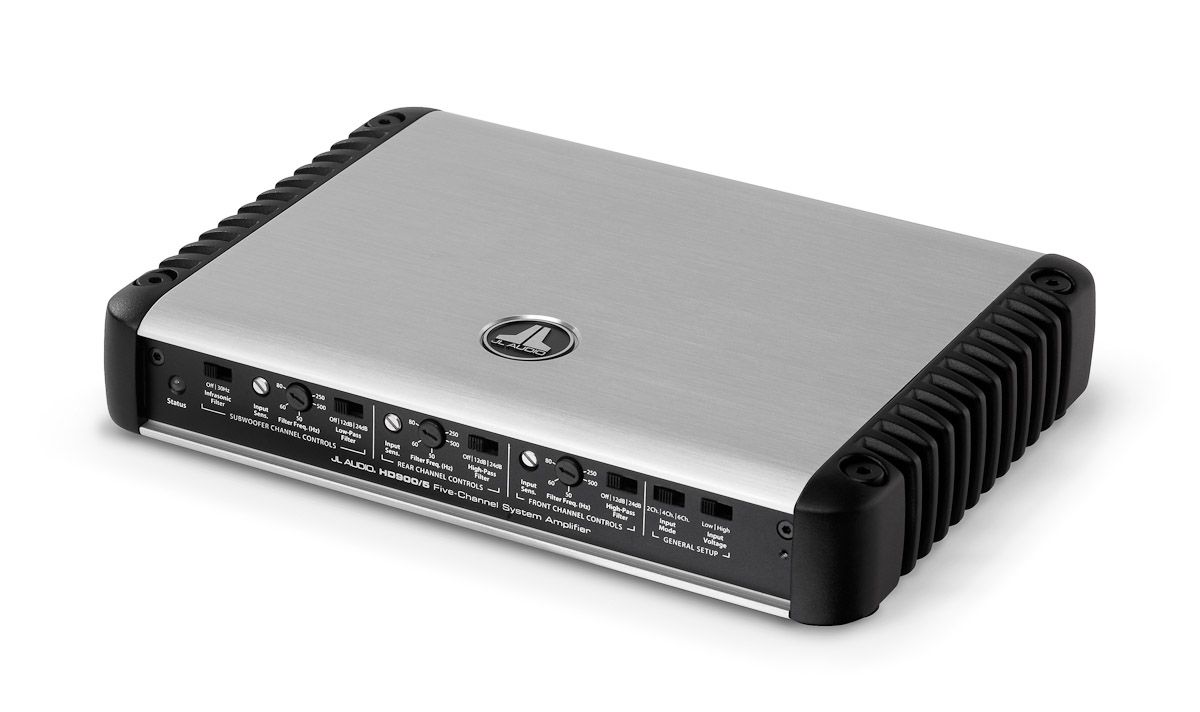

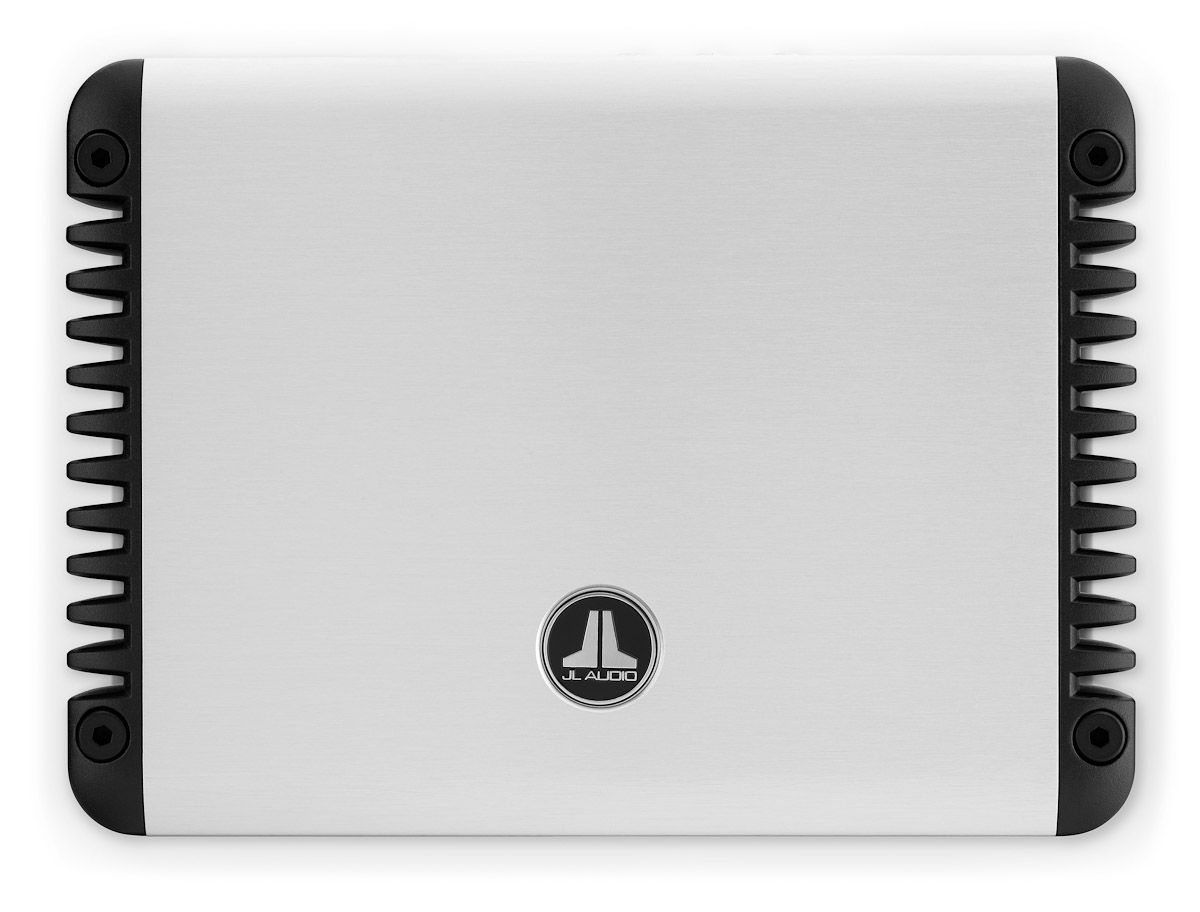

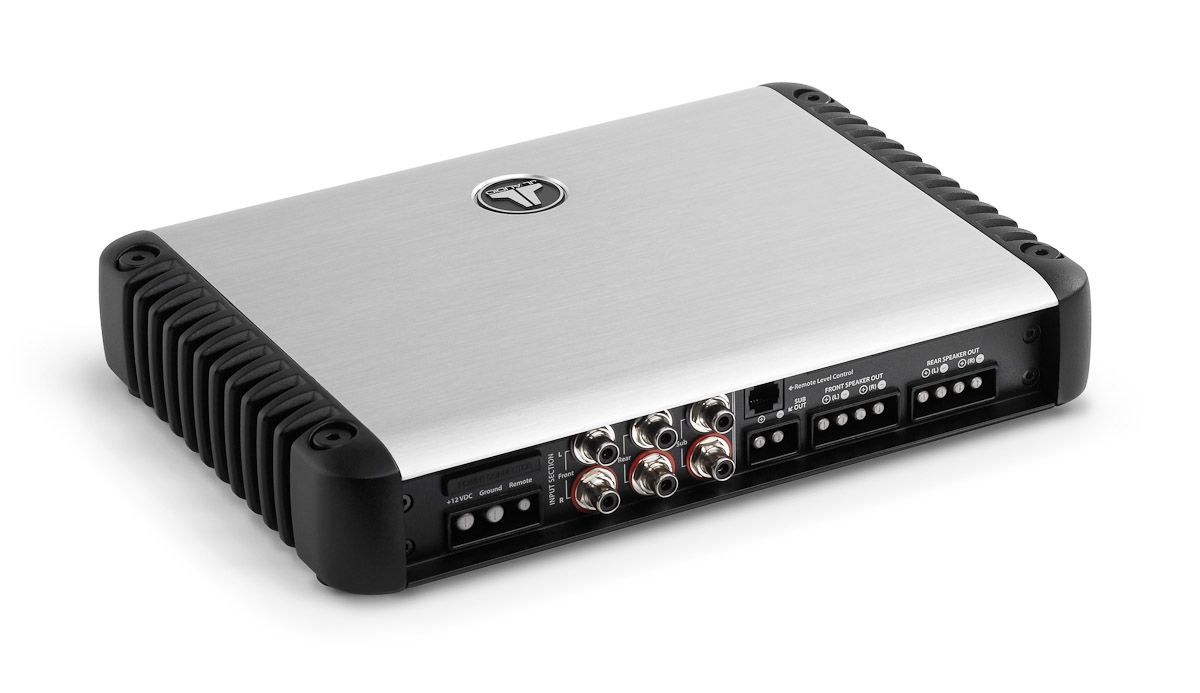

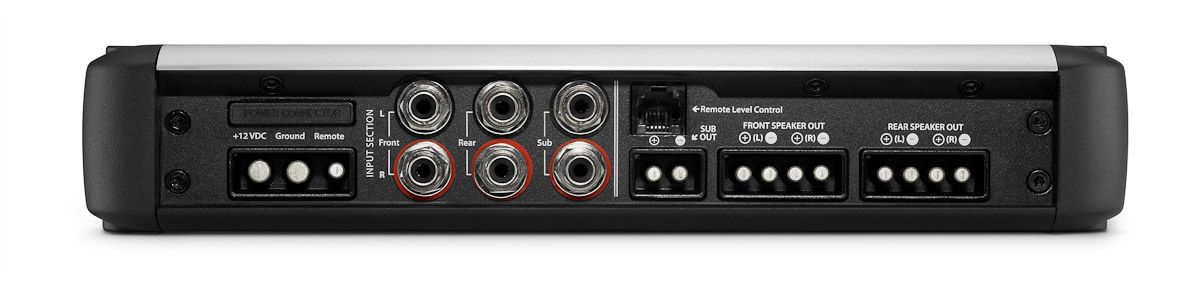

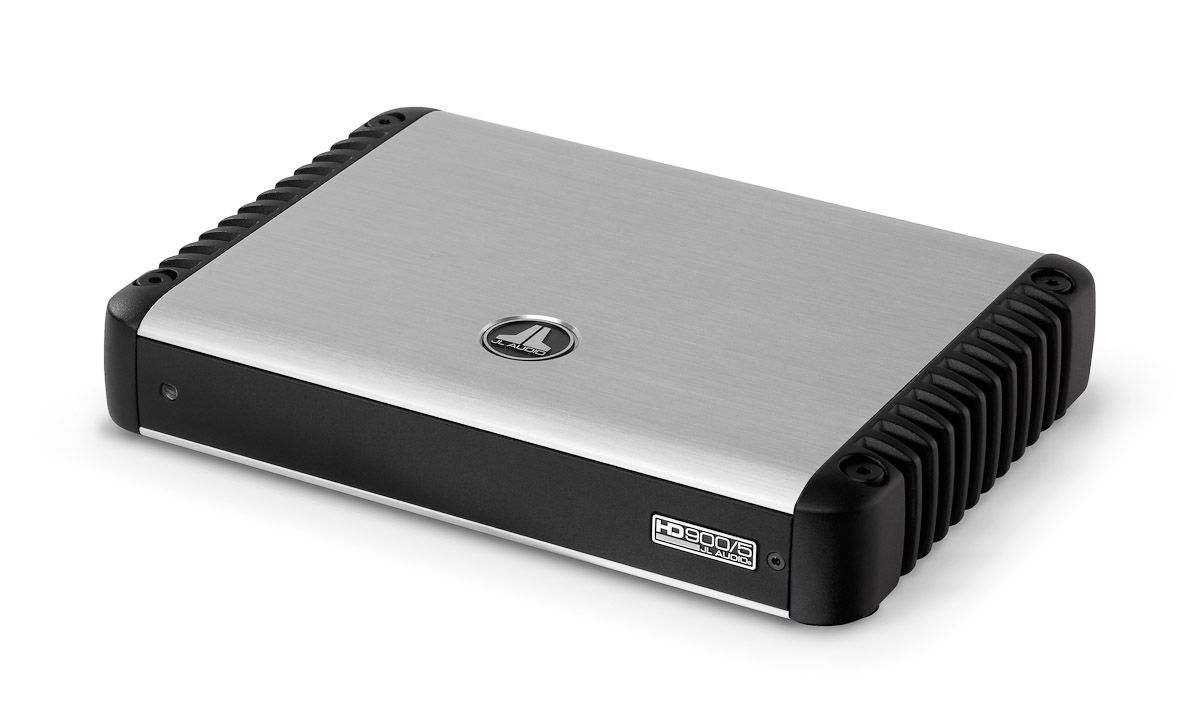

JL Audio HD900/5
1 500,00 €
JL Audio HD900/5 stiprintuvas
Aprašymas
Rated Continuous (RMS) Power @ 14.4 V
| Main Channels @ 4 Ω | 100 W RMS x 4 |
| Main Channels @ 3 Ω | 75 W RMS x 4 |
| Main Channels @ 2 Ω | 75 W RMS x 4 |
| Main Channels @ 1.5 Ω | 75 W RMS x 4 |
| Main Channels – Bridged @ 8 Ω | 200 W RMS x 2 |
| Main Channels – Bridged @ 4 Ω | 150 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | 500 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| Main Channels @ 4 Ω | 100 W RMS x 4 |
| Main Channels @ 3 Ω | 75 W RMS x 4 |
| Main Channels @ 2 Ω | 75 W RMS x 4 |
| Main Channels @ 1.5 Ω | 75 W RMS x 4 |
| Main Channels – Bridged @ 8 Ω | 200 W RMS x 2 |
| Main Channels – Bridged @ 4 Ω | 150 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | 500 W RMS x 1 |
General Specifications
| Frequency Response (Main Channels) | 12 Hz – 28 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 12 Hz – 10 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >108.5 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Main Channels) | >88.2 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >400 / 50 Hz |
| Damping Factor @ 2 Ω | >200 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <0.03% @ 4 Ω |
| THD+N @ Rated Power (Subwoofer Channel) | <0.05% @ 4 Ω |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | Accepts up to 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |

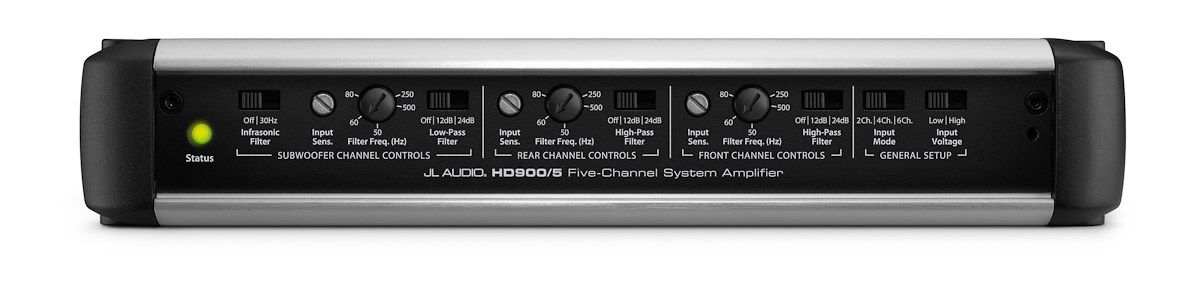

Signal Processing
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12/24 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz – 500 Hz |
| Filter Mode(s): Channels 3 & 4 (rear) | High-Pass only |
| Filter Slope(s): Channels 3 & 4 (rear) | 12/24 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz – 500 Hz |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12/24 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter: Subwoofer Channel | 30 Hz, Defeatable |
| Remote Level Control | Optional (HD-RLC) |
| Remote Level Modes | Sub Ch. only |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Physical Specifications
| Height (H) | 1.93 in / 49 mm |
| Width (W) | 10.74 in / 273 mm |
| Depth (D) | 8.29 in / 211 mm |
| Net Weight | 6.85 lb / 3.11 kg |
Papildoma informacija
| Kanalų skaičius | 5 kanalų |
|---|
