Gold Note PH-1000 LITE
6 500,00 €
Gold Note PH-1000 LITE fono korektorius

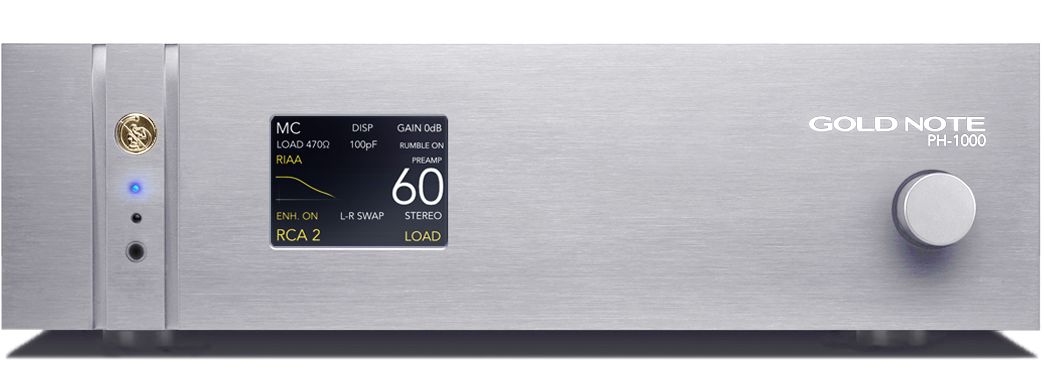

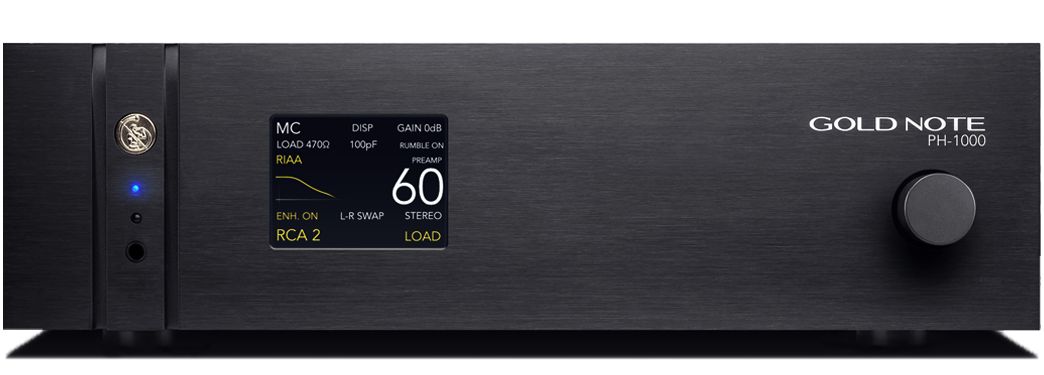

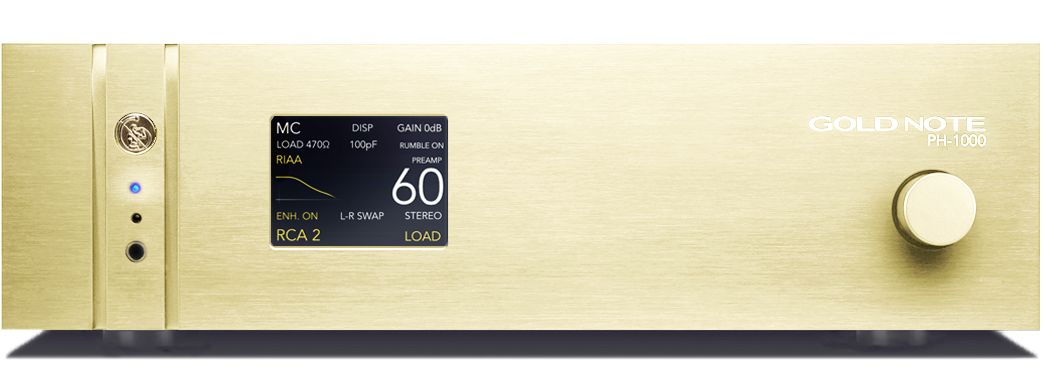

Juoda/Sidrabrinė/Auksinė – 6500€
PH-1000 LITE
The PH-1000 LITE is designed for those looking for the utmost quality and looking for 3 independent inputs (2 unbalanced RCA, 1 balanced XLR), the ability to select EQ curves, and play Stereo and Mono LPs.
PH-1000 LITE
- Infrasonic filter
- Mono/Stereo control
- 2 RCA and 1 XLR phono inputs
- RCA and XLR outputs (class A)
- Headphone output
- Gain, Capacitance, and Load fine adjustments
- 18 EQ curves with Enhanced option
DIMENSIONS
430mm W | 135mm H | 375mm D
630mm W | 350mm H | 600mm D – boxed
WEIGHT
Kg. 12 – net
Kg. 17 – boxed
POWER CONSUMPTION
30W
PSU INPUT
For external power supply Gold Note PSU-1250 & PSU-1000
POWER SUPPLY
Dual-Mono linear power supply
100-240V with auto sense, 50-60Hz
FUSE
2A F

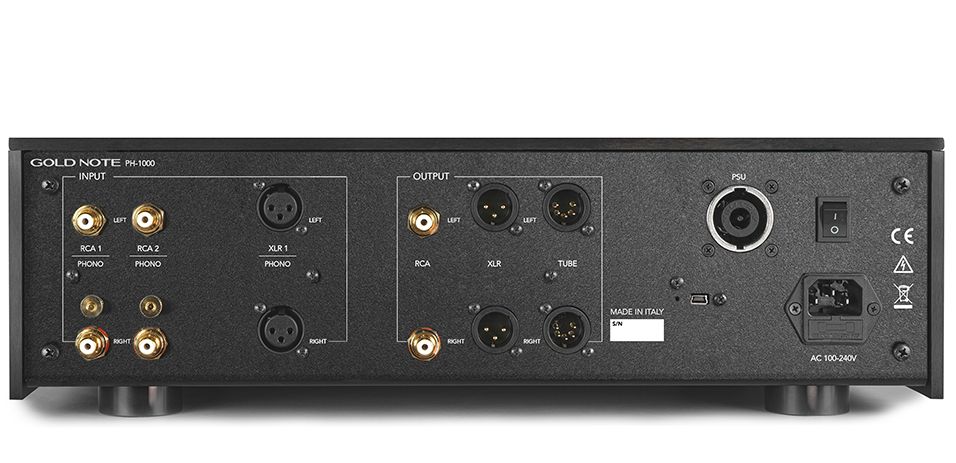

AUDIO INPUTS
2x unbalanced RCA (0.1mV MC up to 8.0mV MM)
1x balanced XLR (0.1mV up to 1.0mV MC)
LOAD
12 options for RCA
[100kΩ, 75kΩ, 47kΩ, 33kΩ, 22kΩ, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
8 options for XLR
[4k7Ω, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
External Load supports RCA and XLR plugs (only on PH-1000 / PH-1000 LINE)
CAPACITANCE
OFF, 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
GAIN
40dB MM to 65dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
LINE INPUTS LEVEL
2Vrms (standard) up to 2,5Vrms (max)
AUDIO OUTPUTS
1x unbalanced RCA @1V
1x balanced XLR @4V
1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006
OUTPUT IMPEDANCE
Unbalanced 100Ω
Balanced 300Ω
OUTPUT LEVEL
2Vrms standard up to 2,5Vrms max
