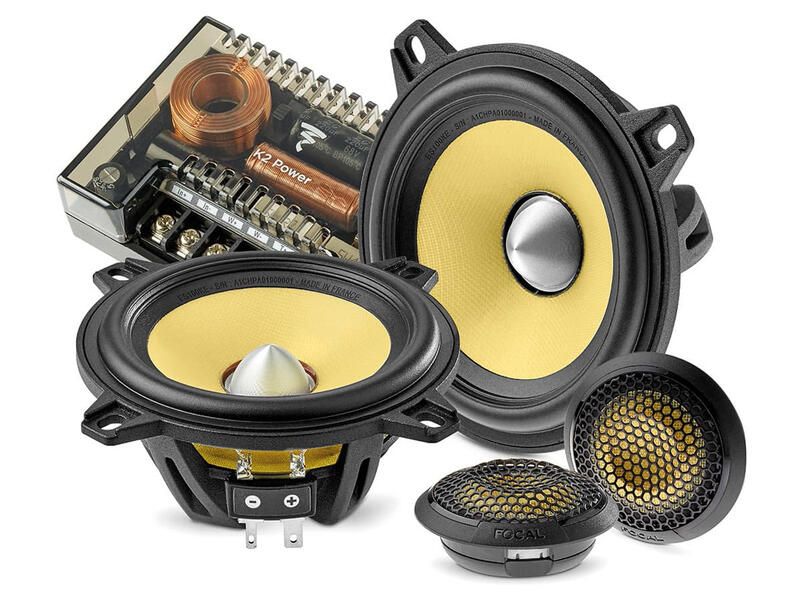

Focal ES 100 KE

The ultra-compact ES 100 KE kit is extremely sensitive for such a small package. It will adapt to all configurations and all types of vehicle interiors.

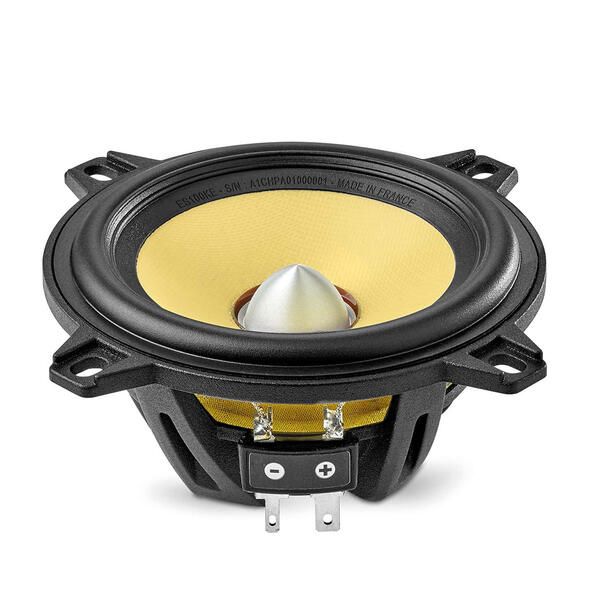

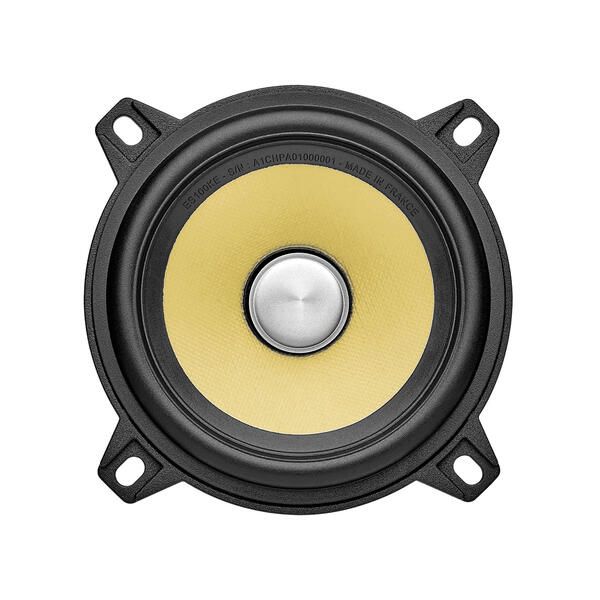

The speaker drivers are equipped with the K2 cone, Focal’s iconic yellow innovation, that combines lightness, rigidity and damping. These ingredients ensure dynamic sound with incredible definition. The central ogive cones, meanwhile, help to disperse the sound better inside the passenger compartment.

For a super smooth treble, the TKME tweeter is the perfect, natural accompaniment to the midrange frequencies. Also made of aramid fibres, their inverted domes have an exclusive ‘M’-shaped profile that improves control of cone deformations and thereby limits distortion. The kits enjoy a very compact crossover, making installation and adjustments inside the vehicle easy. Also, for a custom installation, the TKME tweeters can be mounted in the factory locations, flush-fitted or on angled brackets.

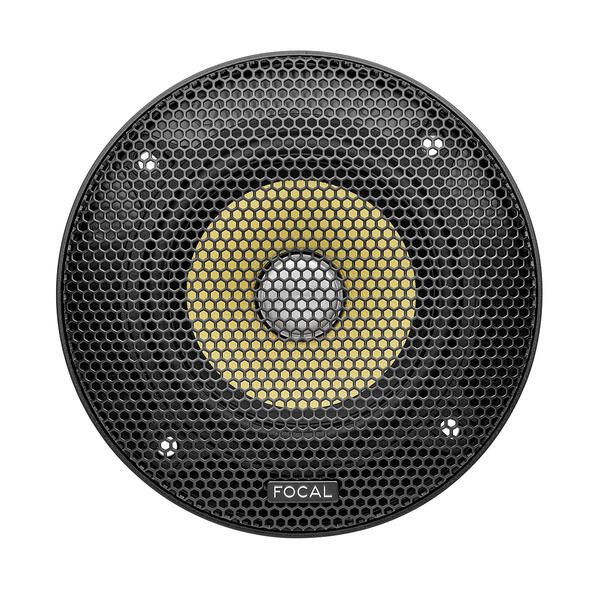

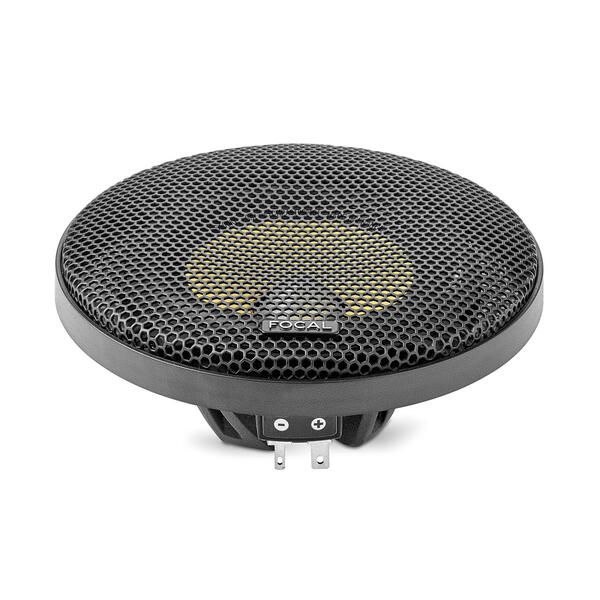

Aluminium grilles are also supplied with the kit.

• Type: 2-way component kit
• Maximum power: 120 W
• Nominal power: 60 W RMS
• Sensitivity (2.83 V / 1 m): 90 dB
• Frequency response: 110 Hz – 22 kHz
• Impedance: 4 Ω
• Cone: K2 Sandwich
• Midrange: 4″ (100 mm)
• Voice coil diameter: ¾” (20 mm)
• Depth: 1½” (39 mm)
• Magnet: Neodymium
• Surround: TMD®
• Tweeter: ‘M’-profile
• Crossover: 12 / 12 dB (3.5 kHz)
• Aluminium grilles included
• Quantity: 10 cm woofer/midrange speakers: 2 pcs, tweeters: 2 pcs
