Extreme Perfromance

A high-performance linear power architecture allows for a clean signal with extremely low noise and expansive headroom. Featuring Point-to-point wiring and stillpoint isolation integrated directly into the chassis, you will experience new depth, detail and dimensionality in your music. Improved spacial cues and separation create a truly immersive experience.

Purity of signal

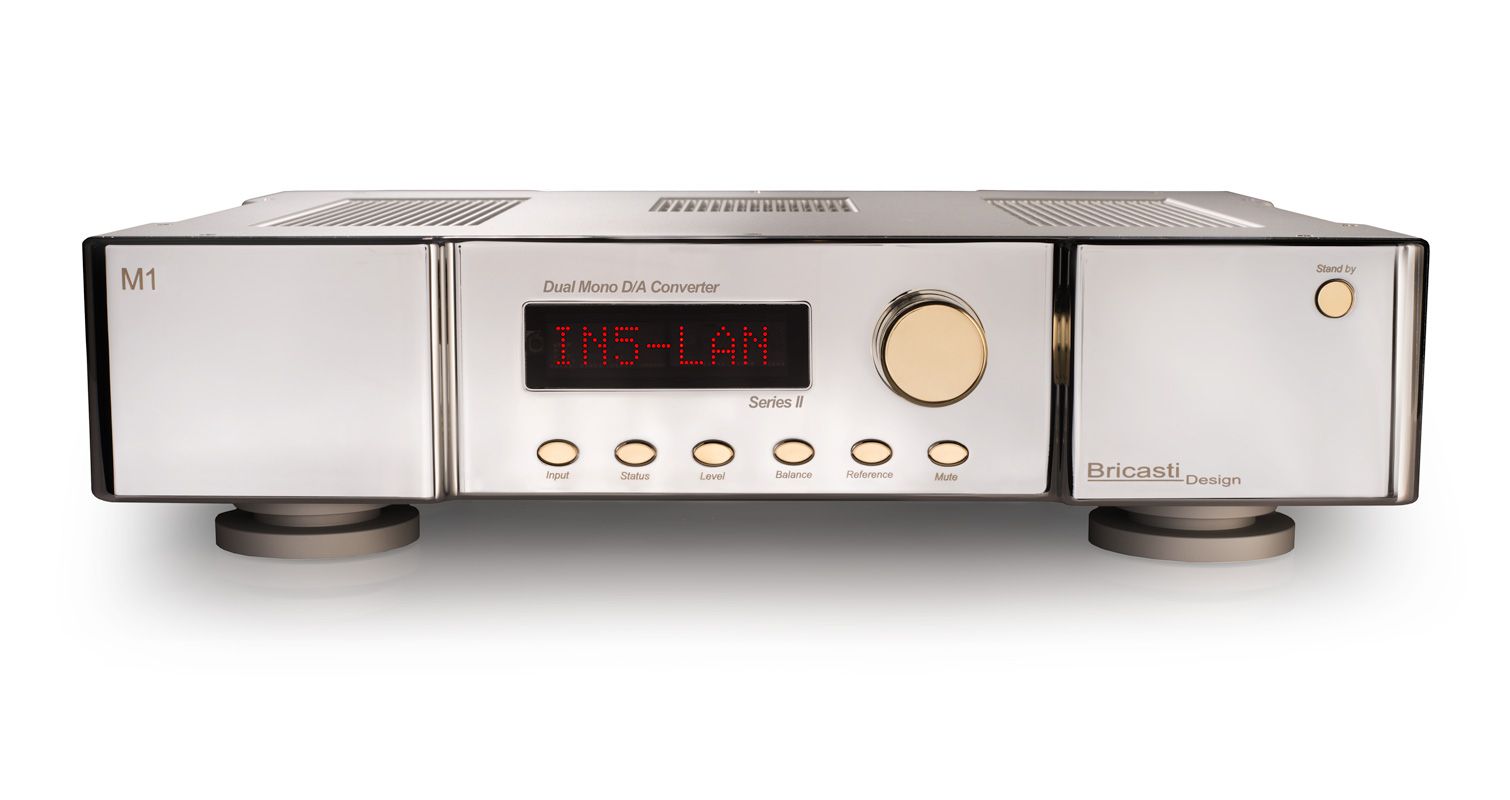

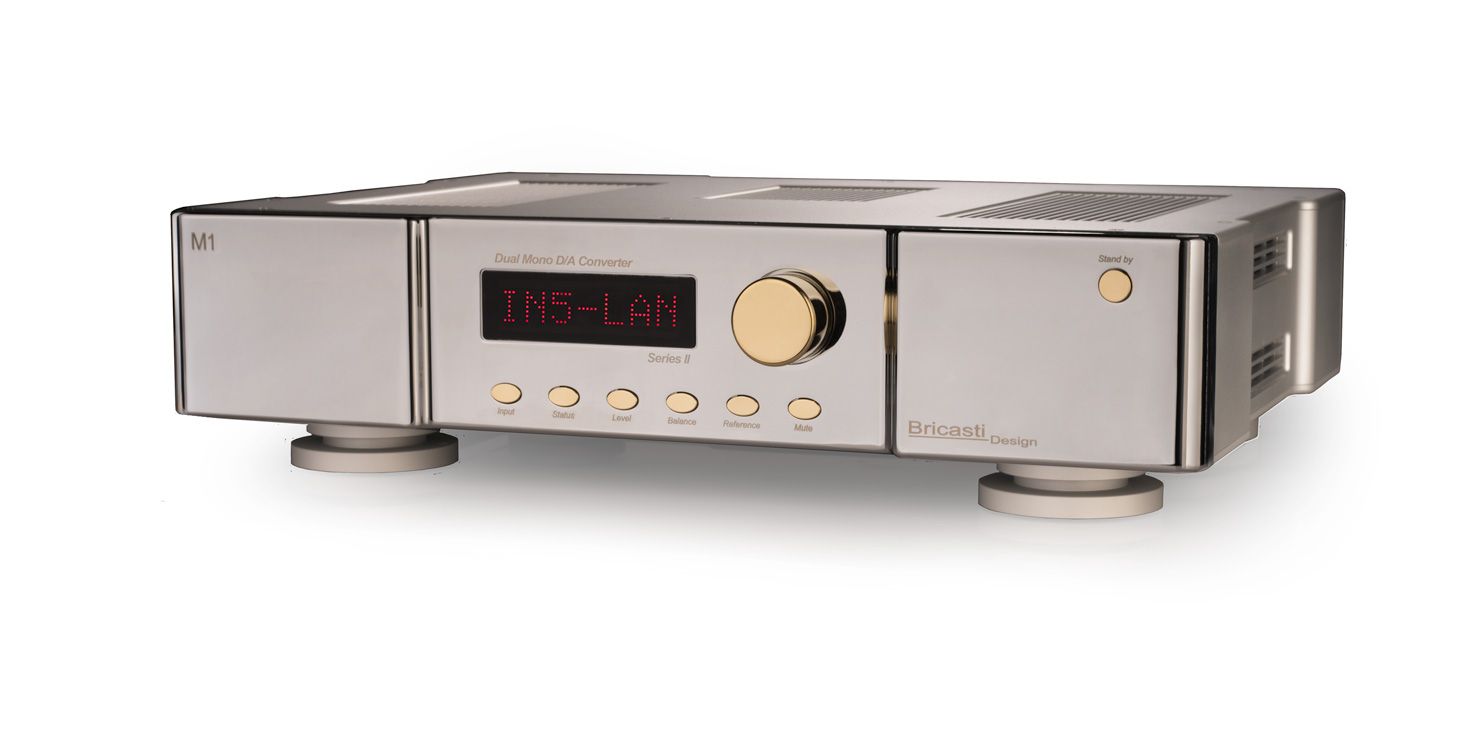

The M1 Series II utilizes Bricasti Design’s latest proprietary MDx digital platform, clocking algorithms and filter technology for exceptional performance wthout the use of SRC’s so signals stay native. The digital section is coupled with a pristine analog path with the goal to deliver the truest possibly representation of tonality, precision and dimension.

Network Streaming

The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.

Masterfully connected

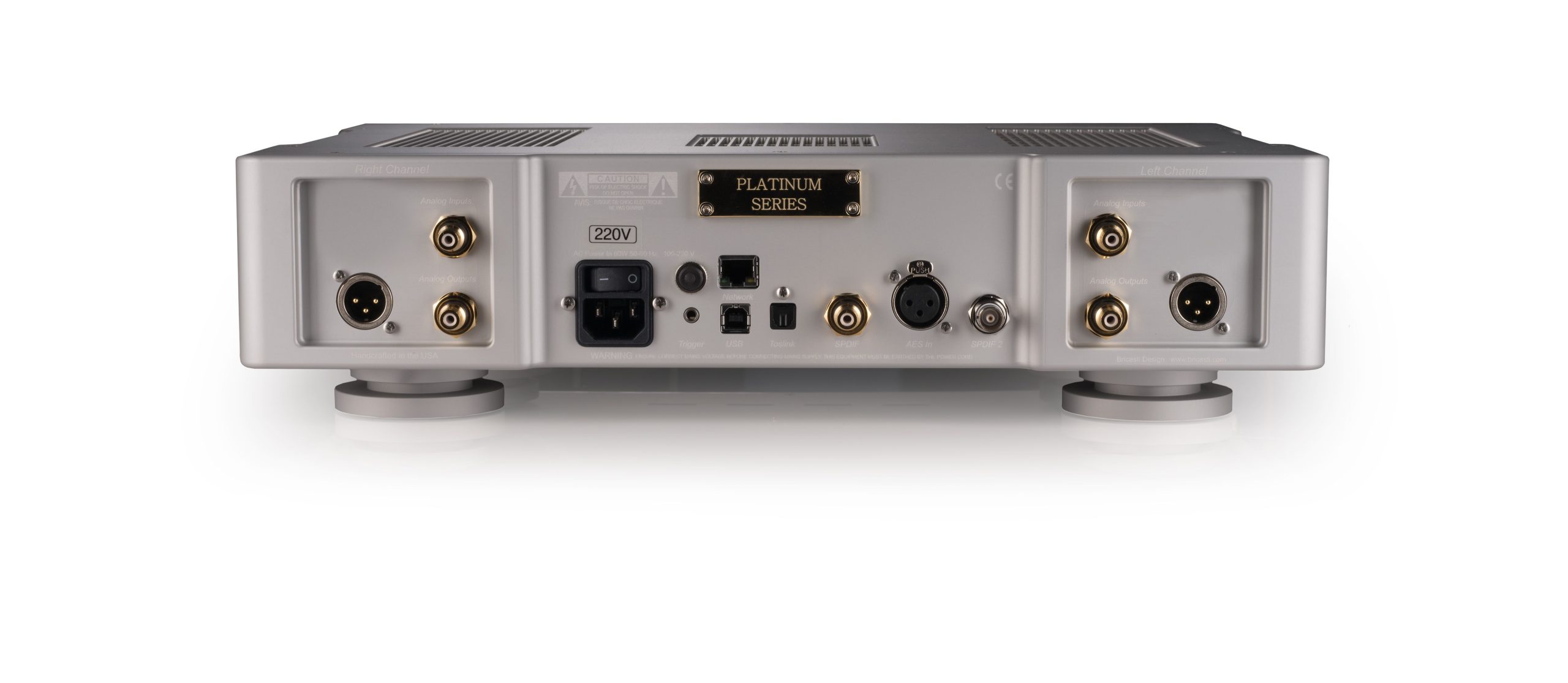

The M1S2 digital input selection is well appointed to fit most any system. It also features a fully differential design which creates a less resistant output signal path, ideal when matched with fully differential amplification like the Bricasti M28 and M25 amplifiers.

Handcrafted in the USA

All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.

Specifications:

Digital Inputs         XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2

Sample Rates AES, SPDIF, AUX in     44.1 kHz, to, 192khz

Sample Rates USB 44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs DoP

Sample Rates Ethernet     44.1 kHz to 384kHz, DSD 128 Native

Jitter 8 psec @ 48k / 6psec @ 96k

Balanced Analog Outputs XLR balanced (pin 2 hot)

Impedance   40 ohm

Output         @ full scale +16.5 dbm (5.2V RMS)

Max Output Level +22 dbm

D/A Conversion     PCM 24 bit delta sigma 8x oversampling, 64x 128x 256x Native and DoP

Frequency Response @44.1k      10 hz- 20 kHz +0dB, -.2 dB

Dynamic Range      >120dB A-Weighted

THD+N @ 1k        .0008% @ 0dbfs / .0004% @-30dbfs PCM sigma delta<

Unbalanced Analog Outputs       RCA

Impedance   40 ohm

Output level Full scale at front panel +6 dbm (1.2V RMS)

D/A Conversion     PCM 24 bit delta sigma 8x oversampling, 64x 128x 256x Native and DoP

Frequency Response @ 44.1k     10 hz- 20 kHz -.2 dB

Dynamic Range      >120dB A-Weighted

THD+N @ 1k        .0008% @ 0dbfs / .0004% @-30dbfs PCM sigma delta

General Specifications      EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B

RoHS          Complies with: EU RoHS Directive 2002/95/EC

Safety          Certified to: IEC 60065, EN 55103-2

Operating Temperature    32 F to 105 F (0 C to 40 C)

Storage Temperature:       -22 f to 167 F (-30 C to 70 C)

Finish          Anodized aluminum, nickel plating with brass knobs and buttons.

Dimensions 17” x 12“ x 4.5”

Weight         15 lbs

Shipping Weight    18 lbs

Shipping Dimensions       22”x 17”x 7”

Mains Voltage        -100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set

Trigger out   TRS mini jack, Tip ground, Sleeve 5V

Power consumption:        28 Watts (6W standby)

Warranty parts and labor   2 yrs non-transferable.
