Audia Flight Three S

Output power (Watts RMS) @ 8/4 ohm100/160W

Amplifier stage gain26dB

Frequency response (@1 Watt RMS; -3db)1Hz – 450kHz

Slew Rate (@ 8 Ohm)>80V/µS

THD<0,05%

S/N ratio>95dB

Unbalanced input impedance51kOhm, 150pF

Balanced input impedance30kOhm

Stand-by power consumptionless than 1W

Maximum power consumption400W

Dimensions and weight450x110x430mm (W x H x D), 16,5 kg

Shipping dimensions and weight550x250x580mm (W x H x D), 18,5kg

Dimensions and weight450x110x430mm (W x H x D), 16,5kg

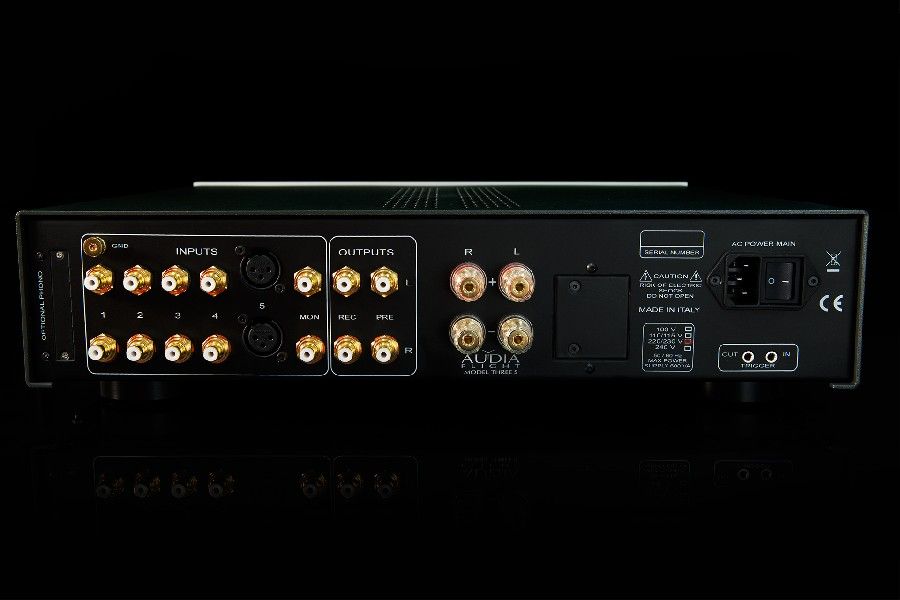

INPUTS and OUTPUTS:

• 4 unbalanced inputs
• 1 balanced input
• 1 monitor input
• 1 analog input can be assigned to bypass the preamp (as “direct”)
• 1 optional USB digital input
• 1 unbalanced preamp output
• 1 unbalanced record output
• 1 output for headphones

OPTIONAL BOARDS (can be retrofitted):
phono MC/MM (replaces analog Input 1); USB 24bit 192KHz DAC (becomes Input 6)

Note:

The USB input has been insulated by an ADuM (from Analog Devices) to prevent any noise from the computer.
When the USB is used together with a player application such as FooBar or WinAmp, the user can transfer stream music files to internal
converter at 192kHz/24bits maximum frequency/resolution while avoiding undesired PC or MAC audio mixer data processing during the
data transfer from hard disk to interface.
