Alpine iLX-705DM

The iLX-705DM is an alternative version of the iLX-705DM.

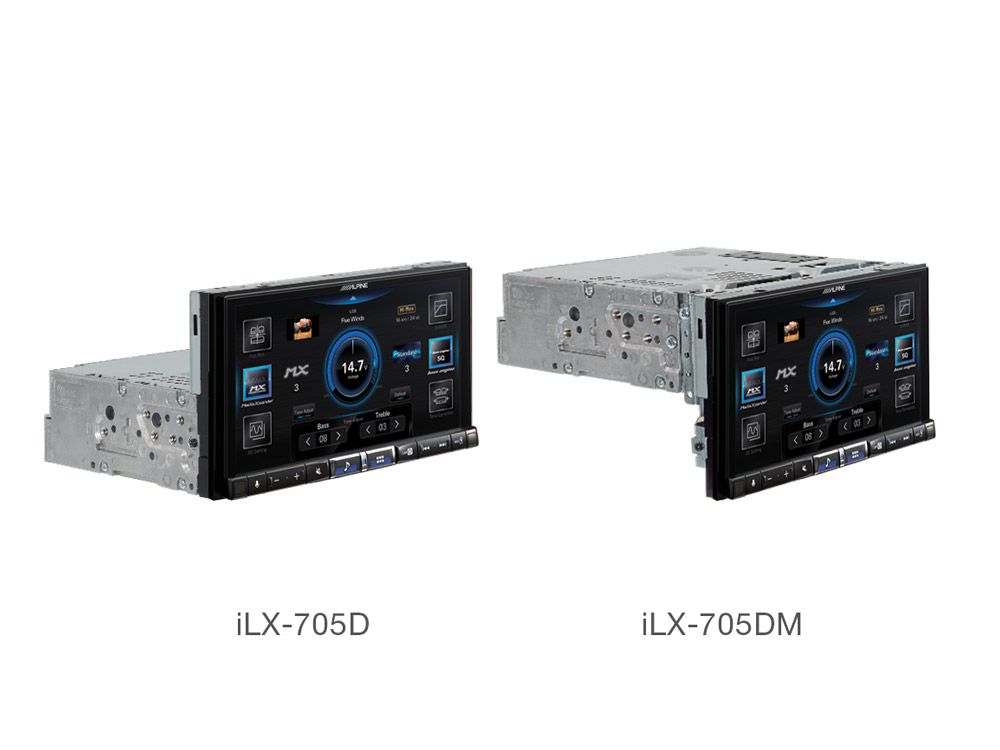

In this version, the 1DIN media box is attached to the upper side of the 7-inch screen and allows installation in vehicles with space restrictions in the radio dock, such as the Seat Leon.

It features a high-resolution screen, wireless Apple CarPlay, 2 USB ports, as well as a built-in Class-D amplifier and Hi-Res Audio capabilities.

If you look for a high-performance 2DIN system for your car that includes all the latest features, cutting-edge media compatibilities and killer sound quality, the iLX-705DM is for you.

Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.

Bring exceptionally good sound quality into your vehicle: the Alpine iLX-705DM is among the world’s first Head Units featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as digital X-overs, a Parametric EQ, digital time correction and much more.

FEATURES

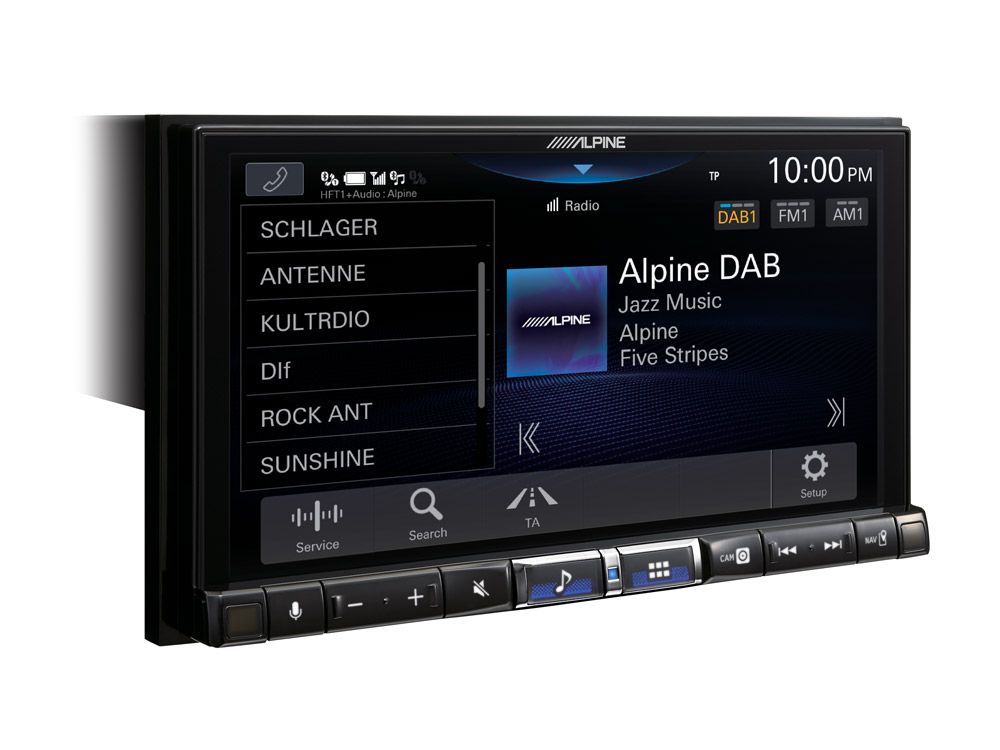

Radio / DAB Tuner

    Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
    Memory: Auto Memory
    Seek Mode: Local, DX, Pre-Set, Service
    RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
    DAB+/DMB Supported
    DAB+ Slideshow Service
    DLS (Dynamic Label Service)
    DAB Service Following
    RDS Fallback (where available)
    Auto Ensemble/Service Memory
    Service Search Function
    PTY Search Function
    Alphabet Search Function

BLUETOOTH®

    Built-in BLUETOOTH® Module V4.2
    HFP (Hands-Free Profile) Compatible
    A2DP (Advanced Audio Distribution Profile) Compatible
    AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
    Phone Book Synchronization
    Speed Dial: 4 Preset Memory (per phone)
    Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
    Redial Function
    Speech Volume Level Adjustment: (Outgoing and Incoming)
    24 Menu Languages
    Microphone Included

Works with iPhone®

    Compatible with iPhones featuring a lightning connector
    Various search functions and Album Artwork Display
    Battery Charging

Connectivity

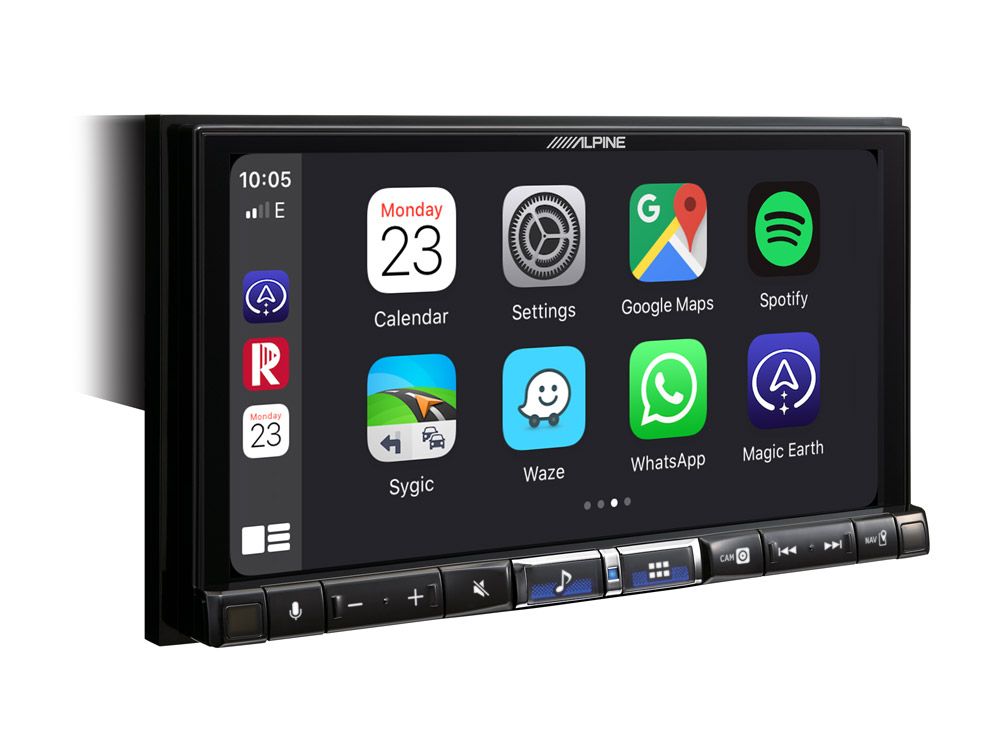

    Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
    Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
    Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam

Navigation Function

    Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
    Includes GPS enabled navigation antenna

USB Media Connection

    2x USB cable included
    USB port 1: data port / USB port 2: charging port
    Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
    Video Playback: MP4, MOV, FLV, MKV compatible
    Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
    Various search functions included

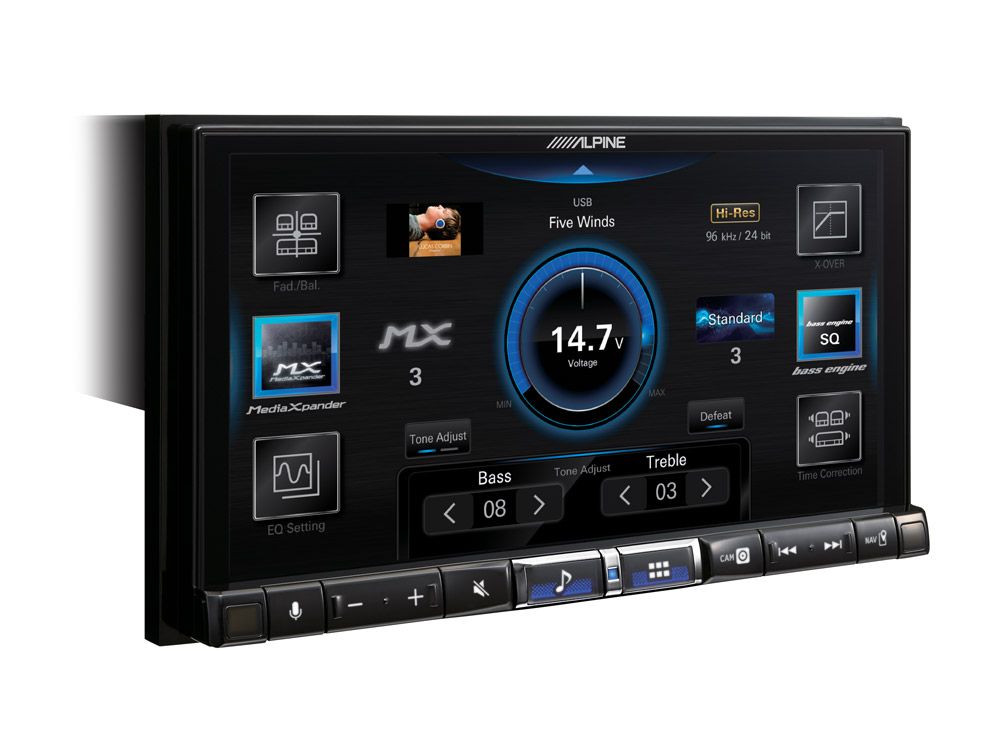

Sound Tuning

    Bass Engine SQ and Bass Engine PRO sound tuning
    Subwoofer Level Adjustment
    6 V PreOut
    10 Equalizer PreSets
    13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
    6-Channel Digital Time Correction
    2-way Digital Crossover
    Independent Source Volume Level Setting
    For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section

General

    4x 50 Watts Class-D High Power Amplifier
    7-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)

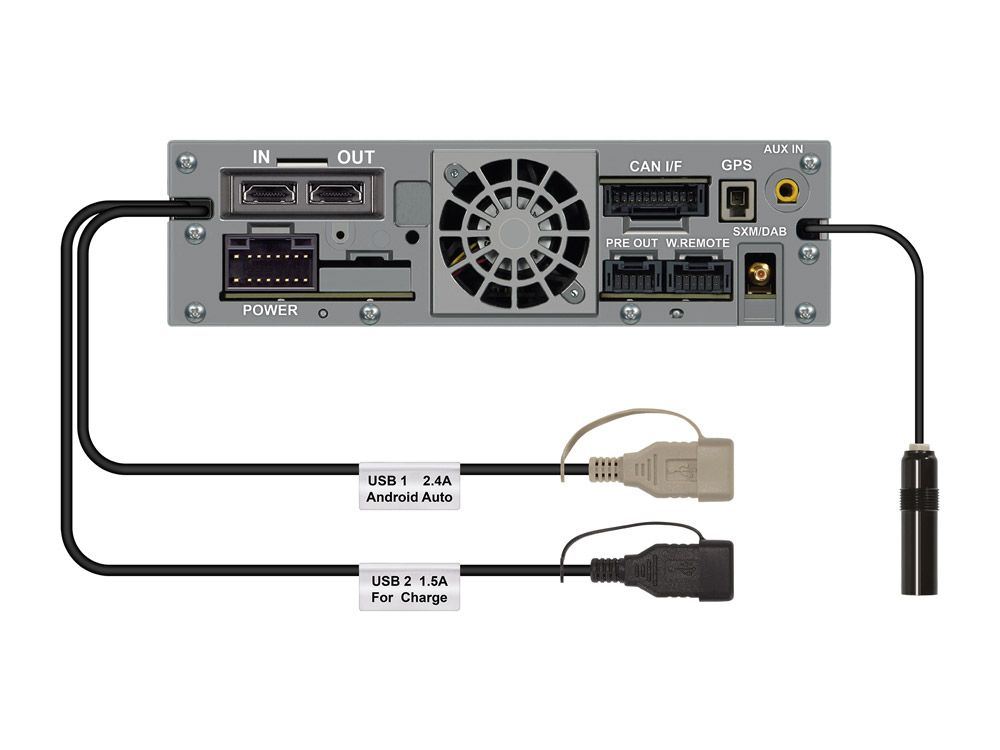

    3 PreOuts (6 V, Front / Rear / Subwoofer)
    1 A/V AUX Input (3.5 mm micro jack)
    1 HDMI input / 1 HDMI output
    2 USB Ports (1x USB data port / 1x USB charging)
    Steering Wheel Remote Control Ready
    Vehicle Display Interface Ready (UART connection)
    Remote Control Ready
    2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
    Camera Distance Guides (adjustable)
    Live Contrast Adjustment
    Menu Language: 24 Languages
    Auto Dimmer
    Anti-theft security code
    Engine Start-Stop unaffected

Installation

    Various vehicle specific installation kits available

SPECIFICATIONS

Screen

    Screen Size: 7-inch Capacitive WXGA
    Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
    Illumination System: White LED Backlighting
    Effective Number of Picture Elements: 99.99%
    Colour System: NTSC, PAL

Max Power Output Ratings

    Max Power Output: 4x 50 W

Radio / DAB Tuner

    FM Tuning Range: 87.5 – 108.0 MHz
    AM Tuning Range: 531 – 1,602 kHz
    DAB band III: 174 – 240 MHz
    Alternate Channel Selectivity: 80 dB
    Signal-to-Noise Ratio: 65 dB / 90 dB
    DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC

WiFi

    Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
    Channels: 1 – 13 ch (2.4 GHz)
    Security Protocols: WPA3/WPA2-PSK (TKIP, AES)

USB

    USB Requirements: USB 2.0
    USB 1: data port / 2,400 mA (Mass Storage Class)
    USB 2: charging port / 1,500 mA (CDP support)
    USB Class: Mass Storage Class, Play From Device
    File System: FAT16 / FAT32 / exFAT
    FLAC, MP3, WMA, AAC, WAV, APE Decoding
    Video Playback: MP4, MOV, FLV, MKV compatible
    Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
    Number of Channels: 2-Channel (Stereo)
    Frequency Response: 5 – 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
    Total Harmonic Distortion (at 1 kHz): 0.005%
    DynamicRange(at 1kHz): 95 dB
    Signal-to-Noise Ratio: 95 dB

GPS

    GPS compatible navigation antenna included
    GPS frequency: 1575.42 +/- 1.023 MHz
    Reception sensitivity (search): – 136 dB max

BLUETOOTH®

    BLUETOOTH® Version: Bluetooth V4.2
    Output Power: +4 dBm Max. (Power class 2)
    HFP (Hands Free Profile)
    OPP (Object Push Profile)
    PBAP (Phone Book Access Profile)
    HSP (Head Set Profile)
    A2DP (Advanced Audio Distribution Profile)
    AVRCP (Audio/Video Remote Control Profile)
    SPP (Serial Port Profile)

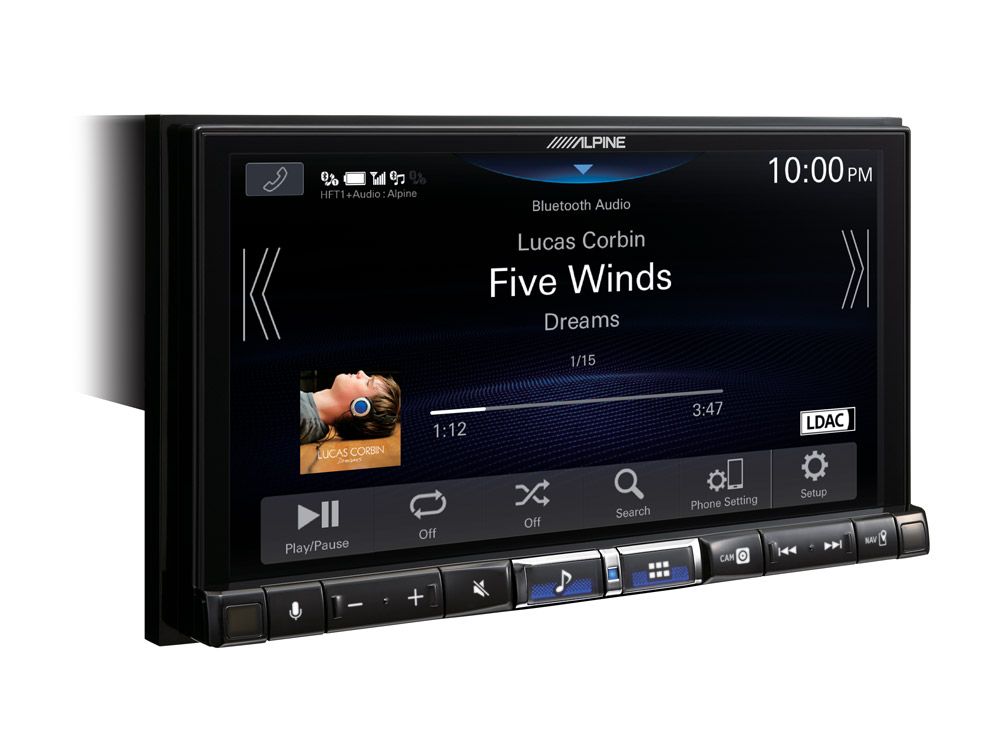

    Supports LDAC Audio Codec

Sound Tuning

    Subwoofer Level Adjustment: 0 to +15
    Subwoofer Phase Setting: 0° or 180°
    BASS ENGINE SQ: 5 Modes, Level 0 to +6
    For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section

HDMI Section

    Input Format 720p / 480p / VGA

General

    Power Requirement: 14.4 V. DC (11-16V allowable)
    Pre Output Voltage (Before Clipping): 6 V / 10k ohms

Dimensions

    Weight: 1.4 kg
    Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
    Display Size (W x H x D) mm: 171 x 96 x 18 mm
