Alpine HDZ-653S
850,00 €
Alpine HDZ-653S garsiakalbių komplektas
Juoda – 790€
Alpine Status Hi-Res 6-1/2″ (16.5cm) 3-Way Slim-Fit Component Speaker Set
Superior Sound Performance
Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extreme flexible: all components can be purchased and used in “stand-alone” configuration.

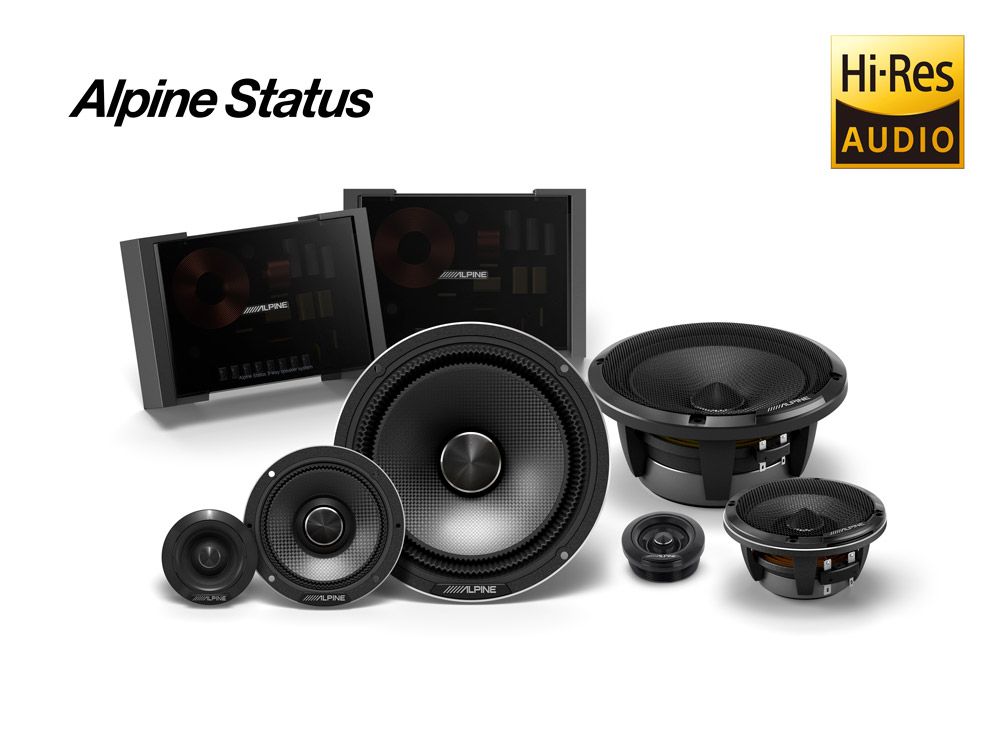

For the audiophile that’s looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The HDZ-653S Slim-Fit 3-Way speaker set with a high-resolution bandwidth of 55Hz – 40kHz includes a 170mm door woofer, 96mm mid-range, and 40mm Slim-Fit tweeter that is easy to install in original tweeter locations of your car. They also include high-end speaker x-overs.
All speaker cones are made from the same Carbon Composite material to create a unified timbre identity during playback. Theyget very close to the AlpineF#1Status speakers look and feel, using a very similar constructing and motor assembly, as well as the identical build-materials for highest sound quality.
Features
- Hi-Res Audio certified 3-Way speaker system
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power: 300 Watts
- Maximum RMS Power: 100 Watts

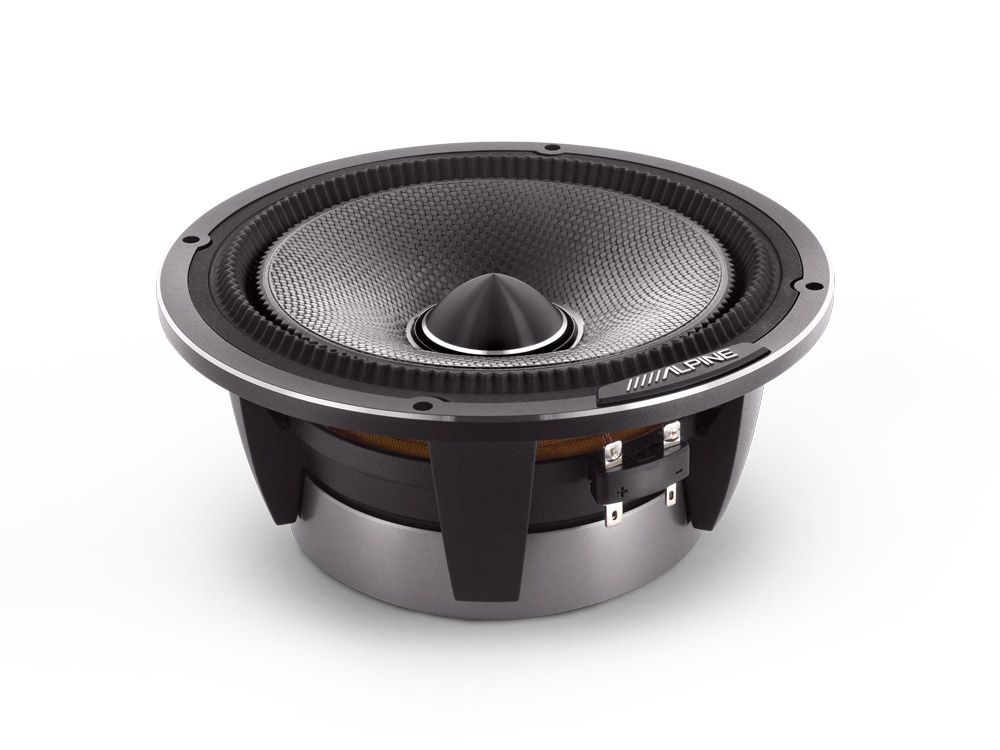

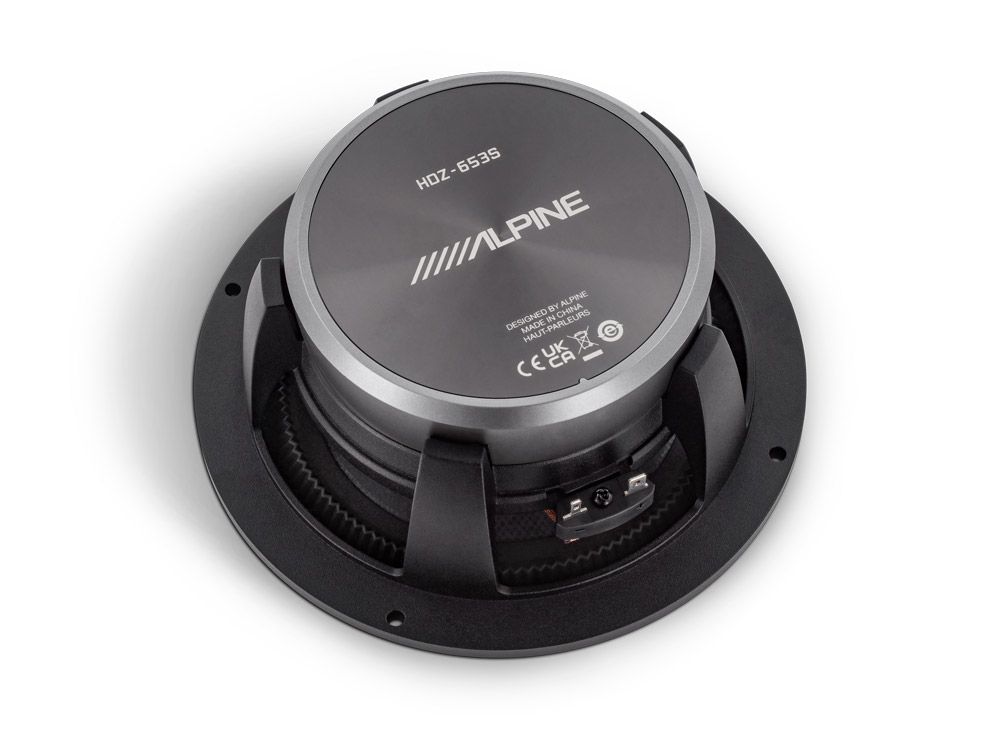

- Woofer diameter: 170mm (177mm with attached grill)

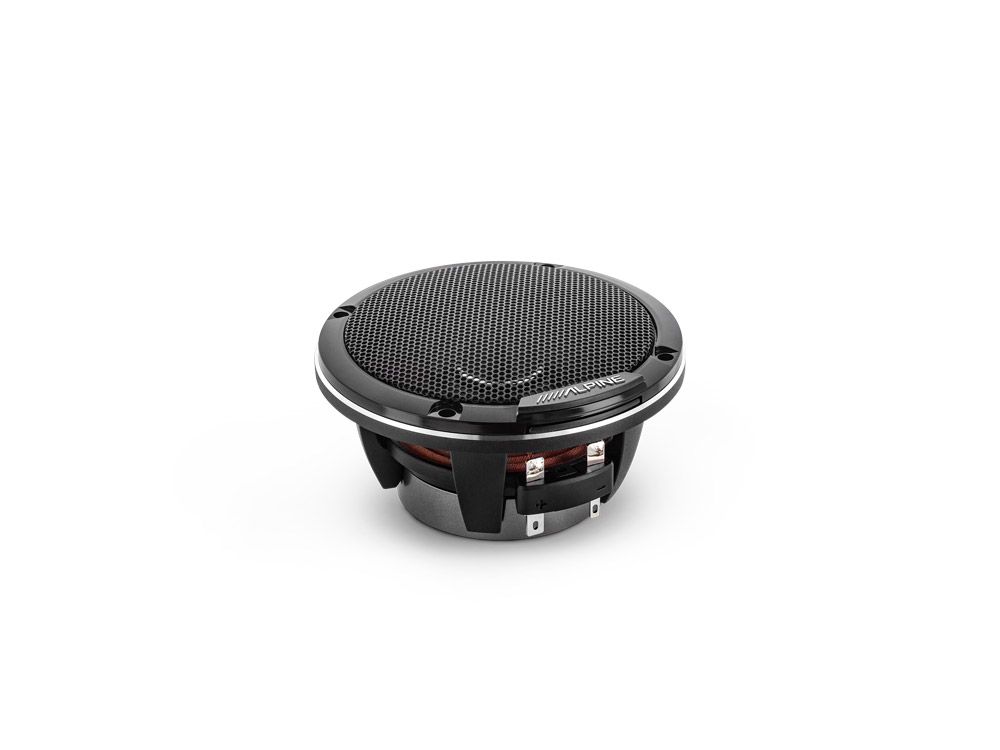

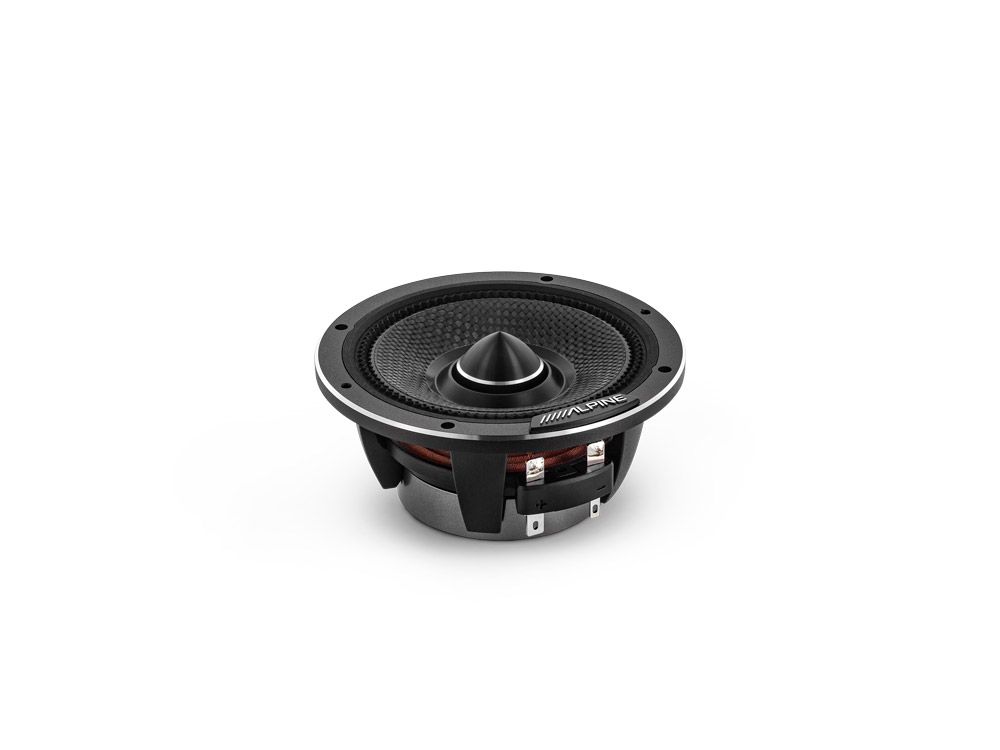

- Mid-range diameter: 96mm
- Tweeter diameter (slim-fit): 40mm (58mm with housing)
- Aluminum die-cast baskets
- Backed carbon fiber cones
- Double-gathered edge

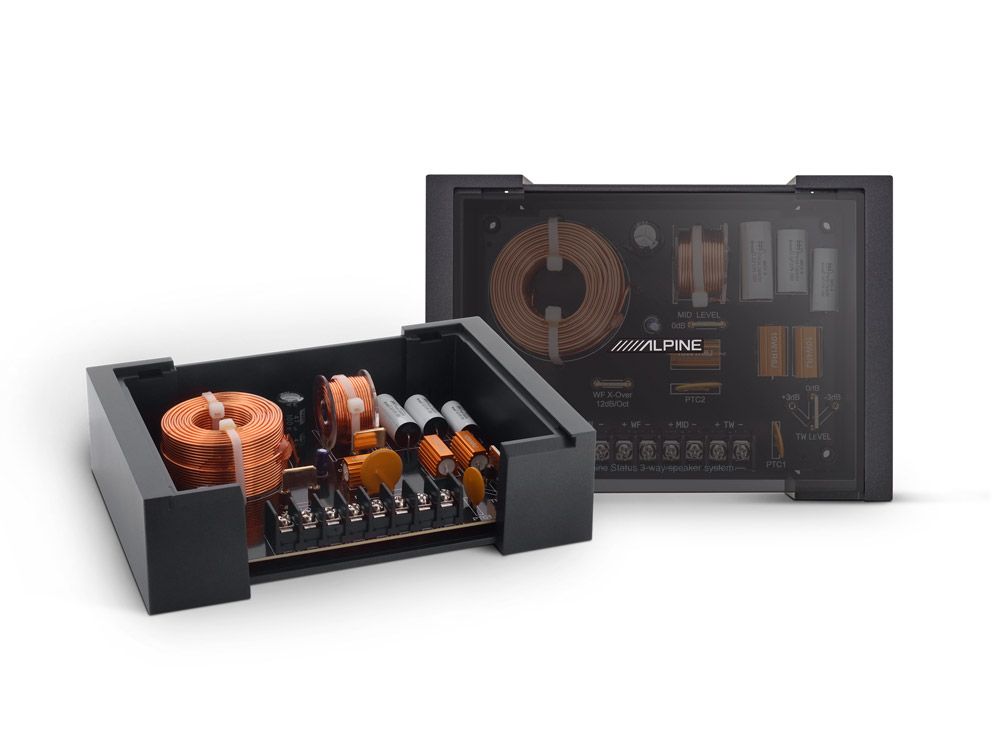

- High-end X-Over networks
- Included speaker grills
- Integrated Wave Guide on all speakers
Specifications
- Impedance 4Ω
- Sensitivity 88dB SPL (2.83 V @ 1 m)
- Frequency Response: 55Hz – 40kHz
- Mounting depth: woofer 67mm / mid-range 39mm
- Cutout diameter: woofer 142mm / mid-range 79mm
- Recommended amplification: up to 100W RMS per channel
- Ferrite magnet (woofer)
- Neodymium magnet (mid-range speaker and tweeter)
Thiele & Small Parameters Midrange Speaker:
- Re: 3.67 Ohm
- fs: 165 Hz
- Mms: 4.140 g
- Rms: 1.228 kg/s
- Cms: 0.225 mm/N
- BI: 4.110 N/A
- Qms: 3,495
- Qes: 0,932
- Qts: 0,736
- Vas: 0.4711 l
- Sd: 38.48 cm2
Thiele & Small Parameters Door Woofer:
- Re: 3.58 Ohm
- fs: 62 Hz
- Mms: 18.341 g
- Rms: 1.436 kg/s
- Cms: 0.359 mm/N
- BI: 6.407 N/A
- Qms: 4,979
- Qes: 0,624
- Qts: 0,554
- Vas: 8.9526 l
- Sd: 132.73 cm2
