Alpine Status Hi-Res Audio Media Player

Superior Sound Performance

Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in “stand-alone” configuration.

The HDS-990 Hi-Res Audio Media Player achieves 192kHz/24Bit playback via 3 wired USB DAC inputs or wireless Bluetooth® connection. This ensures that any high-resolution music files stored on a USB or smartphone will be reproduced at the intended spec. It is designed to work in parallel with your original radio (or existing aftermarket radio) and has therefore no radio or DAB+ tuner as well as no Bluetooth hands-free features or similar.

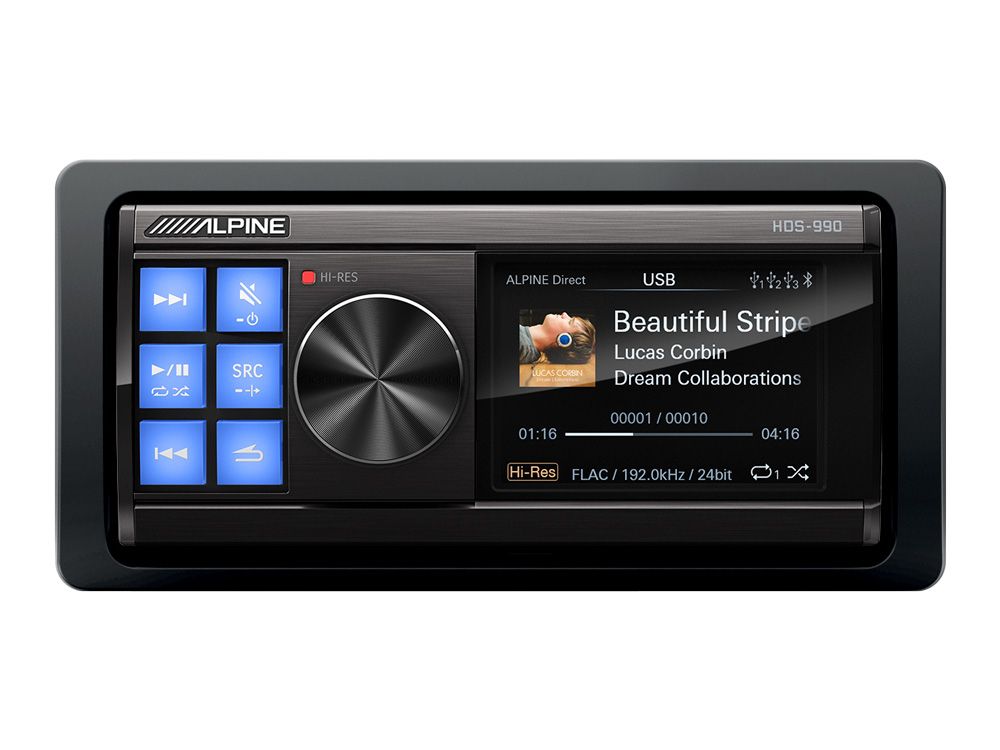

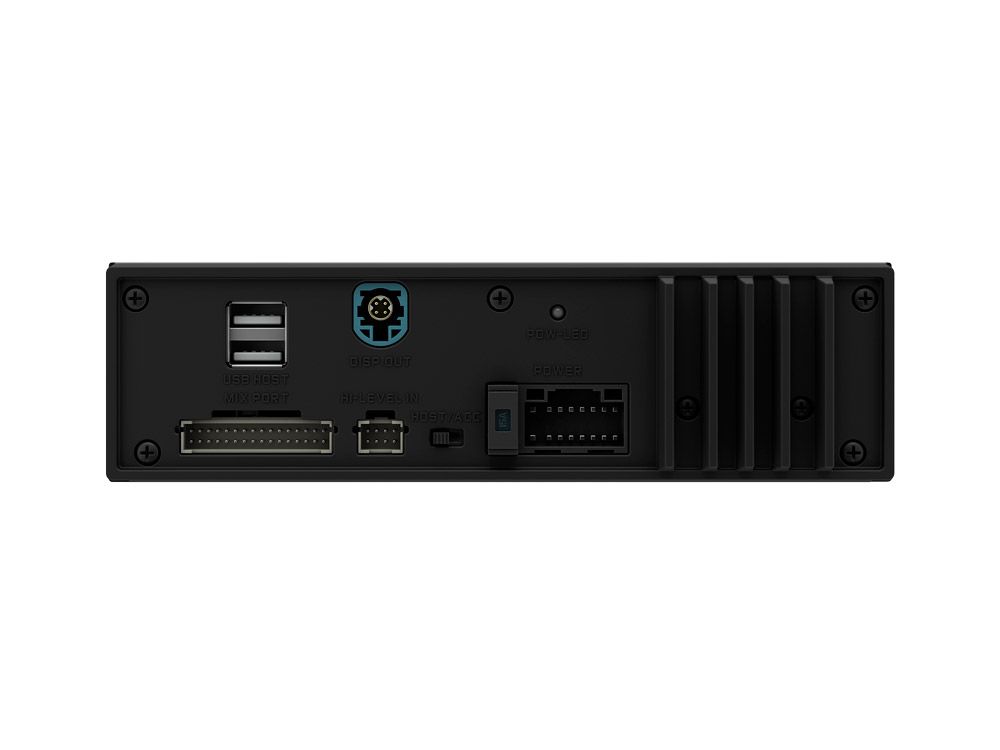

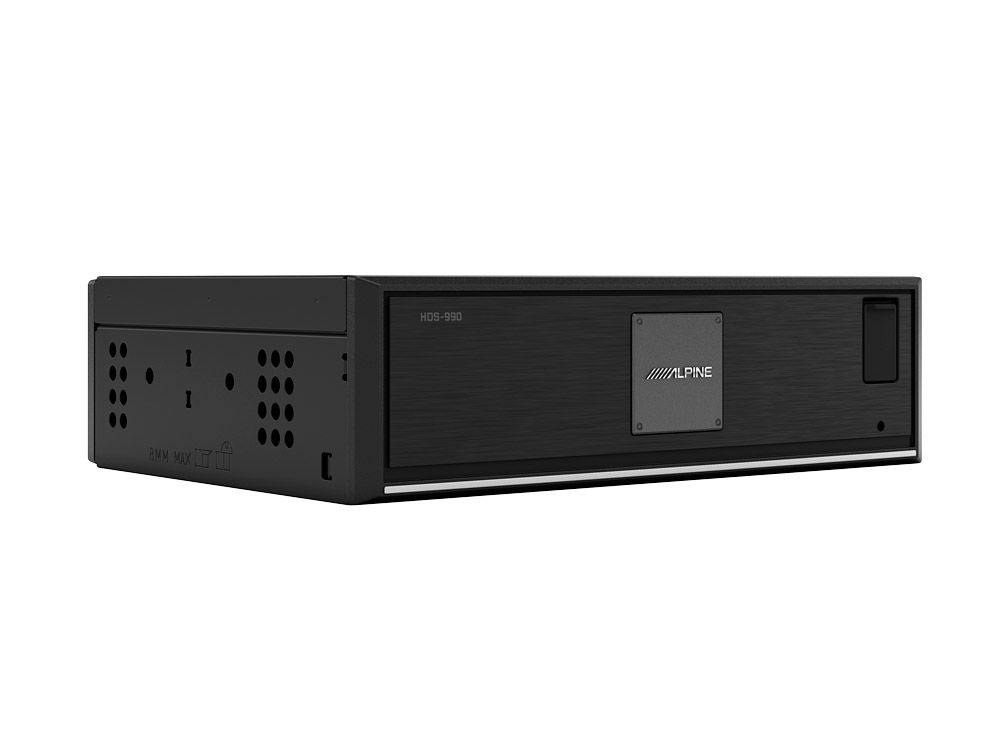

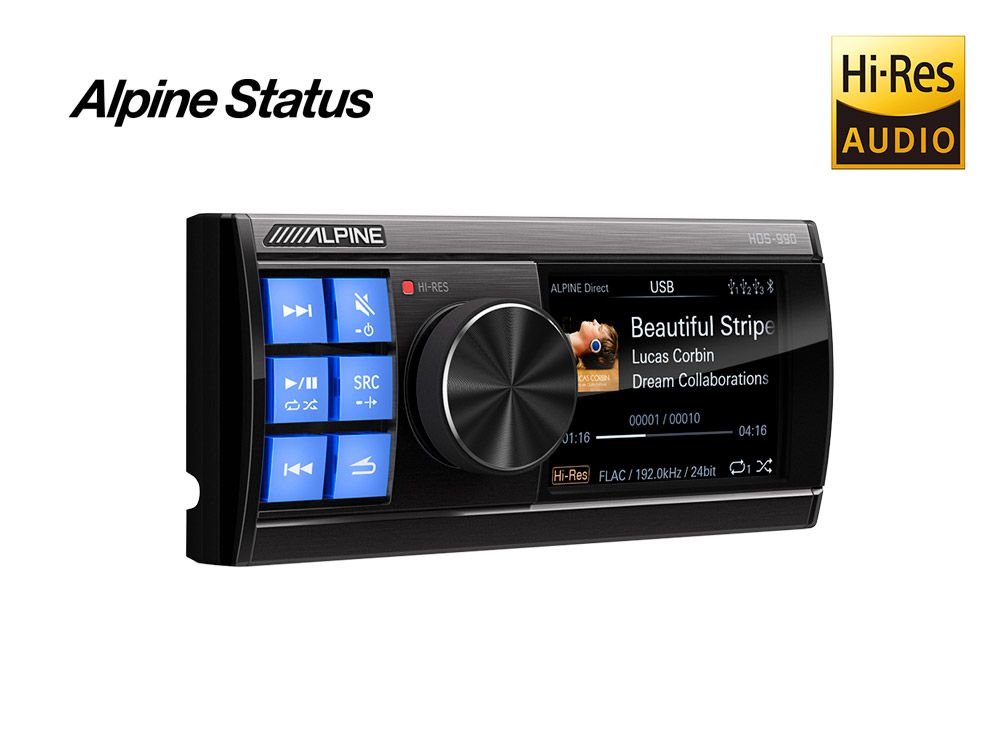

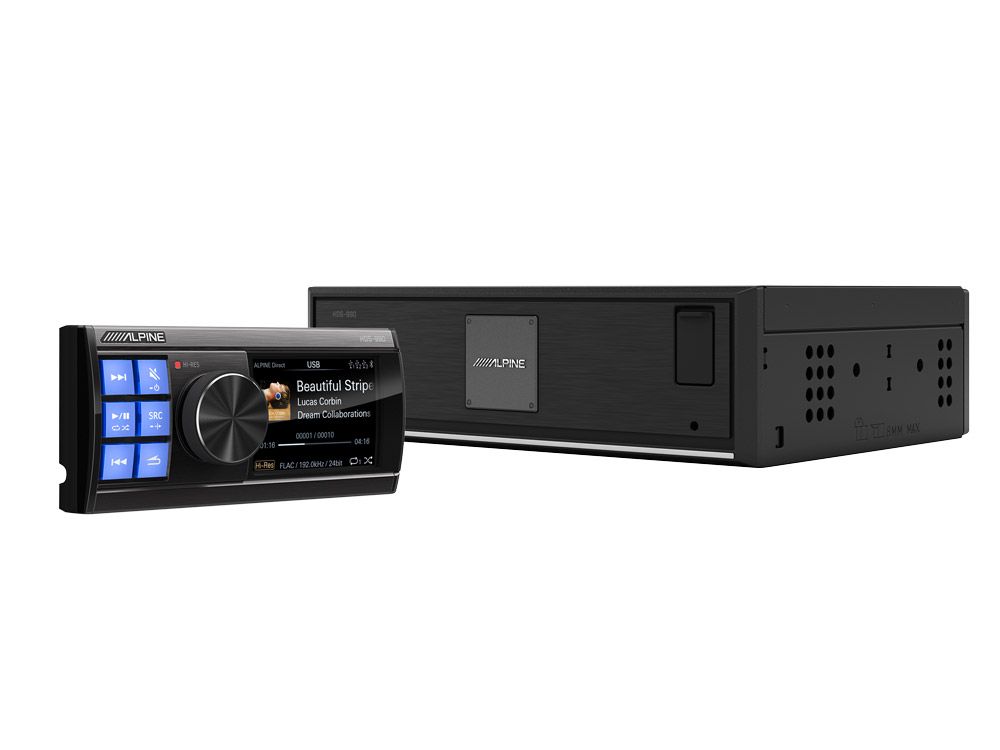

The Media Player includes a compact controller with buttons for basic music controls, a high-resolution color screen that displays playback data and album cover artwork, a volume knob for quick sound controls, and a separate black-box for flexible installation in the vehicle. High-Resolution 4x 50W amplifier output, high-performance RCA outputs and an optical TOSLINK & Coax ports allow for flexible system building with the HDP-D90 Digital Signal Processor (DSP) Amplifier.

Features

Hi-Res Audio Media Player (192kHz / 24bit max sampling rate with down-sampling)
External control unit with hide-away 1DIN media-box
Color display
3 USB Ports (1 front / 2 back ports) for audio playback
Bluetooth Audio Streaming (LDAC, aptX HD)
4x 50Watts built-In amplifier
6-channel 31-band Parametric EQ
3-way digital X-Over
Digital Time Correction
MP3, WMA, AAC, MP4, WAV, FLAC, APE and DSD playback
4-channel high-level inputs
2-channel AUX inputs (RCA)
4-channel high-level outputs (4x 50 Watts)
6-channel RCA outputs
Optical TOSLINK output
Coaxial output
Rotary encoder
Blue button illumination

Specifications
Performance

Power Output (rated 4Ω, 14,4V, 10%THD): 25W RMS x4
THD+N (RCA 1W into 4Ω): ≤ 0.03%
S/N (RCA A-wt): ≥ 98dB
Input Voltage: high level 32Vpp, RCA 8Vpp
Output Voltage: high level 28Vpp, RCA 12Vpp
Frequency response (1W into 4Ω): 20Hz – 40kHz (+/-1.5dB)

General

System sampling rate: 192kHz / 32bit
Operating voltage: 9 – 16V
Standby power consumption ≤ 0.1W
REM start input: high level (FL+/FL-), ACC optional
REM start output: 12V (0.2A)
Weight: 0,77kg
Dimensions (main unit): width 178mm, depth 144mm, height 50mm
Dimensions (controller without installation frame): width 122mm, depth 12mm, height 54mm

Music Player

Interface: USB 2.0
Storage capacity: maximum support 2TB
File system: FAT16/32, NTFS, exFAT
Maximum number of songs: 10.000
MP3 Decoding: MPEG Audio Layer-3, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-320kbps
WMA Decoding: Windows Media Audio, Sampling frequencies: 48kHz, 44.1kHz, 32kHz, 22.05kHz, 16kHz, 11.025kHz, 8kHz. Bit rate: 12-192kbps (stereo), 0-128kbps (mono)
AAC Decoding: “.M4A” file in ACC-LC format, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-320kbps
MP4 Decoding: MPEG Audio Layer-4, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-500kbps
WAV Decoding: Wave sound file, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz. Bit rate: 8bit, 16bit, 24bit
FLAC Decoding: Free Lossless Audio Codec, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Quantization bits: 8bit, 16bit, 24bit
APE Decoding: Monkey’s Audio, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Quantization bits: 16bit, 24bit
DSD Decoding: Direct Stream Digital (DSD64, DSD128, DSD256), sampling frequencies: DSD64 2.8224MHz, DSD128 5.6448MHz, DSD256 11.290MHz
Bluetooth Supported Audio Formats: SBC / AAC / LDAC
