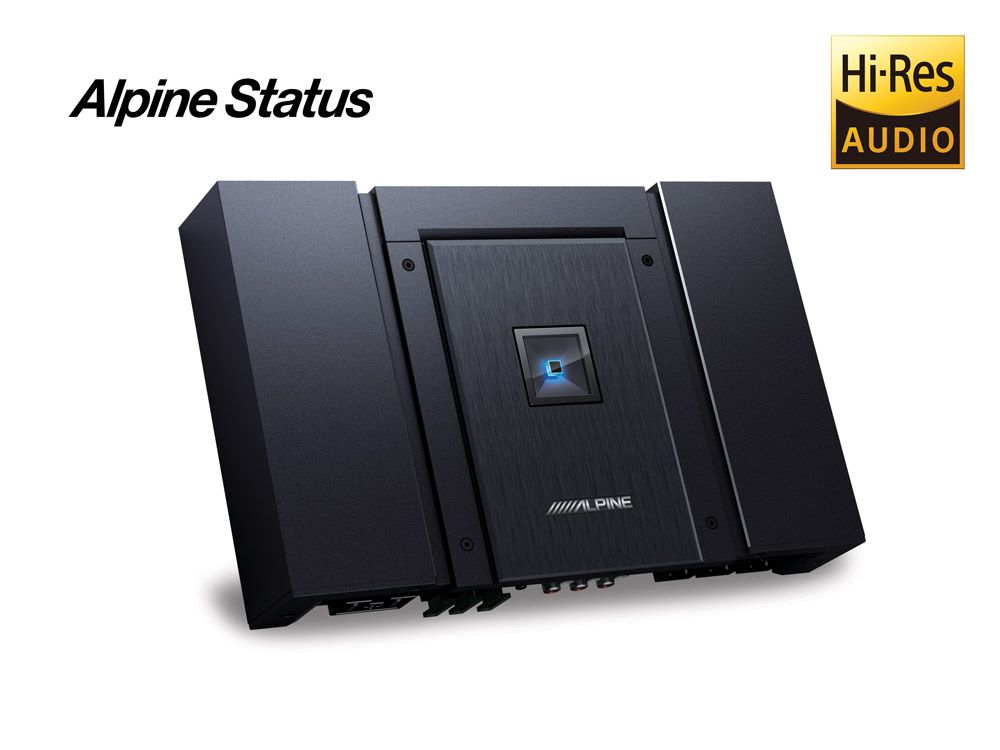

Name: Alpine HDA-V90
Brand: Alpine
SKU: AC-3048
Price: 750.00 EUR
Availability: InStock

Aprašymas

Alpine Status High-Resolution 5-Channel Power Amplifier

Superior Sound Performance

Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extreme flexible: all components can be purchased and used in “stand-alone” configuration.

If you want to build a full Alpine Status sound system with external amplifiers, we recommend the Alpine Status Class-D amplifiers. These amps are developed to perfectly match the Alpine Status speakers and subwoofer for best sound quality. There is a Mono power amplifier (HDA-M80), a 4-channel amplifier (HDA-F60) and a 5-channel amplifier (HDA-V90) with a dedicated high-power subwoofer channel.

All controls are conveniently located on the top side of the amplifiers, protected by a cover plate. This gives you easy access to HP / LP filters and frequency adjustments, gain controls and input channel selectors (different for each amplifier model).

Features

General

Channel Design: 5/4/3 Channel
Class-D amplification circuit
Power supply and speaker channel connectors
Copper-plated chassis

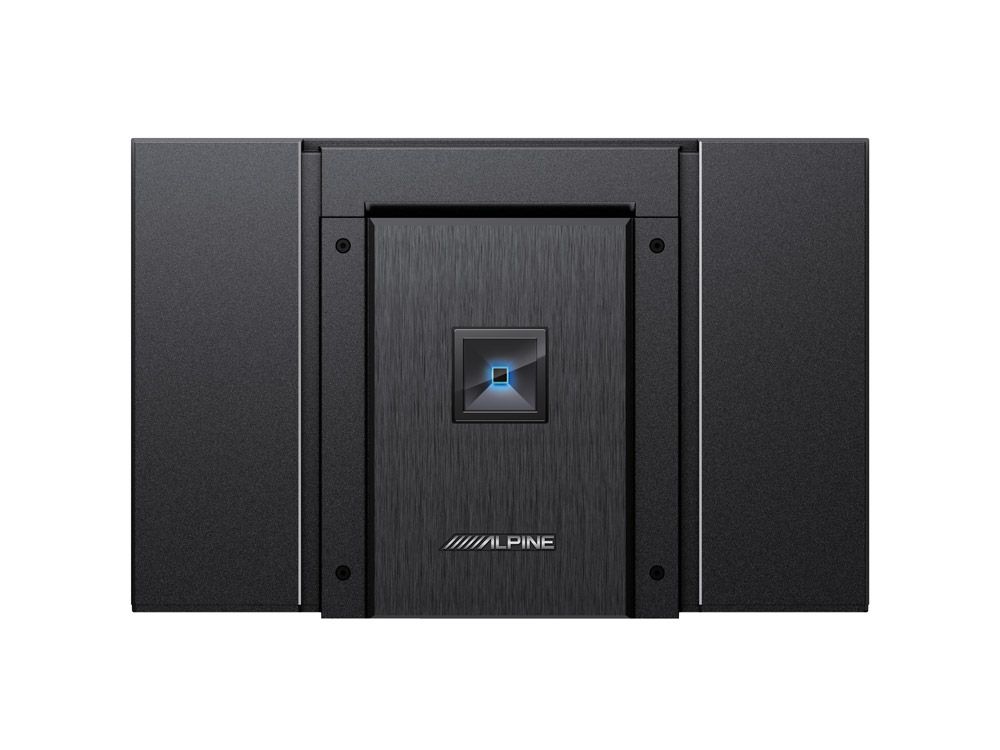

Top control panel (below top cover)
Black circuit board
Non-Shutdown design
Thermal Protection

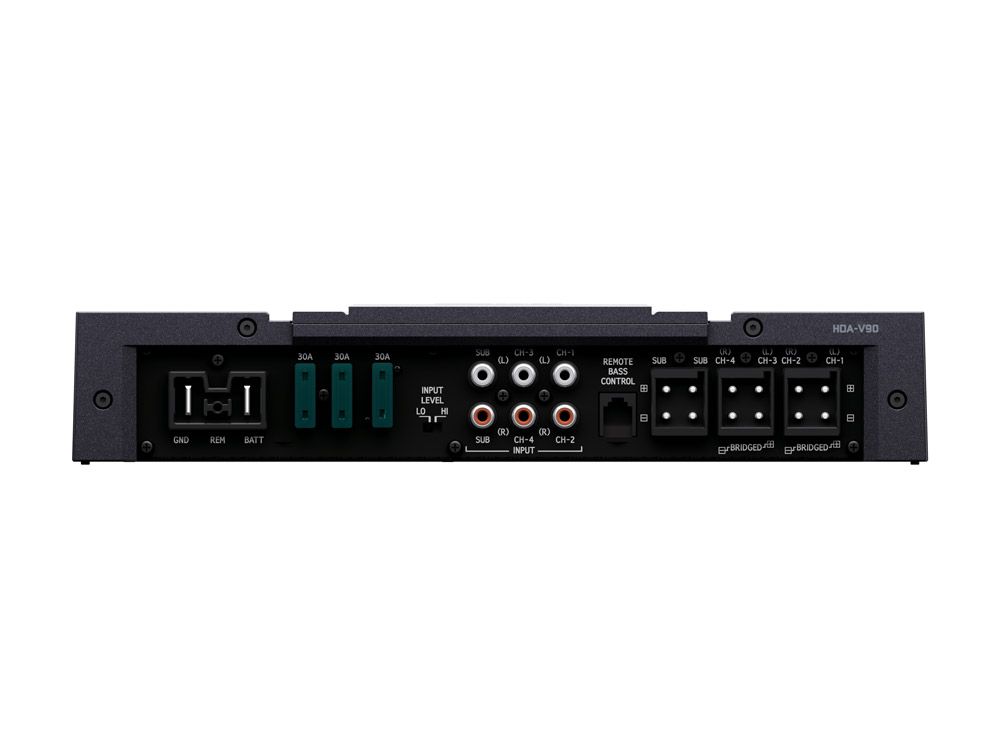

One-sided terminal
Blue power LED
Compatible with RUX-KNOB2 bass controller (for subwoofer channel)

SPECIFICATIONS

RMS Power Ratings

Per Channel into 2 Ohms, 14.4V: 4 x 100W + 1 x 500W
Per Channel into 4 Ohms, 14.4V: 4 x 75W + 1 x 300W
Bridged into 4 Ohms, 14.4V: 2 x 200W

Sound Tuning

Crossover: Variable HPF, 50-400Hz (-12dB/oct )
Crossover: Variable LPF: 50-400Hz (-24dB/oct )
Subsonic Filter (Subwoofer): 8-40 Hz (-24dB/oct)

General

Input Sensitivity (RCA Input): Hi: 0.5V – 10V / Low: 0.4V – 10V
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz – 30kHz
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-5: 8Hz – 300Hz
THD+N (@ 10W into 4 Ohms): ≤0.02%
Damping Factor: Channel 1/2/3/4: >500, Channel 5: >1000
Weight: 3.9kg

Dimensions:

Width 291 mm
Height 53.5 mm
Depth 189.5 mm
