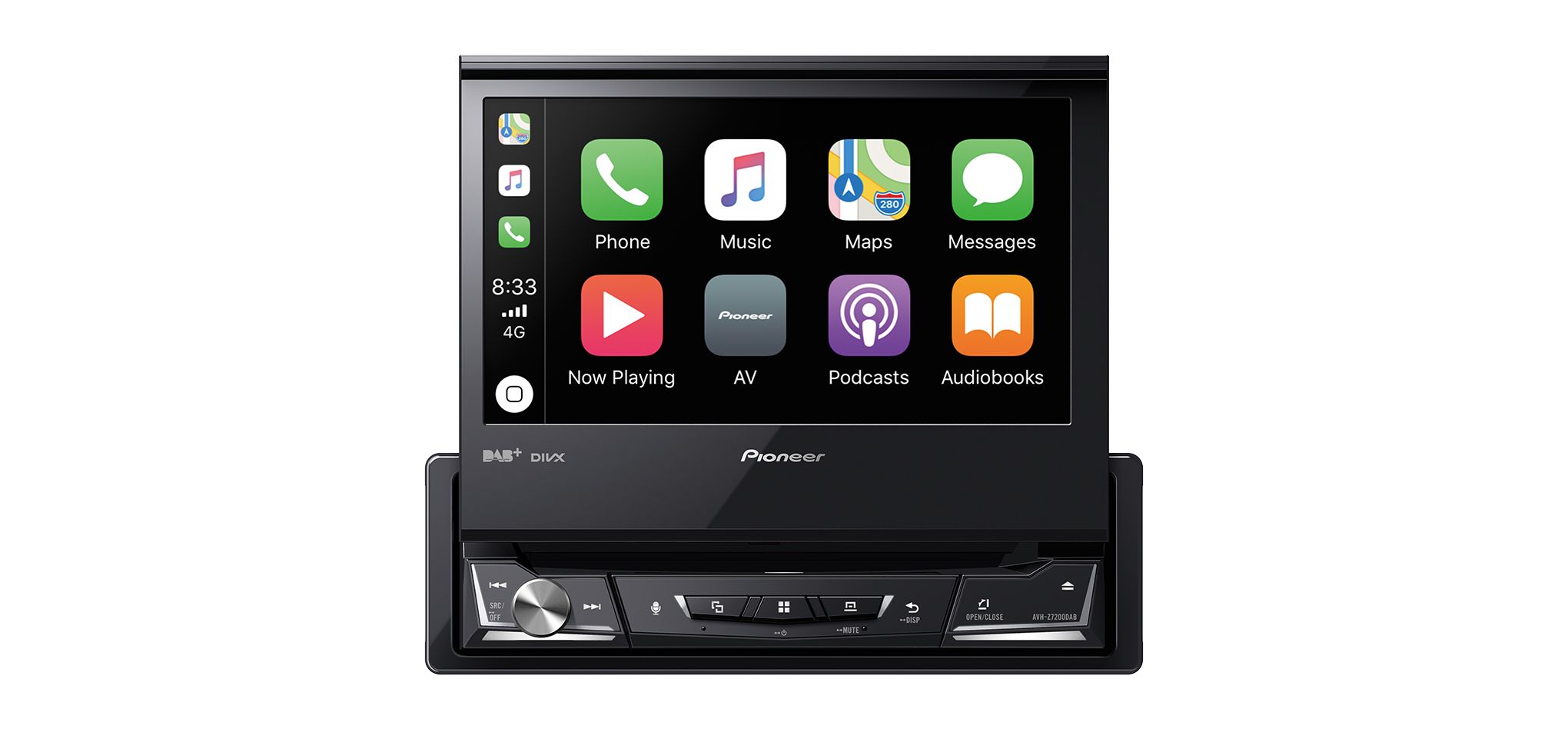

Pioneer AVH-Z7200DAB Car Multimedia Receiver
909,00 €
The Pioneer AVH-Z7200DAB is a car multimedia receiver for drivers who want a larger screen in a 1 DIN mounting space. Its fold-out 7-inch touchscreen controls the receiver and supported functions on a connected phone. Listening sources include DAB/DAB+ radio, CDs, DVDs and USB media. Bluetooth supports music streaming and hands-free calls, while the sound controls help you tailor playback to the car’s cabin.
Pioneer AVH-Z7200DAB is a 1 DIN car multimedia receiver for music, video and phone functions. Its 7-inch fold-out touchscreen gives you a larger area for on-screen controls when open. You can choose from digital radio, discs and USB media, or connect your phone for supported features.
Screen and dashboard space
The receiver fits a 1 DIN opening, but the open screen takes up more space in front of the dashboard. Before choosing this model, check whether air vents, buttons or other dashboard features could obstruct the screen as it opens. This matters especially when controls sit directly above the receiver opening.
The fold-out design provides a larger touchscreen without requiring a larger mounting opening. Think about the screen in its open position as well as the space needed to install the receiver. If you use phone apps every day, it is also worth checking whether you will be able to reach the open screen comfortably from your usual seat.
Connecting a phone
The receiver is designed to connect a compatible iPhone or Android phone with a single USB cable. That connection supports Apple CarPlay, Android Auto and WebLink functions. On this model, Waze is accessed through Apple CarPlay or Android Auto. It is not a separate navigation system built into the receiver.
These phone functions were specified for the model when it was released. Whether they work with a phone in use today depends on support from that phone’s operating system and the relevant apps. If navigation is your main reason for buying the receiver, consider the version of the phone you intend to connect. The presence of a USB connection alone does not guarantee that every app will work.
Radio and recorded media
DAB/DAB+ digital radio lets you listen to digitally broadcast stations where a signal is available. It is a listening source in its own right, so you do not need to connect a phone to use it. When travelling between areas, the stations available to you will depend on local broadcasts and reception.
The receiver also plays audio and video content from CDs, DVDs and USB media. Disc playback is useful if you have a physical collection, while USB media lets you select stored files without connecting a phone. No specific list of supported file formats is provided here, so the type of storage medium alone does not establish whether every recording on it will play.
Wireless connection and calls
Bluetooth is provided for streaming music and making hands-free calls. For music from your phone, it is an option when you do not need to control phone apps on the touchscreen. Apple CarPlay, Android Auto and WebLink are designed to use the wired USB connection. The supplied accessories for hands-free calling are not specified, so check the package contents if those accessories matter to your installation.
Adjusting the sound
The 13-band graphic equaliser lets you adjust individual frequency ranges. A familiar recording is a useful starting point: change one range at a time and listen to the result before making another adjustment. This makes it easier to judge which changes actually help in your car’s cabin.
Auto EQ provides automatic sound tuning, while time alignment lets you adjust the timing of the audio channels. Timing can matter in a car because the driver sits at different distances from the speakers. Listen from your normal seating position as you adjust the sound, and judge whether the channels come together naturally. These controls give you different ways to tailor the sound to the cabin and your listening preferences.
Technical specifications
| Model | Pioneer AVH-Z7200DAB |
|---|---|
| Device type | Car multimedia receiver |
| Mounting size | 1 DIN |
| Screen | 7-inch fold-out touchscreen |
| Phone connection | Compatible iPhone or Android phone via one USB cable |
| Phone functions | Apple CarPlay, Android Auto, WebLink |
| Navigation app access | Waze through Apple CarPlay or Android Auto |
| Radio | DAB/DAB+ digital radio |
| Recorded media | Audio and video content from CD, DVD and USB media |
| Wireless functions | Bluetooth music streaming and hands-free calling |
| Sound adjustment | 13-band graphic equaliser, Auto EQ, time alignment |
FAQ
Will this receiver fit my car’s dashboard?
It is designed for a 1 DIN mounting opening. You also need room for the screen to fold out in front of the dashboard. Check the space carefully if vents or controls are positioned above the opening.
Does Waze work without a connected phone?
Waze access on this model is through Apple CarPlay or Android Auto. It depends on a connected phone and support for the app; the receiver does not provide Waze as a separate built-in navigation system.
When should I use USB, and when should I use Bluetooth?
Use the USB connection for the supported phone functions controlled on the screen. Bluetooth is for music streaming or hands-free calls when you do not need those on-screen phone functions.
Can I listen to music without connecting a phone?
Yes. You can choose DAB/DAB+ radio, a CD, a DVD or USB media. The digital radio stations you can receive depend on the local signal.
What is the difference between Auto EQ and the 13-band graphic equaliser?
Auto EQ is for automatic sound tuning. Choose the 13-band graphic equaliser when you want to adjust individual frequency ranges yourself and listen to the effect of each change.
